Description

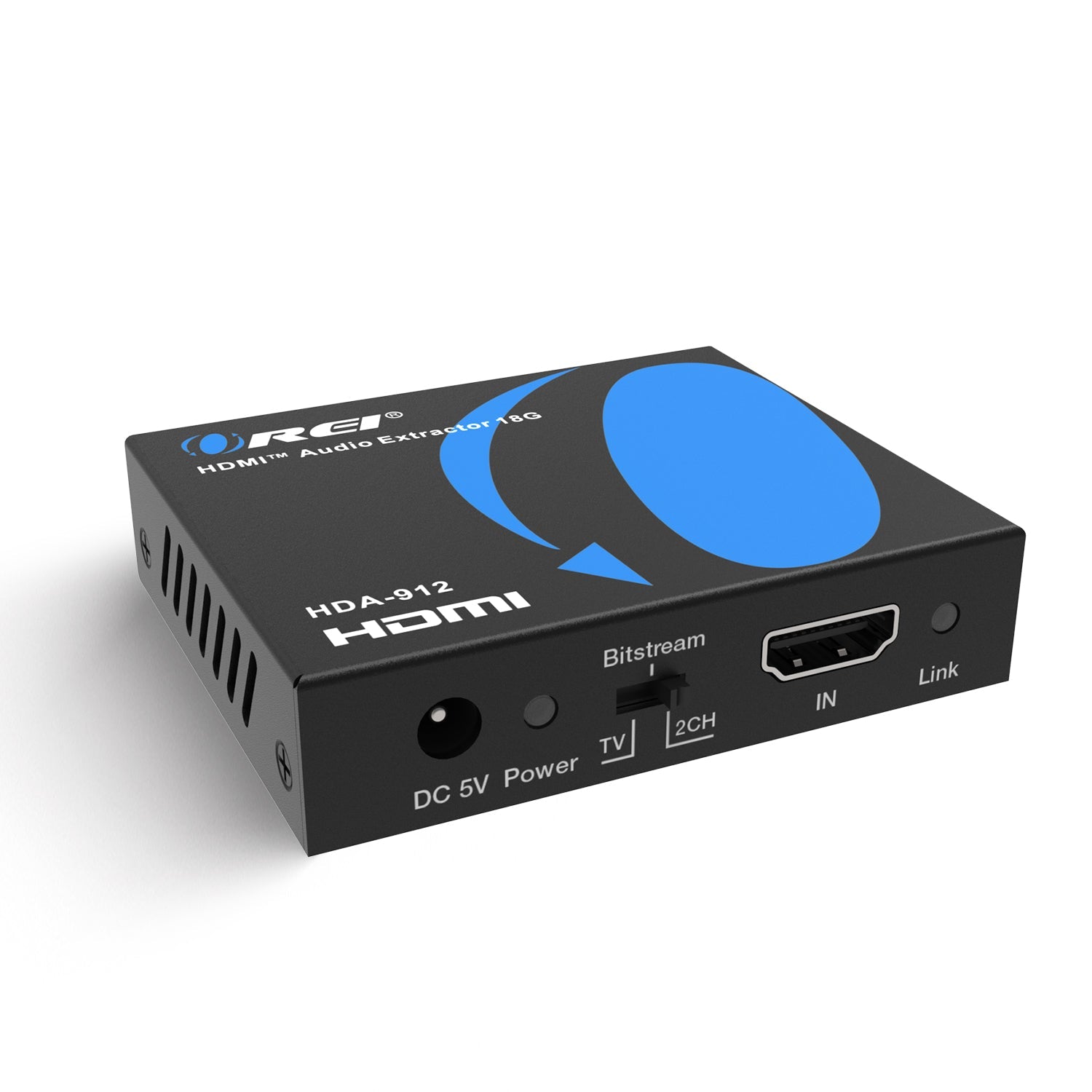

OREI HDA-912: HDMI Audio Extractor Converter
Key Features:
HDMI 2.0b & HDCP 2.2 Compliant.
18Gbps video Bandwidth.
Video resolution up to 4K@60hz 4:4:4 12bit.
10bit HDR pass-through for enhanced color quality
Digital and Analog audio output through Optical and Analog ports.
High bit rate HDMI audio pass-through
Audio sampling rates up to 192kHz
Compact and robust design

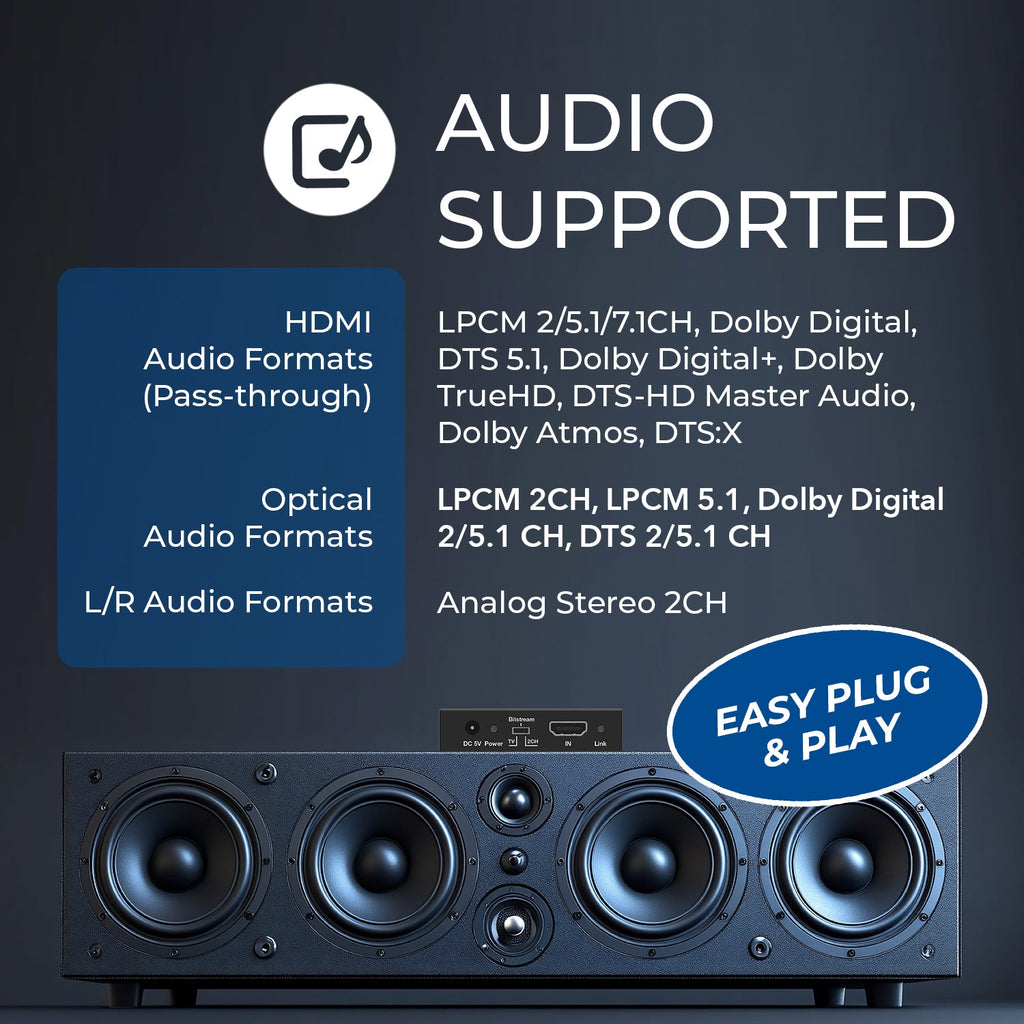

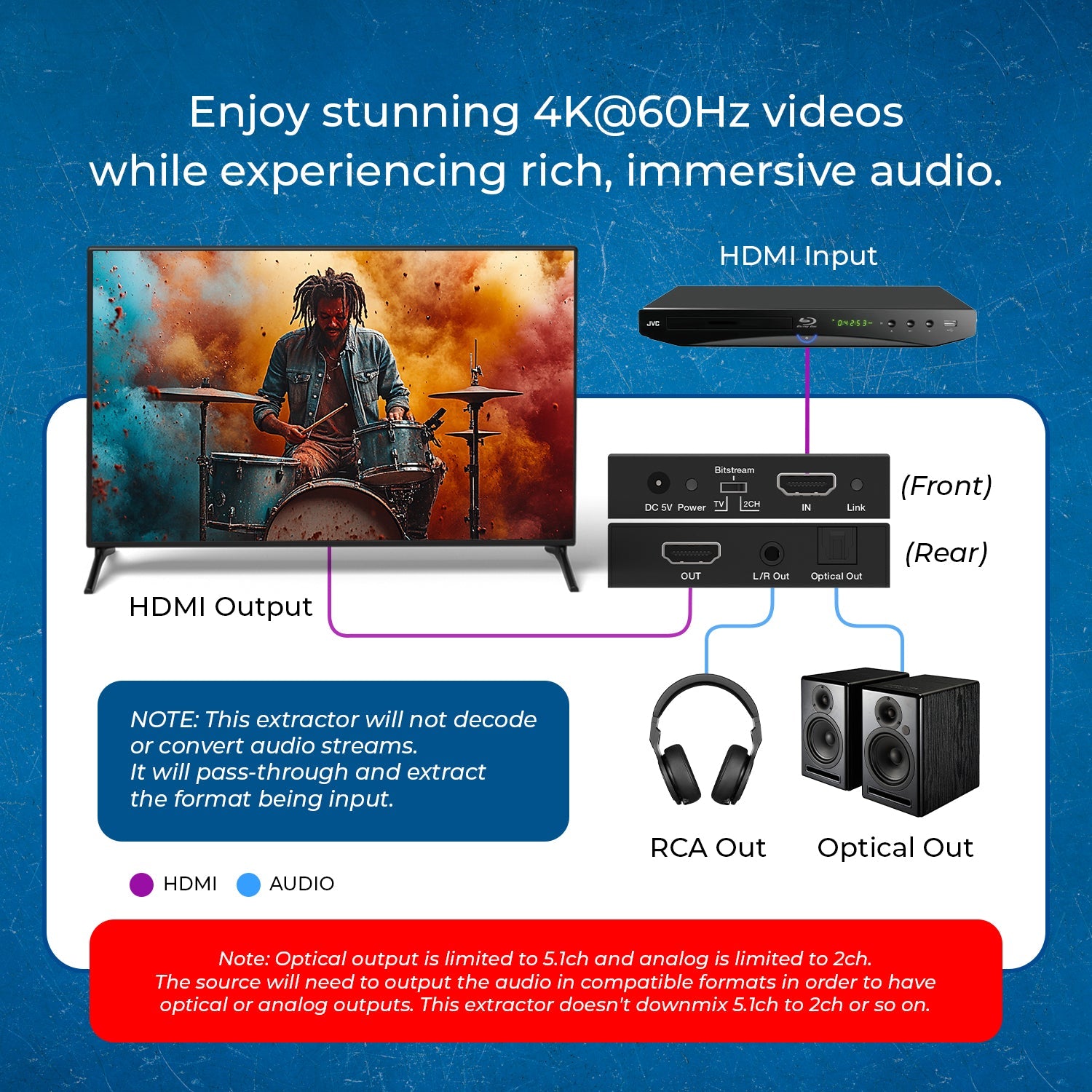

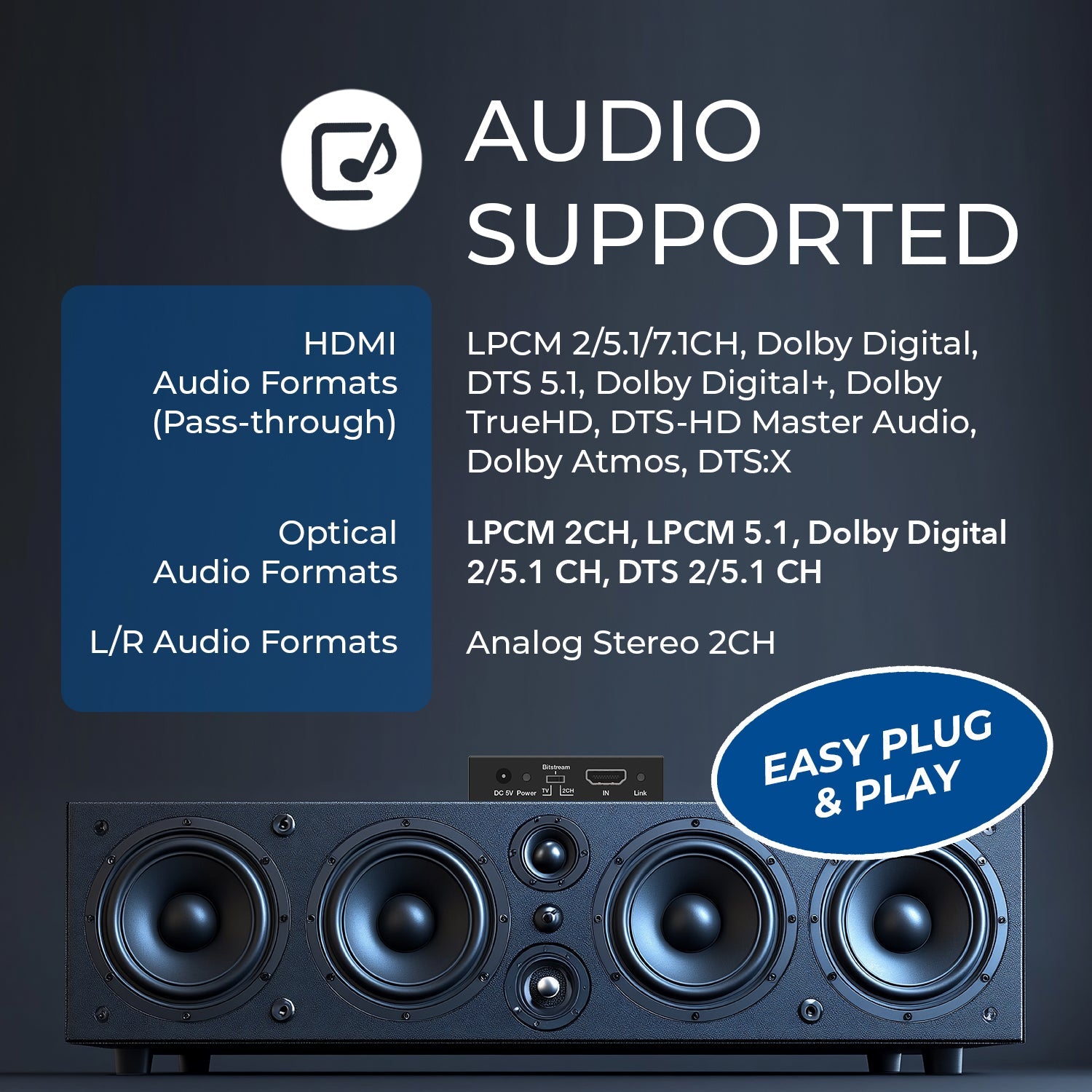

The HDA-912 is an HDMI audio extractor that extracts audio from any HDMI-compliant source, such as a media box or set-top box and provides digital and analog output via optical and L/R ports. This audio extractor supports pass-through for video resolutions up to 4K@60Hz 4:4:4. The optical port supports LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH audio formats, while the L/R port supports analog stereo 2CH audio format. It features 10-bit HDR pass-through and audio sampling rates up to 192kHz. Compact design, perfect for both commercial and personal setups.
[shortdes]
4K HDMI Audio Extractor With Optical and L/R Output
Resolutions up to 4K@60Hz 4:4:4
10 Bit HDR pass-through
[/shortdes]
[tab]

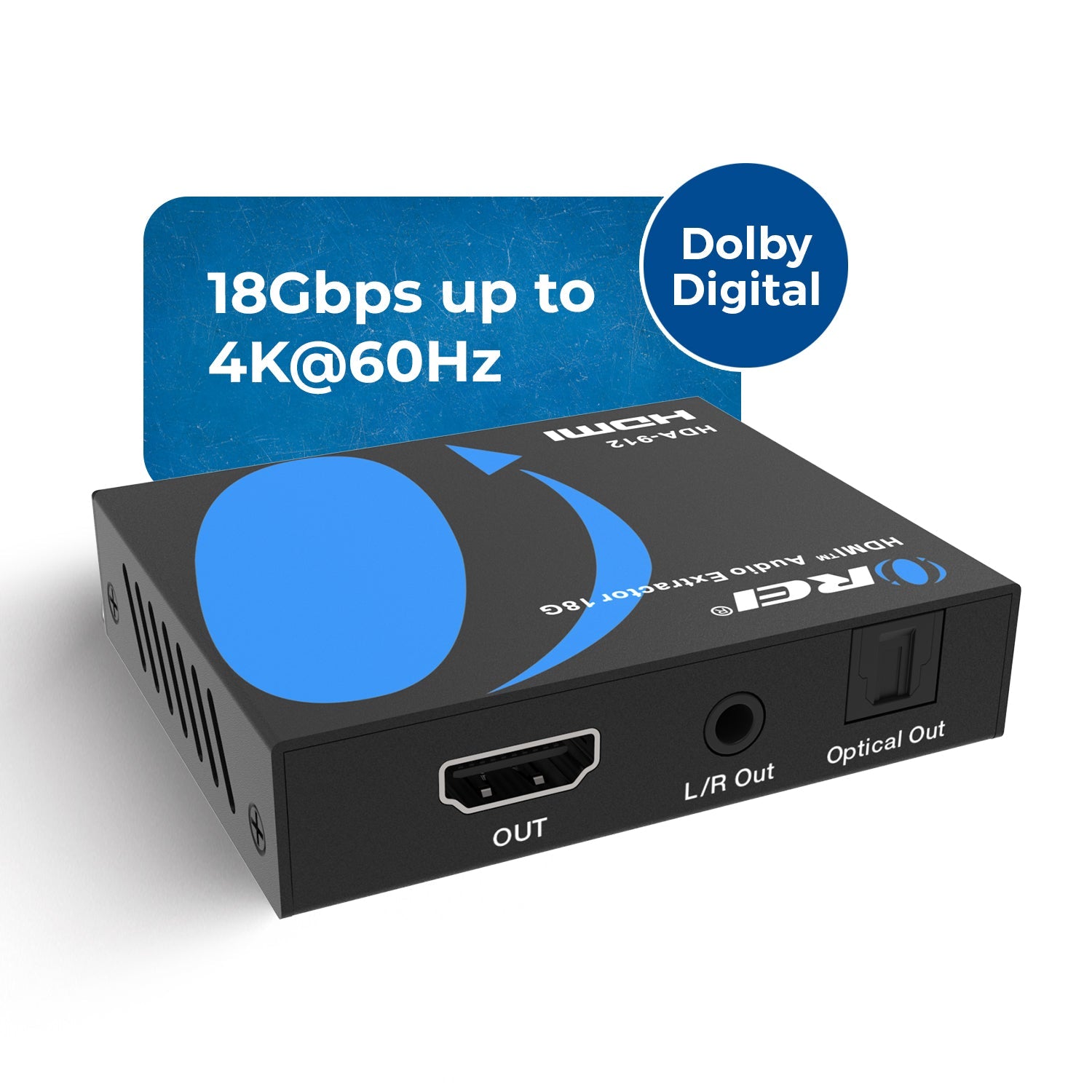

CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]

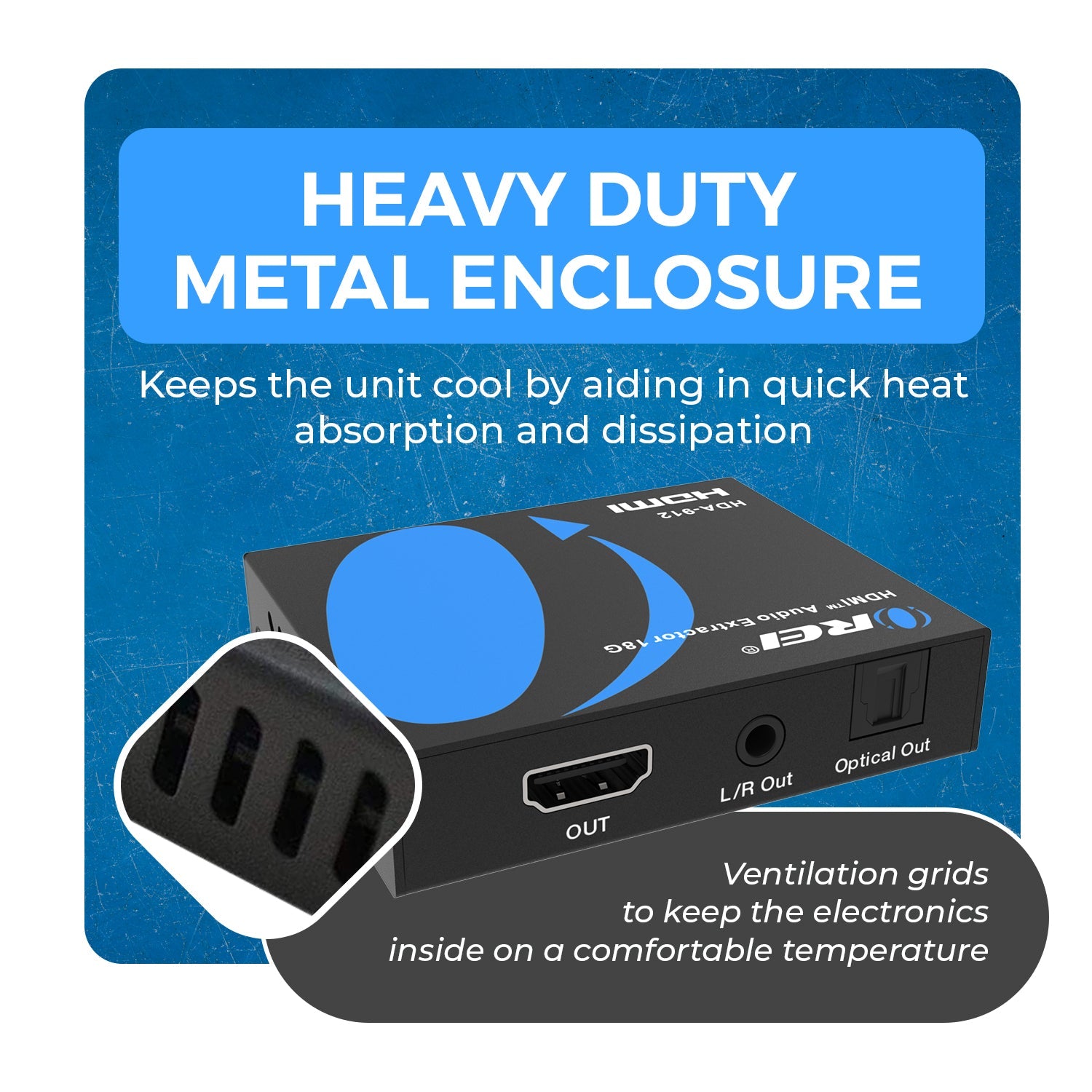

OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
1 × Optical [S/PDIF]

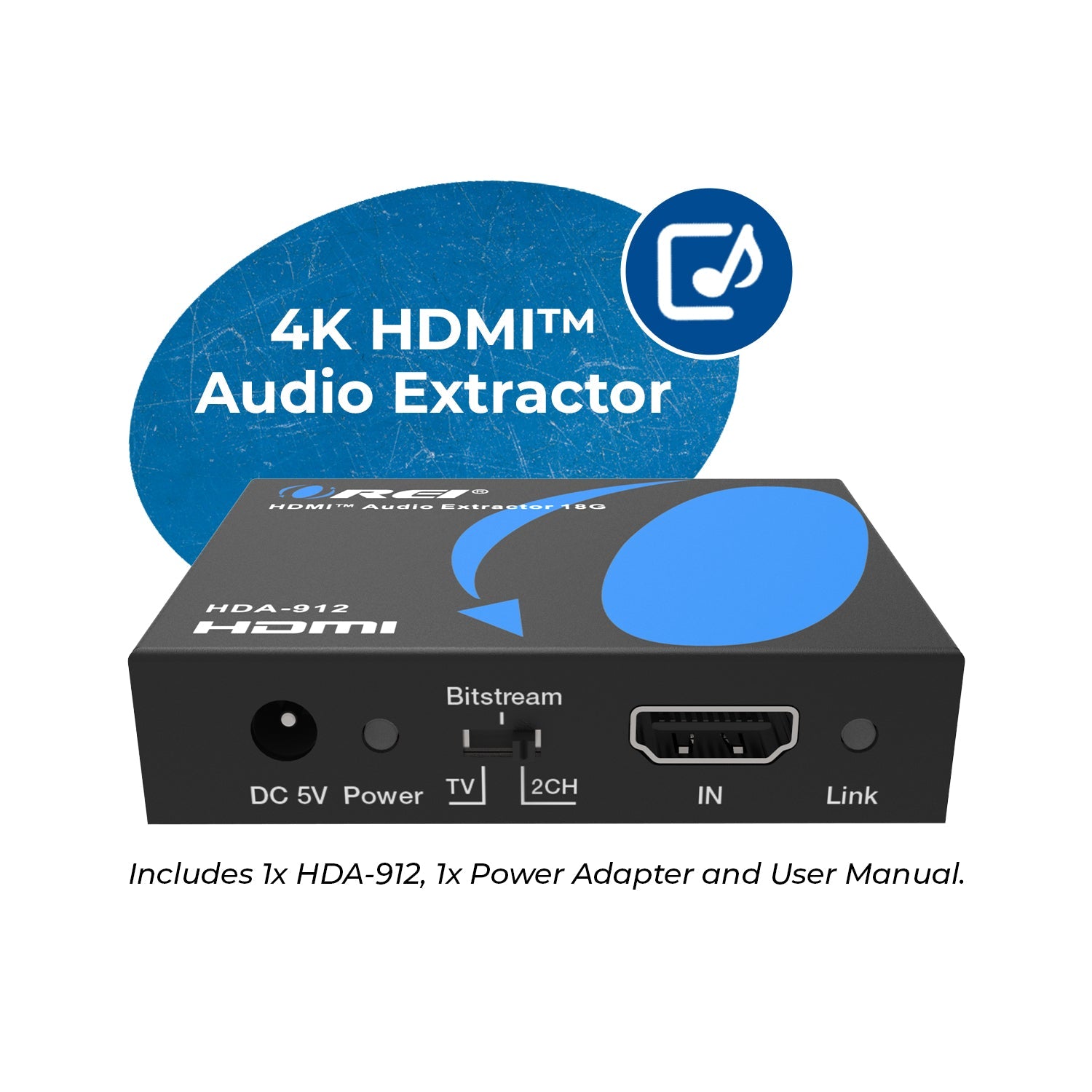

PACKAGE CONTENTS
1x HDA-912 Audio Extractor
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1:
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
