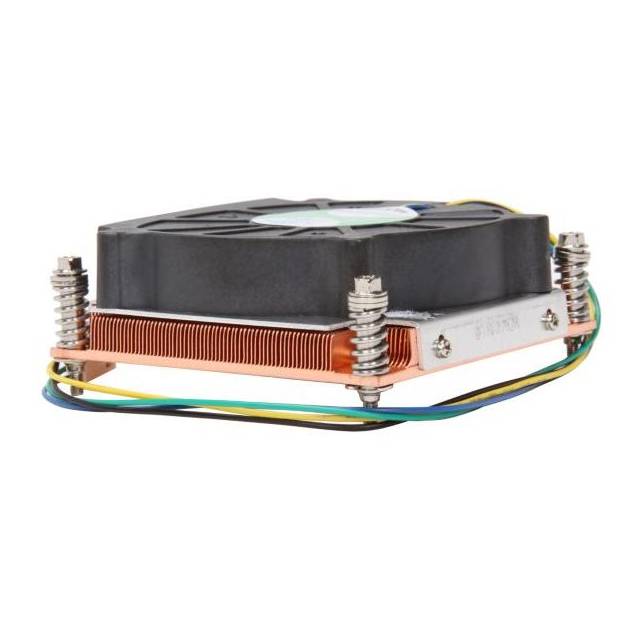

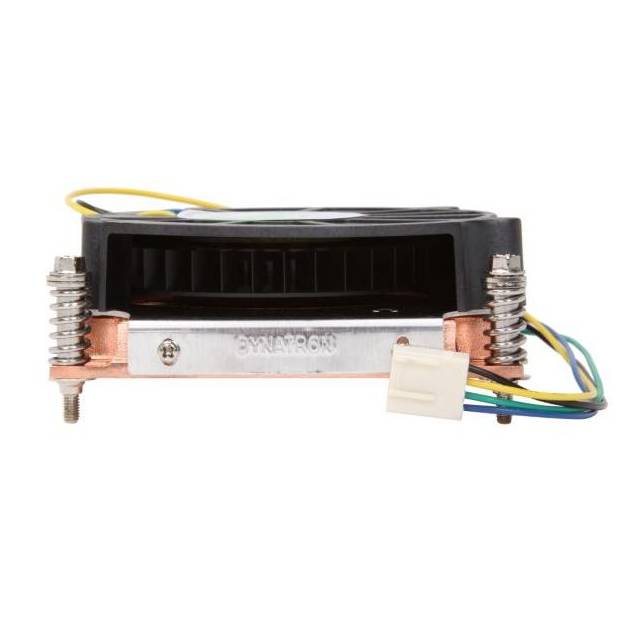

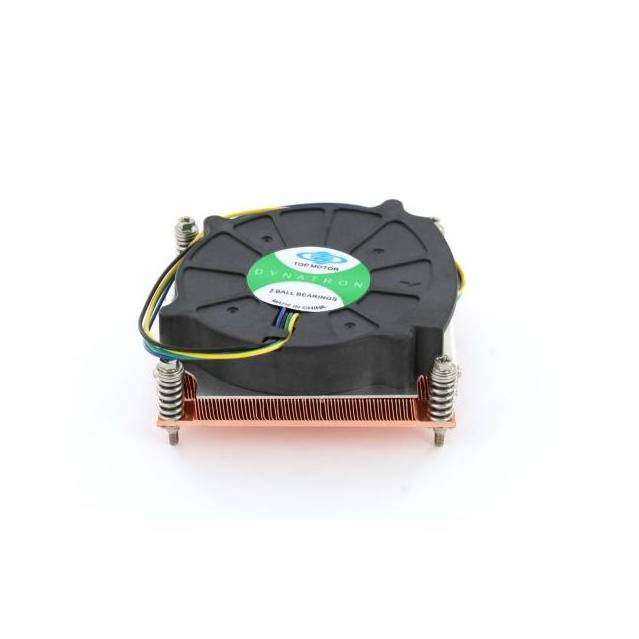

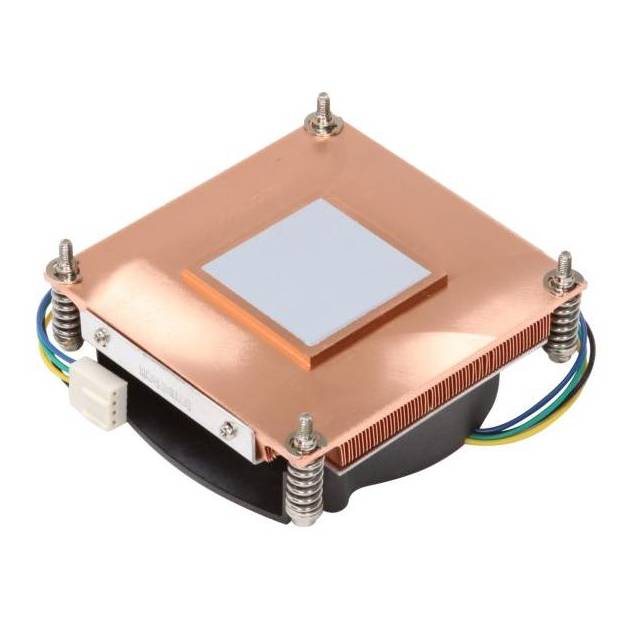

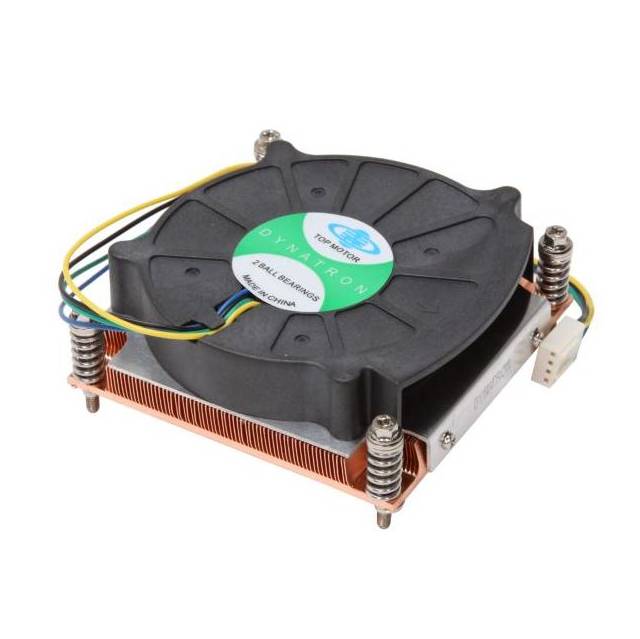

Name: Dynatron K199 1U Server Cpu Fan For Intel Xeon Lga1156 Cpu
Brand: Dynatron
SKU: K199
Price: 51.74 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Mfr Part Number: K199
CPU Application: Intel Socket 1156 1U Server Support Intel Core i3 530 / 540, Core i5 650/ 660/ 661/ 670/ 750; Xeon Processor 3400 Series; Core i7 870 / 860
Heat Sink Material: Copper
Fan:
- Speed:
  - At Duty Cycle 0-20%: 1000 rpm
  - At Duty Cycle 50%: 2500 rpm
  - At Duty Cycle 100%: 5000 rpm
- Bearing: 2x Ball
- Air Flow:
  - At Duty Cycle 0-20%: 5.355 cfm
  - At Duty Cycle 50%: 7.654 cfm
  - At Duty Cycle 100%: 14.719 cfm
- Noise Level:
  - At Duty Cycle 0-20%: 20.71 dBA
  - At Duty Cycle 50%: 37.5 dBA
  - At Duty Cycle 100%: 51.7 dBA
- Air Pressure:
  - At Duty Cycle 0-20%: 2.083 mm-H2O
  - At Duty Cycle 50%: 9.780 mm-H2O
  - At Duty Cycle 100%: 36.168 mm-H2O
- Rated Voltage: 12 V
- Power:
  - At Duty Cycle 0-20%: 0.60 W
  - At Duty Cycle 50%: 1.44 W
  - At Duty Cycle 100%: 9.60 W
- Lead Wire Pin Out:
  - Pin1-Black (-)
  - Pin2-Yellow (+)
  - Pin3-Green (Techometer/Signal output)
  - Pin4-Blue (PWM)
Fan Dimensions: 80x80x15 mm
Overall Dimensions: 85.0 x 81.5 x 28.5 mm
Weight: 355g 5g
RoHS Compliant

General Information

UPC	855700010022
