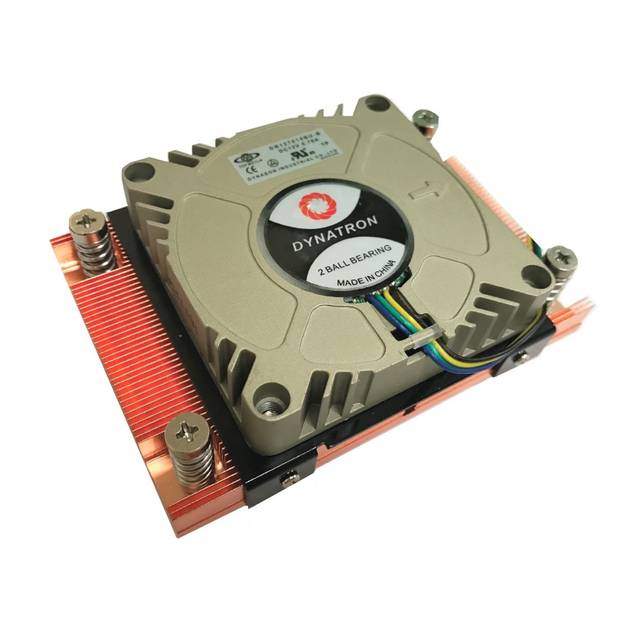

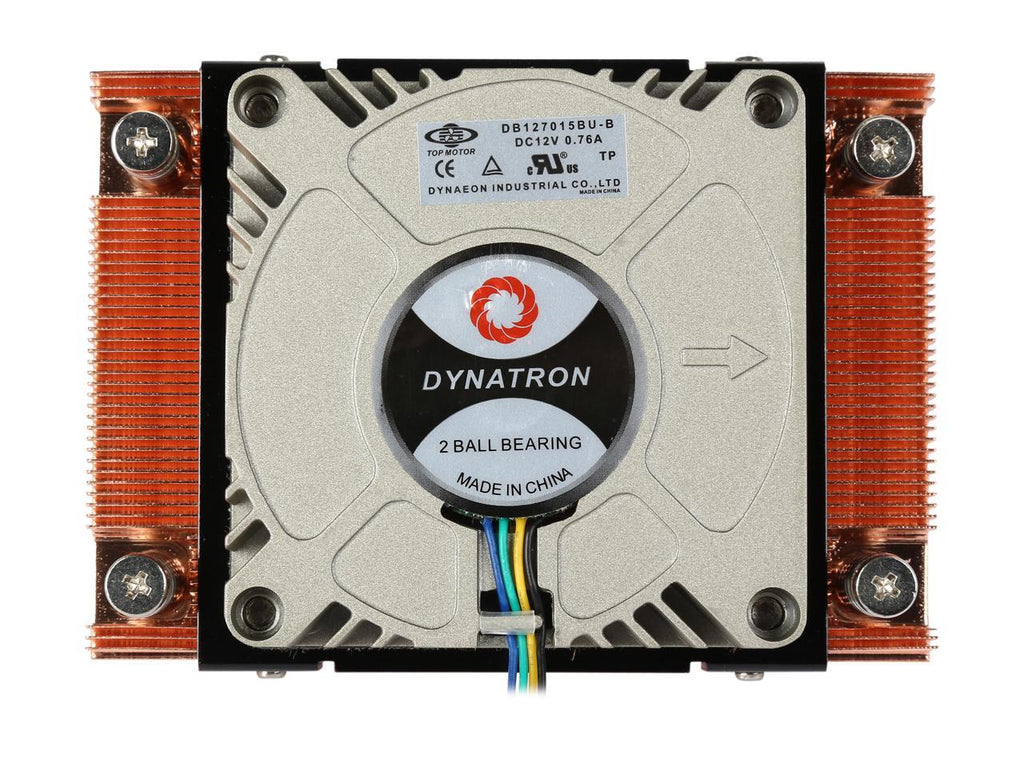

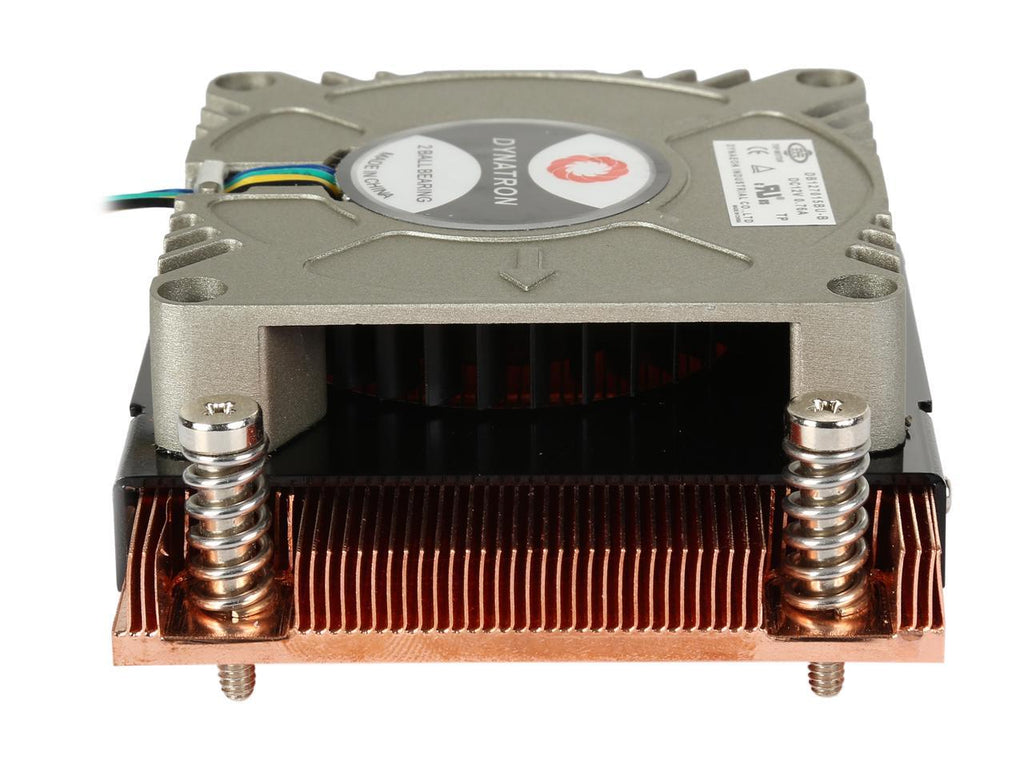

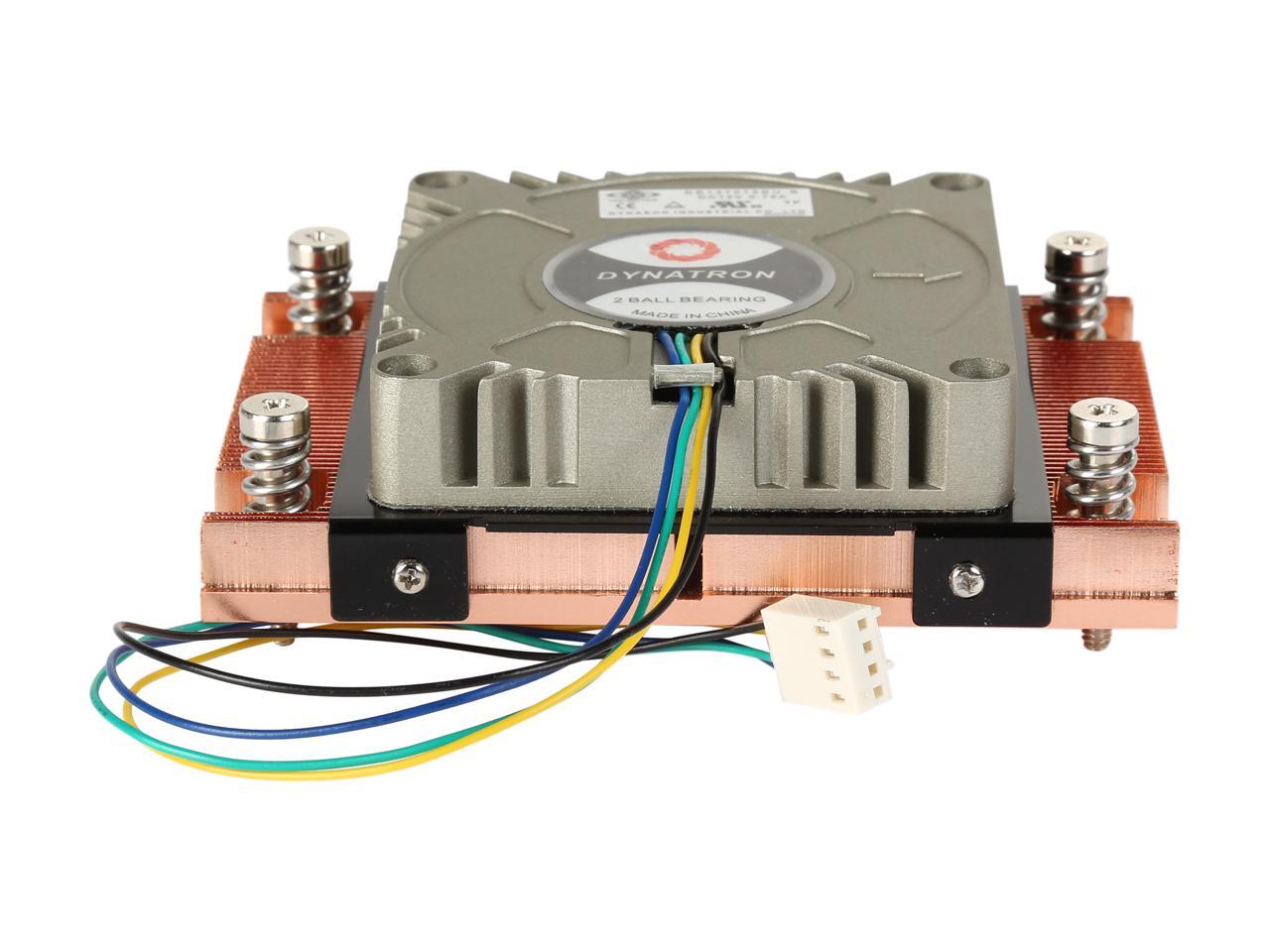

Name: Dynatron A18 1U Server Cpu Fan For Amd Socket Am4
Brand: Dynatron
SKU: A18
Price: 38.10 USD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Model
Brand	Dynatron
Model	A18

Details
Type	Fan & Heatsinks
Fan Size	70mm
CPU Socket Compatibility	AMD Socket AM4
Bearing Type	2 Ball
RPM	At Duty Cycle 20%: 1100 RPM +/- 200 RPM At Duty Cycle 50%: 2600 RPM +/- 10% RPM At Duty Cycle 100%: 6000 RPM +/- 10% RPM
Air Flow	At Duty Cycle 20%: 2.5 CFM At Duty Cycle 50%: 5.8 CFM At Duty Cycle 100%: 14.3 CFM
Noise Level	At Duty Cycle 20%: 19.1 dBA At Duty Cycle 50%: 34.2 dBA At Duty Cycle 100%: 53.8 dBA
Power Connector	Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM)
Heatsink Material	Copper
Fan Mounting Types to Heatsink	Horizontal

Features

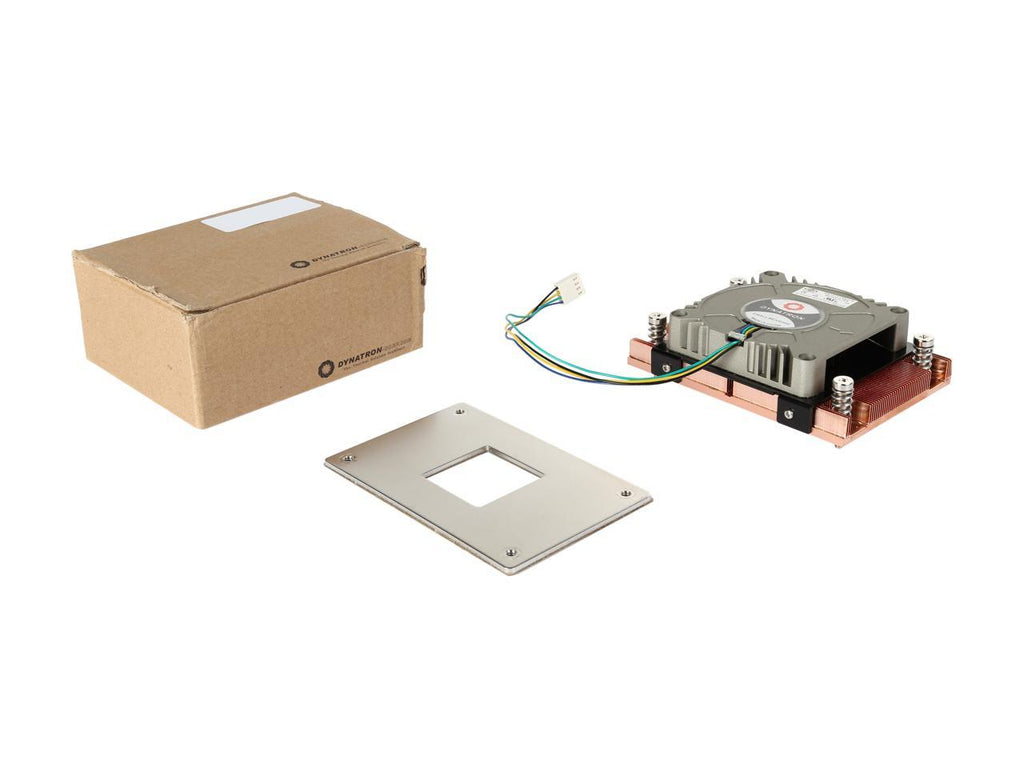

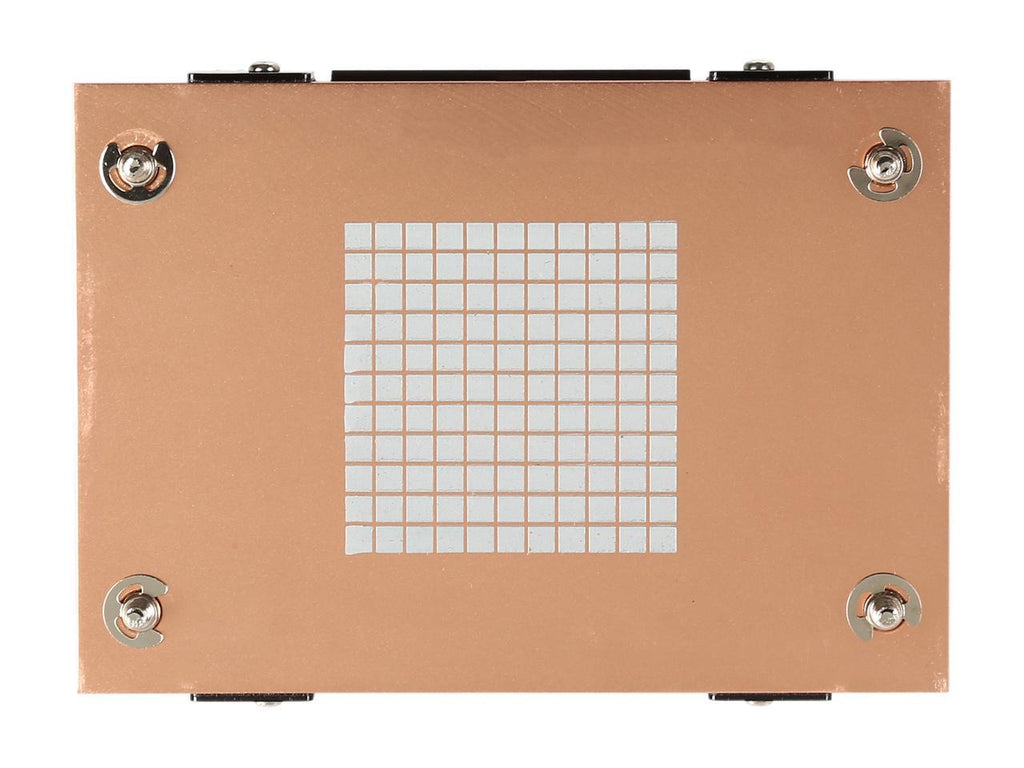

Features	Rated Voltage: 12V Material: Copper 1100 with Skived Fins Fin Direction Parallel to System Airflow Alloy Frame Blower with PWM Function Convenient Heat Sink Captive Mounting Shin-Etsu 7762 Thermal Grease Pre-Printed Backing Plate is included Support CPU Power up to 95Watts

Additional Information
Date First Available	July 31, 2017

General Information

Manufacturer	Tenda Technology Inc
Manufacturer Part Number	A18
Manufacturer Website Address	http://www.tendaus.com
Brand Name	Tenda
Product Model	A18

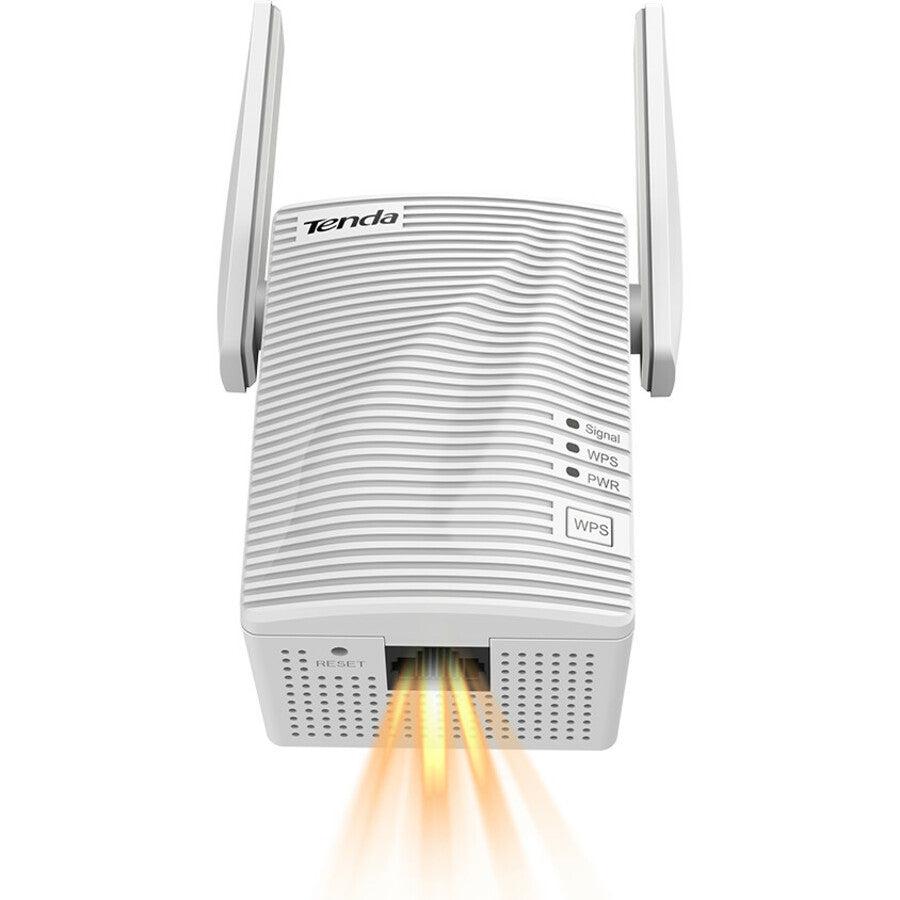

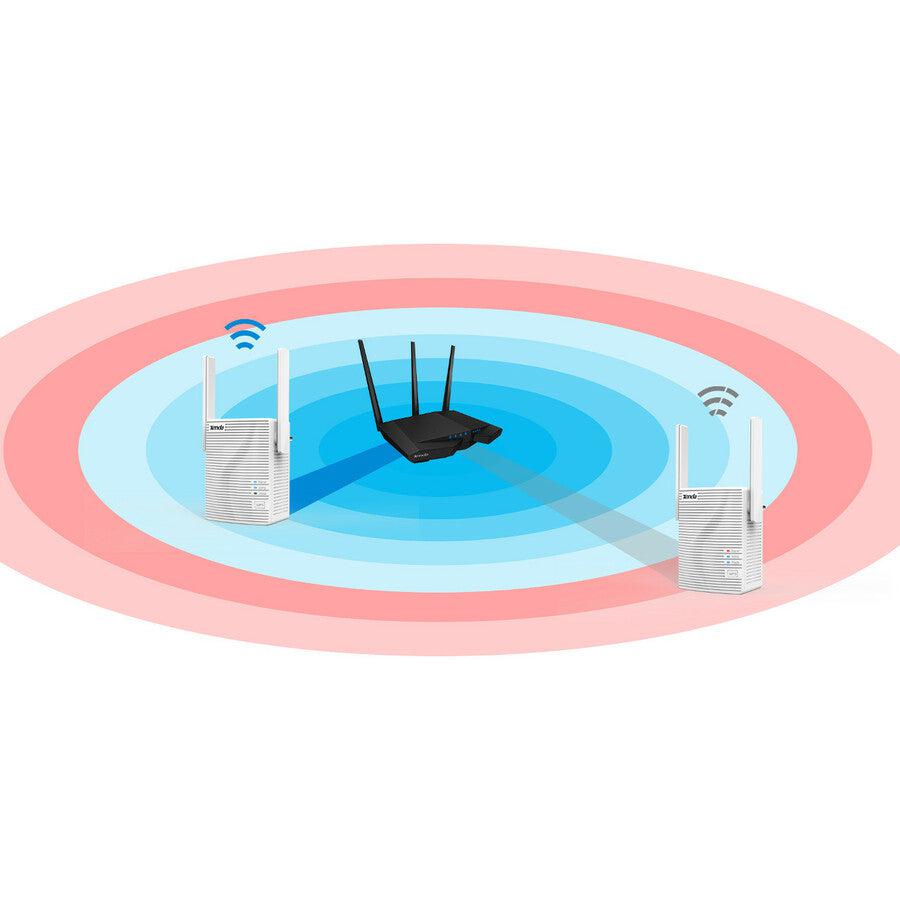

Product Name	Boost AC1200 WiFi For Whole Home
Product Type	Wireless Range Extender
UPC	855700001532

Network & Communication

Wireless LAN Standard	IEEE 802.11ac
Ethernet Technology	Fast Ethernet

Interfaces/Ports

HDMI	No
