Description

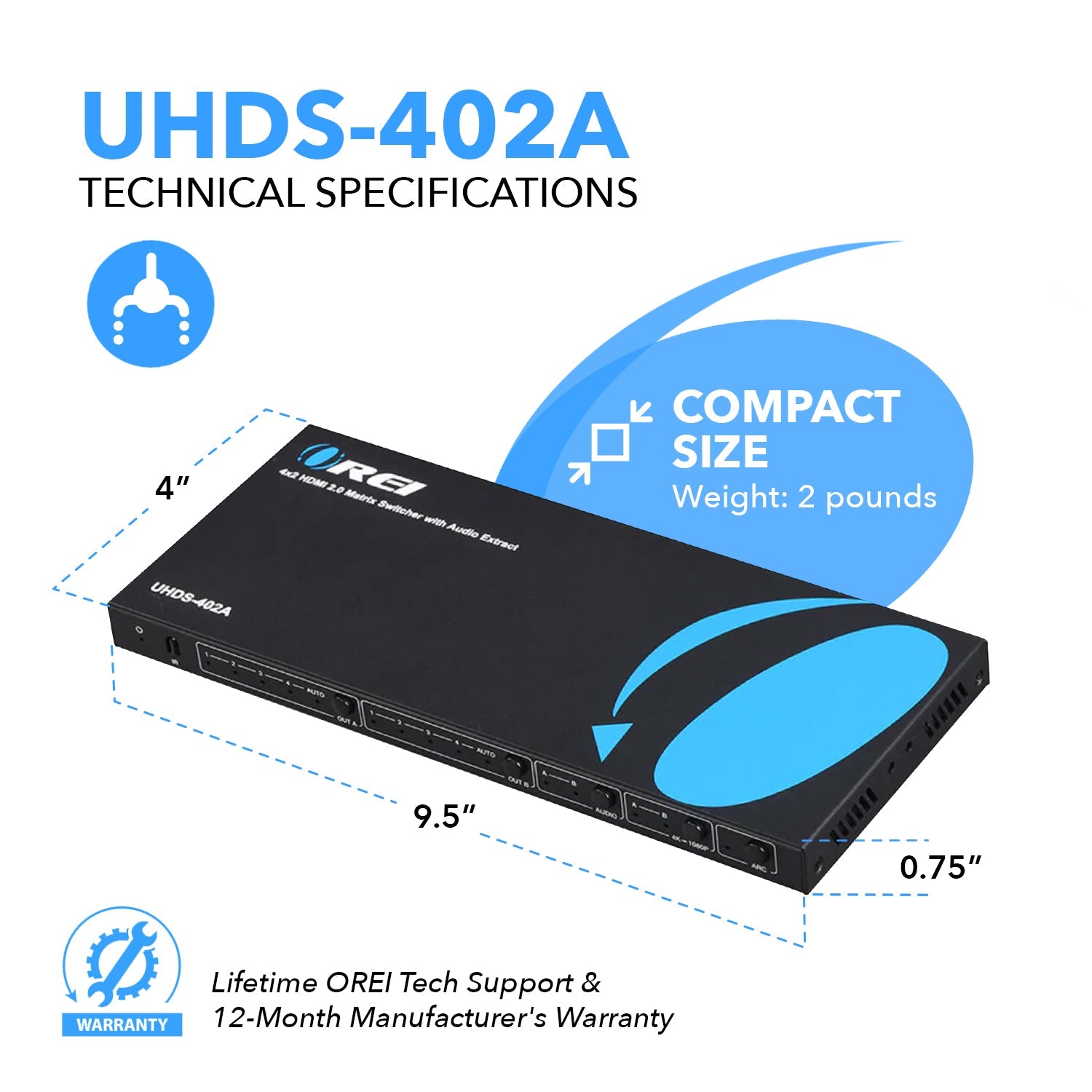

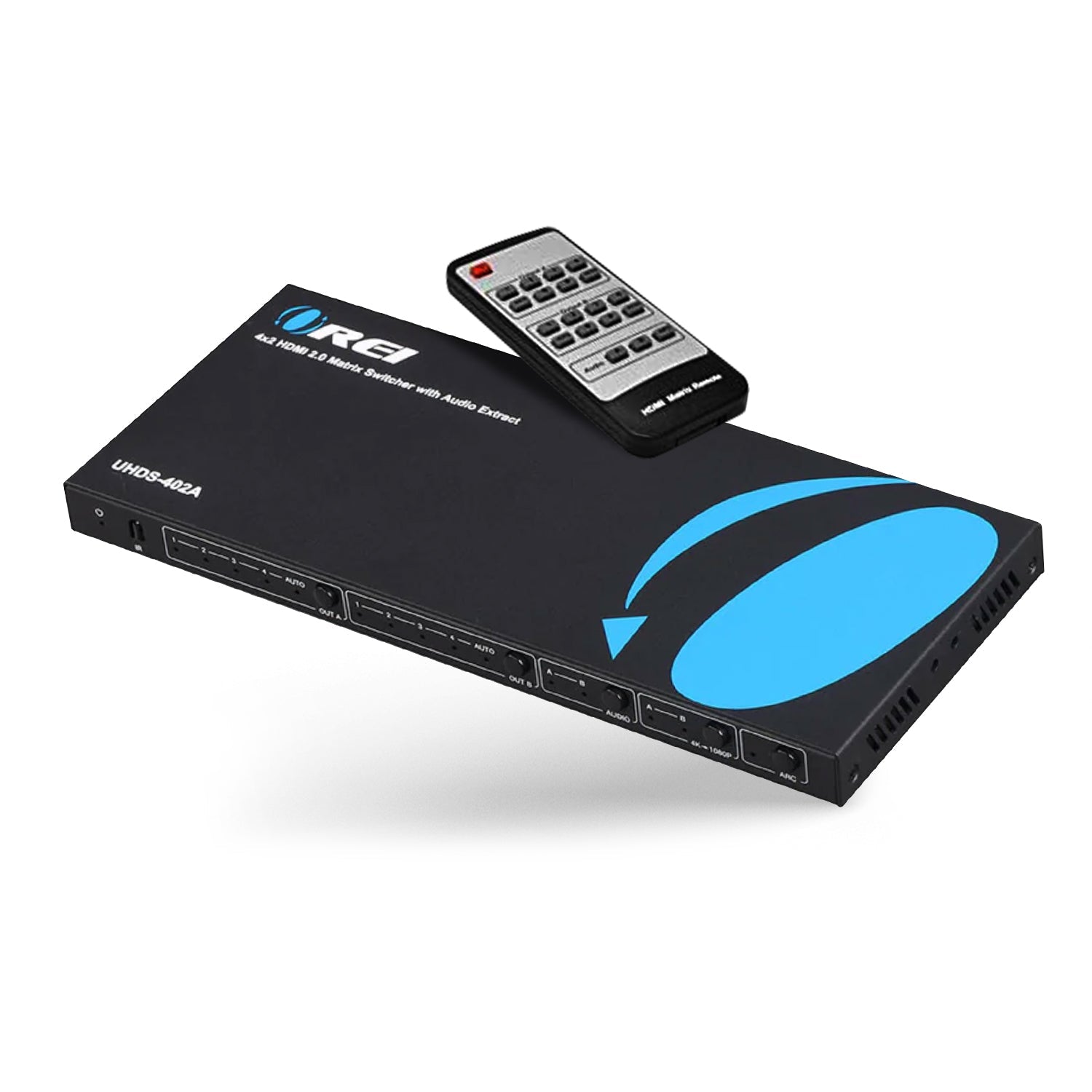

UHDS-402A: 4x2 HDMI 2.0 Matrix Switcher with Audio Extraction
Key Features:
HDMI 2.0, HDCP 2.2 compliant
Video resolutions up to 4K@60Hz
18Gbps video bandwidth
HDR10+ and Dolby Vision pass through
Audio Return Channel (ARC) support
Audio extraction through Optical and Analog aux
4K to 1080p downscale for both outputs
Robust body and plug-and-play setup

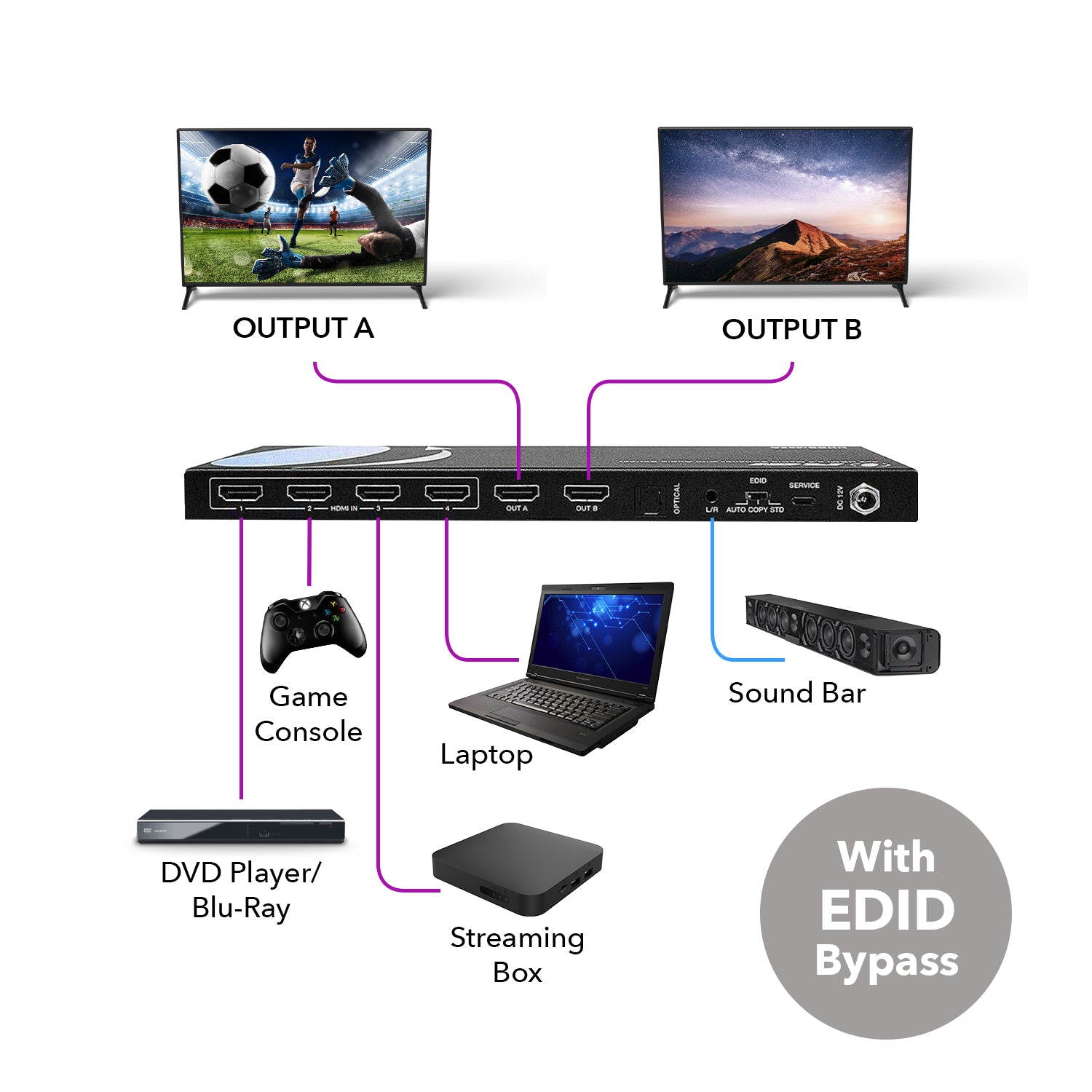

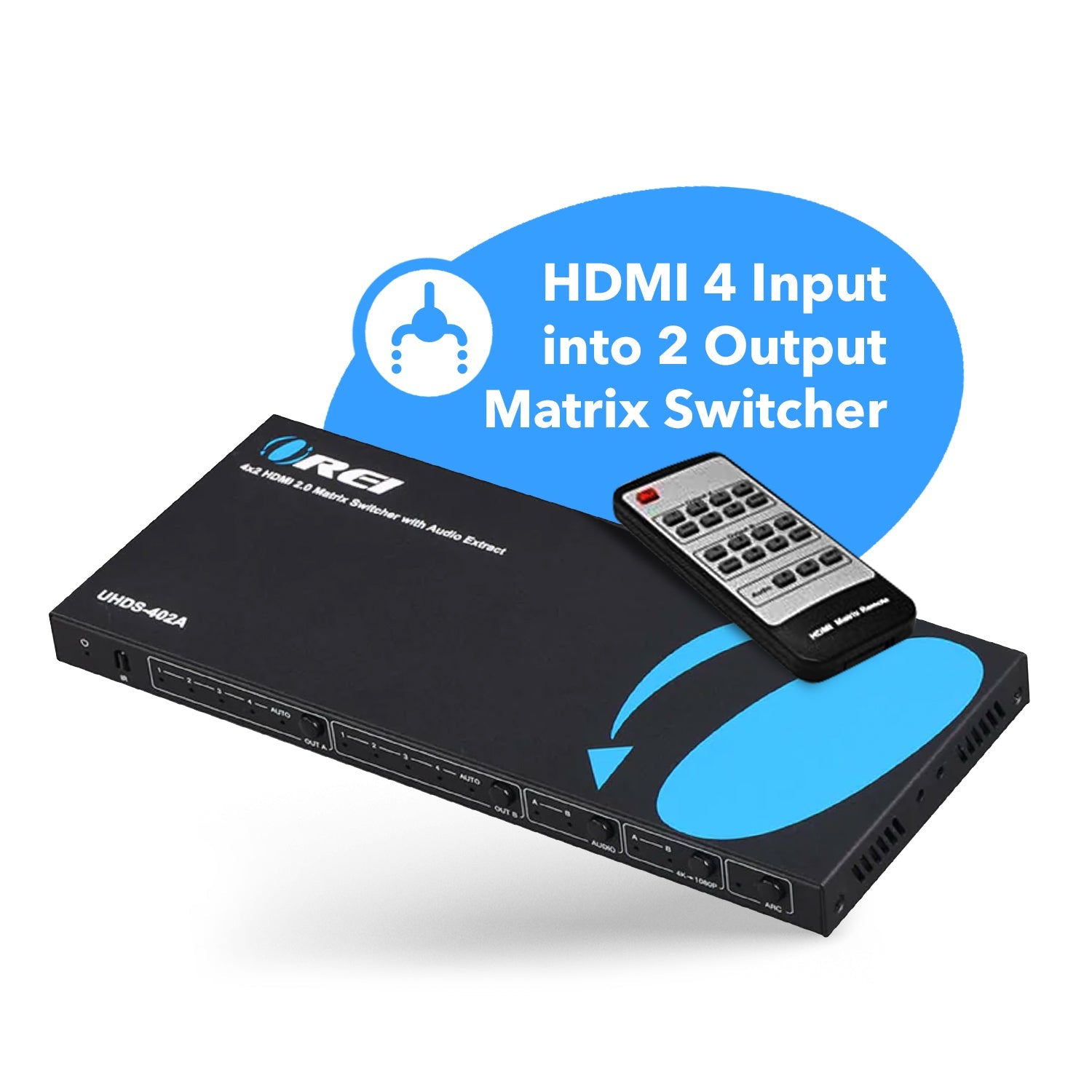

The UHDS-402A is a seamless matrix switch, allowing users to display any of the 4 inputs on any of the 2 outputs, with the capability of duplicating a source to both outputs. HDMI 2.0 and HDCP 2.2 compliant, providing an uncompressed 18 Gbps video bandwidth across all HDMI ports, supporting video resolutions of up to 4K@60Hz 4:4:4. With Dolby Vision, HDR 10+, and HLG passthrough, it ensures stunning visual quality. Its downscaling feature enables the downscaling of 4K output to 1080P resolution, for displays that don’t have 4K support. It can also extract audio from any of the 4 inputs to the Optical or Analog Aux. Additionally, it supports ARC and EDID with 3 modes. Whether you're conducting presentations, hosting video conferences, or delivering multimedia education, this device can be a perfect solution for your distribution needs.
[shortdes]
Audio extraction through Optical and Analog
Video resolutions up to 4K@60Hz
ARC support
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
4 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]
1 x OPTICAL [S/PDIF, female]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x UHDS-402A

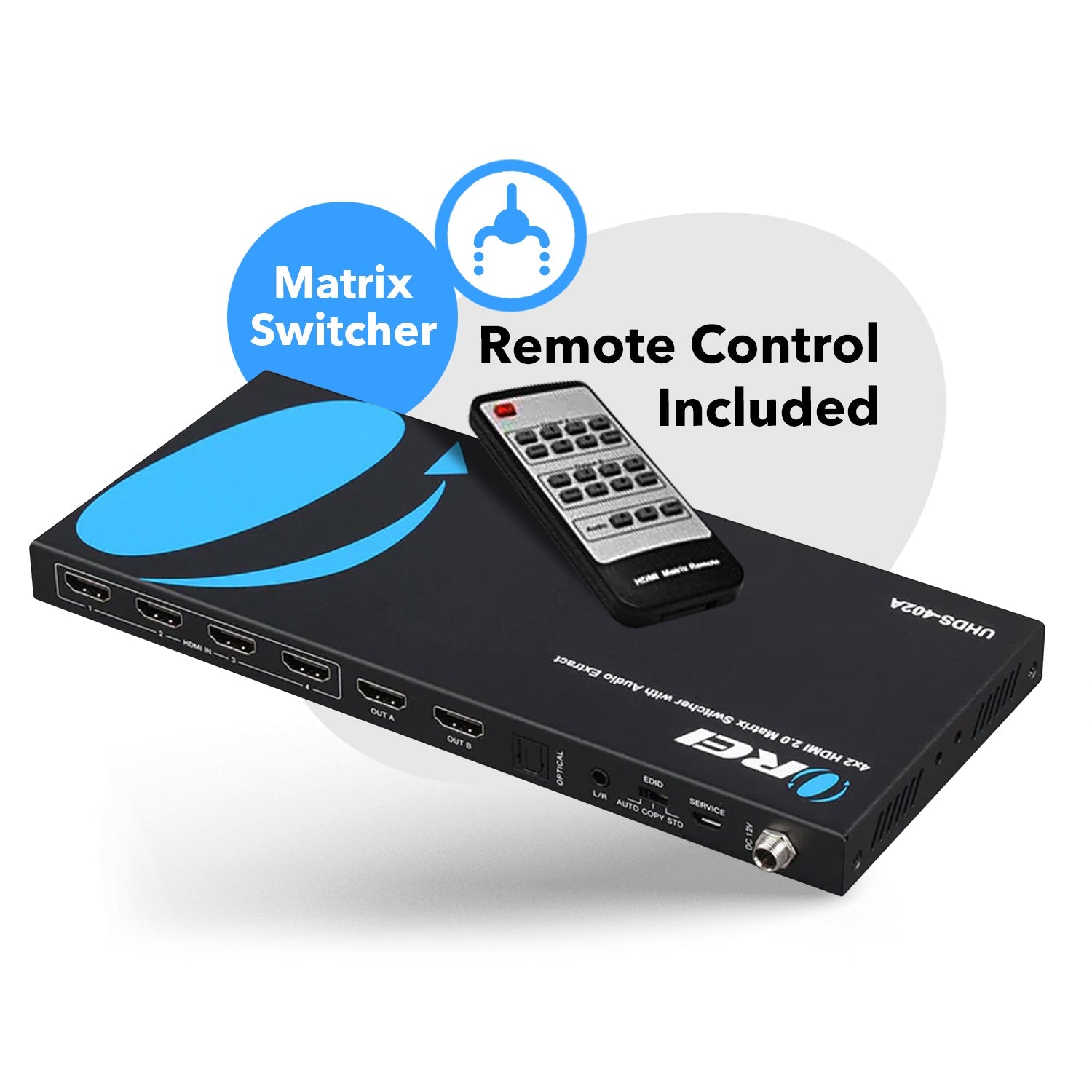

1x Remote
2x Mounting ears
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0 / 2.1
We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance
