Black Box Secure KVM Switch, NIAP 3.0, DVI-I Multiviewer
Security Highlights:
Each port uses its own isolated data channel to ensure that data is not leaked between secure ports and outside world.
Mechanical, electrical, and optical isolation to prevent hacking and data leaks in environments where security is critical.
Protected firmware keeps intruders from re-programming or reading the firmware.
Keyboard/internal cache wiping.
Chassis intrusion protection.
Equipped with internal anti-tamper switches and Tamper-evident seals.
NIAP PP3.0 certified Secure KVM Switches from Black Box offer a secure desktop access solution to safeguard against cyber intrusion for government/military agencies, finance, healthcare, traffic control and educational facilities alike. The Black Box NIAP PP3.0 certified Secure KVM Switches provide ultra-secure switching between up to 16 standard personal/portable computers, servers or thin clients running operating systems such as Windows or Linux from an ergonomic workspace.
Broad Secure KVM Switch portfolio for every application and every industry
The NIAP 3.0 Secure KVM Switch range from Black Box is one of the widest in the industry. Different applications and industry have differing requirements of centralized computer access. This portfolio has a suitable solution for every configuration:
- KVM Switches with 2-,4, 8- or 16- computer ports
- 4K digital and analogue video options featuring consoles with up to four monitors
- Single User or Matrix Switches for up to four users
- KM switches with dedicated computer-monitor connections and mouse switching
- 4-Port Multiviewer KVM Switch featuring a full screen and a 4-in-1 windowing display
- Single-Port KVM Protector
Secure KVM Switch for a single user console with 4-in-1 DVI-I multiview display The Secure KVM Switch -featured on this page- supports one user console with DVI-, HDMI- or VGA- monitor, USB keyboard and mouse, audio from the connected computer and optional CAC-support.

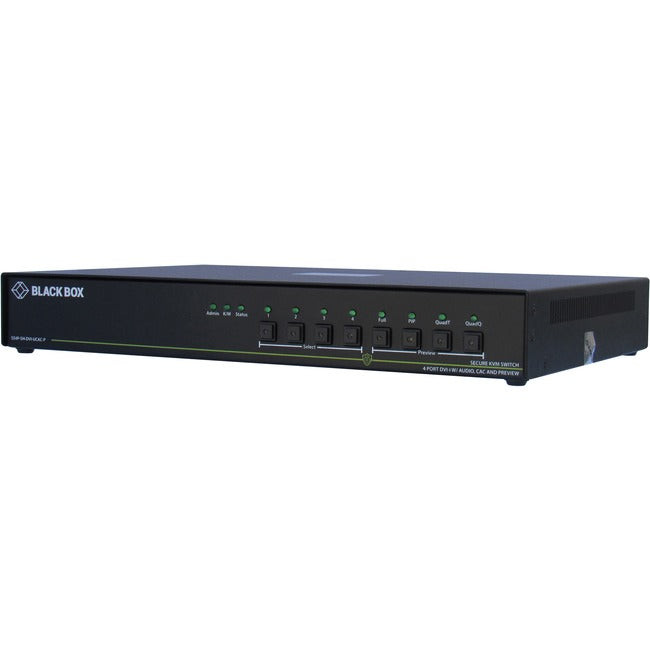

This 4-port KVM switch supports 4-in-1 multiviewing of four secure sources on a single display. Choose from different display modes. It also features tactile front-panel buttons with LED indicators to change the active computer connection in simple and safe way while eliminating the need for unsecure hotkeys.
Why secure KVM
Connecting peripherals such as keyboard, mouse and speakers to a PC introduces potential data leakage and hacking risks. There are no filters nor is there data detection and protection features between the PC and peripherals using traditional KVM Switches.
Tested and certified to the latest NIAP PP3.0 security profile
Secure KVM Switches are designed for use in secure defense and intelligence applications where sensitive data must be protected. The Secure KVM Switches from Black Box are NIAP PP 3.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals that eliminates any potential cyber threat.
- Tested and certified to NIAP Protection Profile version 3.0
- DVI video up to 2560x1600 at 60Hz (Dual-Link), VGA (via adapter), USB HID, and stereo audio
- Equipped with anti-tampering protection such as tamper evident hologram seals, chassis intrusion, fixed firmware and automatic keyboard data clearing
- Absolute secure and isolation between data paths
- Secure EDID learning and emulation
- Non-reprogrammable ROM
- Advanced and fully configurable CAC port
- Supports balanced speaker outputs and switching
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: SS4P-SH-DVI-UCAC-P
Product Name: Secure KVM Switch, NIAP 3.0, DVI-I Multiviewer
Manufacturer Part Number: SS4P-SH-DVI-UCAC-P
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:
- Secure KVM Switch, NIAP 3.0, DVI-I Multiviewer
- 1 x External power supply 12VDC/3A
- 1 x Quick Start Guide
Limited Warranty: 3 Year
