Description

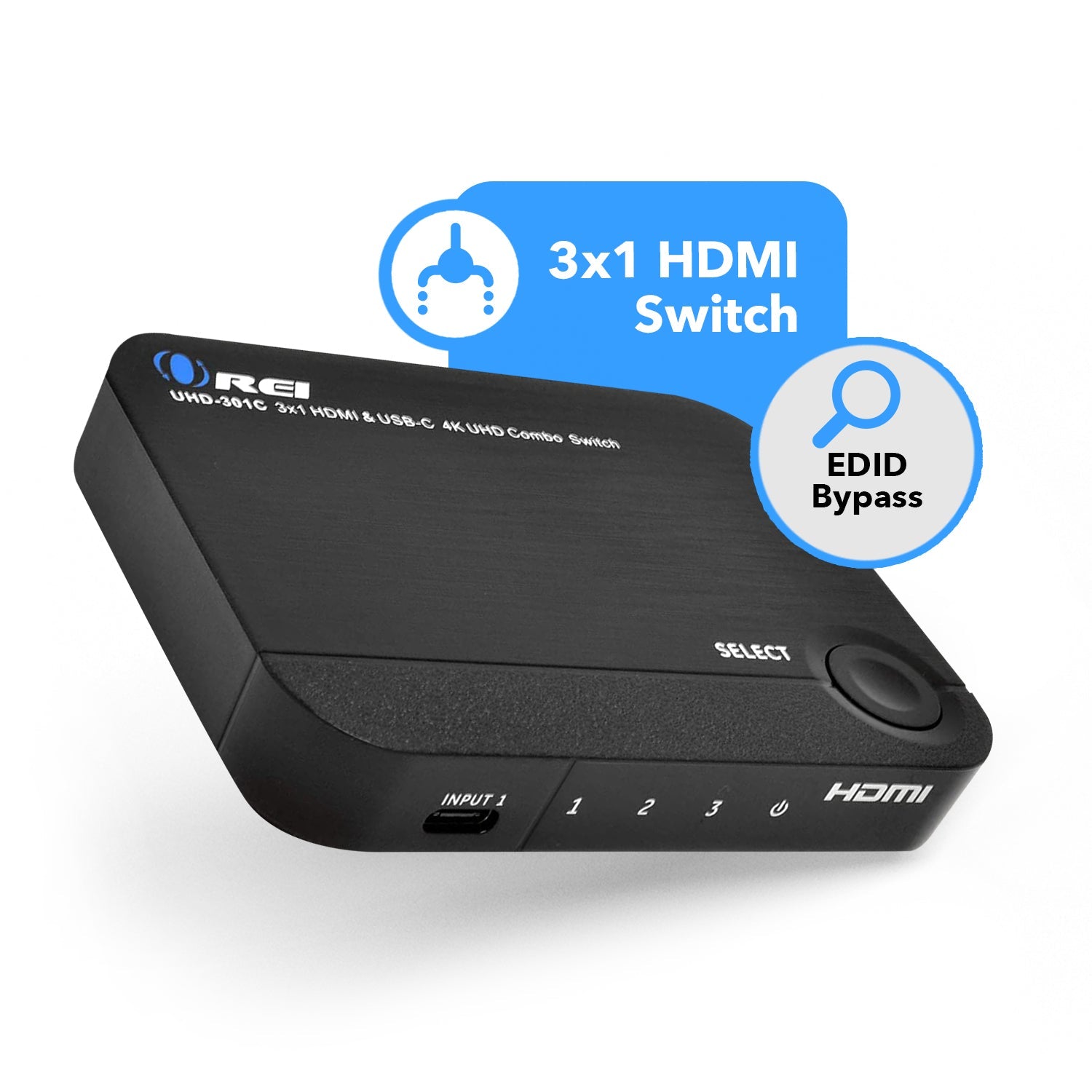

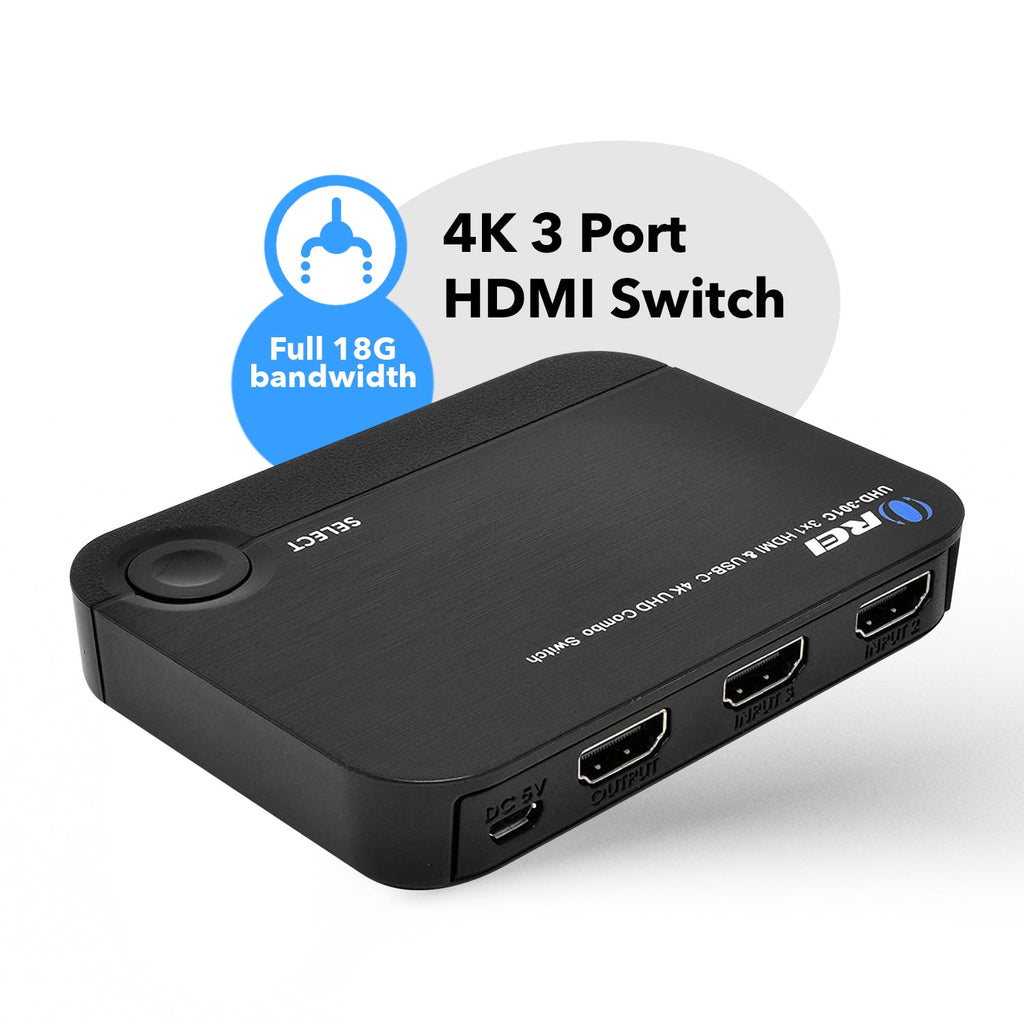

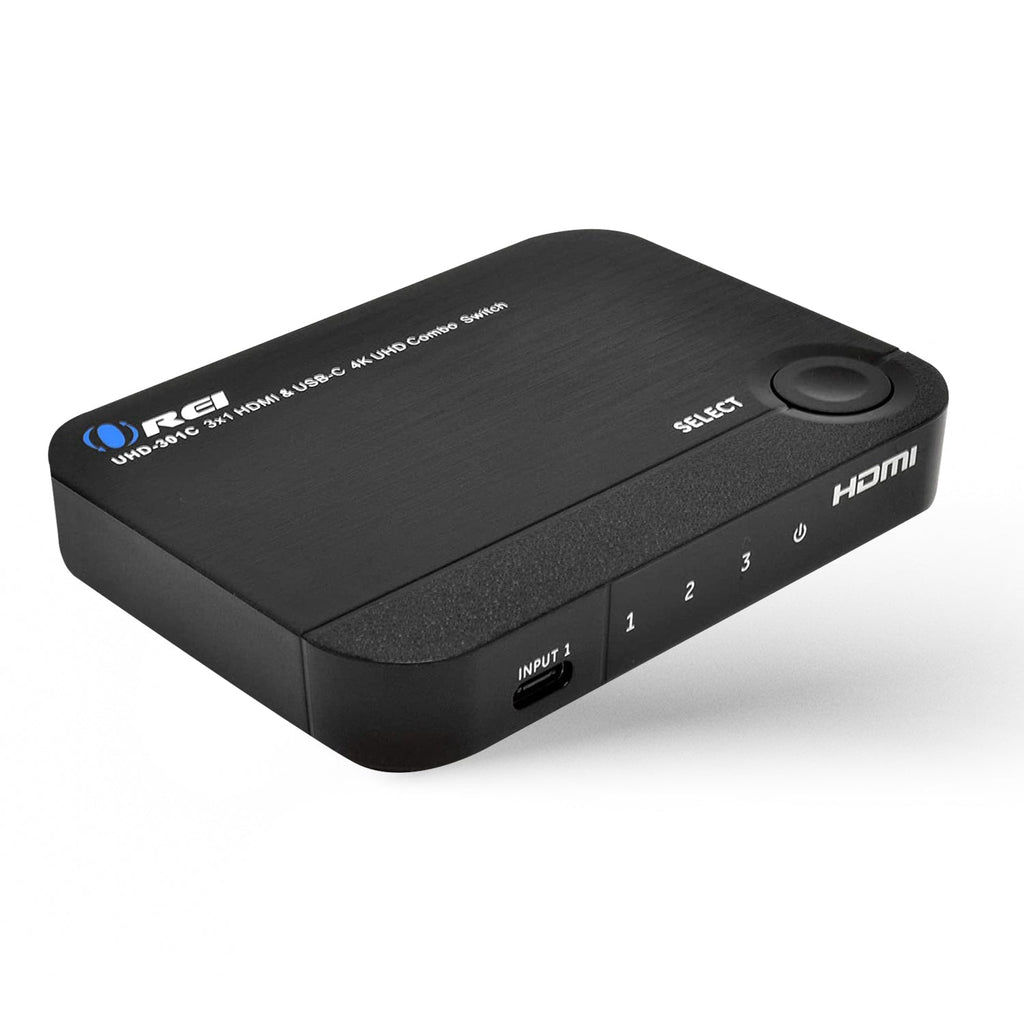

UHD-301C HDMI Combo Switch - 3 Input 1 Output
Key Features:
3 inputs - 2 HDMI and 1 USB-C input
1 output - Single HDMI 2.0 output
HDMI 2.0 standard, HDCP 2.2 compliant
18Gbps video amplifier bandwidth
video resolutions up to 4K@60Hz
Support USB-C to HDMI video signal

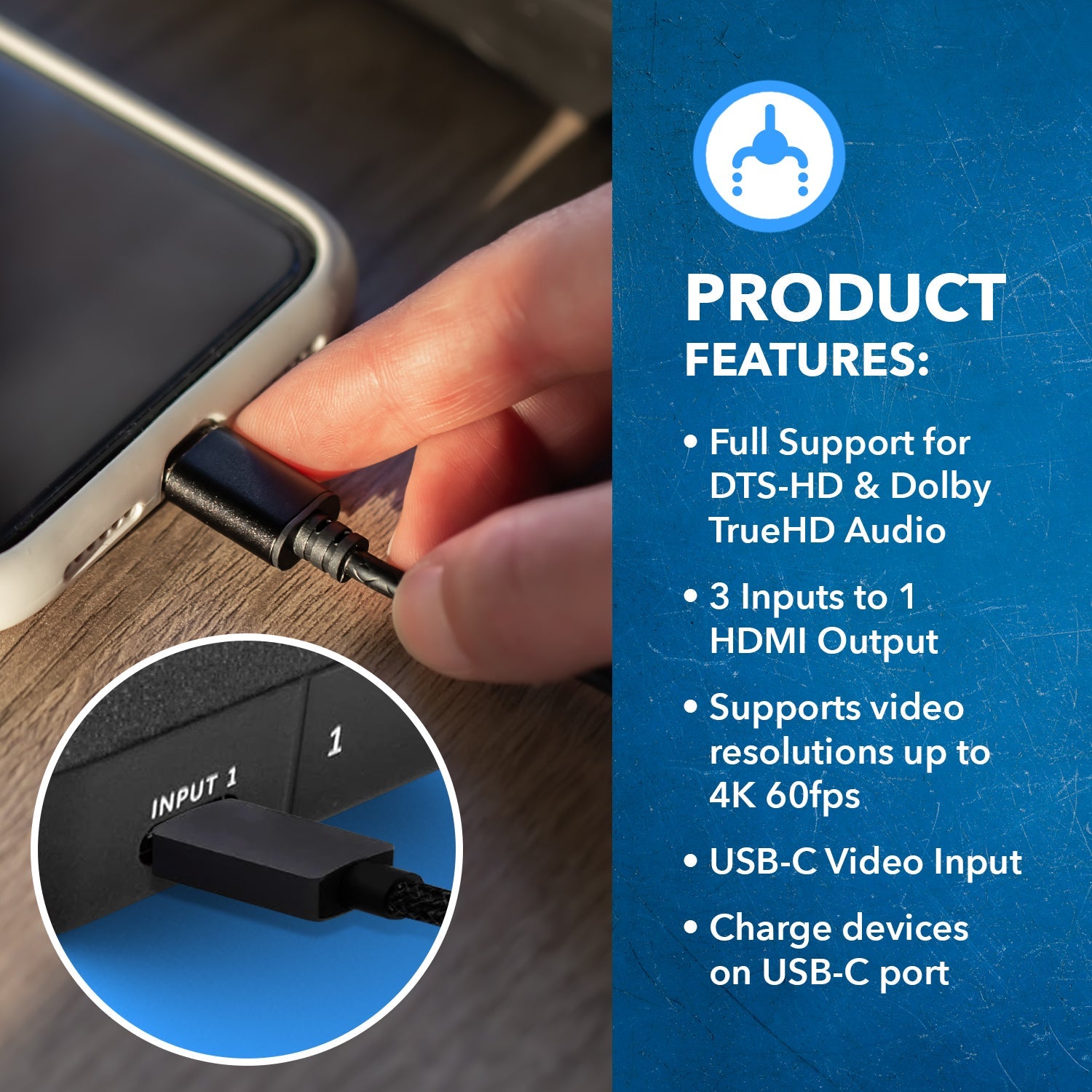

Charge devices with up to 1.5A power delivery on USB-C port
High-frequency range: 25MHz ~ 600MHz
DTS HD, Dolby TrueHD digital audio compliant
Expand 2 HDMI sources on your HDTV devices
USB 3.1 GEN1 TYPE C input supports Chromebook, Android Phone, PC and Mac, I pad pro 2019
Few sample applications:

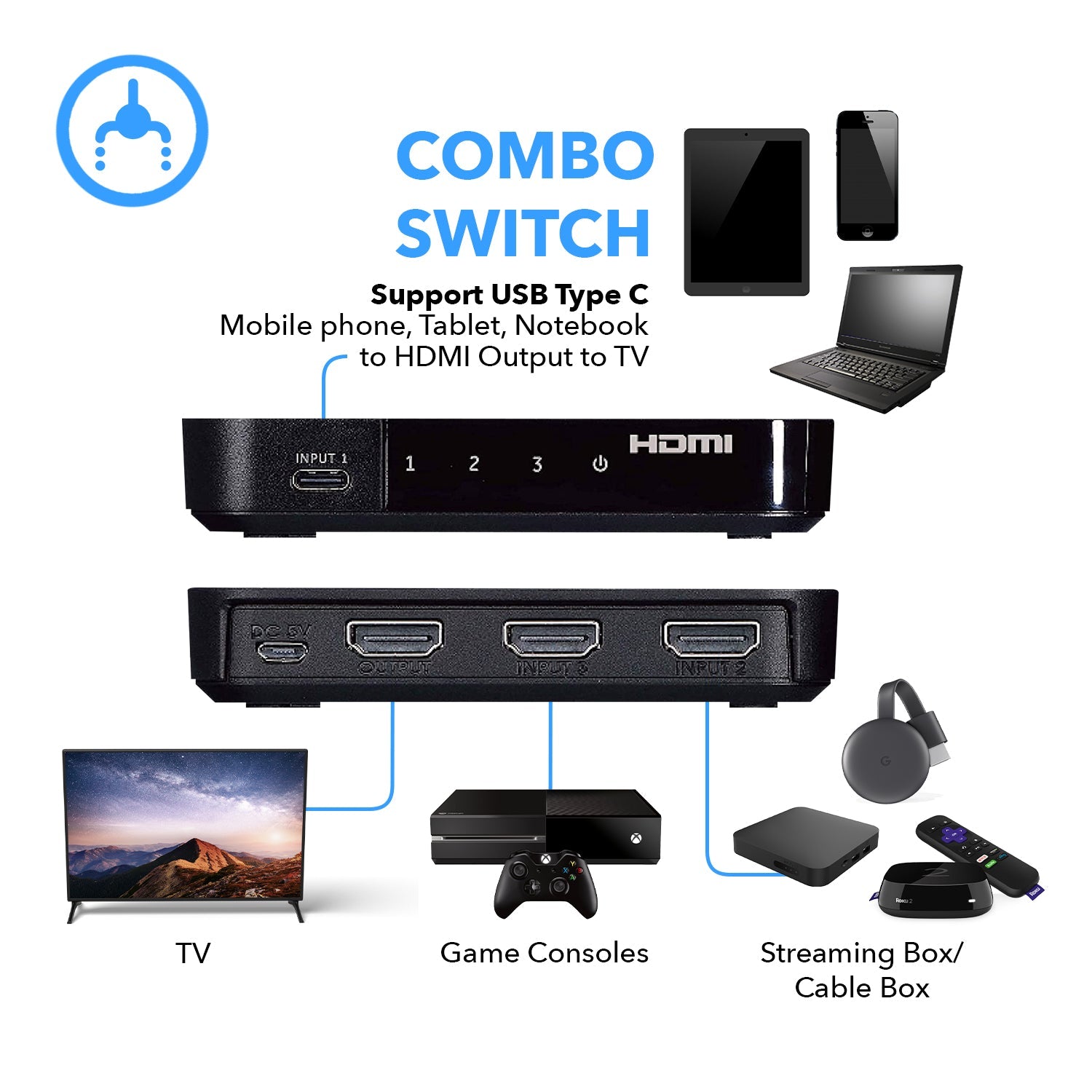

The OREI UHD-301C is a combo switch that integrates with 2 HDMI and 1 USB-C input and single HDMI 2.0 output. It turns your home video devices into a media gateway by sharing the same display (TV, monitor or Projector). This is ideal device for multi switching various inputs on a Single Monitor.

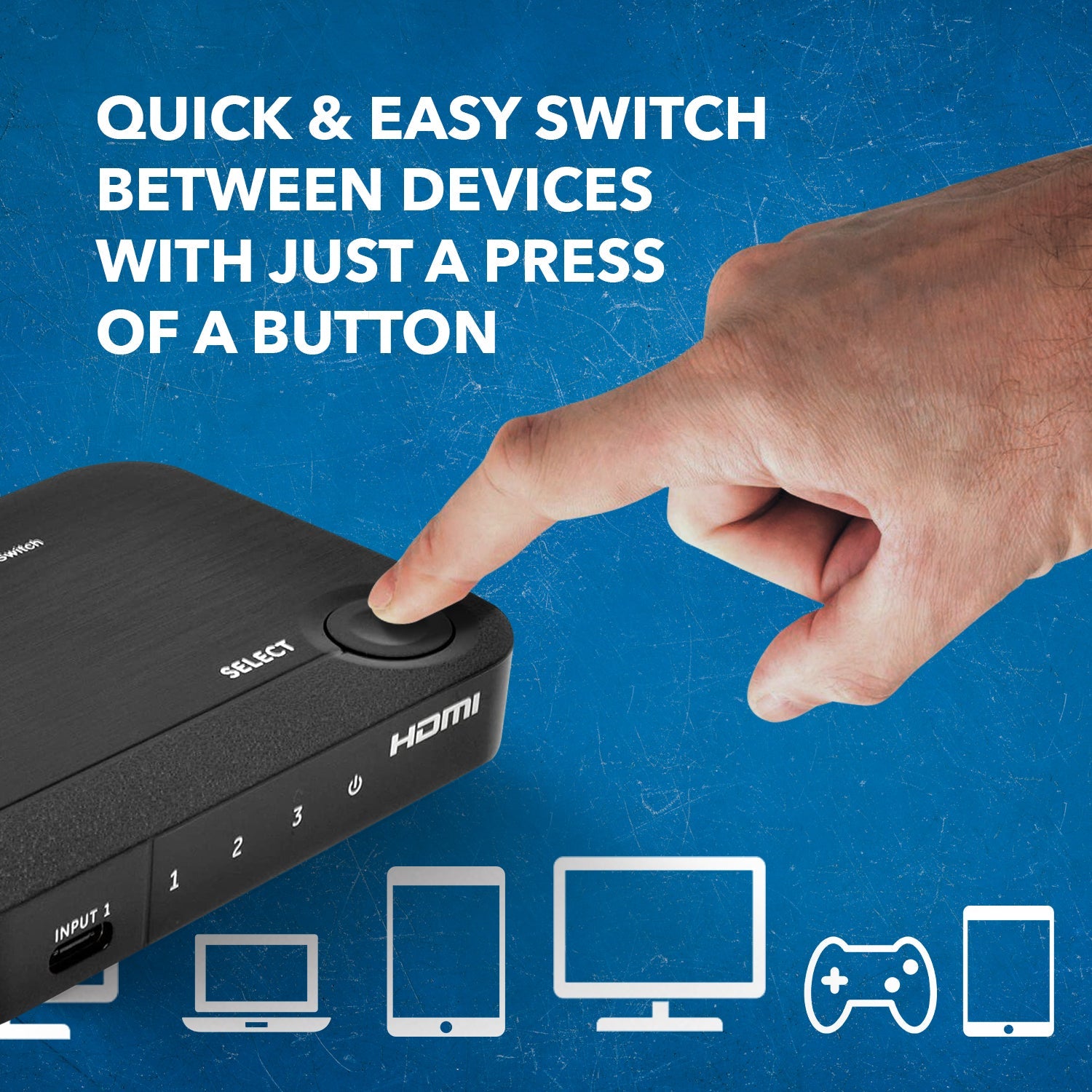

You can connect and switch up to 3 devices like a streaming box, PS4, Pro, 4K Blu-ray players, Android smartphones, computer and laptop with a simple push of a button on a single 4K TV/Monitor. 4K HDMI switch works with all HDMI-integrated devices, such as Amazon Fire TV, Apple TV, STB/IPTV, LCD TV, DVD Player, Blu-Ray players, PS3/PS4/PS5 and other HDMI capable devices.
It supports HDMI video resolution up to 4K@60Hz YUV4:4:4 chroma sampling, making display images more exquisite and realistic, really give a feast for your eyes. Of course, it also supports 3D and 1080P or lower resolution. This 4K Switch can fully meet the needs of family and Office. Supports PCM, Dolby True HD, DTS-HD Master Audio up to 7.1 Ch. Digital and analog audio output. Power is supplied via an included power adapter. USB-C input can also provide 1.5A power to charge your connected device.
Note: USB 3.1 GEN1 Type C input supports Android Phones, PC and Mac, iPad Pro, For video output to work through a USB-C port, your devices must support DP Alt Mod
Main unit power consumption 0.3A, USB-C charging 1.5A, 1.8A (Max. / Charger)
CONTROL
CEC:
No
ENVIRONMENTAL
Operating Temperature:
0°C to 40°C (32°F to 104°F)
Storage Temperature:
-20°C to 60°C (-4°F to 140°F)
Relative Humidity:
10~90 % RH

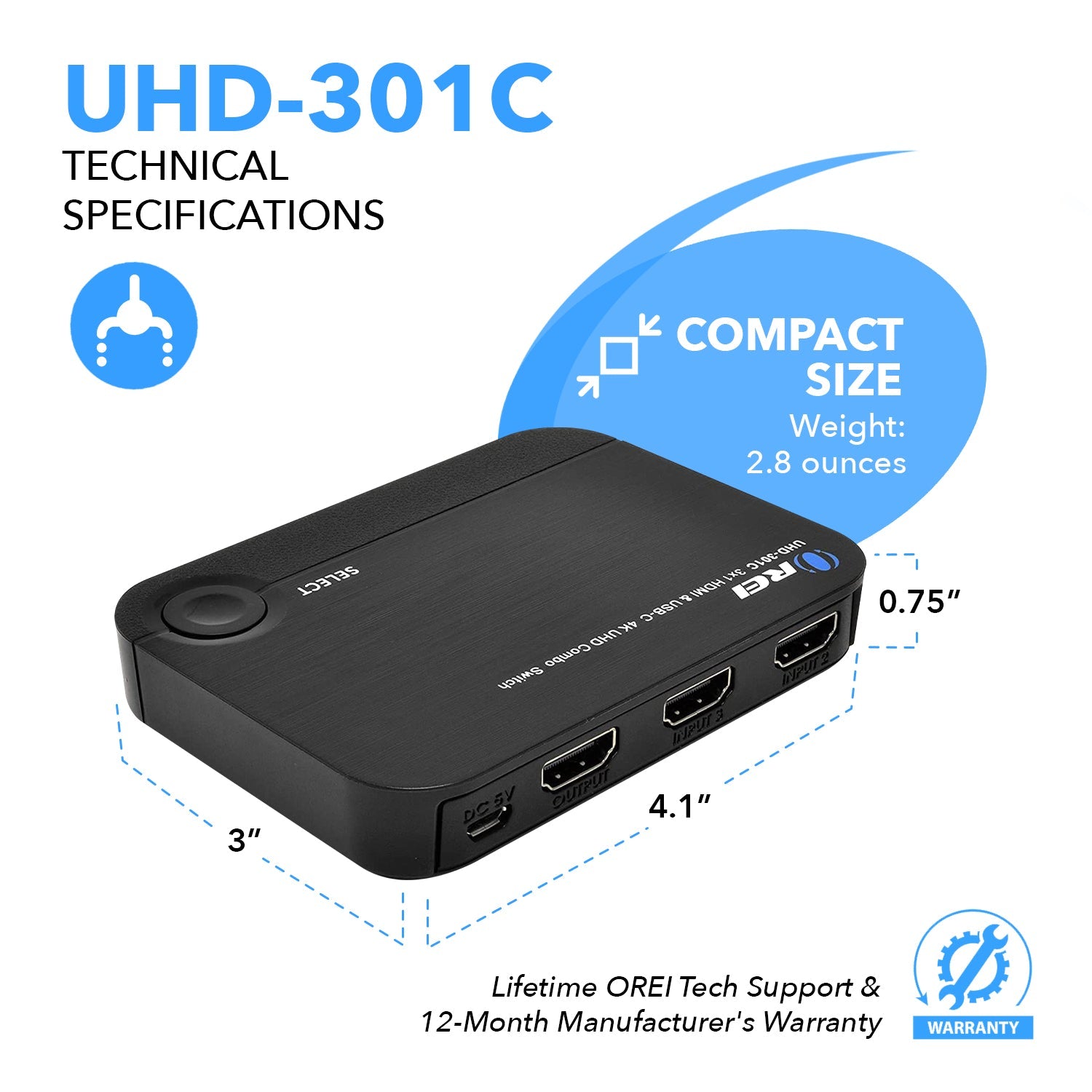

DIMENSIONS & WEIGHT
Height:
19.3 mm
Width:
105 mm
Depth:
77 mm
Weight:
80g
REGULATORY
Safety and Emission:
CE | FCC | RoHS
PACKAGE CONTENTS
1 × UHD-301C 3x1 HDMI Switch
1 × Power Adapter
1 × User Manual
Warranty
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
The PS5 is able to output in 8K at 60Hz and supports games in 4K that are running at 60 or 120Hz.
However, UHD-301C supports HDMI 2.0 4K@60Hz. So you'll most likely need to manually limit the console output to 4K/60Hz or 1080p/120Hz option in the game for smoother video gameplay as this unit will not be able to support a 4k@120Hz signal.
