Vaddio Matrixpro Av Bridge - Streaming Video/Audio Encoder / Mixer / Switcher

Vaddio Matrixpro Av Bridge - Streaming Video/Audio Encoder / Mixer / Switcher

SKU:999-8230-000

Regular price $4,647.09
Regular price Sale price $4,647.09
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

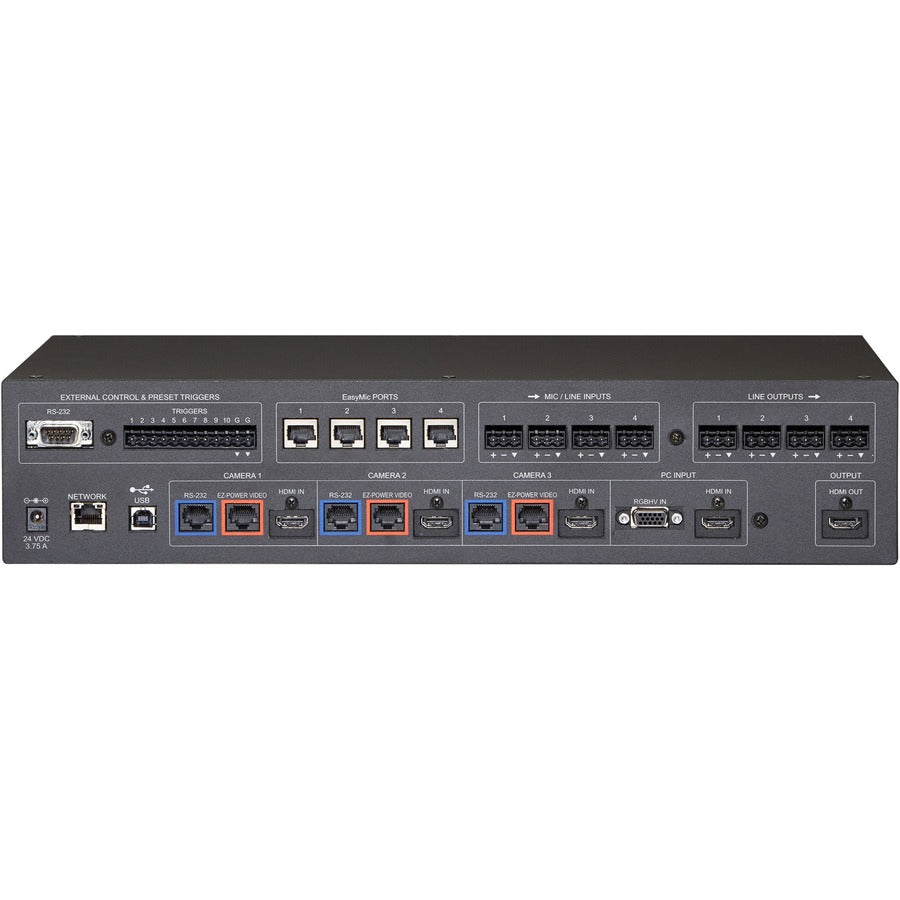

          Vaddio AV Bridge MATRIX PRO Audio/Video Bridge

          Ideal for conferencing and lecture capture applications, AV Bridge MATRIX PRO combines audio and video mixing functionality into a single device, allowing you to add multiple cameras, microphones and other AV devices into a traditional AV room design.

          Why have a full rack of gear when one device can do it all? The AV Bridge MATRIX PRO encoder provides a simple way to add multiple cameras, microphones and other AV devices to a traditional AV room design. It then manages the complex process of mixing, switching and controlling those devices into a single USB and IP stream.

          Users get the advantage of integrating their PC-based platform and intuitive UC interface while being connected to multiple sensory inputs that provide a professional AV experience. At the same time, they also get access to cloud-based applications and a UC platform of choice for content creation and sharing, audio conferencing, video conferencing, and a multitude of other collaboration activities.


          • AV encoder with simultaneous IP and USB 2.0 streaming

          • High-definition image quality - 1080p/30 streaming and 1080p/60 HDMI

          • Four-input HD video switcher

          • 9x5 cross-point audio matrix mixer/switcher

          • Four EasyMic audio ports with built-in AEC

          • Easy, intuitive web-based user interface for system configuration and settings

          • Remote IP control of up to four Vaddio Cameras

          Product Type: Audio/Video Bridge
          Brand Name: Vaddio
          Form Factor: Rack-mountable
          Manufacturer: Legrand Group
          Product Name: AV Bridge MATRIX PRO Audio/Video Bridge
          Product Line: AV Bridge MATRIX PRO
          Manufacturer Part Number: 999-8230-000
          Manufacturer Website Address: http://www.legrand.us
          Package Contents:

          • AV Bridge MATRIX PRO Audio/Video Bridge
          • Quick-start Guide
          • 24V 3.75A Power Supply with AC Cord Set(s)
          • 2 x Rack Ears
          • 8 x 3-position Phoenix-style Connectors
          • 12-position Phoenix-style Connector
          • 6' USB Type A to B Cable

          Weight (Approximate): 5.51 lb

          Specifications :

          General Information

          Manufacturer Legrand Group
          Manufacturer Part Number 999-8230-000
          Manufacturer Website Address http://www.legrand.us
          Brand Name Vaddio
          Product Line AV Bridge MATRIX PRO
          Product Name AV Bridge MATRIX PRO Audio/Video Bridge
          Product Type Audio/Video Bridge
          UPC 840077501747

          Interfaces/Ports

          HDMIYes
          Network (RJ-45)Yes
          Height3.5"
          Width18.9"
          Depth8"
          Weight (Approximate)5.51 lb

          Miscellaneous

          Package Contents
          • AV Bridge MATRIX PRO Audio/Video Bridge
          • Quick-start Guide
          • 24V 3.75A Power Supply with AC Cord Set(s)
          • 2 x Rack Ears
          • 8 x 3-position Phoenix-style Connectors
          • 12-position Phoenix-style Connector
          • 6' USB Type A to B Cable
