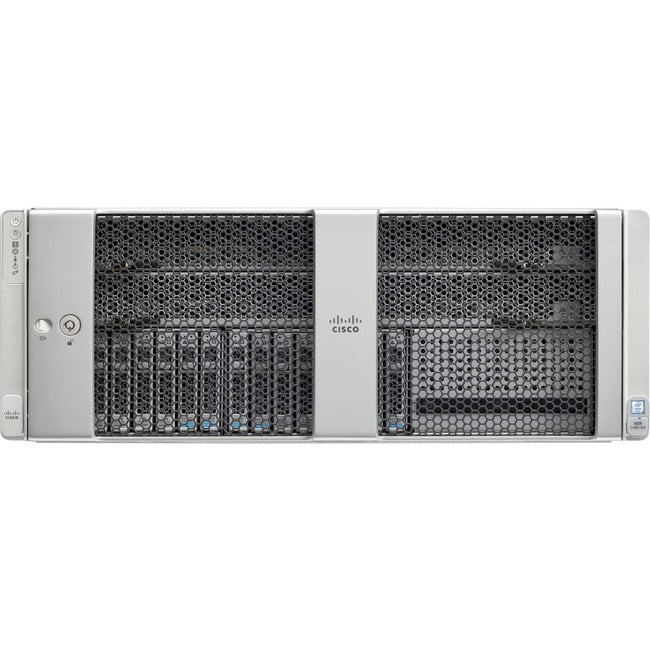

Ucs C480 M5 Std Base Chassis,W/O Cpu Mem Hdd Pcie Psu Ucsc-C480-M5=

Description :

Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support
The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 48 slots, and up to 32 small form factor (SFF), hot-swappable2 SAS/SATA/PCIe NVMe disk drives.

12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.

• Compatible Xeon Platinum processor lets you perform all your computational tasks at a swift pace


• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation


• Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance


• With 3 USB ports, connect/disconnect devices while not having to shut down the system


• 12Gb/s SAS interface for high speed and reliability

Product Type: Barebone System
Country Of Origin: United States
Product Series: C480 M5
Rack Height: 4U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: UCS C480 M5 Barebone System
Manufacturer Part Number: UCSC-C480-M5
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 146 lb
