Tripp Lite by Eaton

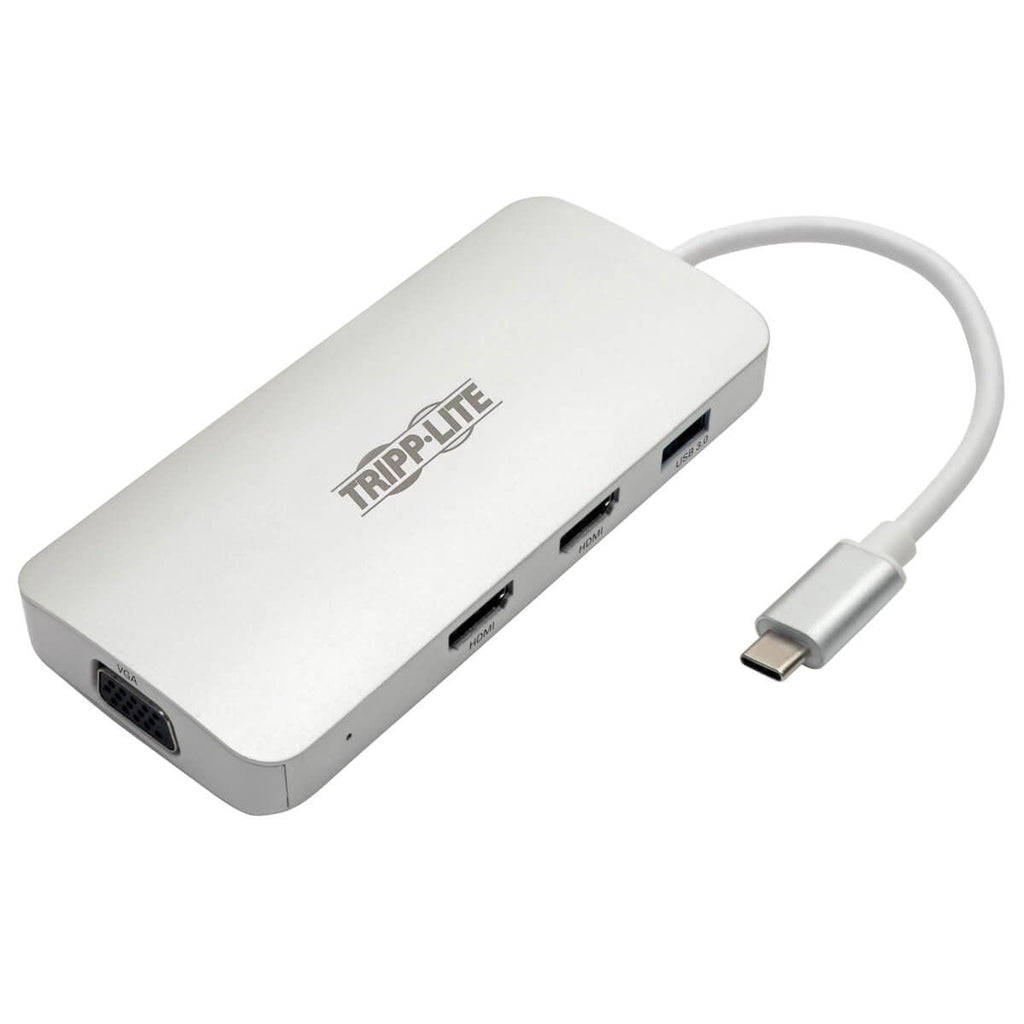

Tripp Lite U442-Dock12-S Usb-C Dock, Triple Display - Hdmi, Vga, Usb 3.2 Gen 1, Usb-A Hub, 100W Pd Charging

Tripp Lite U442-Dock12-S Usb-C Dock, Triple Display - Hdmi, Vga, Usb 3.2 Gen 1, Usb-A Hub, 100W Pd Charging

SKU:U442-DOCK12-S

Regular price $68.20
Regular price Sale price $68.20
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          USB-C Dock, Triple Display - HDMI, VGA, USB 3.2 Gen 1, USB-A Hub, 100W PD Charging

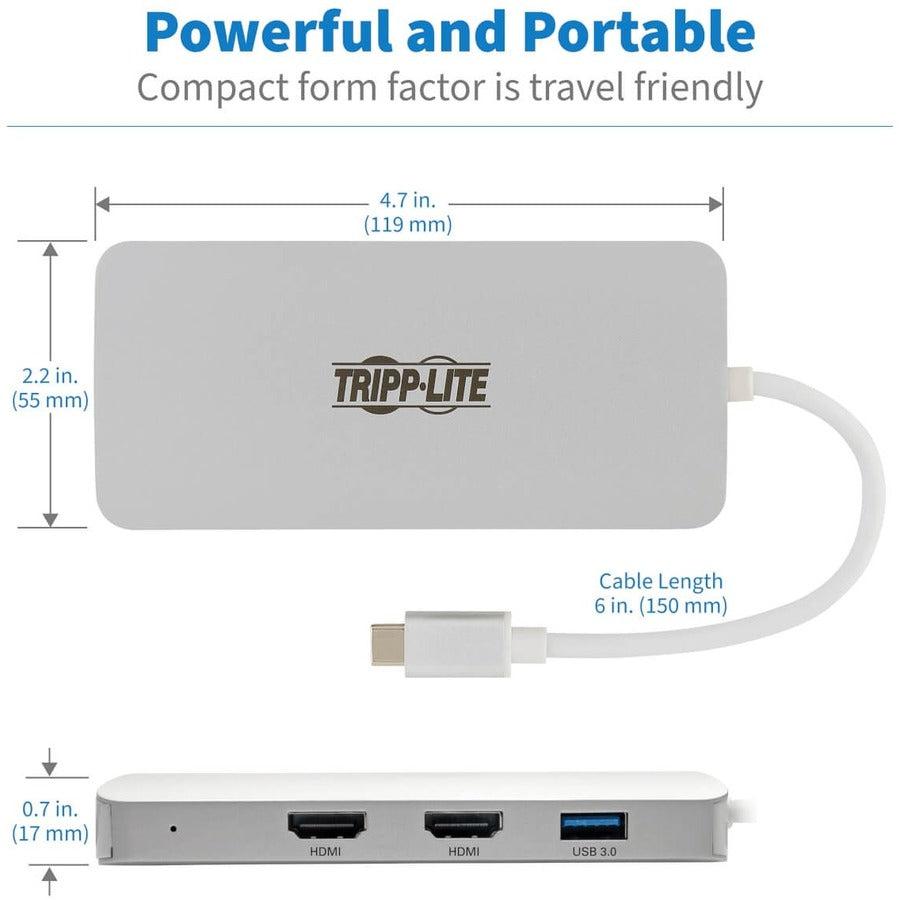

          Tripp Lite U442-DOCK12-S USB-C Dock, Triple Display - HDMI, VGA, USB 3.2 Gen 1, USB-A Hub, 100W PD Charging. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, VGA, Maximum resolution (HDMI): 1920 x 1200 pixels. Data transfer rate: 5000 Mbit/s, Product colour: Silver, Country of origin: China. Ethernet interface type: Gigabit Ethernet. Power source type: USB, Power consumption (max): 60 W. Package width: 149.9 mm, Package depth: 78.7 mm, Package height: 20.3 mm

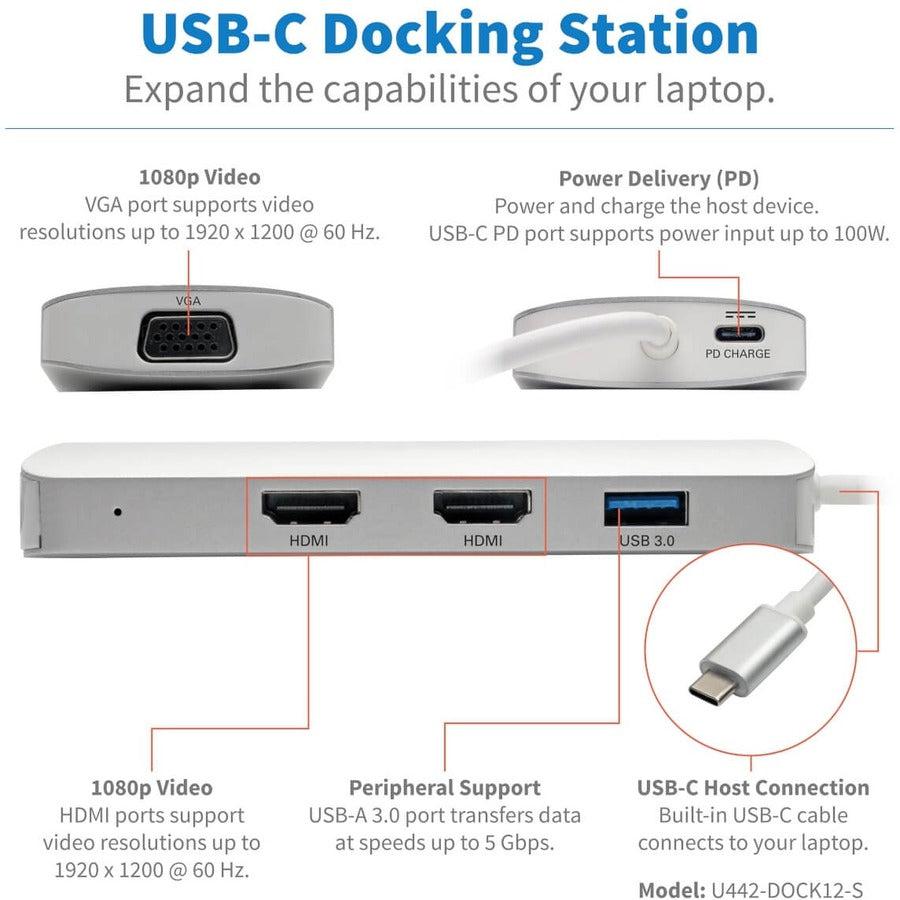

          USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation

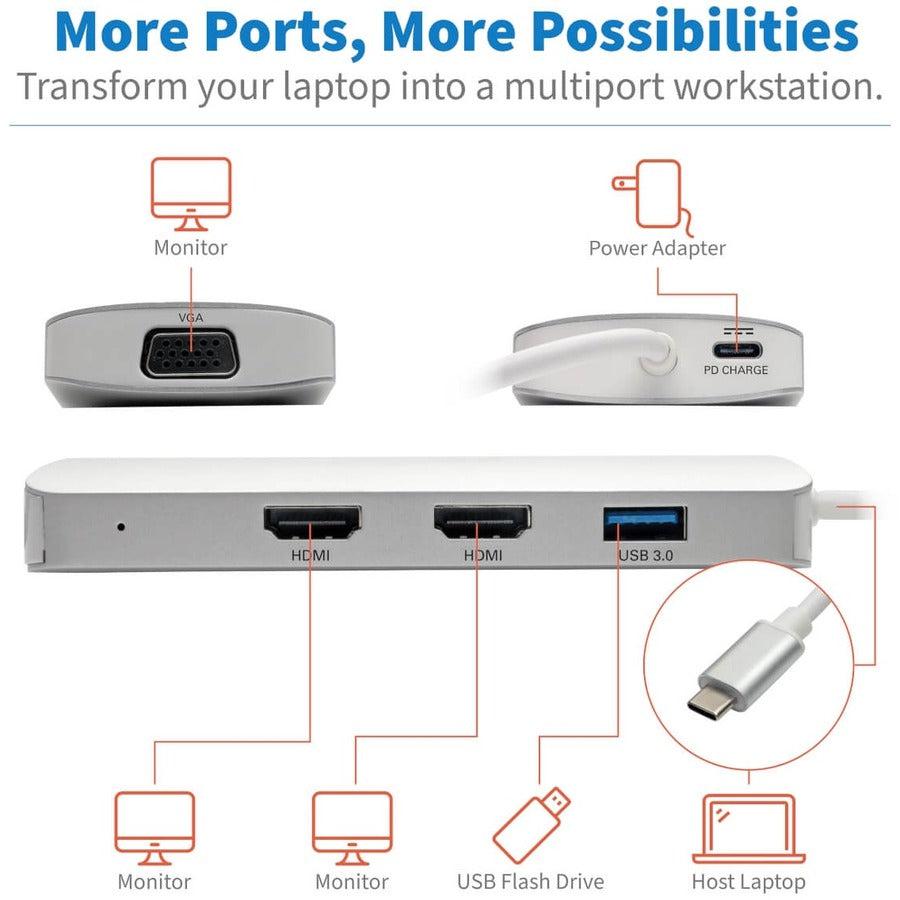

          This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more—all at the same time.

          Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
          By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 1080p video and digital audio to a compatible monitor, television or projector without installing special software drivers.

          Transmits Crystal-Clear 1080p Video and Digital Audio

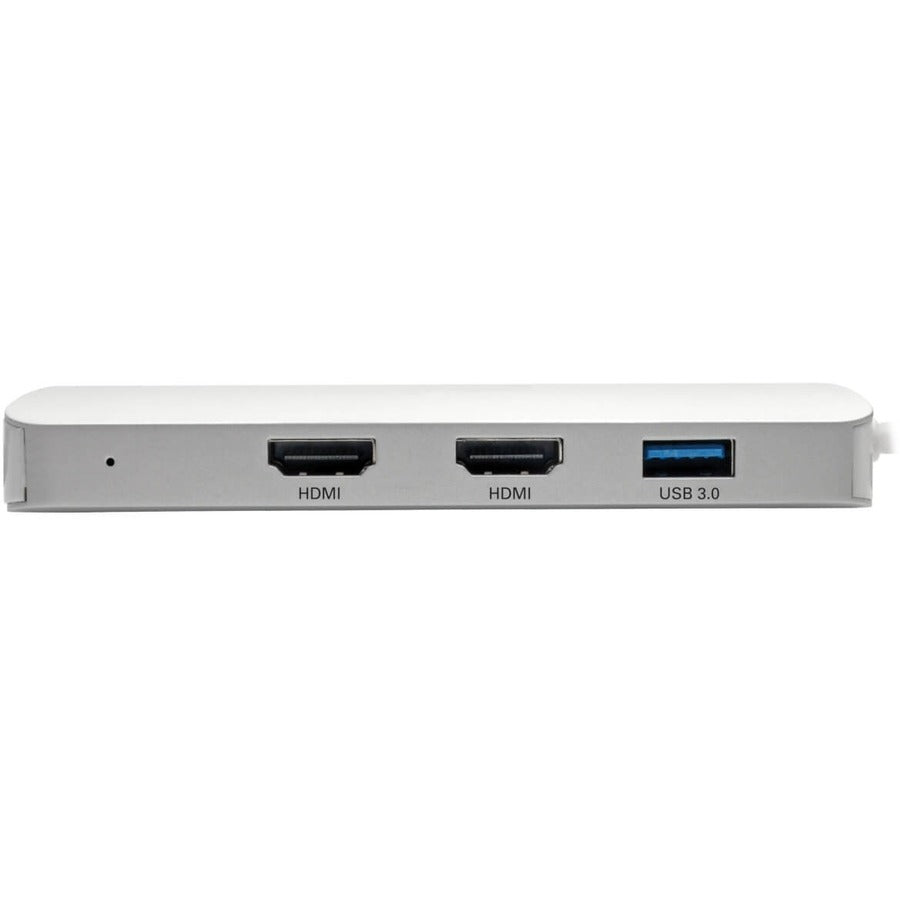

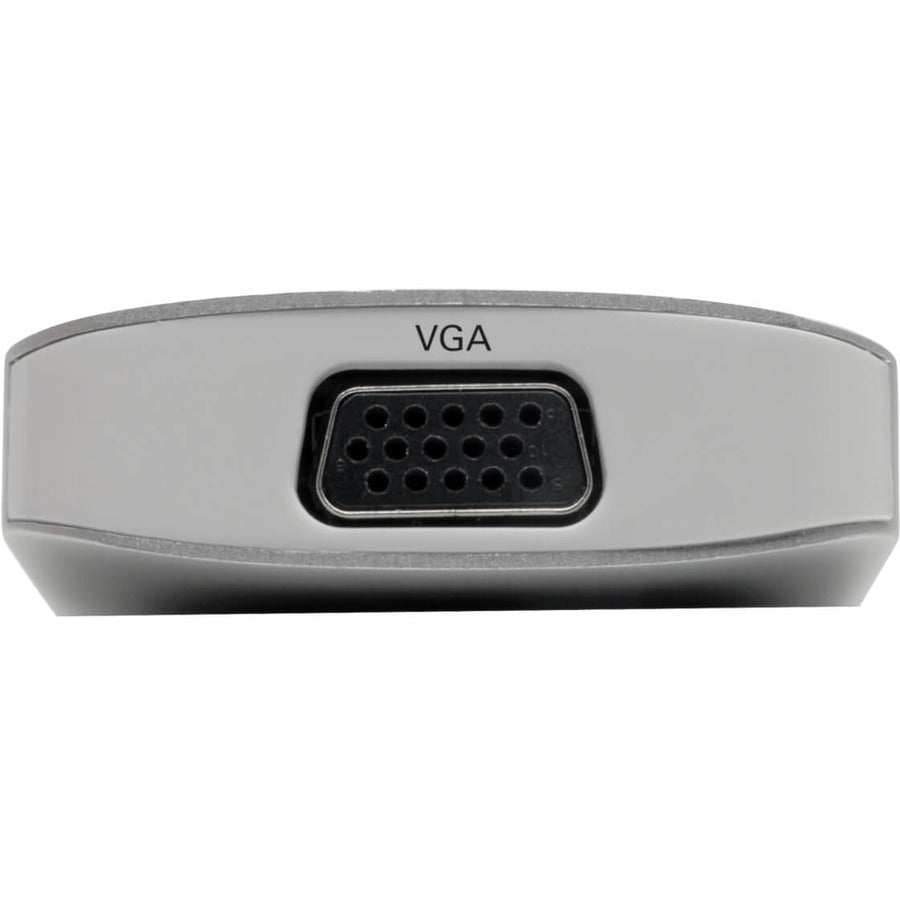

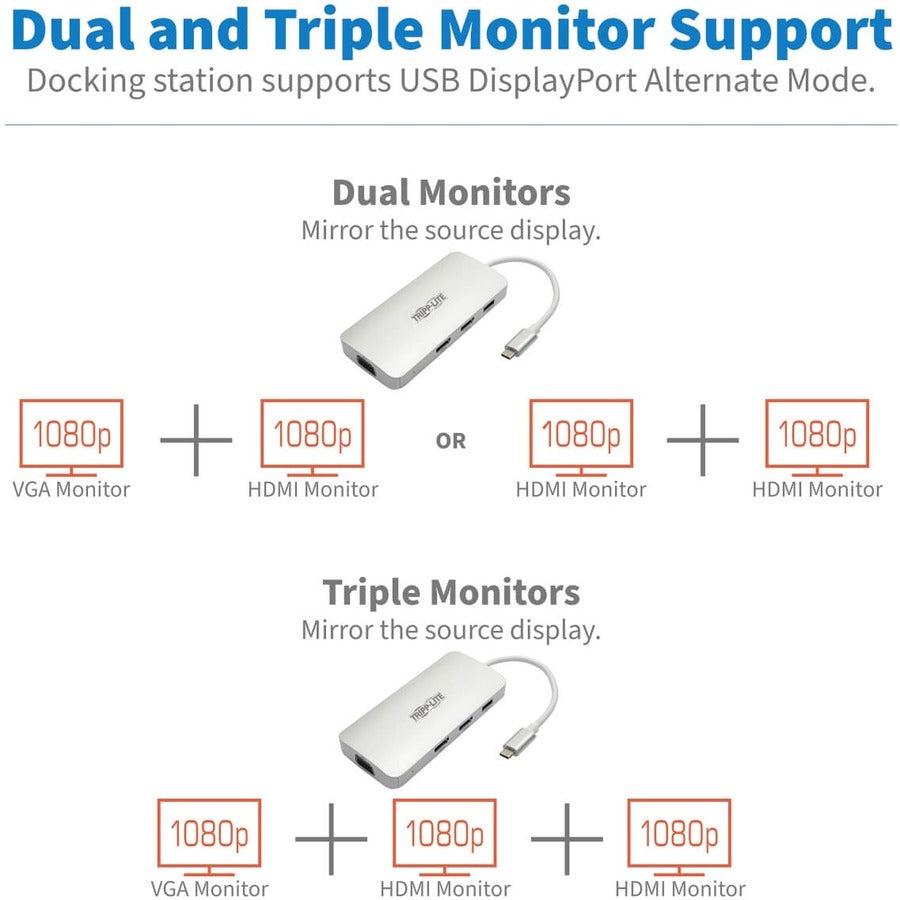

          The two HDMI and single VGA ports support HD video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. You can connect up to three external monitors at the same time in Mirror mode, which allows you to display the same 1080p image on all of them. A DVI display may also be connected using an HDMI to DVI adapter (sold separately).

          USB Port Connects Keyboards, Thumb Drives and Other USB Peripherals
          The USB 3.2 Gen 1 port accepts USB peripherals, such as flash drives, mice, keyboards and printers. It supports fast data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. Note: Host must support USB OTG (On-the-Go).

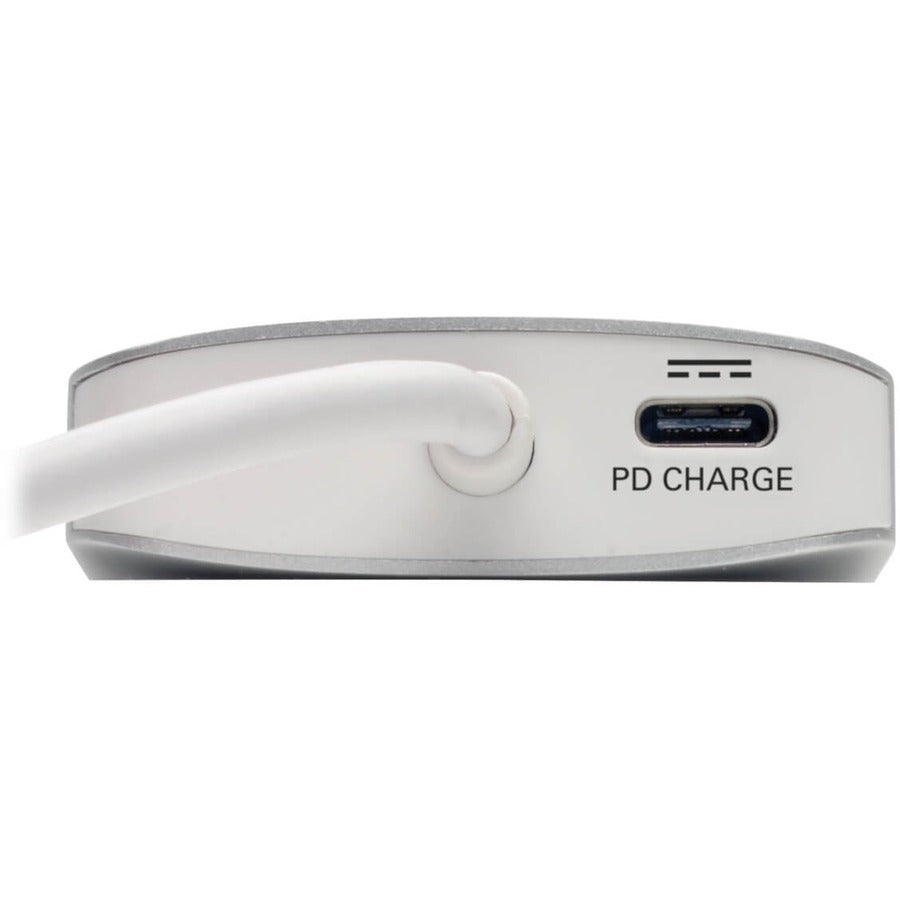

          PD 2.0 Charging Port Charges Connected Device via AC Wall Charger
          The USB-C Power Delivery port supports power output up to 20V 5A (100W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC).

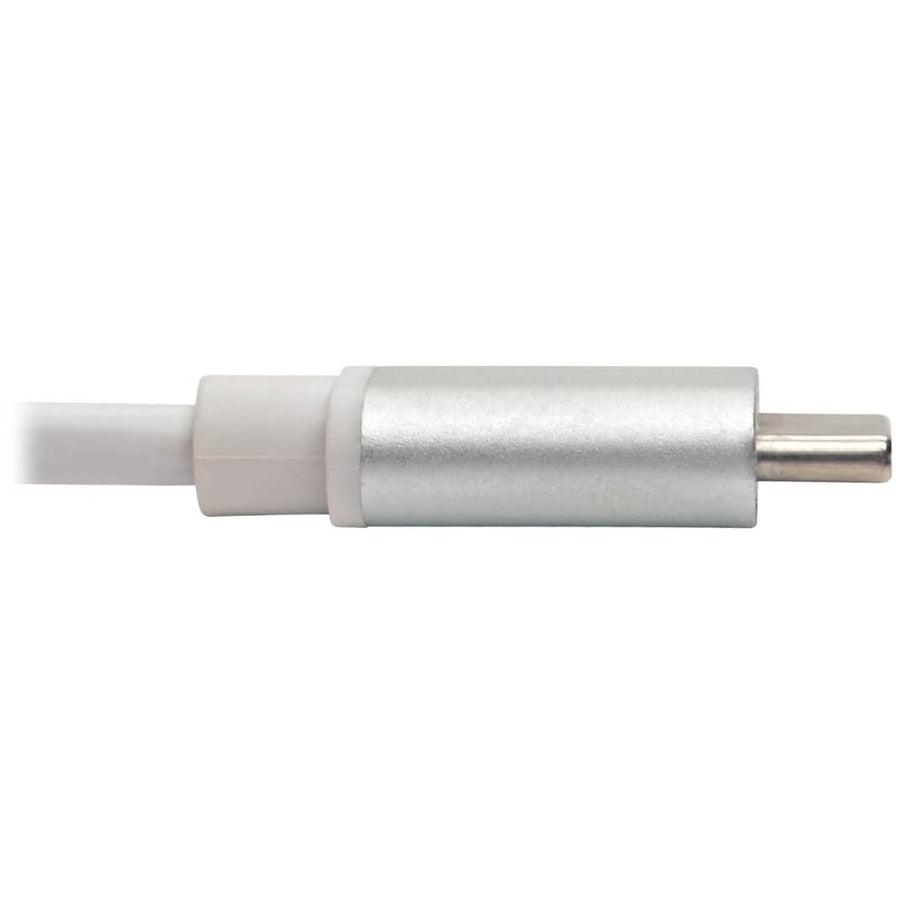

          Built-In USB-C Cable Connects in Either Direction
          Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.

          Ready to Use Right Out of the Package
          The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number U442-DOCK12-S
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model U442-DOCK12-S
          Product Name U442-DOCK12-S Docking Station
          Product Type Docking Station
          UPC 037332213389

          Interfaces/Ports

          HDMIYes
          Total Number of USB Ports2

          Power Description

          Maximum Power Supply Wattage60 W
          Product ColorSilver

          Miscellaneous

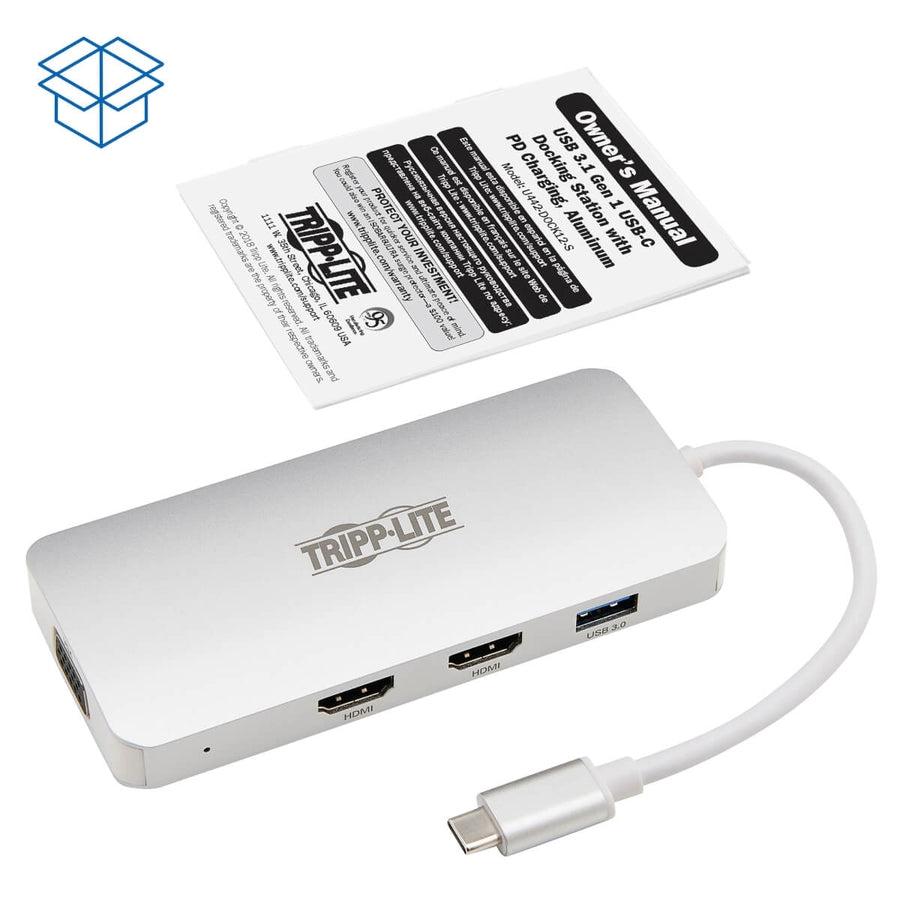

          Package Contents
          • U442-DOCK12-S Docking Station
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
