Tripp Lite by Eaton

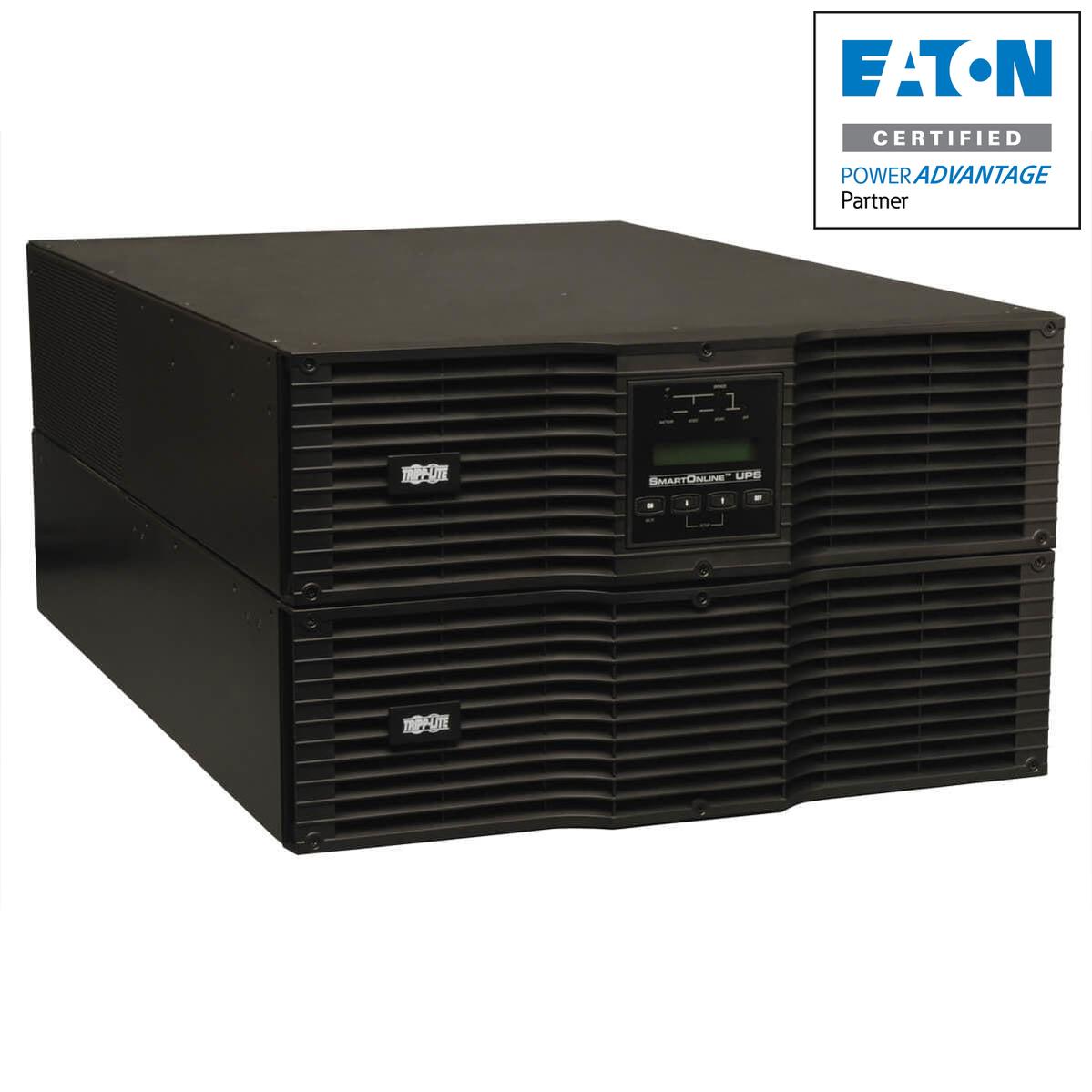

Tripp Lite Su8000Rt3Uhw Smartonline 208/240, 230V 8Kva 7.2Kw Double-Conversion Ups, 6U Rack/Tower,

Tripp Lite Su8000Rt3Uhw Smartonline 208/240, 230V 8Kva 7.2Kw Double-Conversion Ups, 6U Rack/Tower,

SKU:SU8000RT3UHW

Regular price $5,456.95
Regular price Sale price $5,456.95
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, Hardwire

          Tripp Lite SU8000RT3UHW SmartOnline 208/240, 230V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9, Bypass Switch, Hardwire. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 7200 W. Typical backup time at full load: 5.5 min, Typical backup time at half load: 13.5 min, Battery recharge time: 6 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Package width: 660.4 mm, Package depth: 1041.4 mm, Package height: 787.4 mm. Master (outer) case width: 660.4 mm, Master (outer) case length: 1041.4 mm, Master (outer) case height: 787.4 mm

          Tripp Lite SU8000RT3UHW 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

          Tripp Lite SU8000RT3UHW 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack)
          Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment
          Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          Hardwire input (3 wire) and hardwire output (3 wire) connections
          Supports North American (L1,L2,G) 208/240v hardwire input / output, plus International 230/220/240v (L,N,PE) hardwire input / output
          Optional SU6000XFMR2U transformer offers 120v output in North American 208/240V (L1,L2,G) input configurations
          Maximum installed rack depth of only 32.5 in. / 82.6cm inches
          Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
          Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
          Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V
          Supports 50/60Hz operation for worldwide frequency compatibility
          Expandable runtime is supported with optional BP240V10RT3U; BP240V787C-1PH external battery packs
          Intelligent battery management system with temperature-compensated charging extends battery life
          Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs
          Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
          USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
          HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          Includes slot for network management card options
          Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD

          Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
          PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
          Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
          Supports Emergency Power Off (EPO) via built-in interface
          Included rail kit supports 6U 19 inch rackmount installation in 4 post racks
          Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks
          Optional 2-9USTAND supports upright tower placement
          Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
          LED / LCD display panel rotates for viewing in rackmount or tower configurations
          Network-grade AC surge and noise suppression
          Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
          Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
          External battery packs are field replaceable and hot swappable

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU8000RT3UHW
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU8000RT3UHW
          Product Name SmartOnline SU8000RT3UHW 8000VA Tower/Rack-mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332138033
          Height5.1"
          Width17.5"
          Depth25"
          Weight (Approximate)55 lb

          Miscellaneous

          Package Contents
          • SmartOnline SU8000RT3UHW 8000VA Tower/Rack-mountable UPS
          • 3U power module with detachable hot-swap PDU input/output panel and bypass switch
          • 3U external battery pack
          • Two sets of 4 post rackmount rails (one for each of the 3U components)
          • One set of tower stands for upright tower con

          Warranty

          Limited Warranty2 Year
