Tripp Lite Srwo8U22Md Smartrack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack

Tripp Lite Srwo8U22Md Smartrack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack

SKU:SRWO8U22MD

Regular price $115.80
Regular price Sale price $115.80
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

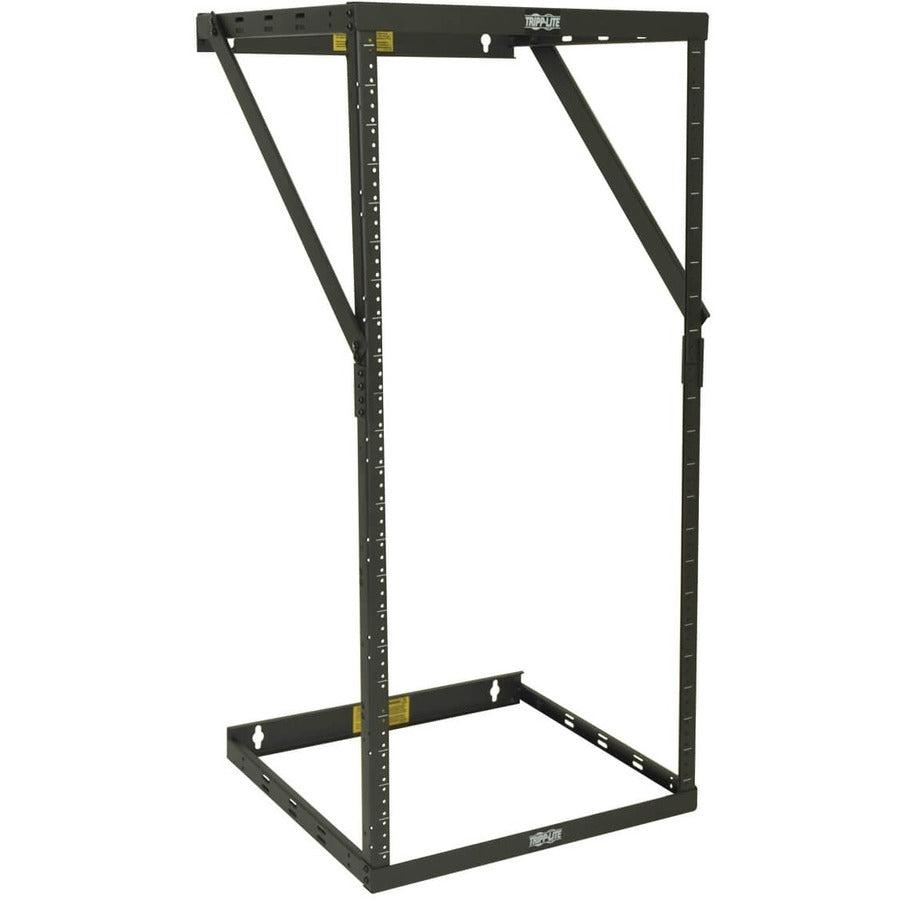

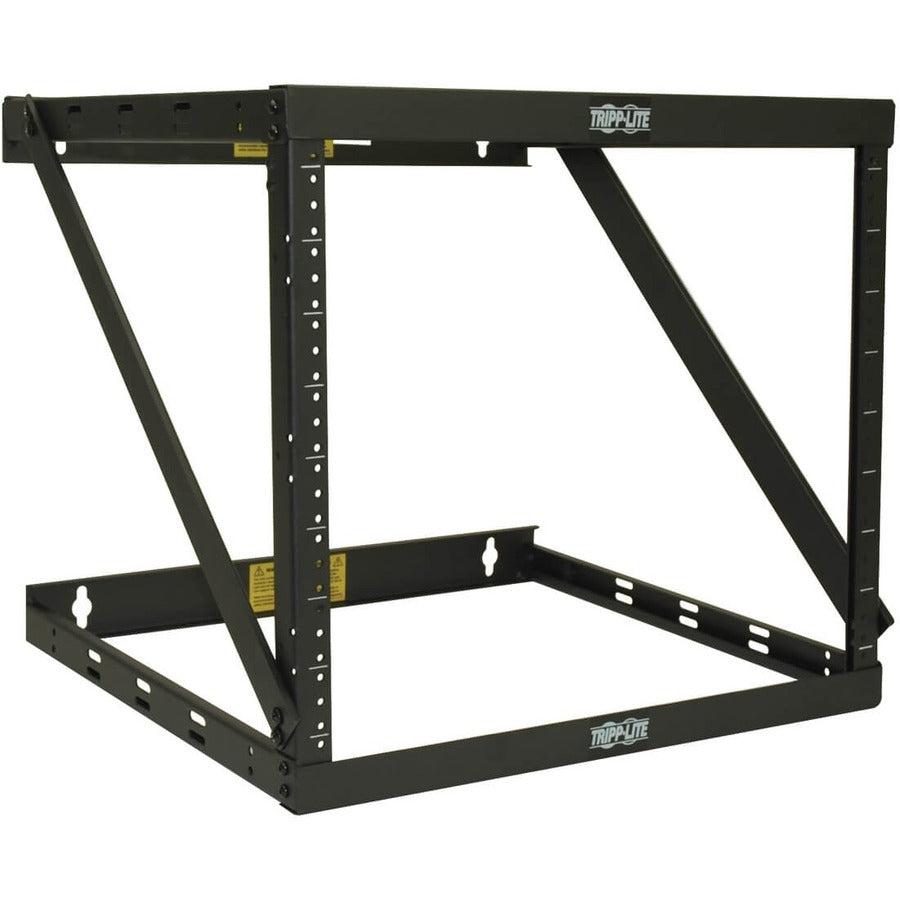

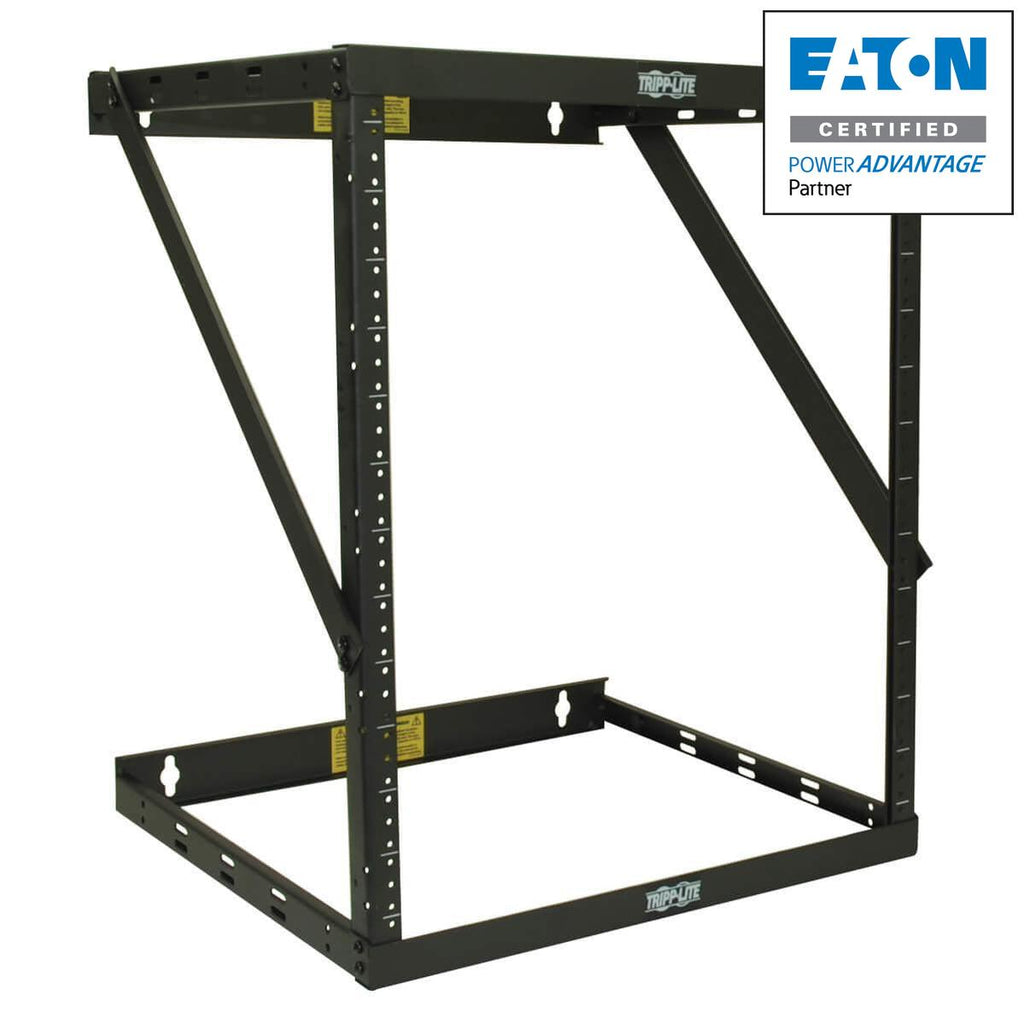

          SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack

          Tripp Lite SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Patch-Depth Wall-Mount 2-Post Open-Frame Rack. Type: Frame, Rack capacity: 22U, Maximum weight capacity: 67.5 kg. Weight: 6.71 kg. Product colour: Black

          The SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Wall-Mount 2-Post Open-Frame Rack is ideal for storing patch panels and other shallow equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 11.5 inches.

          Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.

          The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.

          Saves Valuable Workspace
          Perfect for installing patch panels and other shallow networking equipment in secure IT areas with limited floor space
          Houses EIA-standard 19 in. rack equipment up to 11.5 in. deep
          Maximum load capacity of 150 lbs (68 kgs)

          Open-Frame Design in 3 Configurations
          Assembles in 8U, 12U or 22U to meet current needs
          Expands to add equipment later without buying a bigger rack
          Allows easy access for organizing, installing and servicing equipment and cabling

          Easy Assembly and Installation
          Made from heavy-duty steel in a durable black powder-coated finish
          Easy to assemble with included hardware
          Vertical mounting rails with threaded 12-24 holes
          Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRWO8U22MD
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRWO8U22MD
          Product Name SmartRack SRWO8U22MD Rack Frame
          Product Type Rack Frame
          UPC 037332187413

          Physical Characteristics

          Color FamilyOther
          Product ColorBlack Powder Coat
          Height17.8"
          Width20.1"
          Depth12"
          Weight (Approximate)10.24 lb

          Miscellaneous

          Package Contents
          • SmartRack SRWO8U22MD Rack Frame
          • 24 x 12-24 Equipment Mounting Screws
          • 16 x M5 Button-Head Cap Screws
          • 8 x M6 x 12 Phillips-Head Screws
          • 2 x Short Vertical Mounting Rails
          • 2 x Long Vertical Mounting Rails
          • 2 x Mounting Rail Tie Plates
          • 2 x Metal Support Straps
          • 2 x Top/bottom Panel Frames
          • 8 x Zip Ties
          • 3 mm L-Shaped Hex Key
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
