Tripp Lite by Eaton

Tripp Lite Srwf16U38 Smartrack 16U Low-Profile Vertical-Mount Wall-Mount Half-Height Server Rack Enclosure

Tripp Lite Srwf16U38 Smartrack 16U Low-Profile Vertical-Mount Wall-Mount Half-Height Server Rack Enclosure

SKU:SRWF16U38

Regular price $655.30
Regular price Sale price $655.30
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartRack 16U Low-Profile Vertical-Mount Wall-Mount Half-Height Server Rack Enclosure

          Tripp Lite SRWF16U38 SmartRack 16U Low-Profile Vertical-Mount Wall-Mount Half-Height Server Rack Enclosure. Type: Freestanding rack, Rack capacity: 16U, Maximum weight capacity: 181437 kg, Key lock. Weight: 37 kg. Product colour: Black

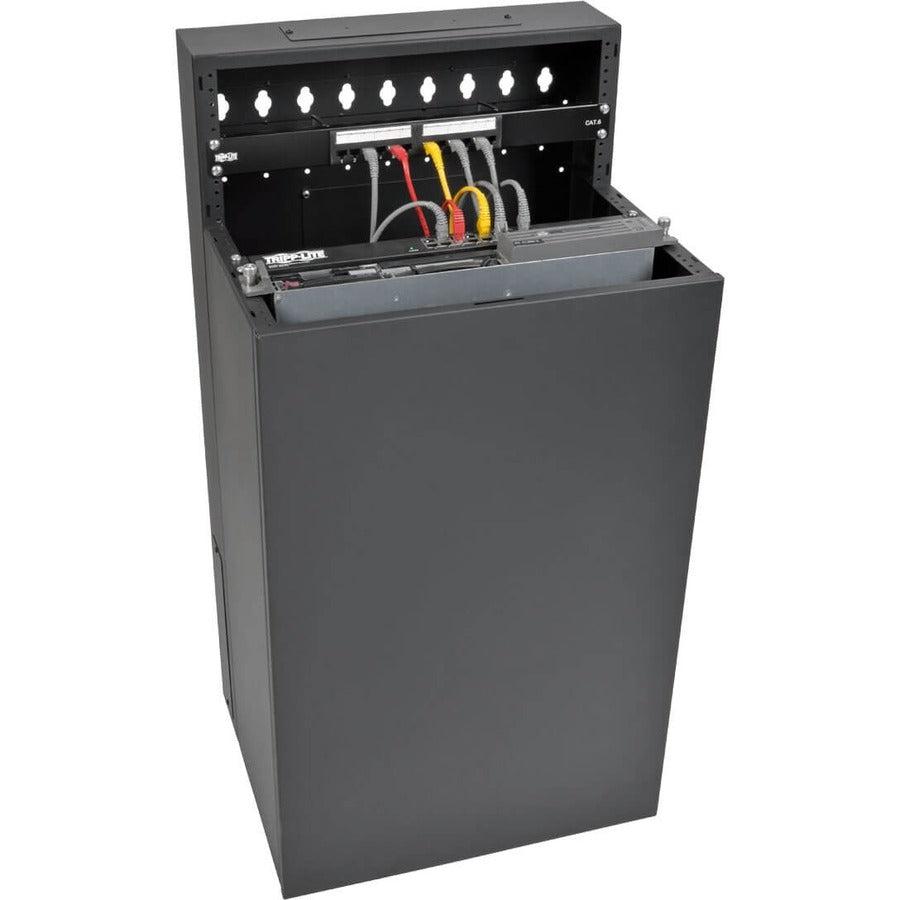

          The SRWF16U38 SmartRack® 16U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 lbs (181.4 kgs).

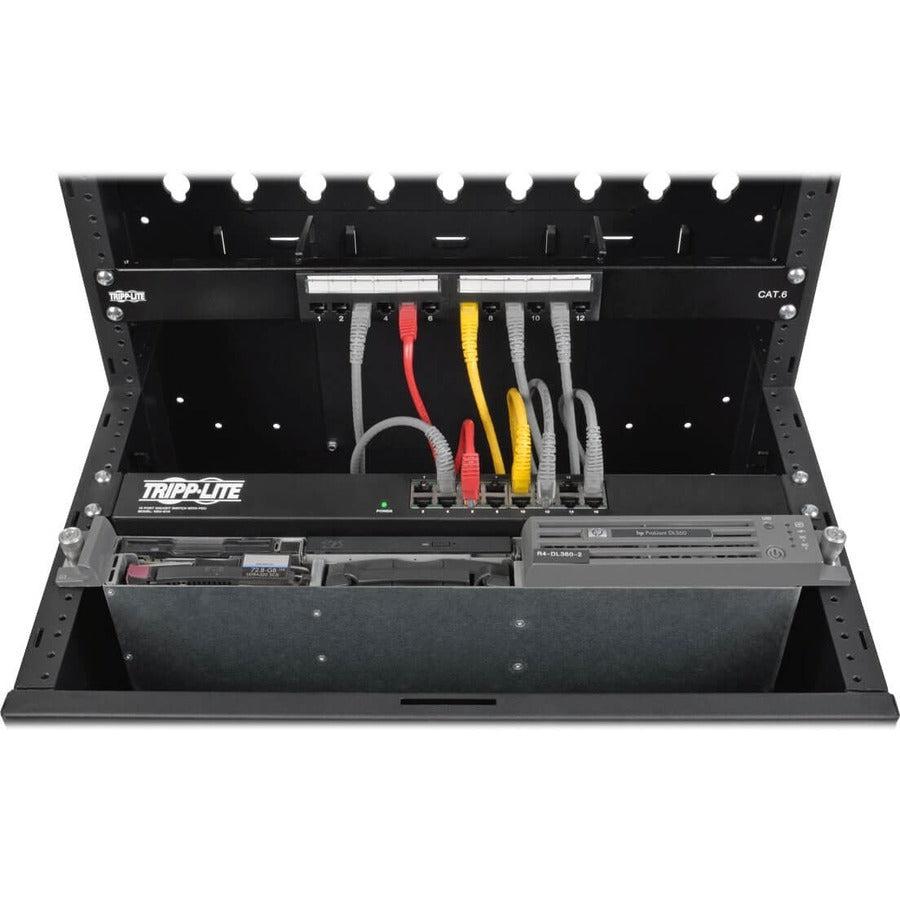

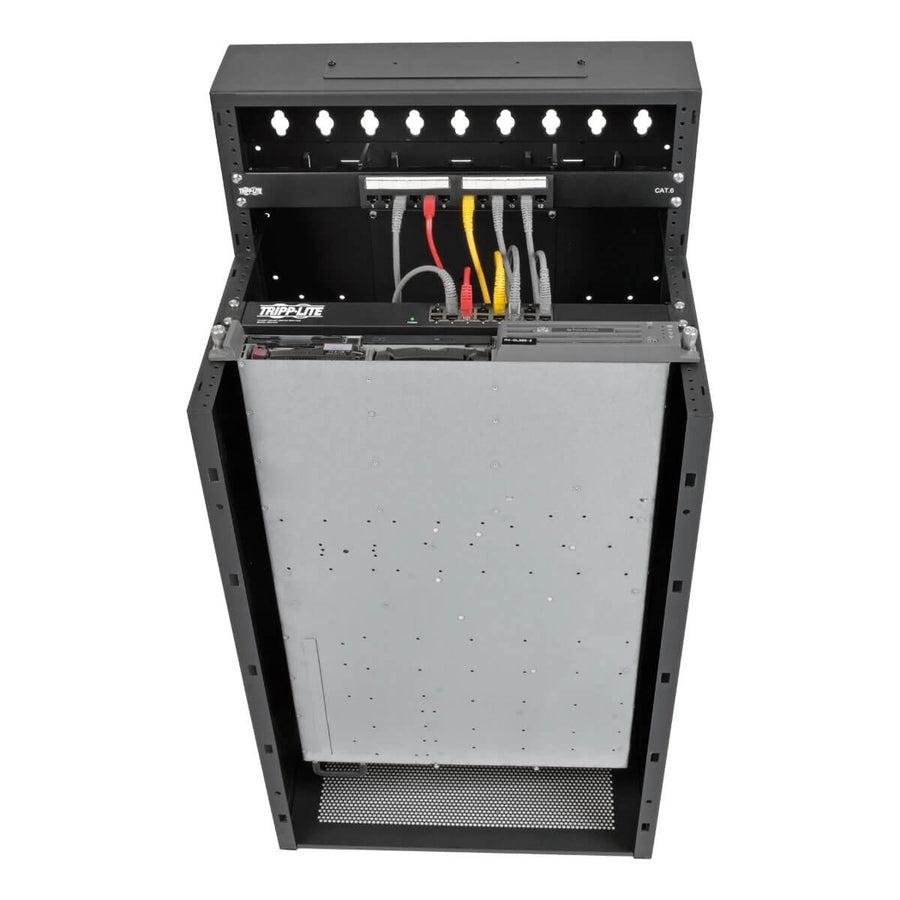

          Because the low-profile cabinet mounts vertically, it extends only 24 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 12U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.

          The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing.

          The SRWF16U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks.

          Saves Valuable Workspace
          Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way
          Houses EIA-standard 19 in. rack equipment in 12U of space
          Also includes 4U of mounting space at the top of the enclosure for patch panels
          Extends only 24 in. from the wall while housing equipment up to 35 in. deep
          Maximum load capacity of 400 lbs (181.4 kgs)

          Keeps Important Equipment Secure

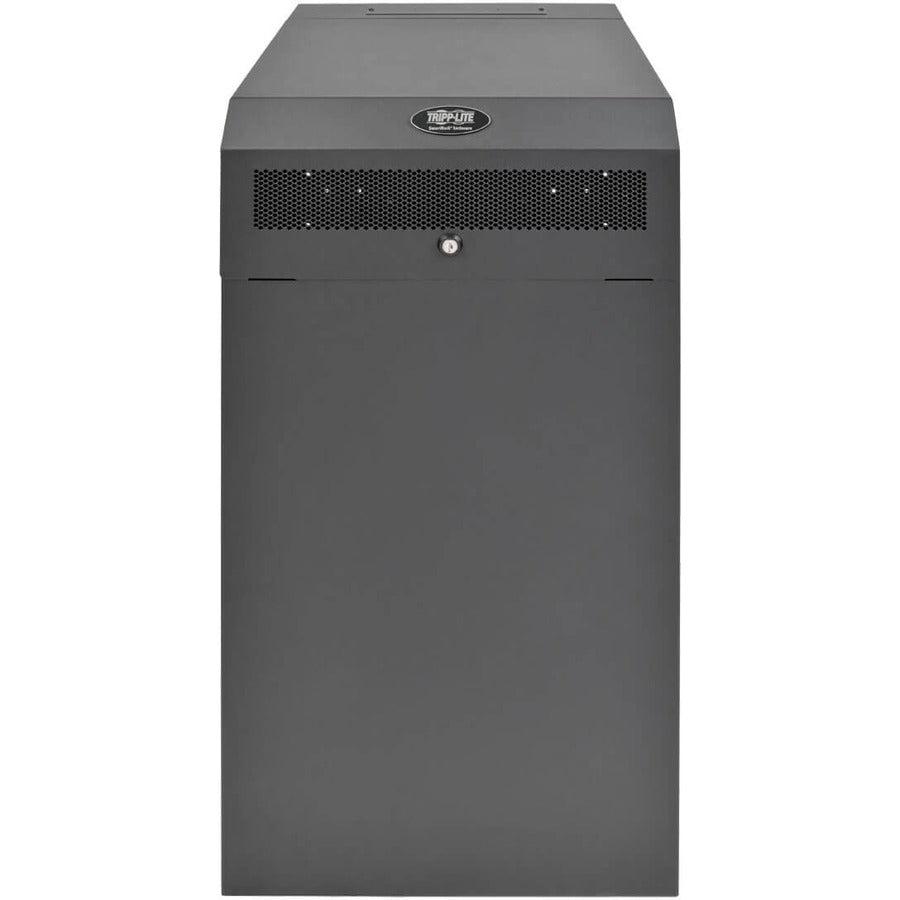

          Top cover locks securely to help prevent damage, tampering or theft
          Vented cabinet keeps equipment cool
          Convenient ports with removable covers allow cable routing through top, bottom and sides

          Easy Enclosure and Equipment Installation

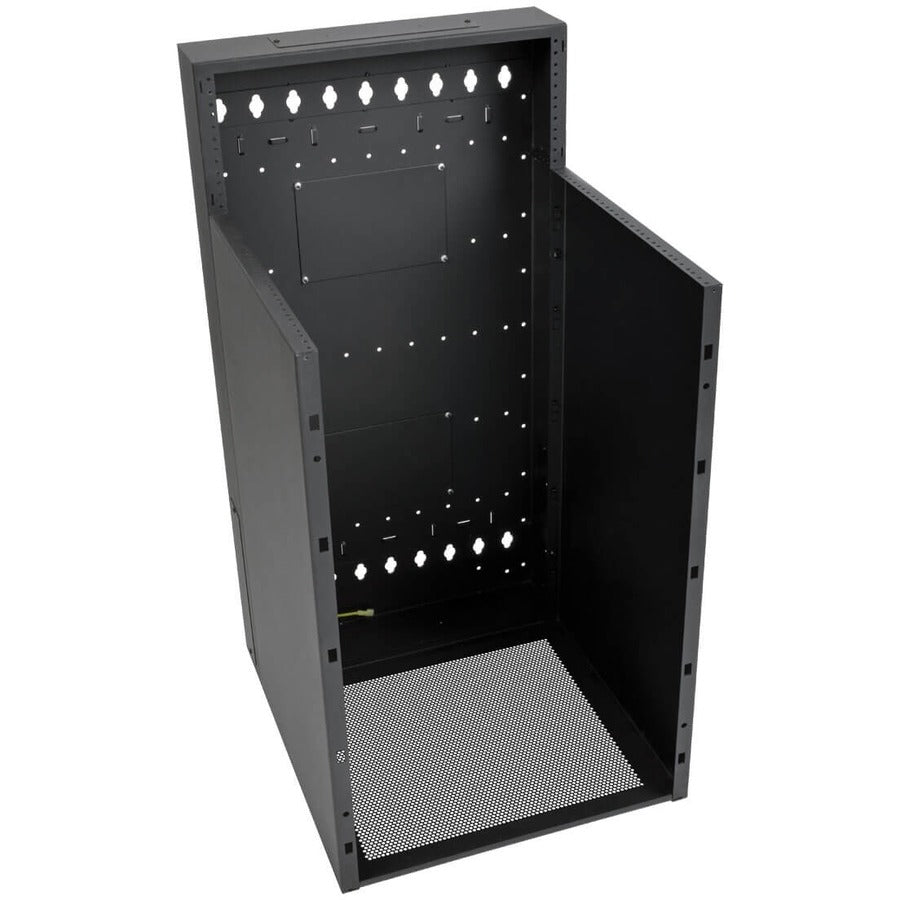

          Modular design for easy disassembly and assembly

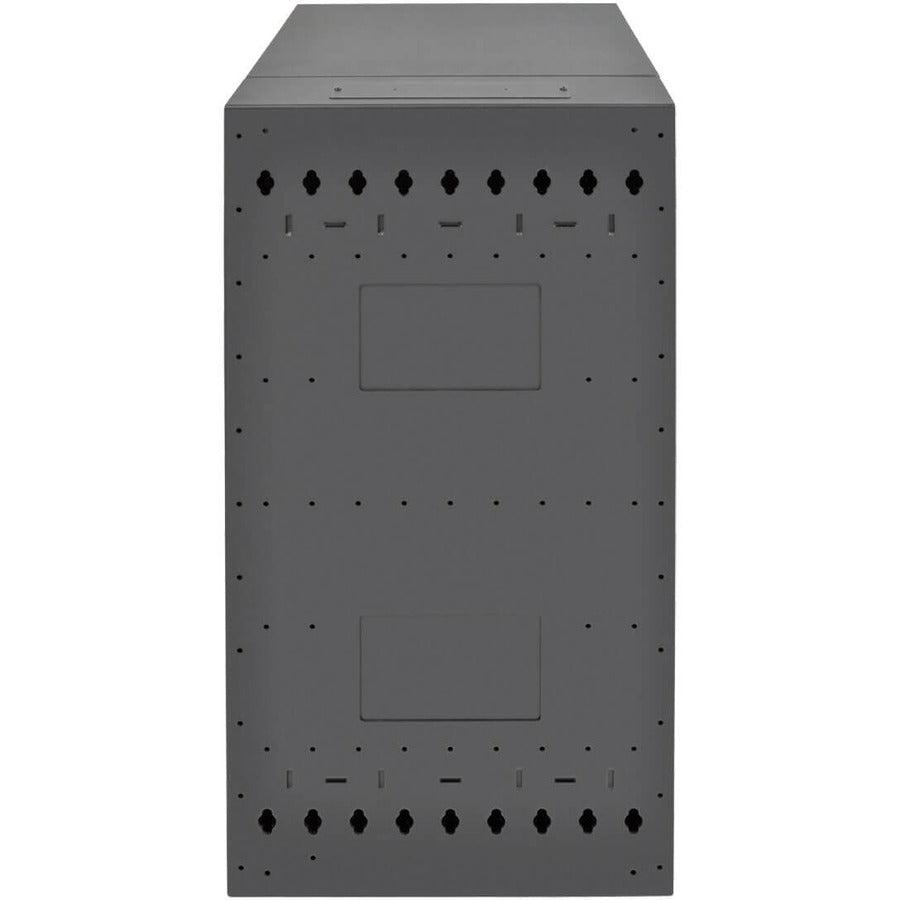

          Wall-mounting holes spaced 16 in. apart for standard wall stud placement
          Threaded mounting holes support 12-24 mounting in 2-post racks
          Rack spaces marked for easy reference

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRWF16U38
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRWF16U38
          Product Name SmartRack SRWF16U38 Rack Cabinet
          Product Type Rack Cabinet
          UPC 037332195869

          Physical Characteristics

          Color FamilyOther
          Product ColorBlack Powder Coat
          Height38"
          Width19.7"
          Depth23.2"
          Weight (Approximate)81.50 lb

          Miscellaneous

          Package Contents
          • SmartRack SRWF16U38 Rack Cabinet
          • 2 x Keys
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
