Tripp Lite Srwf12U38 Smartrack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure

Description :

SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure

Tripp Lite SRWF12U38 SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure. Type: Freestanding rack, Rack capacity: 12U, Maximum weight capacity: 181437 kg, Key lock. Weight: 30.3 kg. Product colour: Black

The SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 lbs (181.4 kgs).

Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.

The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing.

The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks.

Saves Valuable Workspace
Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 8U of space

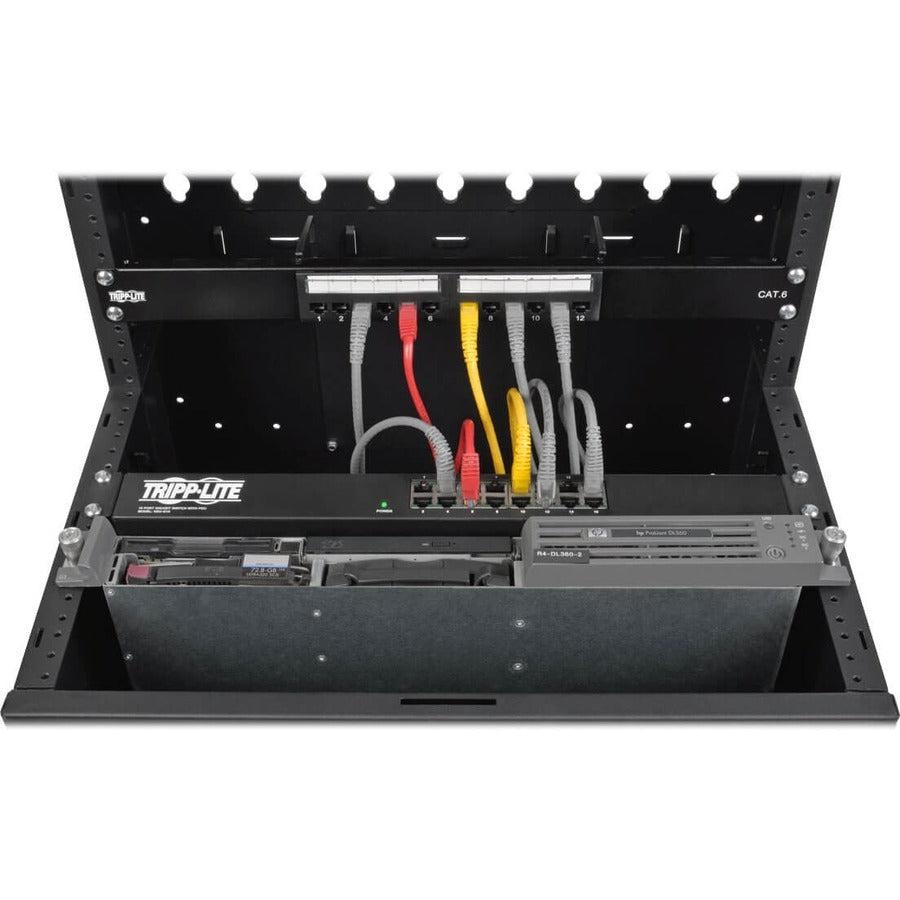

Also includes 4U of mounting space at the top of the enclosure for patch panels
Extends only 16 in. from the wall while housing equipment up to 35 in. deep
Maximum load capacity of 400 lbs (181.4 kgs)

Keeps Important Equipment Secure
Top cover locks securely to help prevent damage, tampering or theft
Vented cabinet keeps equipment cool
Convenient ports with removable covers allow cable routing through top, bottom and sides

Easy Enclosure and Equipment Installation
Modular design for easy disassembly and assembly

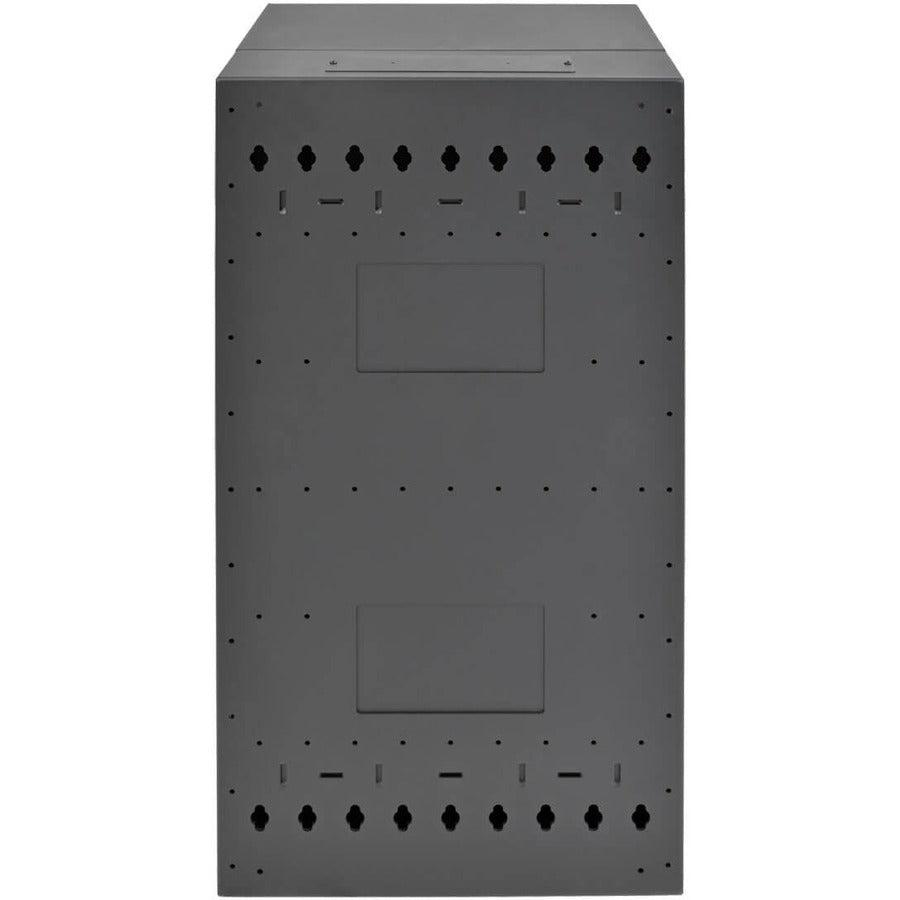

Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Threaded mounting holes support 12-24 mounting in 2-post racks
Rack spaces marked for easy reference

Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
