Tripp Lite by Eaton

Tripp Lite Srw9Udpvrt Smartrack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide

Tripp Lite Srw9Udpvrt Smartrack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide

SKU:SRW9UDPVRT

Regular price $393.05
Regular price Sale price $393.05
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide

          Tripp Lite SRW9UDPVRT SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure, Wide. Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 91 kg, Key lock, Cable management, International Protection (IP) code: IP20. Weight: 23.5 kg. Product colour: Black

          9U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

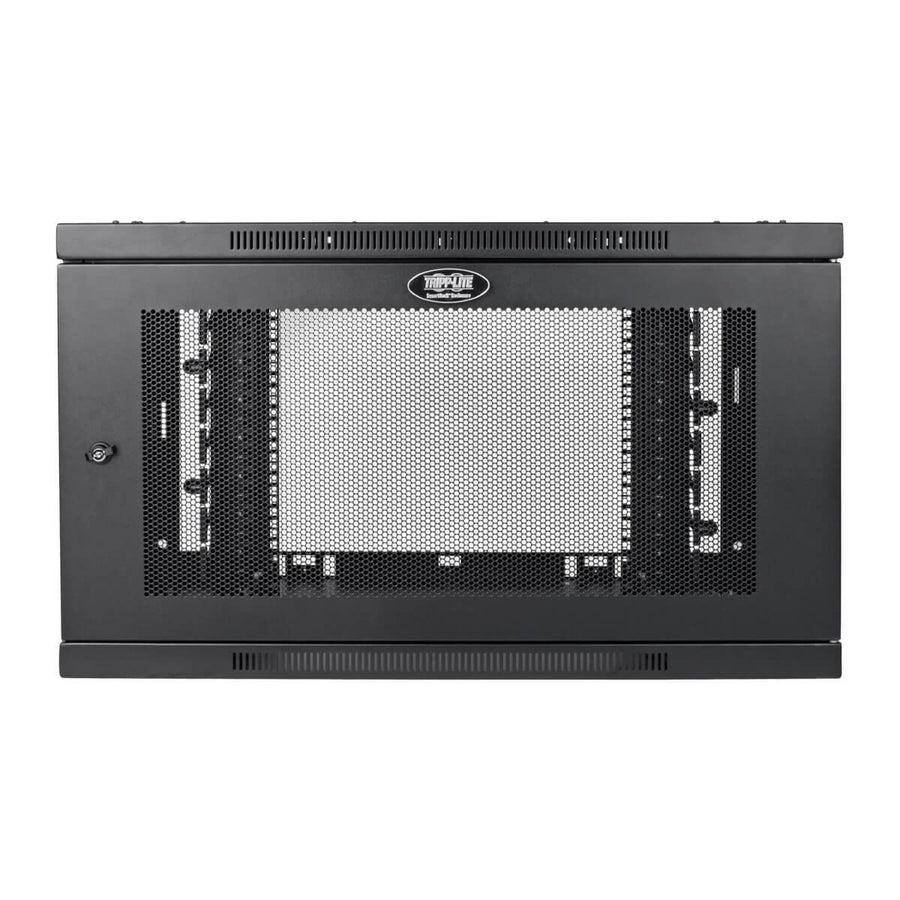

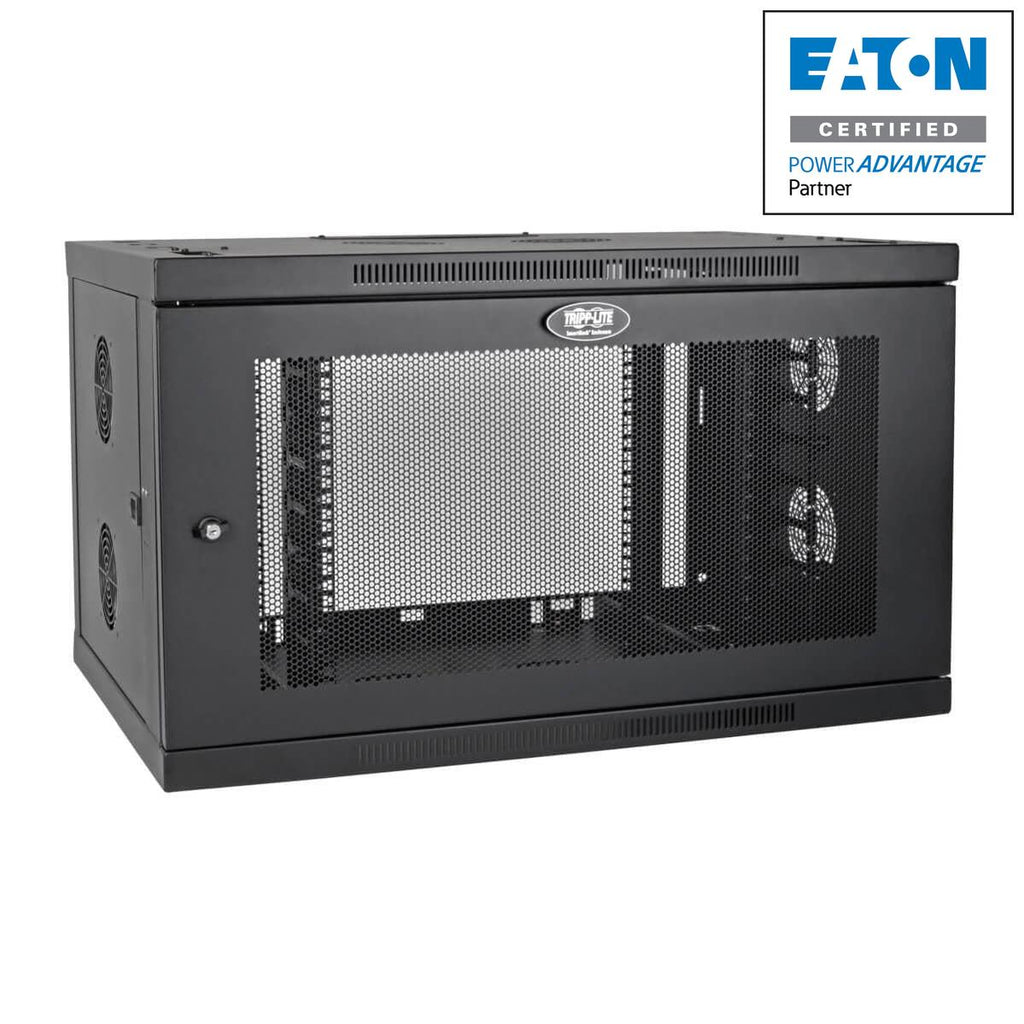

          This SmartRack® rack cabinet is designed to house 9U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).

          Lockable for Simple and Secure Equipment Access

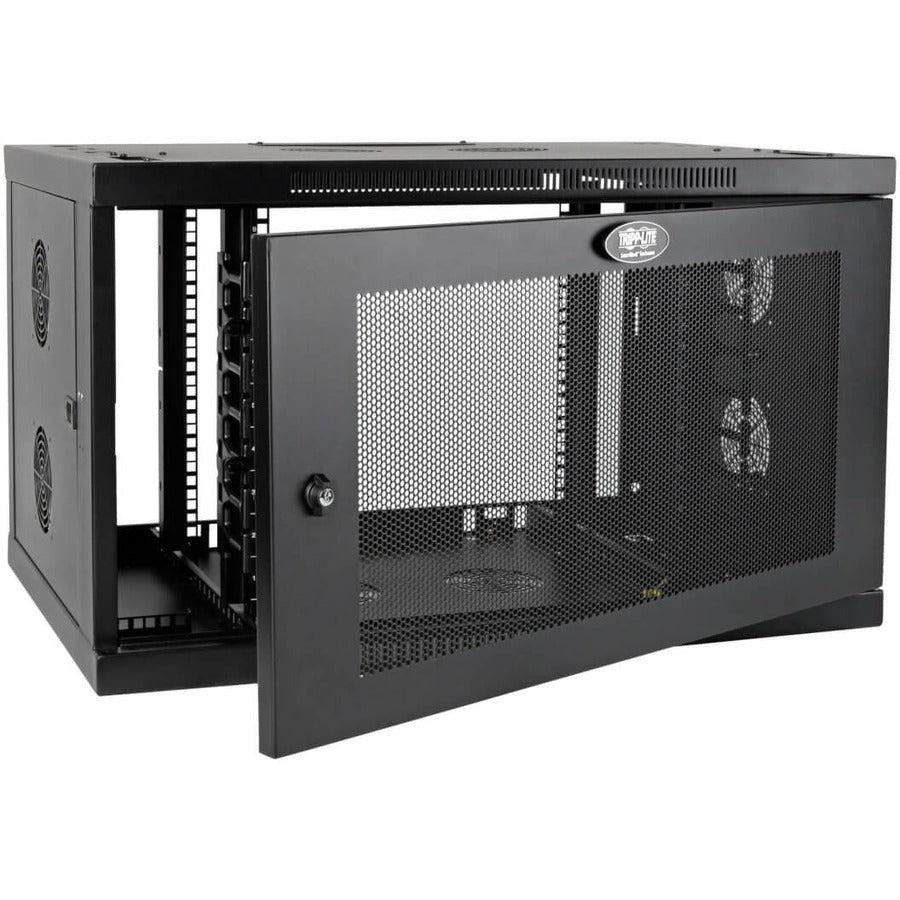

          The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.

          Generous Airflow Keeps Equipment Cool

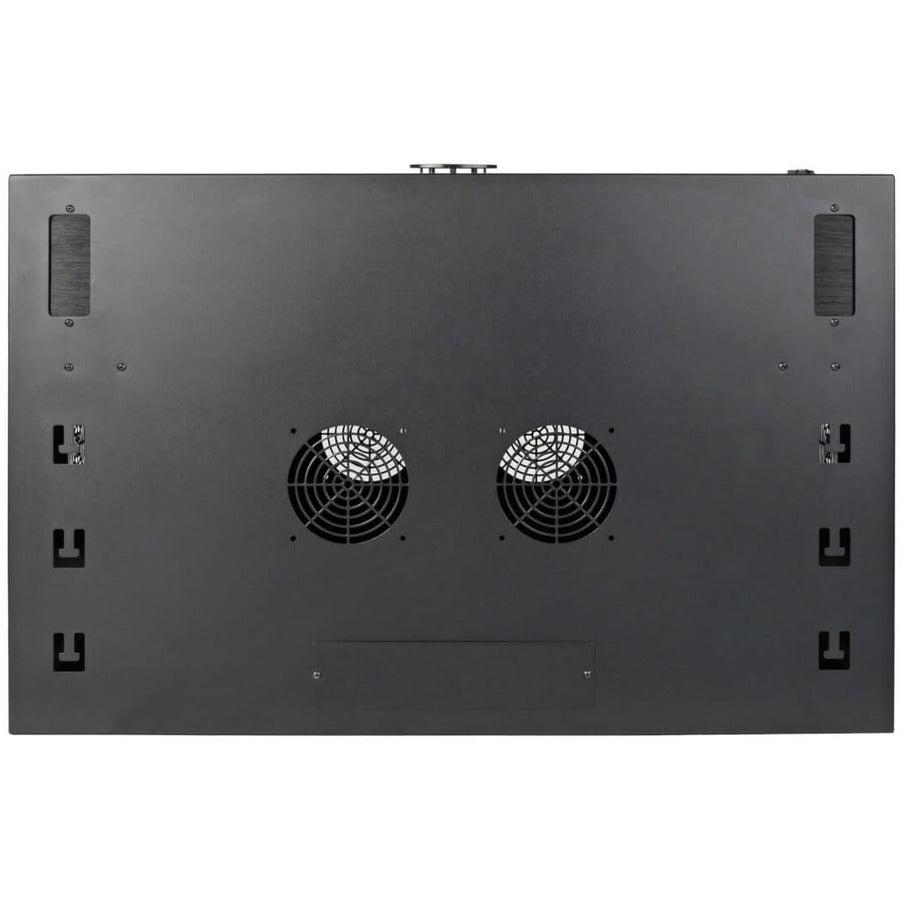

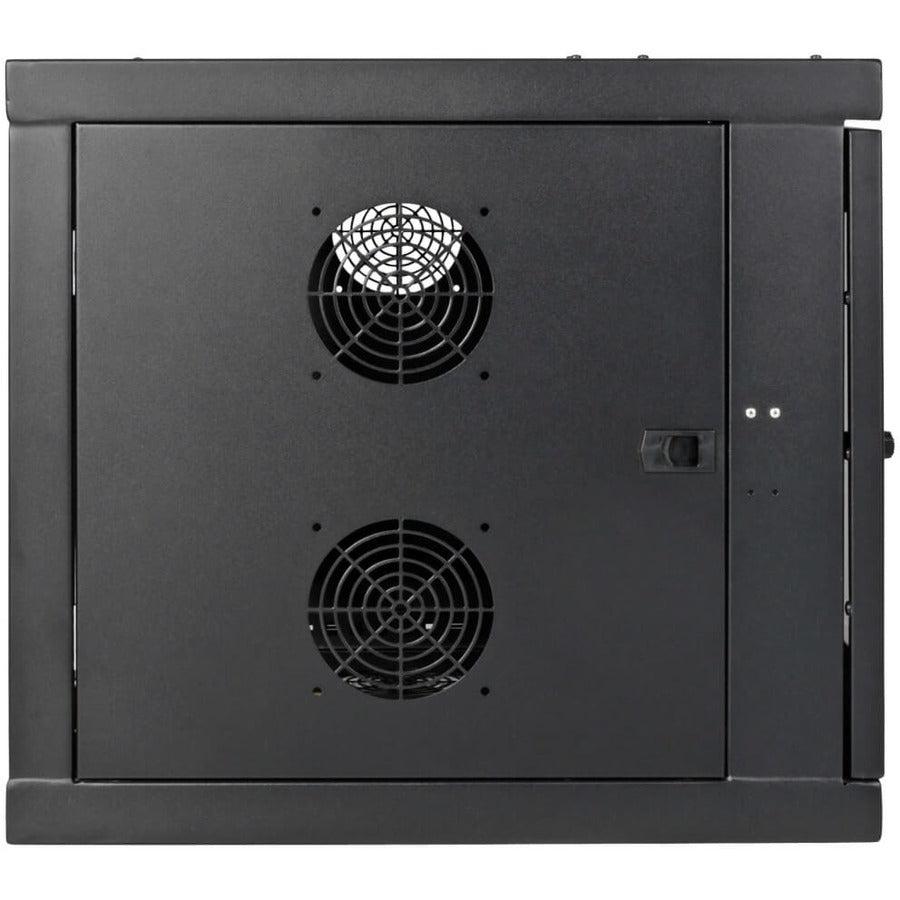

          Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as Tripp Lite's SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.

          Designed with Extra Width for Easier Cable Access and Better Airflow

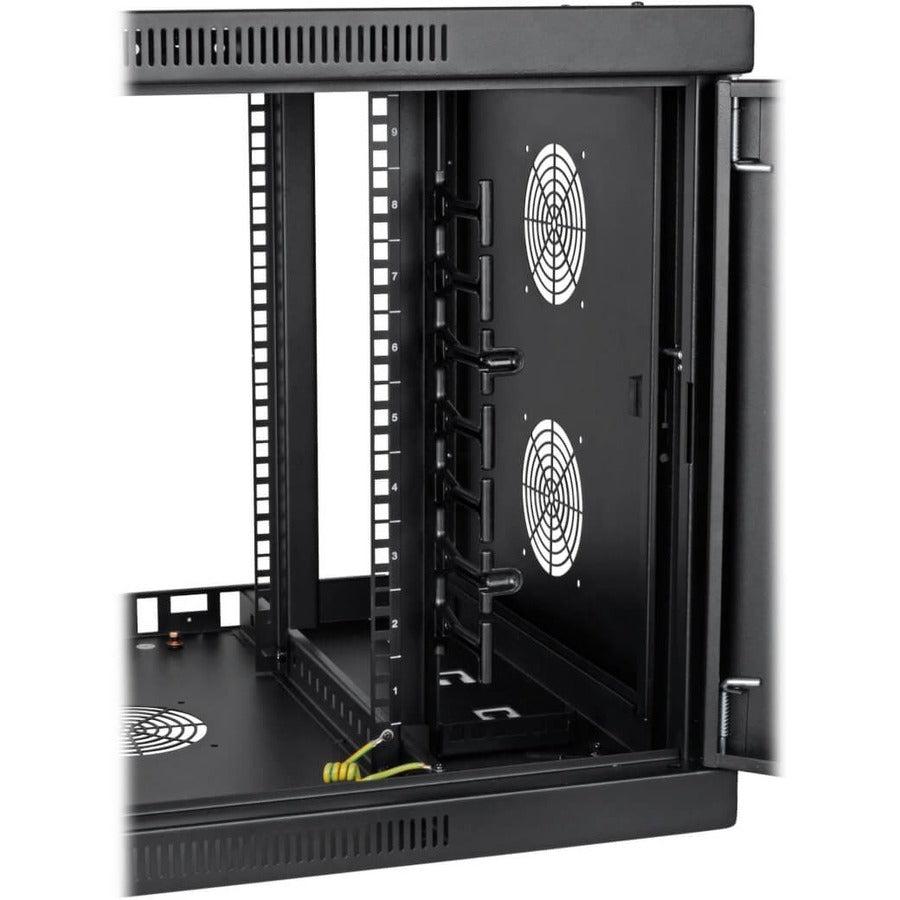

          The SRW9UDPVRT is three inches wider than Tripp Lite's standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.

          Easy Enclosure and Equipment Installation

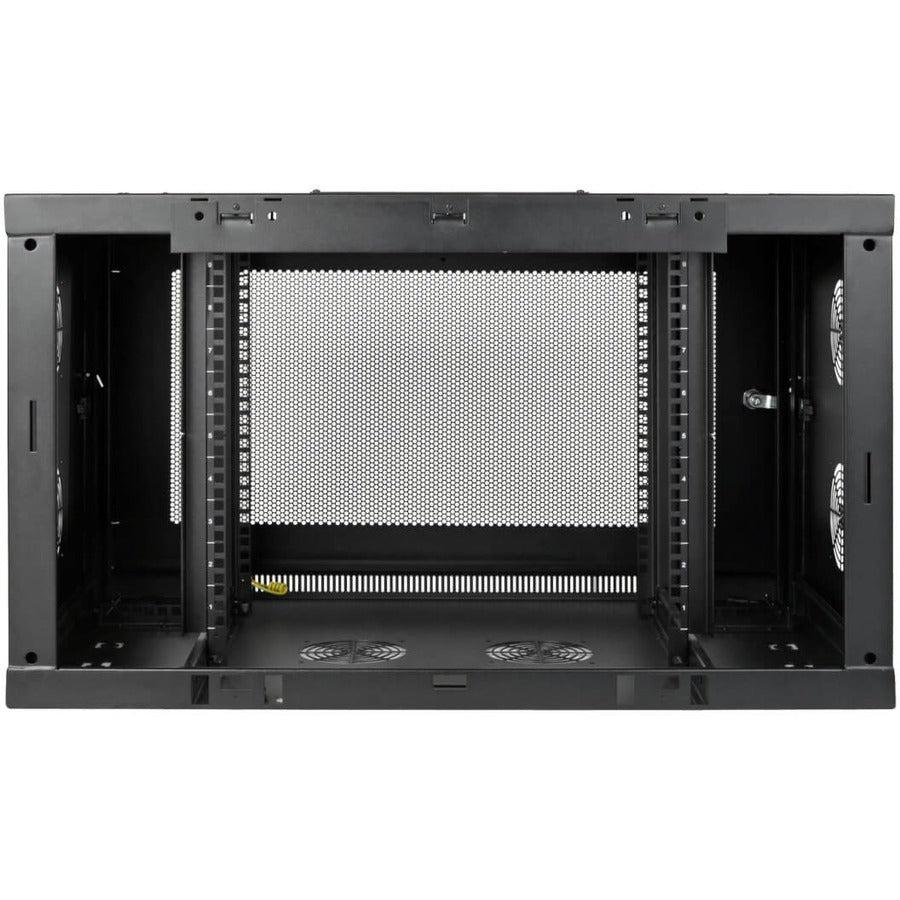

          This 9U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. In addition to 9U horizontally, the cabinet can accommodate an additional 2U vertically on both the left and right sides for a total of 13U. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.

          Meets Payment Card Industry Standards
          The SRW9UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SRW9UDPVRT
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SRW9UDPVRT
          Product Name SmartRack SRW9UDPVRT Rack Cabinet
          Product Type Rack Cabinet
          UPC 037332236494

          Physical Characteristics

          Color FamilyOther
          Product ColorBlack Powder Coat
          Height19.8"
          Width29.6"
          Depth21.7"
          Weight (Approximate)51.80 lb

          Miscellaneous

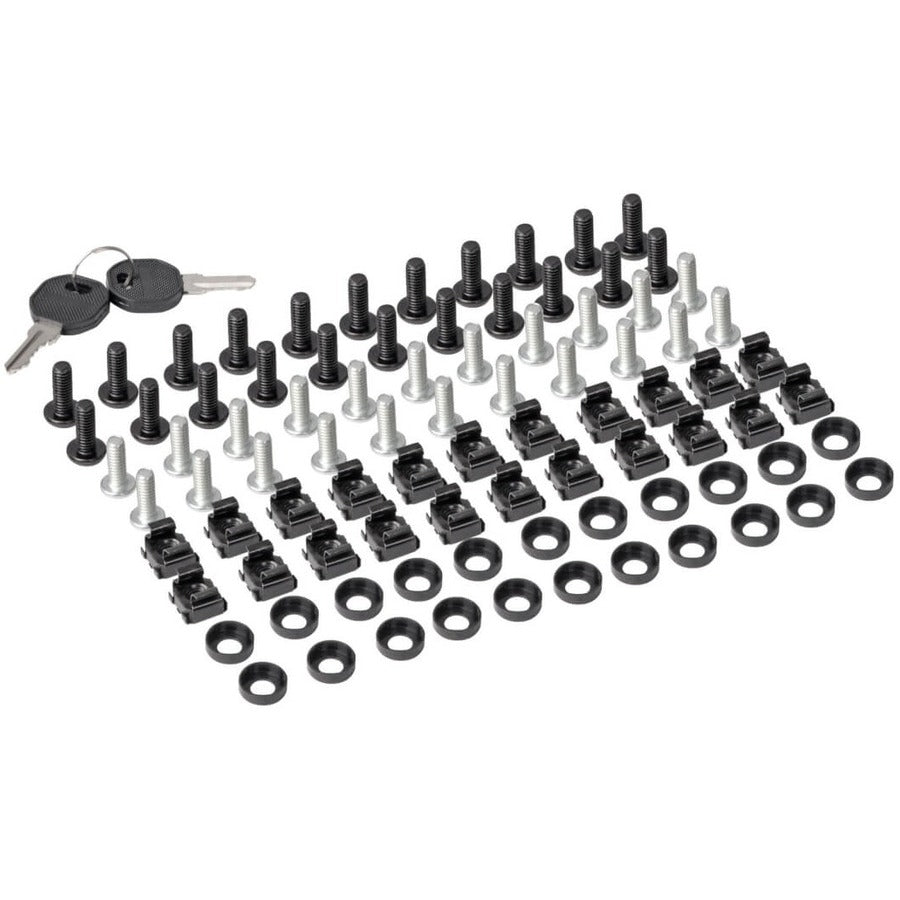

          Package Contents
          • SmartRack SRW9UDPVRT Rack Cabinet
          • 22 x M6 Screws
          • 22 x M6 Cage Nuts
          • 22 x M6 Cup Washers
          • 22 x 12-24 Screws
          • Removable Mounting Plate
          • Vertical Cable Management Fingers
          • 3 x Mounting Plate Screws
          • 2 x Keys
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
