Tripp Lite by Eaton

Tripp Lite Sr42Ubg Smartrack 42U Standard-Depth Rack Enclosure Cabinet With Clear Acrylic Window

Tripp Lite Sr42Ubg Smartrack 42U Standard-Depth Rack Enclosure Cabinet With Clear Acrylic Window

SKU:SR42UBG

Regular price $1,665.20
Regular price Sale price $1,665.20
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

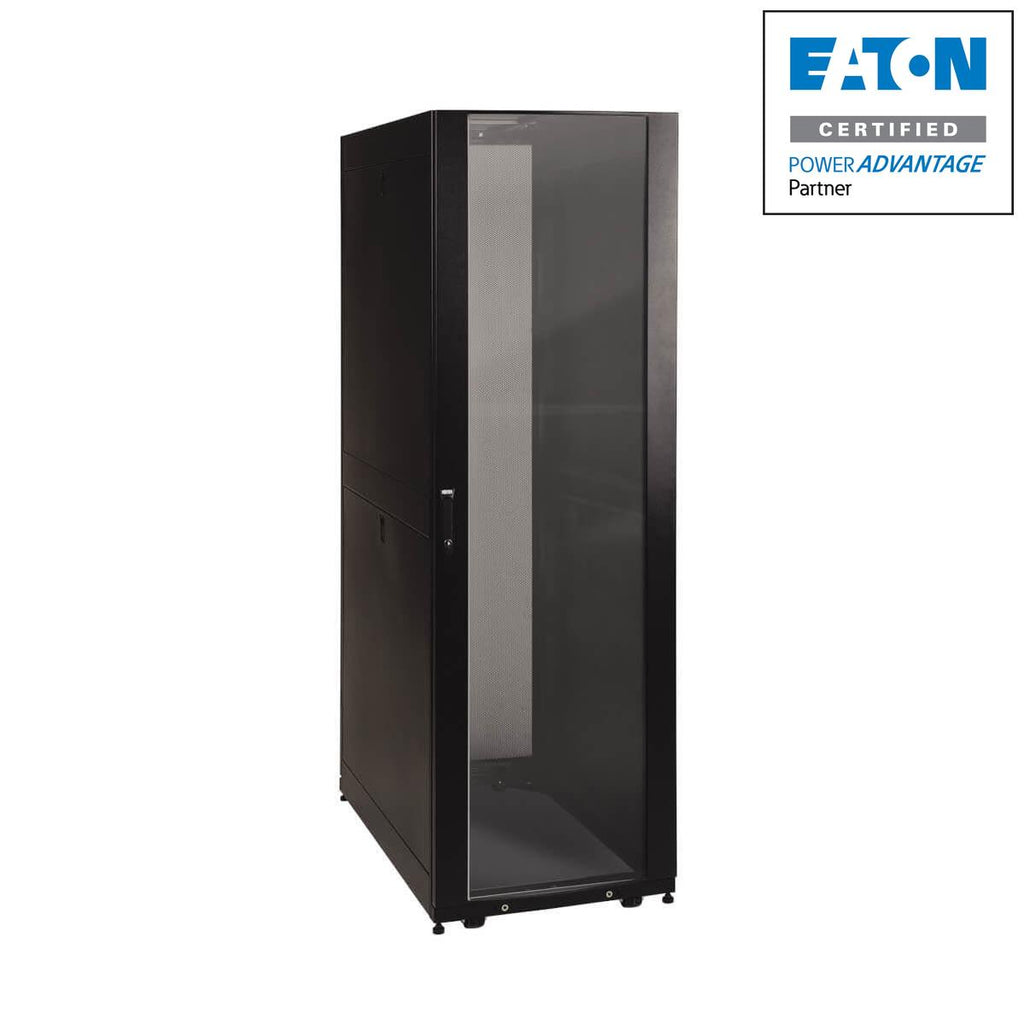

          SmartRack 42U Standard-Depth Rack Enclosure Cabinet with Clear Acrylic Window

          Tripp Lite SR42UBG SmartRack 42U Standard-Depth Rack Enclosure Cabinet with Clear Acrylic Window. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 1360.776 kg. Weight: 129.7 kg. Product colour: Black

          The SR42UBG SmartRack 42U Standard-Depth Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, server rooms, data centers and other areas with limited floor space where you need equipment to be secure and organized. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum stationary load capacity of 3000 lbs (1360.8 kgs).

          The front door features a full-length shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

          To ensure your valuable equipment stays secure, the removable side panels, split rear door and reversible front door lock. The rear door and removable top panel are vented, which allows air to flow freely through the cabinet to keep equipment cool. Convenient top ports and an open bottom allow easy cable routing through the cabinet.

          The SR42UBG comes partially assembled and ready to deploy with preinstalled casters that let you easily maneuver it into position, where it can be secured by adjusting the removable levelers. Square mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 1/4-inch increments to accommodate equipment up to 37 inches deep, such as servers and networking switches.

          Secures and Organizes Important Equipment
          Perfect for network closets, server rooms, data centers and other areas with limited floor space where you need equipment to be secure and organized
          Houses EIA-standard 19 in. rack equipment in 42U of space
          Maximum stationary load capacity of 3000 lbs (1360.8 kgs).
          Maximum rolling load capacity of 2250 lbs (1020.6 kgs).
          Doors and side panels lock securely
          Vented rear and top panels allow generous airflow that keeps equipment cool

          Shatter-Resistant Clear Acrylic Front Window
          Lets you monitor equipment without unlocking the enclosure
          Prevents equipment tampering
          Reduces acoustic noise
          Provides extra visual flair

          Convenient Access to Components and Cabling
          Integrated cable management system helps to eliminate unnecessary airflow obstruction and keep the cabinet more organized
          Removable, split side panels provide easy access for inspection and maintenance
          Split rear door reduces clearance requirements for service access, allowing the enclosure to be placed closer to a wall
          Top ports and open bottom allow cable routing through the cabinet

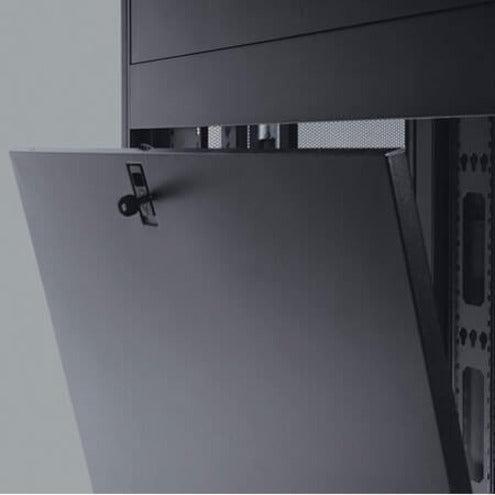

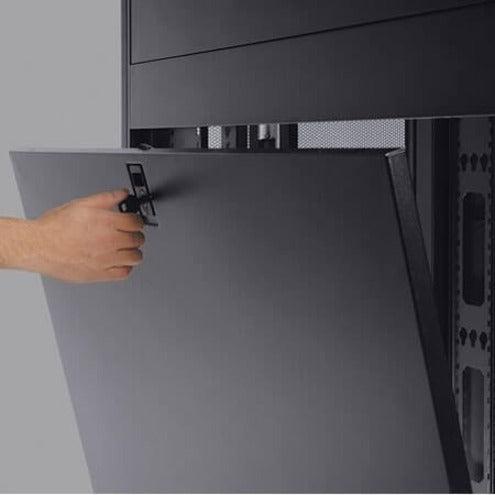

          Top panel removes toollessly to provide access without disconnecting cables

          Ships Partially Assembled for Quick Deployment
          Preinstalled casters enable the enclosure to be easily maneuvered to desired location
          Removable levelers adjust to stabilize the rack on uneven surfaces

          Easy Equipment Installation
          Vertical mounting rails adjust in 1/4 in. increments to house equipment up to 37 in. deep
          Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
          Rails support square-hole mounting
          Rack spaces numbered for easy reference
          0U mounting slots for quick installation of compatible PDUs and vertical cable managers

          Meets Payment Card Industry Standards
          Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SR42UBG
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SR42UBG
          Product Name SmartRack Premium SR42UBG Enclosure Rack Cabinet
          Product Type Rack Cabinet
          UPC 037332148711

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height78.5"
          Width23.6"
          Depth43"
          Weight (Approximate)286.60 lb

          Miscellaneous

          Package Contents
          • SmartRack Premium SR42UBG Enclosure Rack Cabinet
          • Plexiglass Front Door
          • Vented Back Doors
          • Side Panels
          • 50 x Pieces of M6 Cage Nuts
          • 50 x Pieces of M6 Screws
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
