Tripp Lite by Eaton

Tripp Lite Sr24Ub Smartrack 24U Mid-Depth Half-Height Rack Enclosure

Tripp Lite Sr24Ub Smartrack 24U Mid-Depth Half-Height Rack Enclosure

SKU:SR24UB

Regular price $829.33
Regular price Sale price $829.33
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

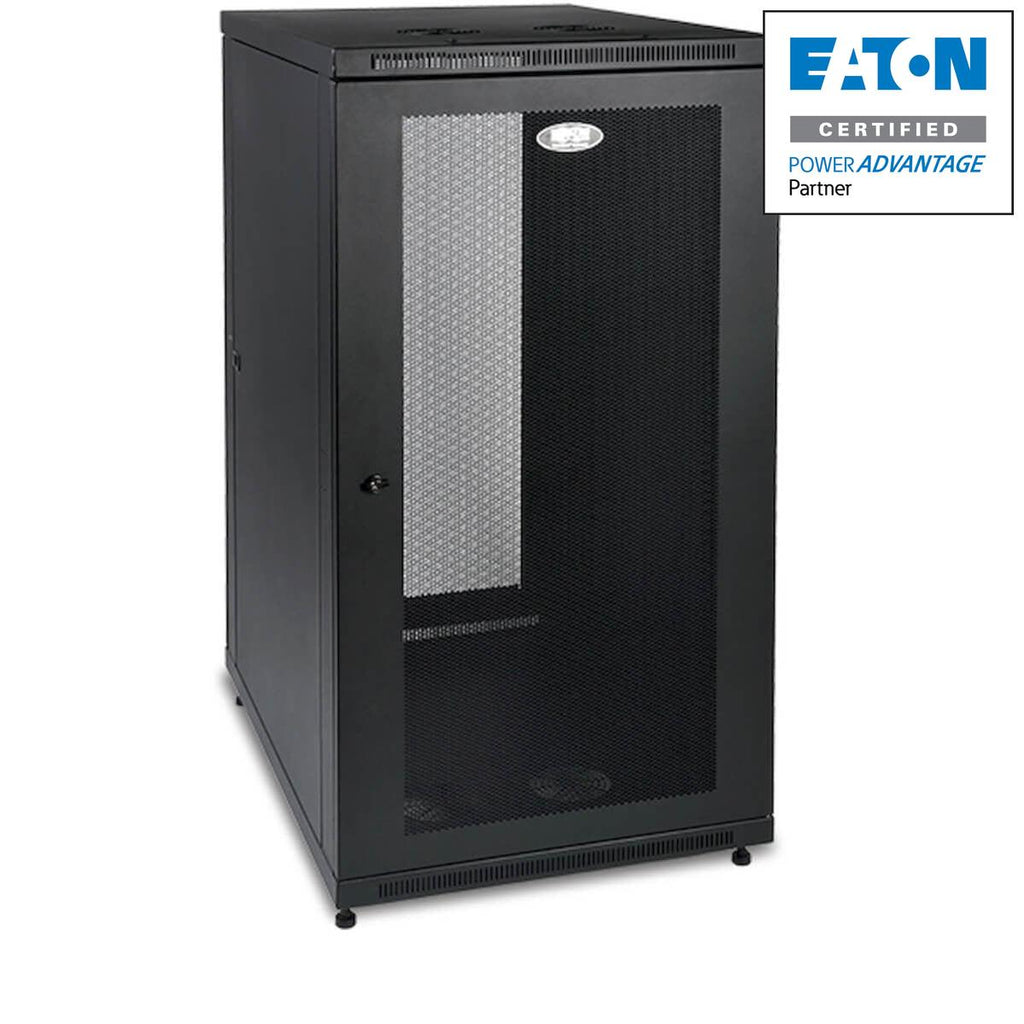

          SmartRack 24U Mid-Depth Half-Height Rack Enclosure

          Tripp Lite SR24UB SmartRack 24U Mid-Depth Half-Height Rack Enclosure. Type: Freestanding rack, Rack capacity: 24U, Maximum weight capacity: 453.6 kg. Weight: 55.8 kg. Product colour: Black

          Tripp Lite's SmartRack 24U Mid-Depth Rack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated front and rear doors and solid side panels promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR24UB is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. The SR24UB ships fully assembled for quick installation and comes with a 5-year warranty.



          The SR24UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from 3 to 32.5 inches, ideal for standard server installation. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 1000 lbs (453.6 kgs) of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.

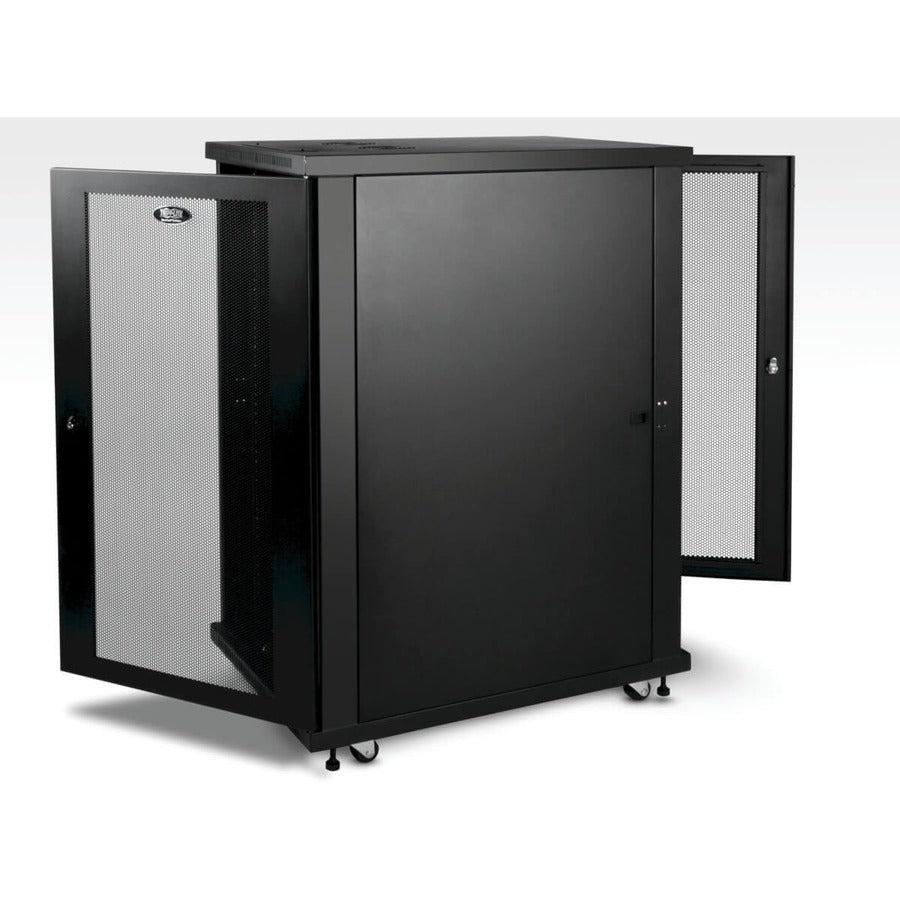

          With a locking, reversible front/rear doors and locking, removable side panels, the SR24UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.

          The top and bottom panels of the SR24UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (Tripp Lite SRFANWM). The top and bottom panels are also provided with ports for cable routing.

          To simplify deployment, the SR24UB comes with an accessory caster kit consisting of 4 casters and all required installation hardware. With the casters installed, the SR24UB can easily be maneuvered into the desired location, and then secured in place by adjusting the unit's levelers. Note: the casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.

          24U extra deep enclosure
          Adjustable mounting depths from 3" to 32.5" inches
          Locking, reversible front and rear doors
          Locking, removable side panels
          Top and bottom panel cable access openings
          Fully assembled for quick installation
          Casters and leveling feet
          Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SR24UB
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartRack
          Product Model SR24UB
          Product Name SmartRack 24U Extra-Depth Rack Enclosure Cabinet
          Product Type Rack Cabinet
          UPC 037332185228

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height45.6"
          Width23.6"
          Depth33.5"
          Weight (Approximate)123 lb

          Miscellaneous

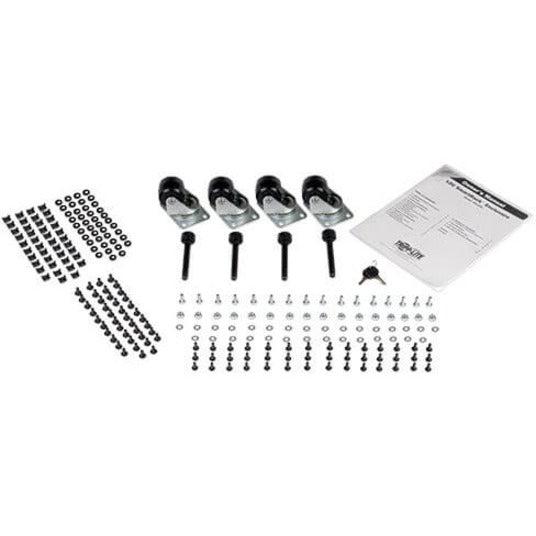

          Package Contents
          • SmartRack 24U Extra-Depth Rack Enclosure Cabinet
          • 42 x M6 Screws
          • 42 x M6 Cage Nuts
          • 42 x M6 Washers
          • 4 x Casters
          • 4 x Levelers
          • 2 x keys
          • Owner's Manual
          FeaturesCable Management
          Environmentally FriendlyYes
          Environmental CertificationRoHS

          Warranty

          Limited Warranty5 Year
