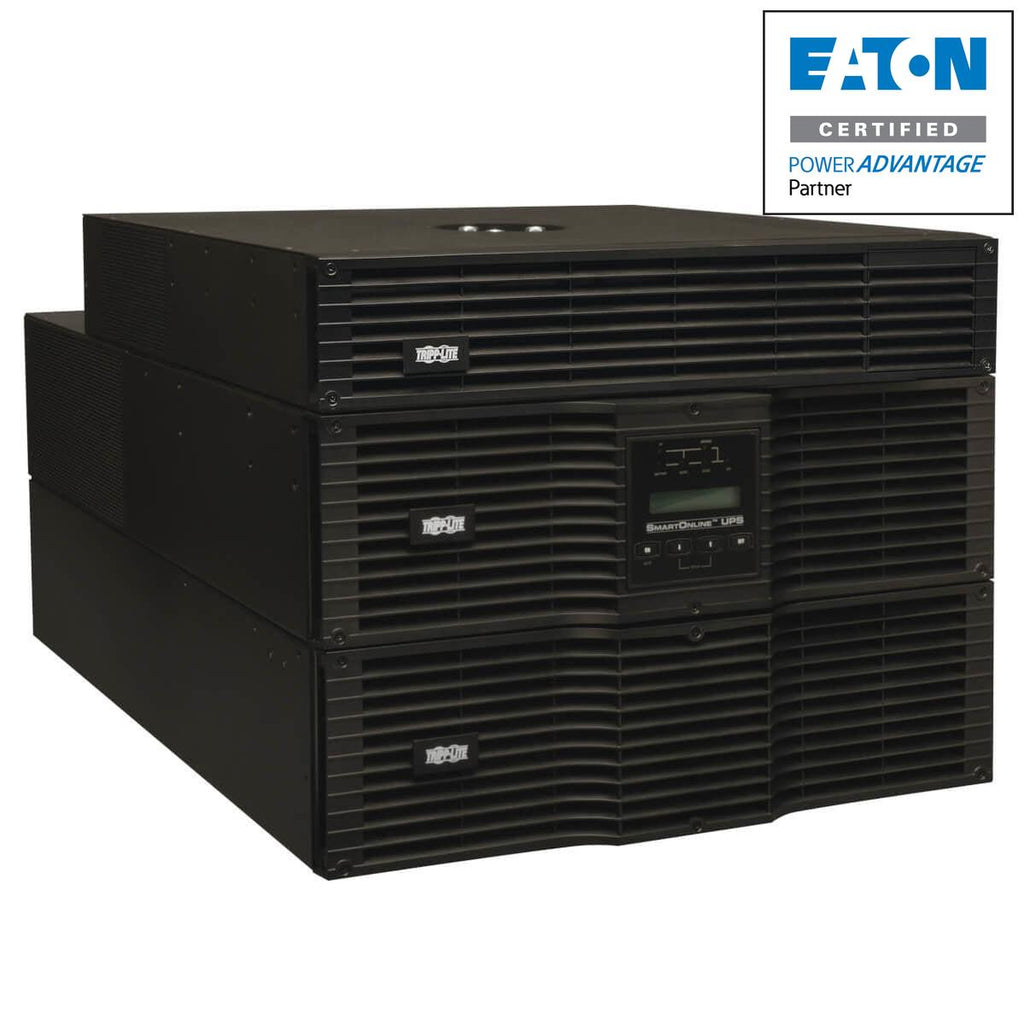

Tripp Lite Smartonline 208/120V 8Kva 7.2Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 8U Rack/Tower, Bypass Switch

Tripp Lite Smartonline 208/120V 8Kva 7.2Kw On-Line Double-Conversion Ups, Extended Run, Snmp, Webcard, 8U Rack/Tower, Bypass Switch

SKU:SU8000RT3U1TF

Regular price $5,148.26
Regular price Sale price $5,148.26
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          SmartOnline 208/120V 8kVA 7.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 8U Rack/Tower, Bypass Switch

          Tripp Lite SmartOnline 208/120V 8kVA 7.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 8U Rack/Tower, Bypass Switch. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 7200 W. AC outlet types: NEMA 5–15,NEMA 5–20R,NEMA L6-20R,NEMA L6-30R, AC outlets quantity: 18 AC outlet(s). Typical backup time at full load: 5.5 min, Typical backup time at half load: 13.5 min, Battery recharge time: 6 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 8U. Package width: 660.4 mm, Package depth: 1041.4 mm, Package height: 800.1 mm

          Tripp Lite SU8000RT3U1TF 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
          - Tripp Lite SU8000RT3U1TF 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 8U total rack/tower configuration (3U UPS power module, 3U external battery pack and 2U step-down transformer)

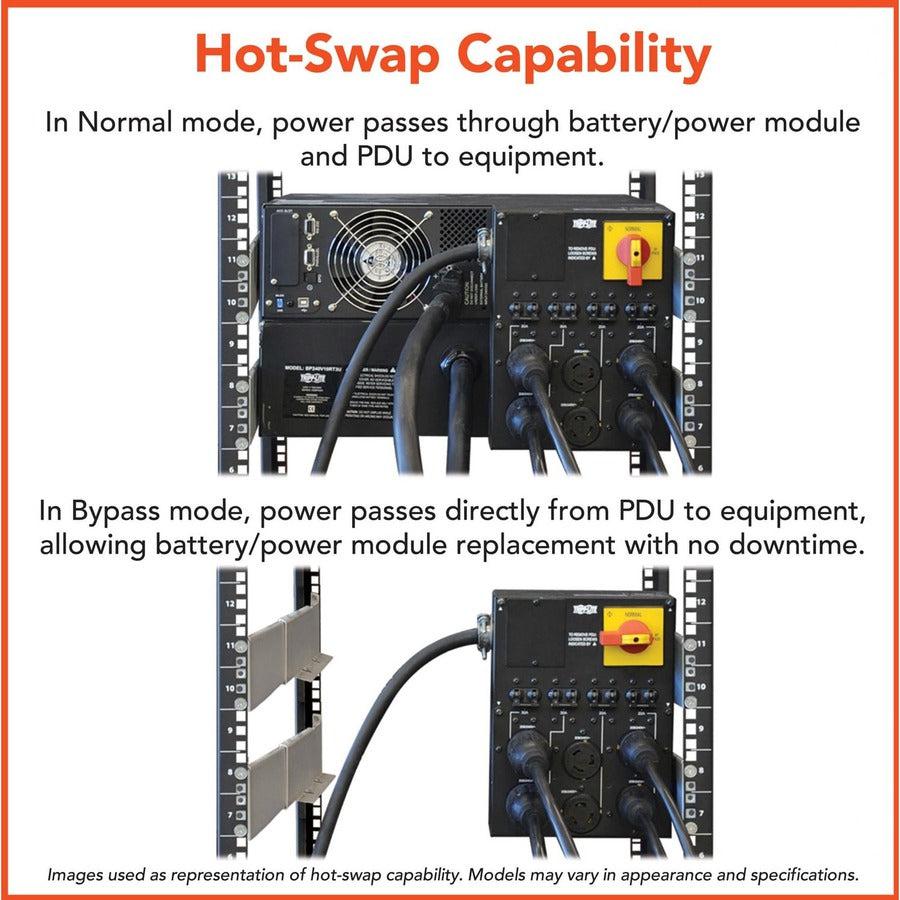

          - Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment
          - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
          - Hardwire input; 2 L6-30R, 4 L6-20R and 12 5-15/20R outlets
          - Maximum installed rack depth of only 32.5 in. / 82.6cm inches
          - Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
          - Double-conversion operation converts raw input from AC to DC, then re-synthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
          - Maintains full-time sine wave output within 2% of 208/120V nominal at 60Hz during brownouts as low as 100V and overvoltages as high as 300V
          - Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH external battery packs
          - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
          - Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs
          - Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
          - PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
          - Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
          - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
          - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
          - Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
          - Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification
          - Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
          - Supports Emergency Power Off (EPO) via built-in interface
          - Included rail kit supports 8U 19 inch rackmount installation in 4 post racks
          - Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks
          - Optional 2-9USTAND supports upright tower placement
          - Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
          - LED / LCD display panel rotates for viewing in rackmount or tower configurations
          - Network-grade AC surge and noise suppression
          - Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
          - External battery packs are field replaceable and hot swappable

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number SU8000RT3U1TF
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Line SmartOnline
          Product Model SU8000RT3U1TF
          Product Name SmartOnline SU8000RT3U1TF 8kVA Tower/Rack Mountable UPS
          Product Type Double Conversion Online UPS
          UPC 037332138026
          Height5.1"
          Width17.5"
          Depth25"
          Weight (Approximate)55 lb

          Miscellaneous

          Package Contents

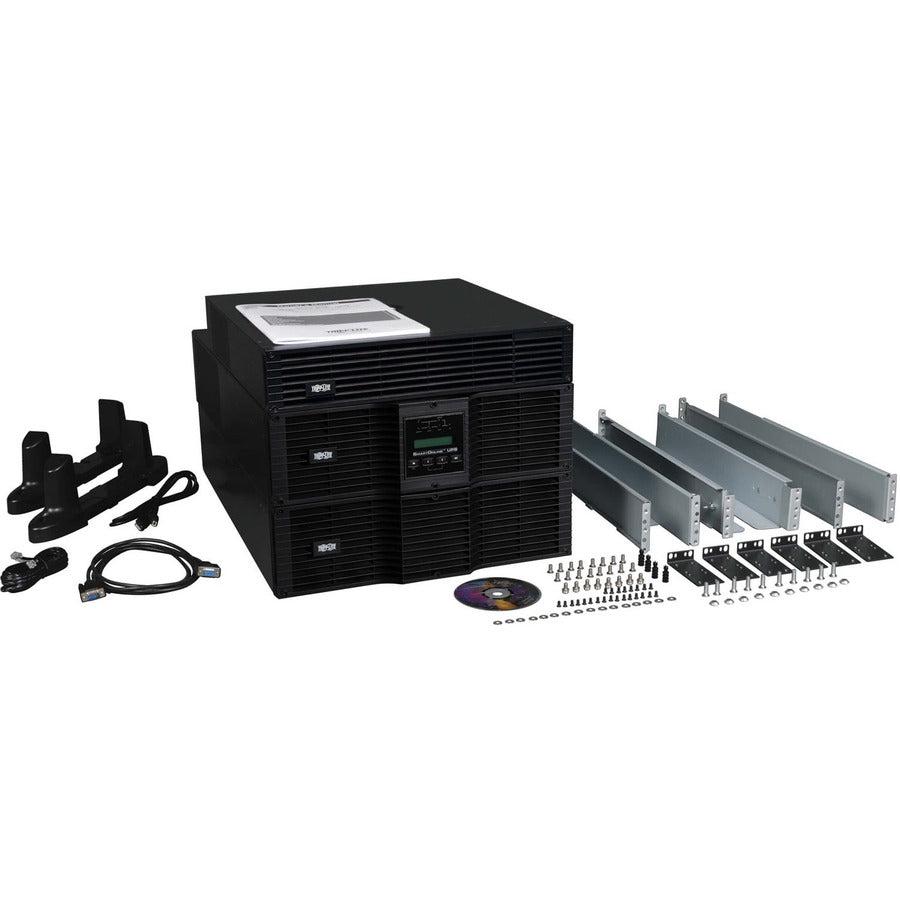

          • SmartOnline SU8000RT3U1TF 8kVA Tower/Rack Mountable UPS
          • 3U power module with detachable hot-swap PDU input/output panel and bypass switch
          • 3U external battery pack, 2U step-down transformer
          • Three sets of 4 post rackmount rails (one for each of the 2U and 3U components)
          • One set of

          Warranty

          Limited Warranty2 Year
