Tripp Lite by Eaton

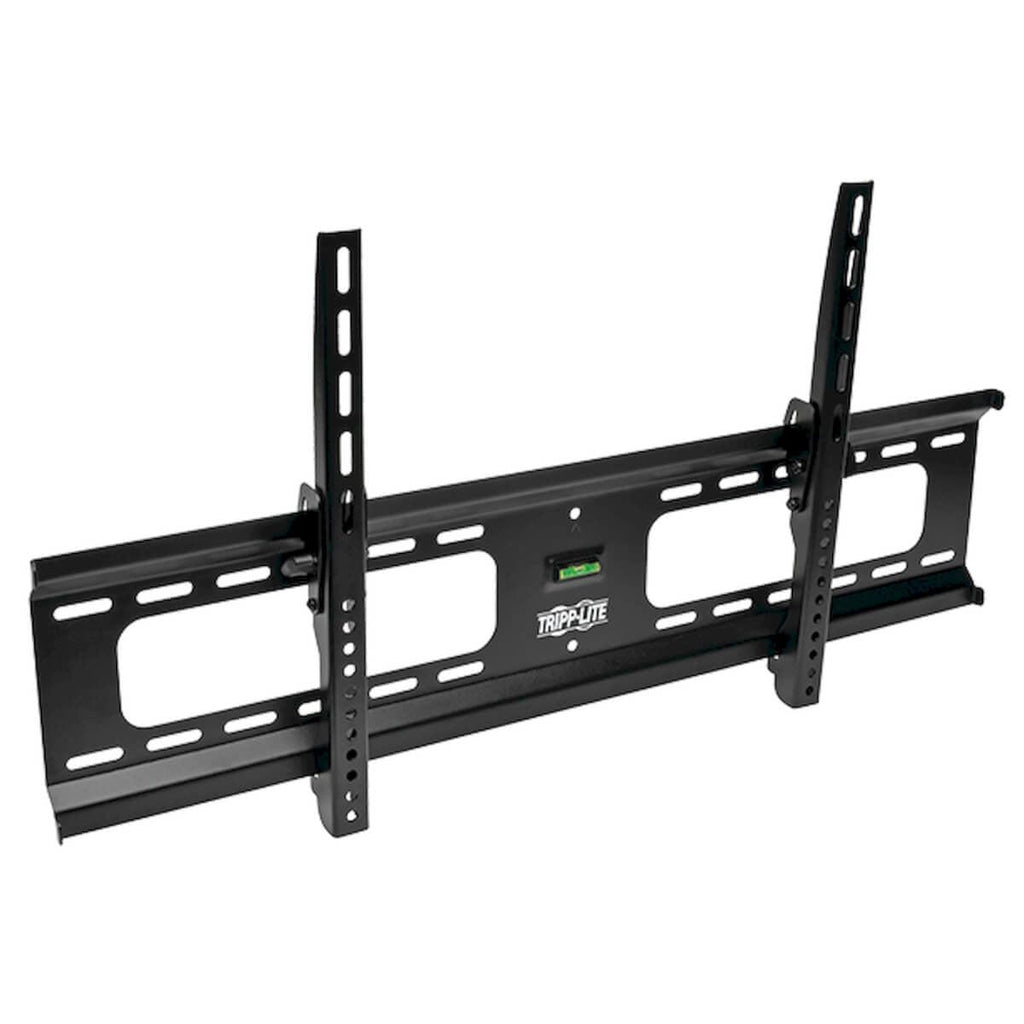

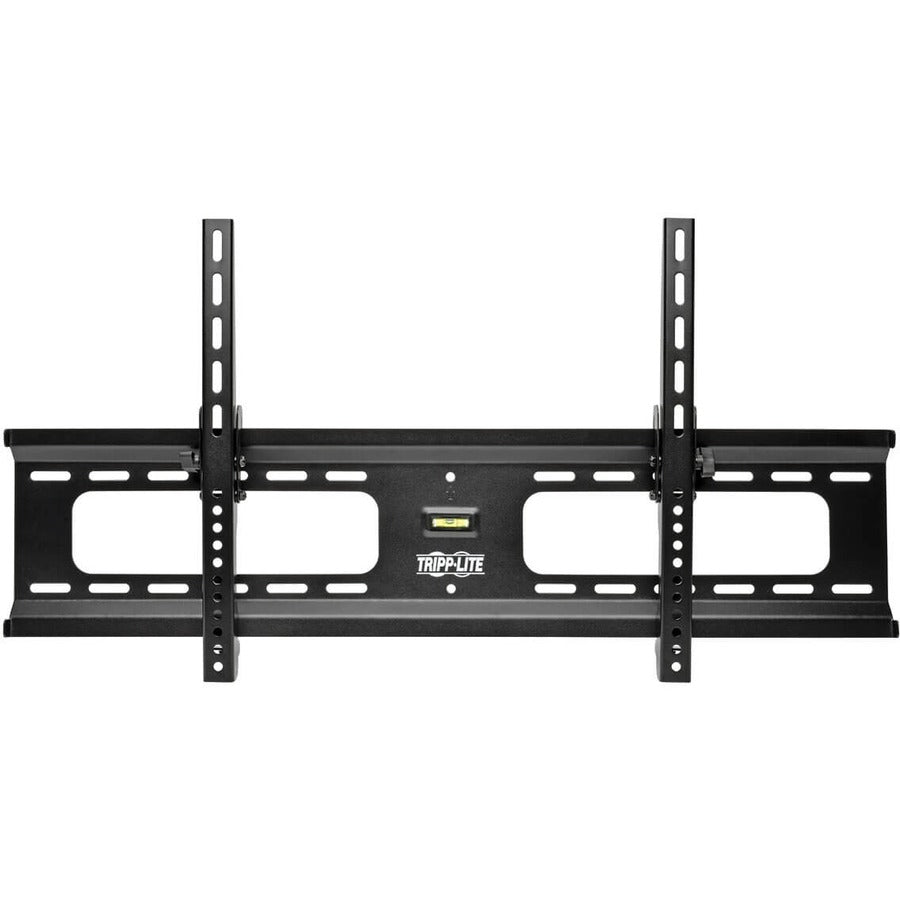

Tripp Lite Dwt3780Xul Heavy-Duty Tilt Wall Mount For 37" To 80" Tvs And Monitors, Flat Or Curved Screens, Ul Certified

Tripp Lite Dwt3780Xul Heavy-Duty Tilt Wall Mount For 37" To 80" Tvs And Monitors, Flat Or Curved Screens, Ul Certified

SKU:DWT3780XUL

Regular price $88.22
Regular price Sale price $88.22
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors, Flat or Curved Screens, UL Certified

          Tripp Lite DWT3780XUL Heavy-Duty Tilt Wall Mount for 37" to 80" TVs and Monitors, Flat or Curved Screens, UL Certified. Maximum weight capacity: 75 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (min): 4.6 cm, Distance to the wall (max): 5 cm. Product colour: Black

          The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.

          A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.

          The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included.

          Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

          This mount has been tested in accordance with UL Standard 2442.

          Mounts Your TV or Monitor to the Wall
          Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
          Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
          Mounts out of sight behind display for sleek, professional appearance
          Mounting hardware included

          Convenient Angle Adjustment
          -10° to 0° tilt capability provides comfortable viewing from multiple angles
          Improves viewing angles in applications where audience is below the display
          Easy-grip knobs allow simple adjustment of tilt angle

          Durable Metal Construction
          Supports up to 165 lbs (74.8 kgs)
          Open architecture enables easy access to cabling
          Built-in bubble level for accurate display leveling
          Scratch-resistant powder-coated finish
          Tested in accordance with UL Standard 2442

          VESA Compliance
          Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number DWT3780XUL
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model DWT3780XUL
          Product Name DWT3780XUL Wall Mount
          Product Type Wall Mount
          UPC 037332203991

          Physical Characteristics

          Color FamilyBlack
          Product ColorBlack
          Height33.5"
          Width1.8"
          Depth8"
          Weight (Approximate)7.89 lb

          Miscellaneous

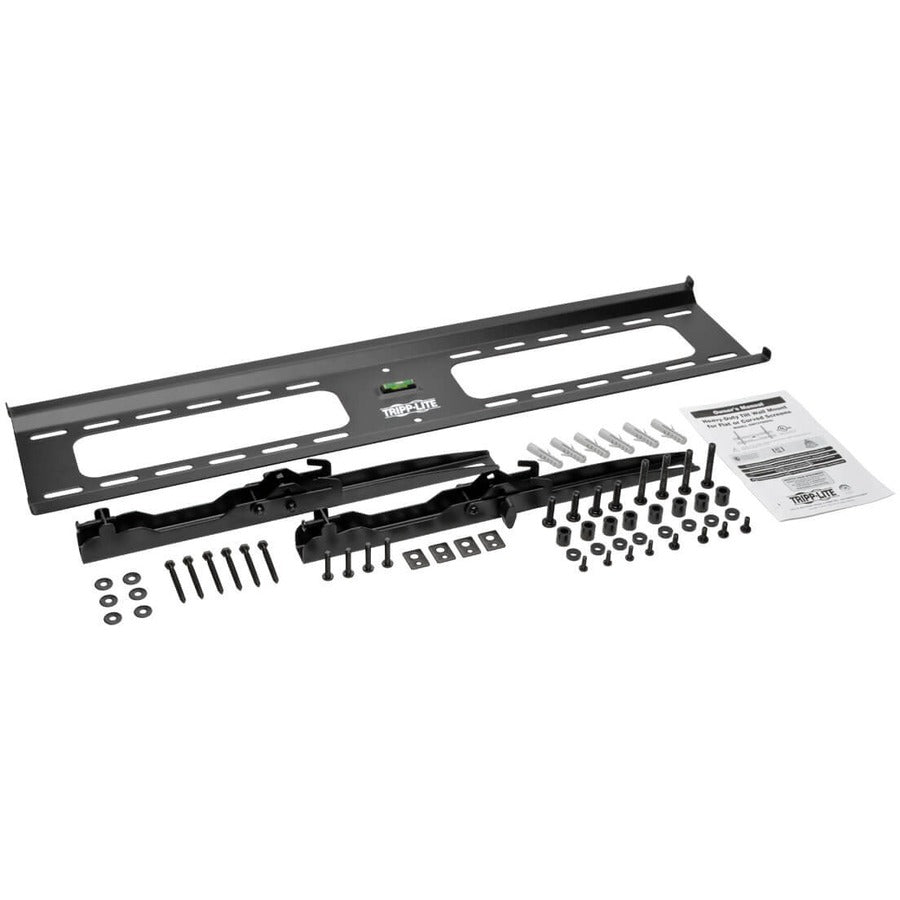

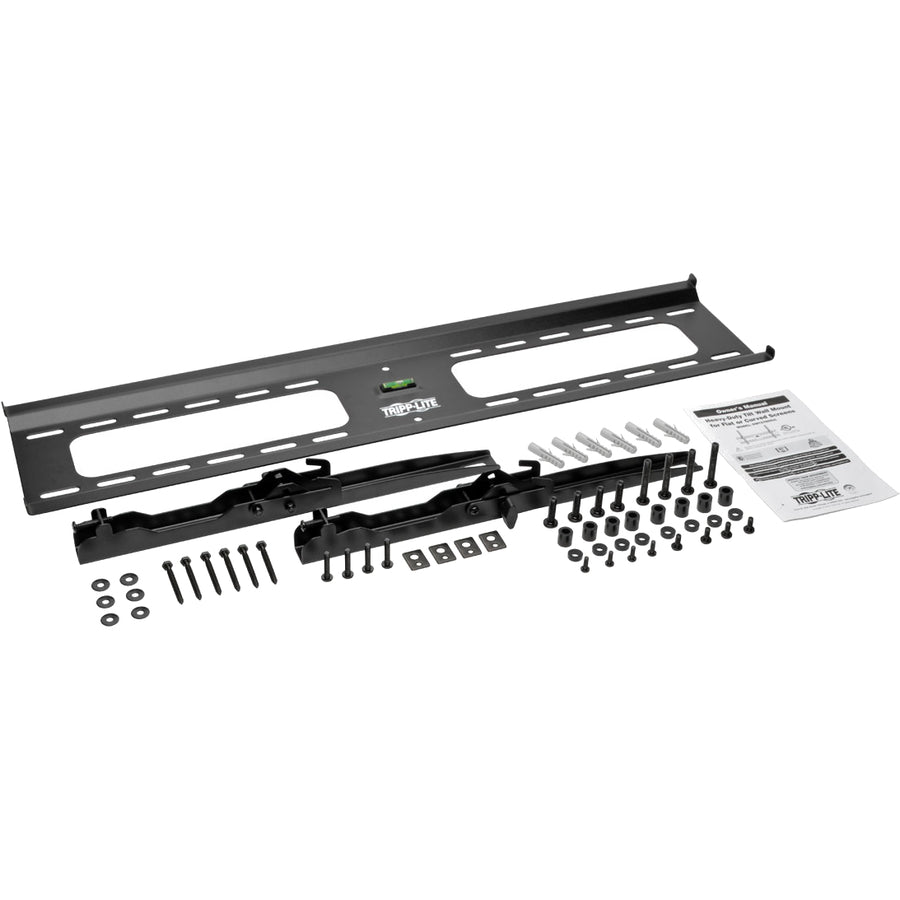

          Package Contents
          • Wall Plate
          • 2 x Adapter Brackets
          • 4 x M5 x 14 Screws
          • 4 x M6 x 14 Screws
          • 4 x M6 x 30 Screws
          • 4 x M8 x 30 Screws
          • 4 x M8 x 50 Screws
          • 4 x Washers
          • 8 x Small Spacers
          • 8 x Big Spacers
          • 6 x Anchor Bolts
          • 6 x Concrete Anchors
          • 6 x D6 Washers
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty5 Year
