Tripp Lite B160-201-Hsi Hdmi Over Ip Extender Kit With Built-In 2-Port Splitter, Rs-232 Serial And Ir Control, 1080P 60 Hz, 328 Ft. (100 M), Taa

Tripp Lite B160-201-Hsi Hdmi Over Ip Extender Kit With Built-In 2-Port Splitter, Rs-232 Serial And Ir Control, 1080P 60 Hz, 328 Ft. (100 M), Taa

SKU:B160-201-HSI

Regular price $268.93
Regular price Sale price $268.93
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HDMI over IP Extender Kit with Built-in 2-Port Splitter, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA

          Tripp Lite B160-201-HSI HDMI over IP Extender Kit with Built-in 2-Port Splitter, RS-232 Serial and IR Control, 1080p 60 Hz, 328 ft. (100 m), TAA. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 200 m. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 342.9 mm, Package depth: 149.9 mm, Package height: 83.8 mm. Cables included: AC, Audio (3.5mm), IR. Master (outer) case width: 439.4 mm, Master (outer) case length: 363.2 mm, Master (outer) case height: 325.1 mm

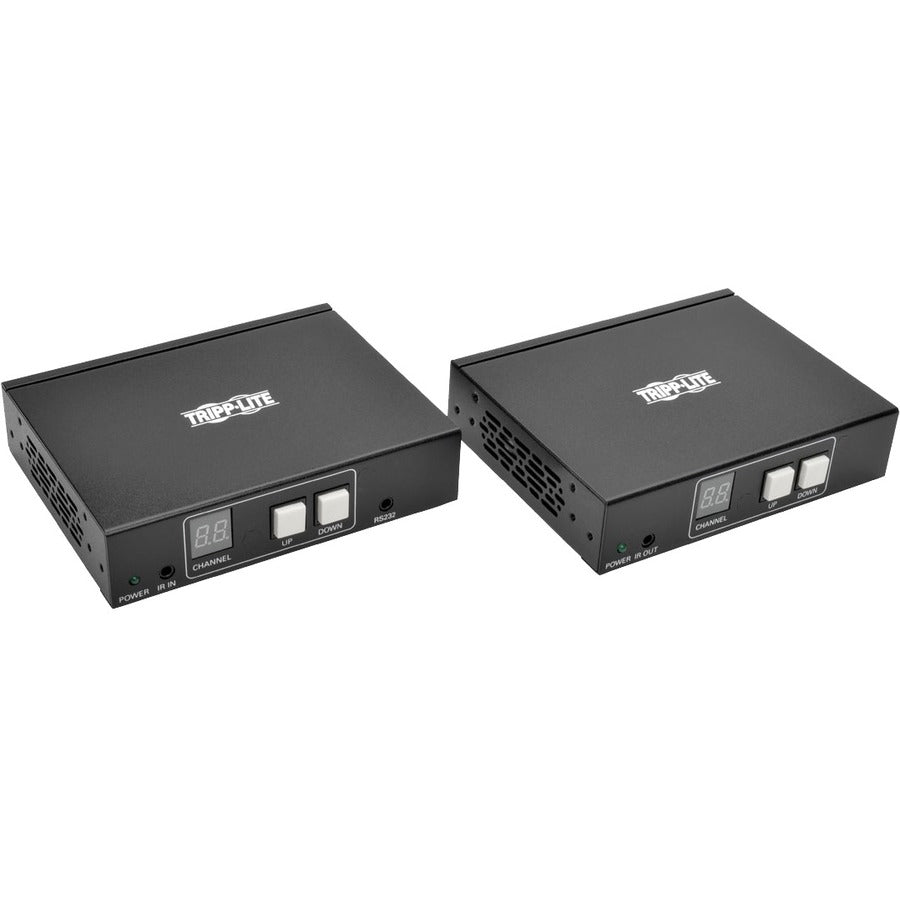

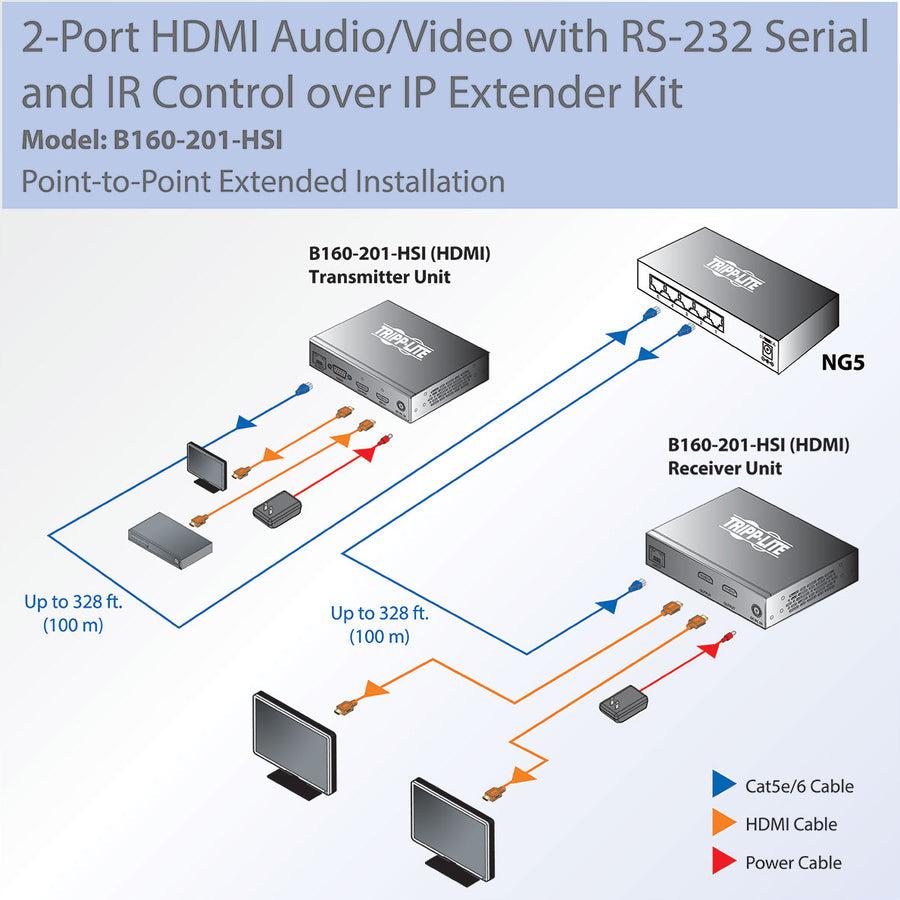

          The B160-201-HSI 2-Port HDMI over IP Transmitter/Receiver/Extender Kit extends and distributes HDMI audio/video, RS-232 serial and IR (infrared) remote signals from the source to the display located up to 328.08-ft. (100 m) away, which is more than 200-ft. (60.96 m) farther than a traditional Cat5e/6 solution. By adding a chain of low-cost unmanaged network switches, such as Tripp Lite's NG5, you can continue extending the distance between source and display up to 328.08-ft. (100 m) per switch. Two HDMI outputs on the receiver allow the connection of two displays.

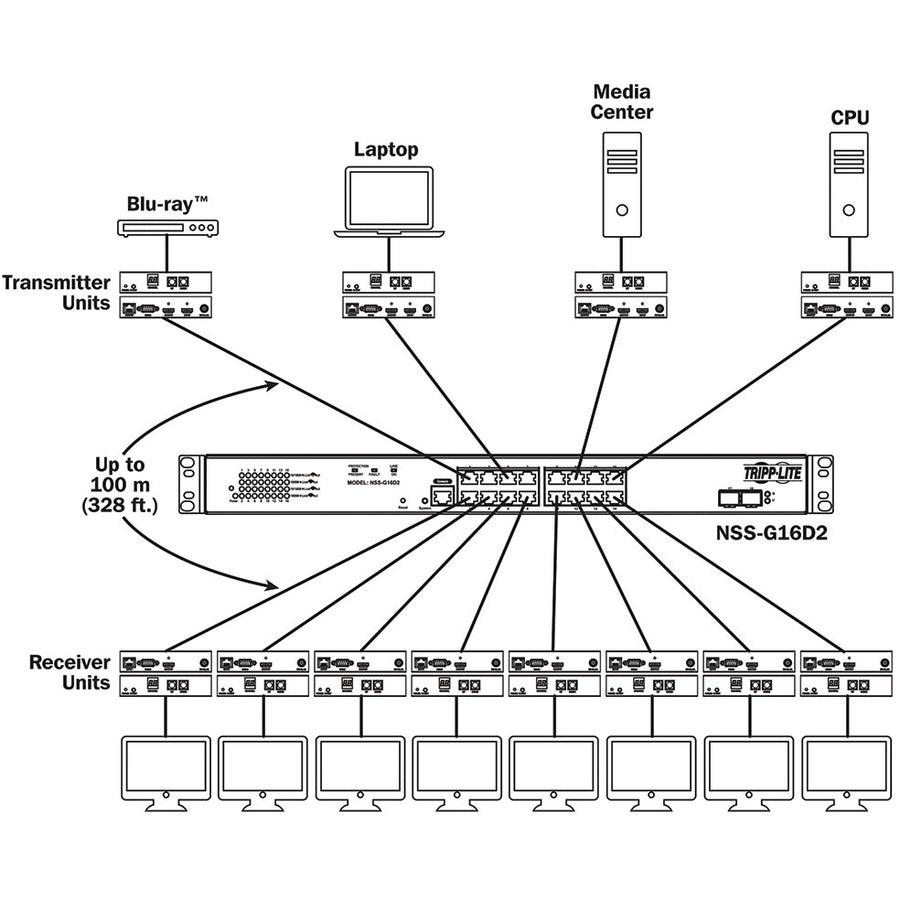

          Create a multi-in, multi-out installation with up to 64 transmitters and 255 receivers* by including dedicated managed Ethernet network switches** with Internet Group Management Protocol (IGMP), such as Tripp Lite's NSS-G16D2. With a compatible B160-Series receiver, you can send the HDMI video source to any analog or digital display, including VGA and DisplayPortâ„¢, allowing you to mix and match technologies and use existing monitors. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays.

          The B160-201-HSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz in a point-to-multipoint switch installation. It extends IR control signals that control a source, such as a Blu-rayâ„¢ player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps. The transmitter and receiver units mount to a wall, rack or pole using the including hardware.

          *Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.

          **B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.

          Extends and Distributes HDMI A/V, Serial and IR Control Signals over Cat5/6 Cabling
          Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328.08-ft. (100 m) away
          Add low-cost network switches between transmitter and receiver to continue extending distance up to 328.08-ft. (100 m) per switch

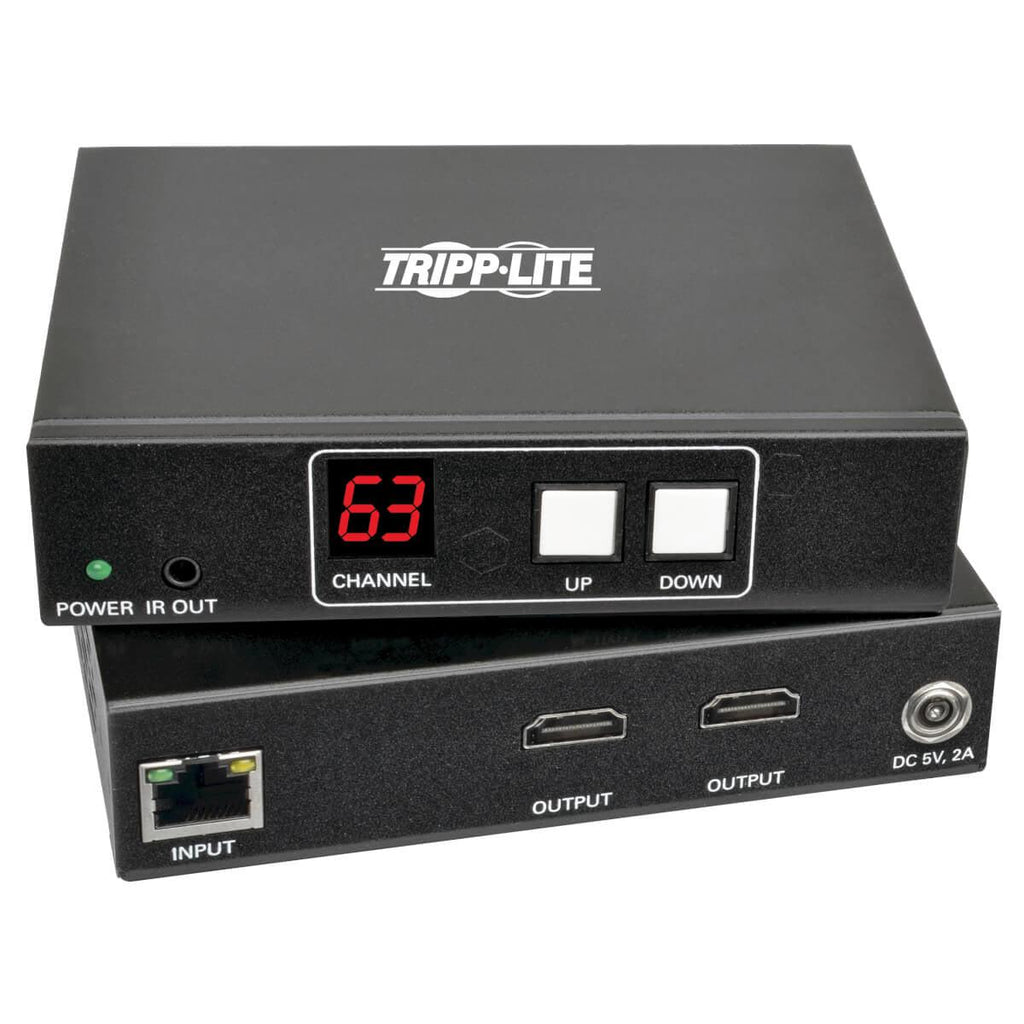

          Dual HDMI outputs on receiver for connecting 2 displays
          HDMI output on transmitter for connecting a local display

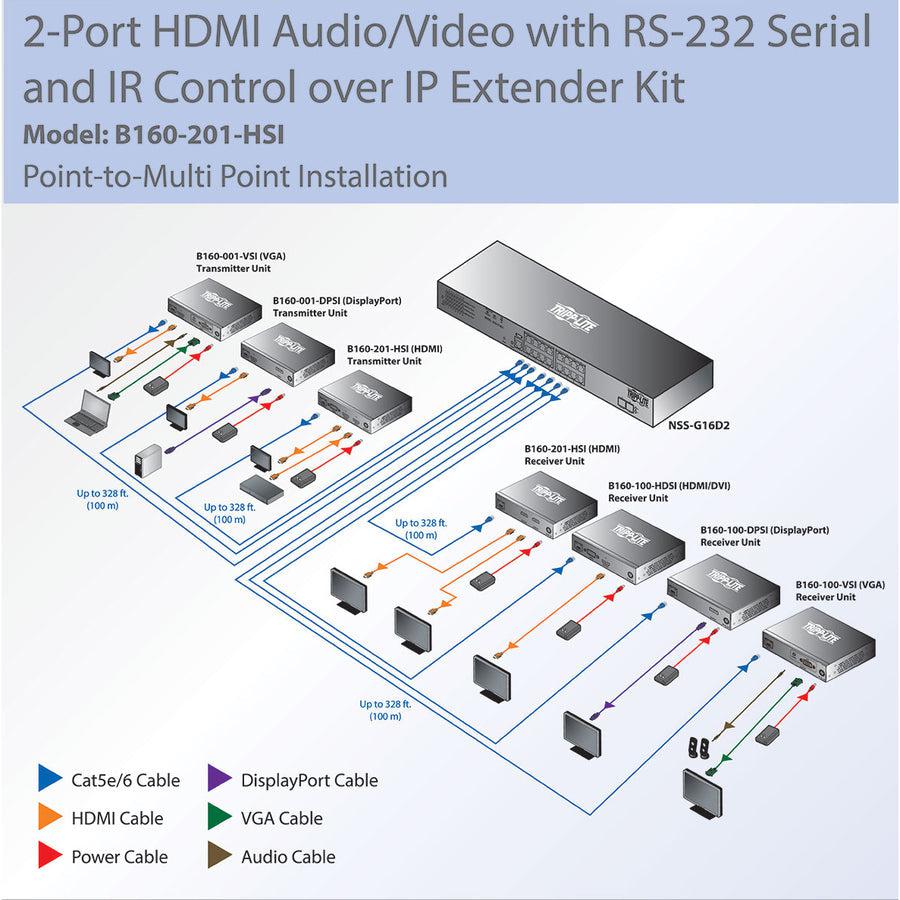

          Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
          Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
          IGMP-enabled switches allow centralized control over which sources show on which displays
          Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors

          Enhanced Technical Features
          Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
          Uses H.264 video compression standard
          Transmits on 20-60 kHz IR frequency
          Extends IR control signals that control a source from a remote display
          Supports RS-232 serial baud rates up to 57600 Bps
          HDCP and 3D compatible

          Plug-and-Play Functionality
          No software or drivers required
          Hardware included for mounting on wall, rack or pole

          TAA-Compliant
          Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B160-201-HSI
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B160-201-HSI
          Product Name B160-201-HSI Video Extender Transmitter/Receiver
          Product Type Video Extender Transmitter/Receiver
          UPC 037332196811
          Network (RJ-45)Yes

          Miscellaneous

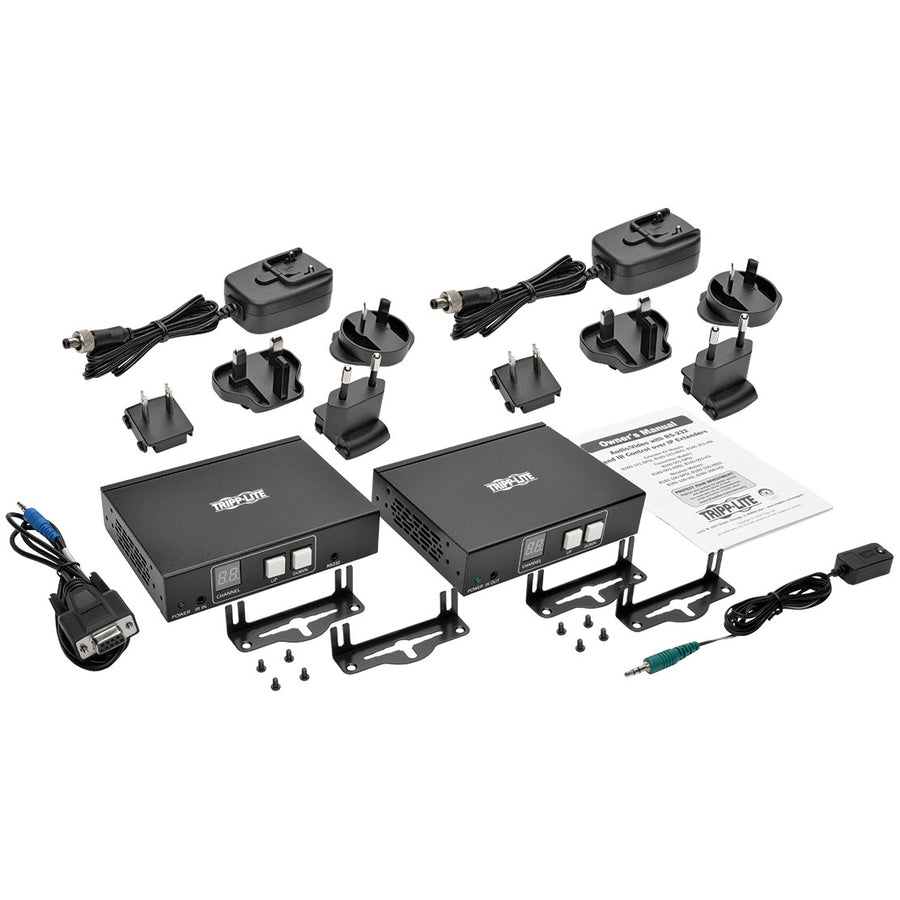

          Package Contents
          • Transmitter Unit
          • Receiver Unit
          • 2 x External Power Supplies w/NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
          • Plug Adapters for U.S., U.K., Europe and Australia
          • IR-In Cable
          • IR-Out Cable
          • 3.5 mm to DB9 Adapter Cable (M/M)
          • Mounting Hardware
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
