Tripp Lite by Eaton

Tripp Lite B155-004-Hd-V2 Video Splitter Mini Displayport 4X Hdmi

Tripp Lite B155-004-Hd-V2 Video Splitter Mini Displayport 4X Hdmi

SKU:B155-004-HD-V2

Regular price $137.02
Regular price Sale price $137.02
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

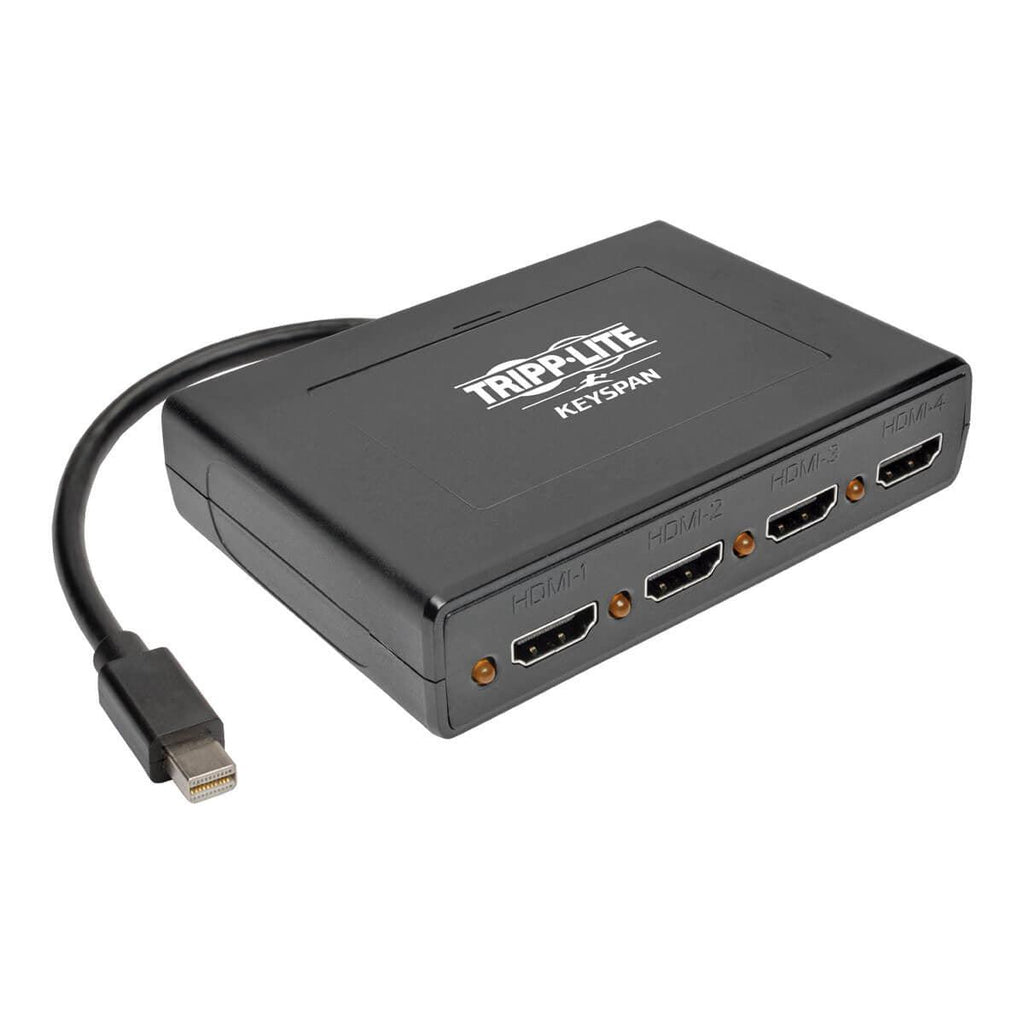

          4-Port Mini DisplayPort 1.2 to HDMI Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD

          Tripp Lite B155-004-HD-V2. Video port type: Mini DisplayPort, Video out: 4x HDMI, Connector(s): Mini DisplayPort 1.2. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Colour depth: 48 bit. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Dimensions (WxDxH): 109 x 76.2 x 24 mm, Weight: 140 g. Package width: 160 mm, Package depth: 213.4 mm, Package height: 61 mm

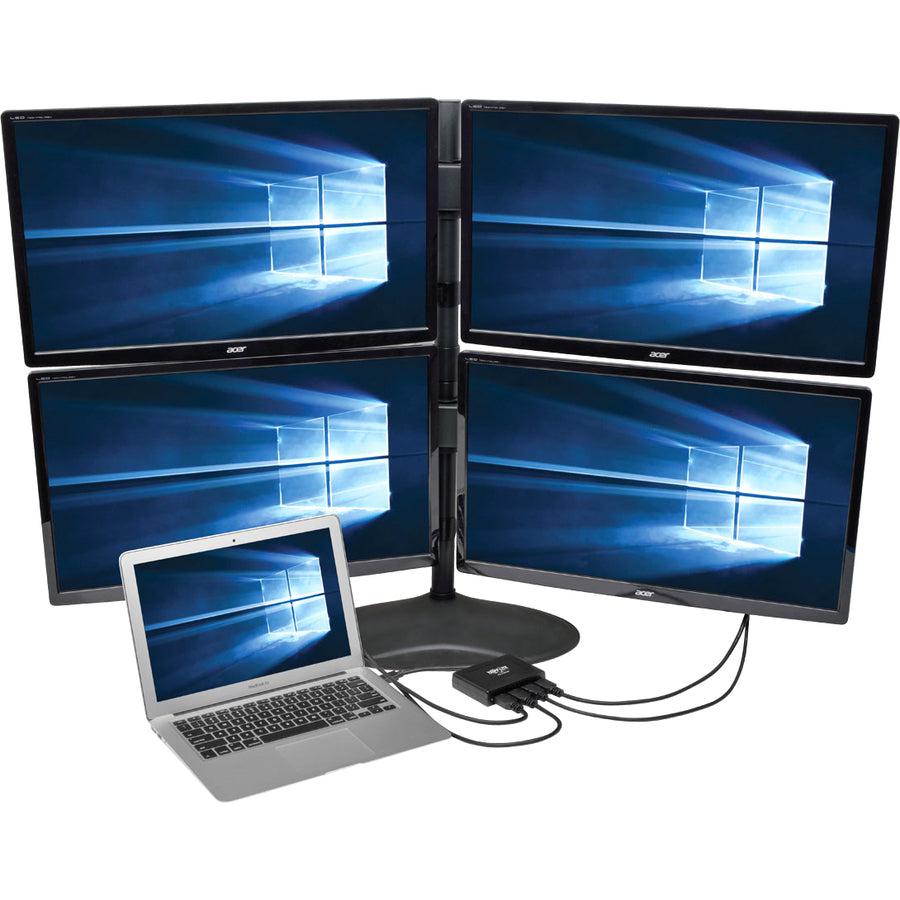

          The B155-004-HD-V2 4-Port Mini DisplayPort 1.2 to HDMI MST Hub connects up to four HDMI monitors to the Mini DisplayPort (MDP) output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four as one large monitor in video wall mode.

          The B155-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, it supports expanded resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

          This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a MDP source. LEDs indicate when the monitors are receiving a signal. The B155-004-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          Connects Up to 4 HDMI Monitors to Your Computer’s Mini DisplayPort Output
          - Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
          - Displays same image on 4 monitors simultaneously in mirror mode
          - Extends desktop across 4 monitors in extended mode
          - Combines 4 monitors into one large monitor in video wall mode

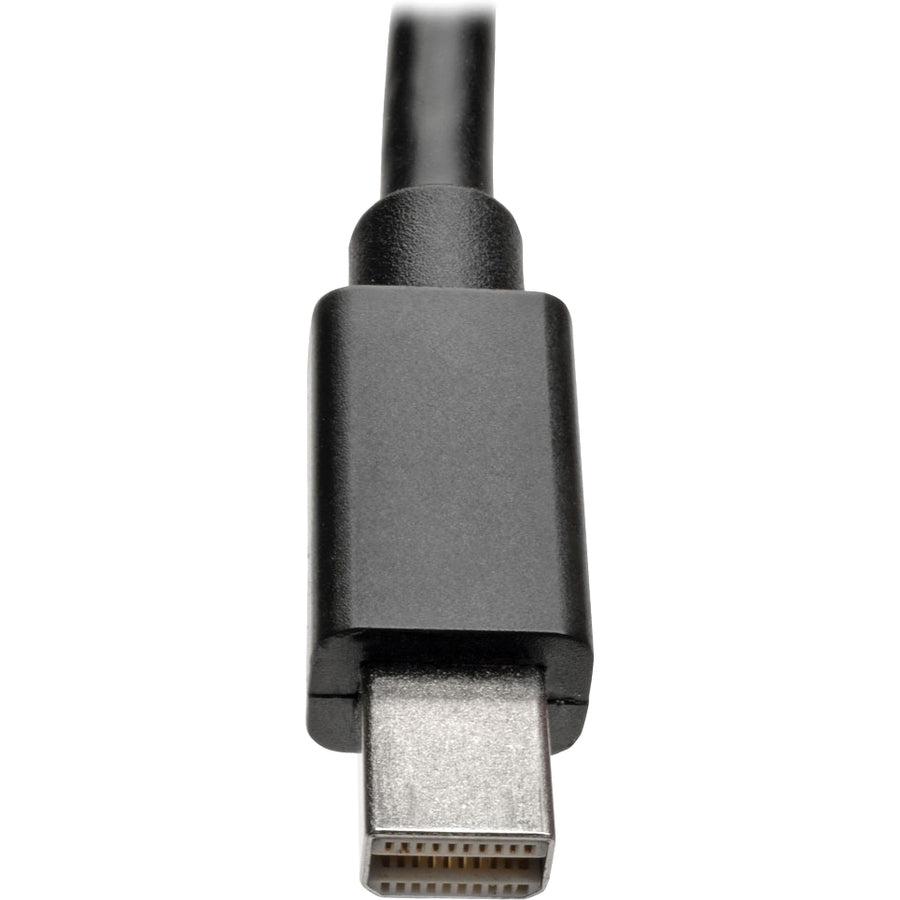

          - Built-in 6 in. cable connects directly to MDP source

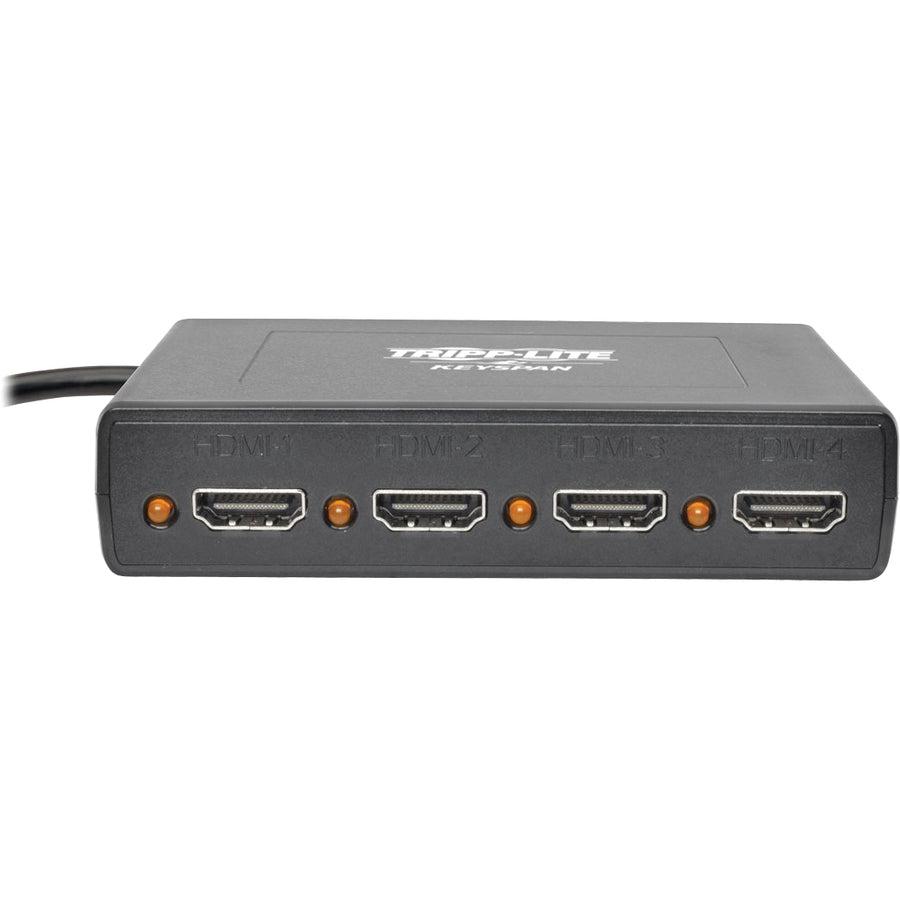

          - LEDs indicate when monitors are receiving a signal

          Meets the Latest Performance Standards
          - Supports HD video resolutions up to 1920 x 1080 (1080p) per monitor
          - Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
          - Supports HDCP, EDID and DDC
          - Supports 48-bit Deep Color (16 bits per channel)
          - Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B155-004-HD-V2
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B155-004-HD-V2
          Product Name B155-004-HD-V2 4-Port Mini DisplayPort 1.2 to HDMI MST Hub
          Product Type Signal Splitter
          UPC 037332193391
          Height0.9"
          Width4.3"
          Depth3"
          Weight (Approximate)4.94 oz

          Miscellaneous

          Package Contents
          • B155-004-HD-V2 4-Port Mini DisplayPort 1.2 to HDMI MST Hub
          • External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
