Tripp Lite by Eaton

Tripp Lite B155-002-Hd-V2 2-Port Mini Displayport To Hdmi Multi-Monitor Splitter, Mst Hub, 4K Uhd, Dp1.2, Taa

Tripp Lite B155-002-Hd-V2 2-Port Mini Displayport To Hdmi Multi-Monitor Splitter, Mst Hub, 4K Uhd, Dp1.2, Taa

SKU:B155-002-HD-V2

Regular price $77.36
Regular price Sale price $77.36
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          2-Port Mini DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K UHD, DP1.2, TAA

          Tripp Lite B155-002-HD-V2 2-Port Mini DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K UHD, DP1.2, TAA. Video port type: Mini DisplayPort, Video out: 2x HDMI, Connector(s): MINI DISPLAYPORT (MALE), USB A (MALE), (2) HDMI (FEMALE). Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Colour depth: 48 bit. Dimensions (WxDxH): 76.2 x 25.4 x 61.5 mm, Weight: 90 g. Package width: 43.9 mm, Package depth: 142 mm, Package height: 199.9 mm. Cables included: Micro-USB

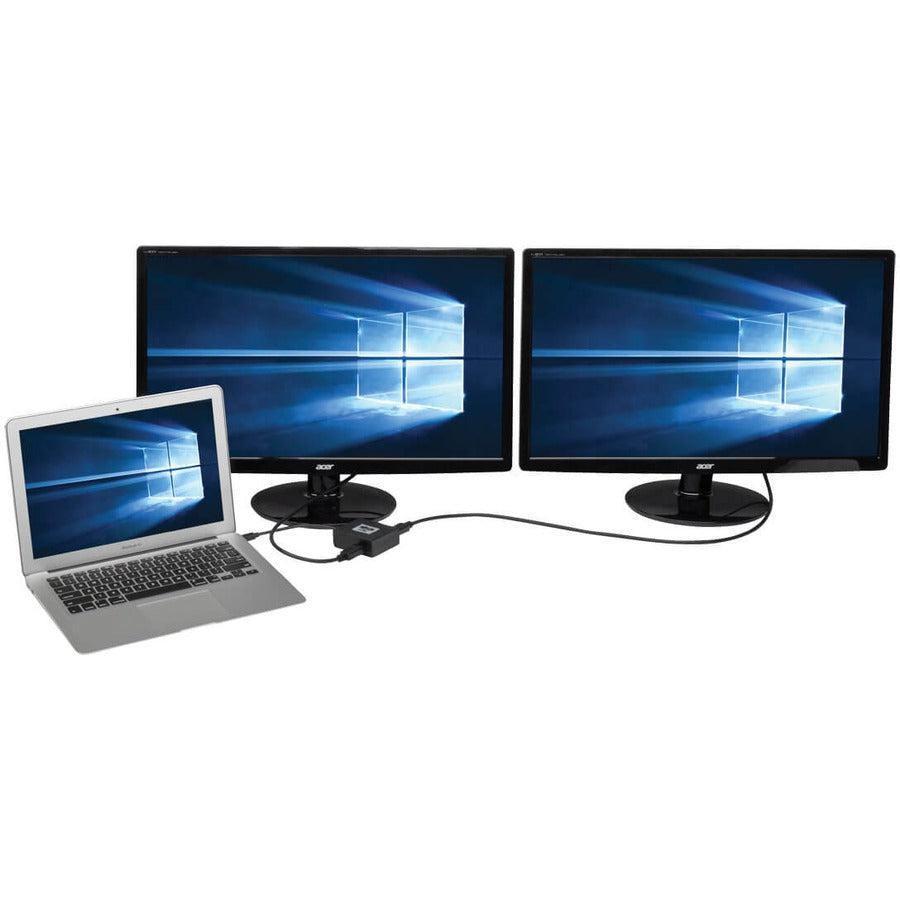

          The B155-002-HD-V2 2-Port Mini DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or monitors to the MDP output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.

          The B155-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

          The B155-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to an MDP source. LEDs indicate when the monitors are receiving a signal. The B155-002-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

          Connects 2 HDMI Displays to Your Computer’s Mini DisplayPort Output
          Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
          Displays same image on 2 monitors simultaneously in mirror mode
          Extends desktop across 2 monitors in extended mode
          Combines 2 monitors into one large monitor in video wall mode
          Built-in 6 in. cable connects directly to Mini DisplayPort source
          LEDs indicate when monitors are receiving a signal

          Meets the Latest Performance Standards
          Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
          Supports HDCP, EDID and DDC
          Supports 48-bit Deep Color (16 bits per channel)
          Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
          Backward compatible with DisplayPort 1.1 and 1.1a

          Easy to Use Almost Anywhere
          Works with all operating systems
          Plug and play—no software, drivers or external power supply required
          Bus-powered via included USB Micro-B cable

          TAA Compliant
          Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B155-002-HD-V2
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B155-002-HD-V2
          Product Name B155-002-HD-V2 2-Port Mini DisplayPort 1.2 to HDMI MST Hub
          Product Type Signal Splitter
          UPC 037332193445
          Height1"
          Width3"
          Depth2.4"
          Weight (Approximate)3.20 oz

          Miscellaneous

          Package Contents
          • B155-002-HD-V2 2-Port Mini DisplayPort 1.2 to HDMI MST Hub
          • USB Micro-B Cable, 3 ft.
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty3 Year
