Tripp Lite by Eaton

Tripp Lite B127A-1A1-Bhph Hdmi Over Cat6 Extender Kit, Transmitter And Pigtail Receiver, 4K 60Hz, 4:4:4, Poc, Hdr, Hdcp 2.2, 230 Ft., Taa

Tripp Lite B127A-1A1-Bhph Hdmi Over Cat6 Extender Kit, Transmitter And Pigtail Receiver, 4K 60Hz, 4:4:4, Poc, Hdr, Hdcp 2.2, 230 Ft., Taa

SKU:B127A-1A1-BHPH

Regular price $142.39
Regular price Sale price $142.39
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          HDMI over Cat6 Extender Kit, Transmitter and Pigtail Receiver, 4K 60Hz, 4:4:4, PoC, HDR, HDCP 2.2, 230 ft., TAA

          Tripp Lite B127A-1A1-BHPH HDMI over Cat6 Extender Kit, Transmitter and Pigtail Receiver, 4K 60Hz, 4:4:4, PoC, HDR, HDCP 2.2, 230 ft., TAA. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5,Cat5e,Cat6,HDMI. Connectivity technology: Wired. AC input voltage: 100 - 240 V, AC input frequency: 50-60 Hz, Operating voltage: 24 V. Receiver dimensions (WxDxH): 47 x 75 x 18.6 mm, Transmitter dimensions (WxDxH): 115 x 62.4 x 27 mm. Package width: 260.1 mm, Package depth: 164.1 mm, Package height: 55.1 mm

          HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
          This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The low-profile pigtail-type receiver is ideal for applications in which space around the display is restricted and a larger box-style receiver will not fit.

          Extends a 4K A/V Transmission up to 230 ft....or More
          The B127A-1A1-BHPH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH Transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

          Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
          The B127A-1A1-BHPH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

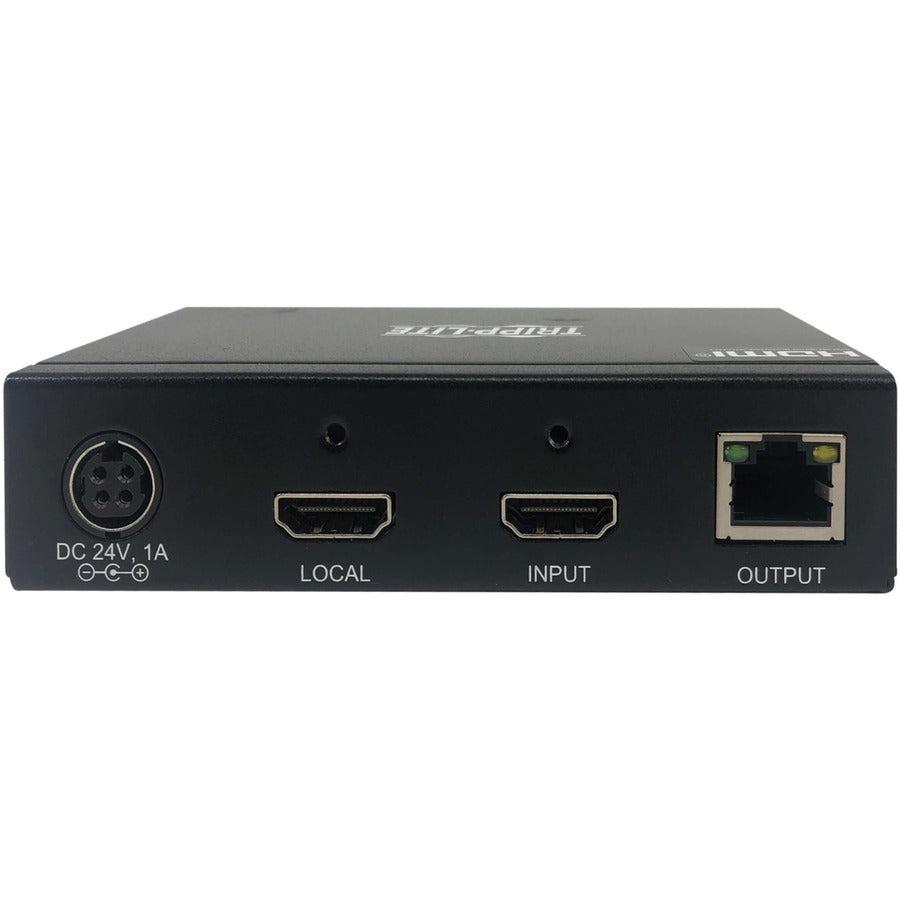

          Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
          To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

          Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
          Power over Cable (PoC) technology powers the receiver over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the transmitter on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite’s P568- or P569-Series). Then, connect the pigtail receiver to the display with its built-in HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as Tripp Lite N202-Series).

          TAA-Compliant for GSA Schedule Purchases
          The B127A-1A1-BHPH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127A-1A1-BHPH
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127A-1A1-BHPH
          Product Name B127A-1A1-BHPH Video Extender Transmitter/Receiver
          Product Type Video Extender Transmitter/Receiver
          UPC 037332258632
          Network (RJ-45)Yes

          Miscellaneous

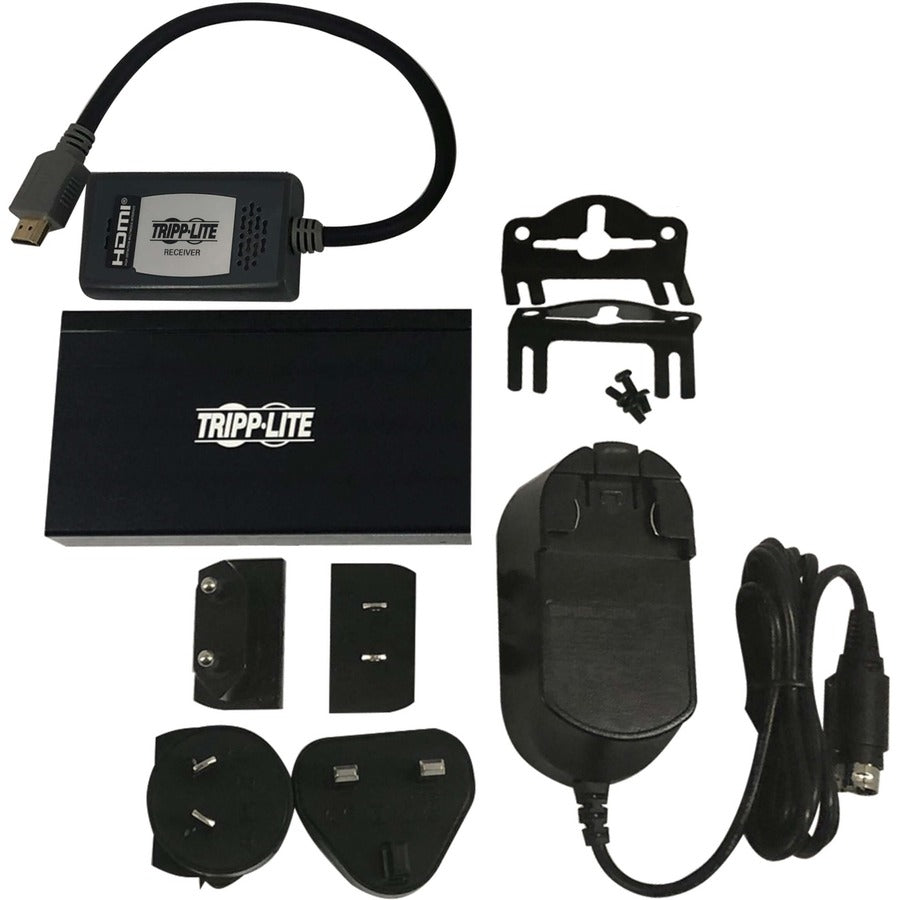

          Package Contents
          • 1 x Transmitter
          • 1 x Receiver
          • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
          • 4 x International plug adapters (North America, Europe, U.K. and Australia)
          • Mounting hardware
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
