Tripp Lite by Eaton

Tripp Lite B127-008-H 8-Port Hdmi Over Cat6 Splitter/Extender, Transmitter For Video/Audio, 4K 60 Hz, Poc, 125 Ft., Taa

Tripp Lite B127-008-H 8-Port Hdmi Over Cat6 Splitter/Extender, Transmitter For Video/Audio, 4K 60 Hz, Poc, 125 Ft., Taa

SKU:B127-008-H

Regular price $226.54
Regular price Sale price $226.54
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          8-Port HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, 4K 60 Hz, PoC, 125 ft., TAA

          Tripp Lite B127-008-H 8-Port HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, 4K 60 Hz, PoC, 125 ft., TAA. Video port type: HDMI, Video out: HDMI, Cable types supported: Cat6,HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Input current: 1.5 A. Width: 235 mm, Depth: 100 mm, Height: 29.7 mm. Package width: 352 mm, Package depth: 164.1 mm, Package height: 55.1 mm

          Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
          This eight-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-008-H extends 4K video and stereo audio signals from an HDMI source device to eight HDMI displays up to 125 feet (38 meters) away via user-supplied Cat6 cabling.

          Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

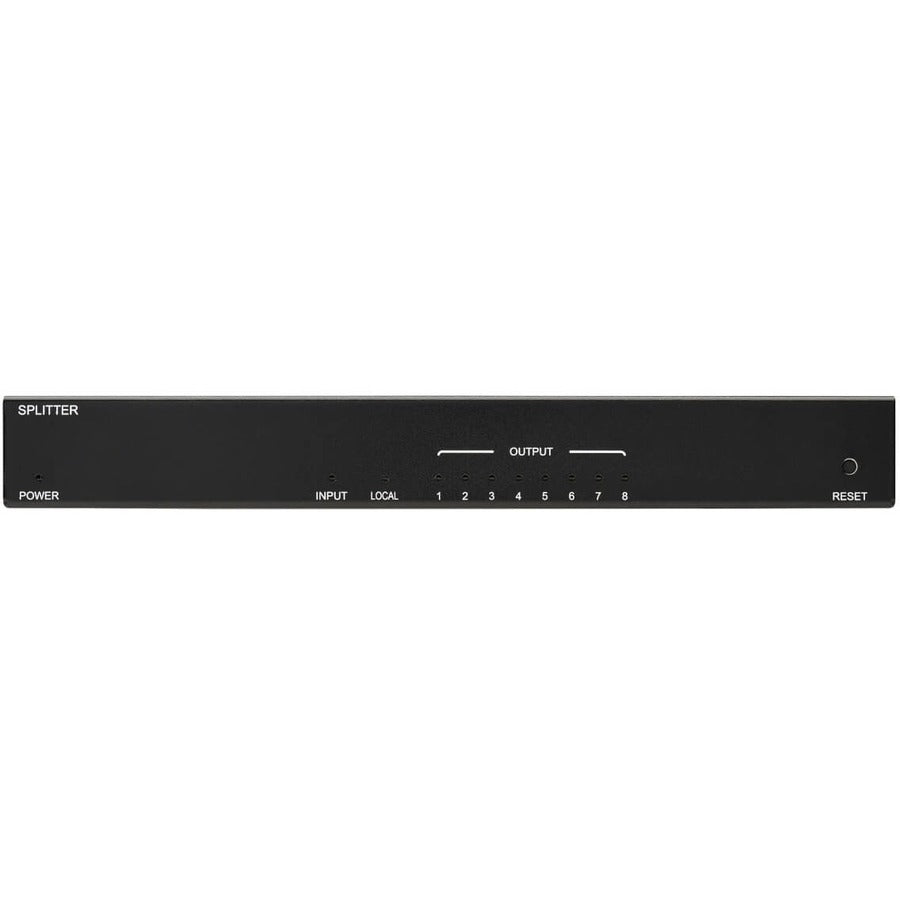

          Built-in Power over Cable (PoC) technology powers the connected B127-Series receivers over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet.

          Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
          The B127-008-H supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. The transmitter is capable of carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-008-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

          Daisy-Chain Multiple Transmitters to Add More Displays
          An HDMI output is included for connecting up to three additional B127-008-H transmitters, each of which splits the original HDMI signal into eight. You can also connect an optional display to monitor the image connected to the receivers up to 125 feet away.

          Plug-and-Play Operation for Quick Setup and Immediate Use
          The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the transmitter to a Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receiver using Cat6 Ethernet cable (such as Tripp Lite N202-Series cable).

          TAA-Compliant for GSA Schedule Purchases
          The B127-008-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127-008-H
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127-008-H
          Product Name B127-008-H Video Extender Transmitter
          Product Type Video Extender Transmitter
          UPC 0037332253781
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack

          Miscellaneous

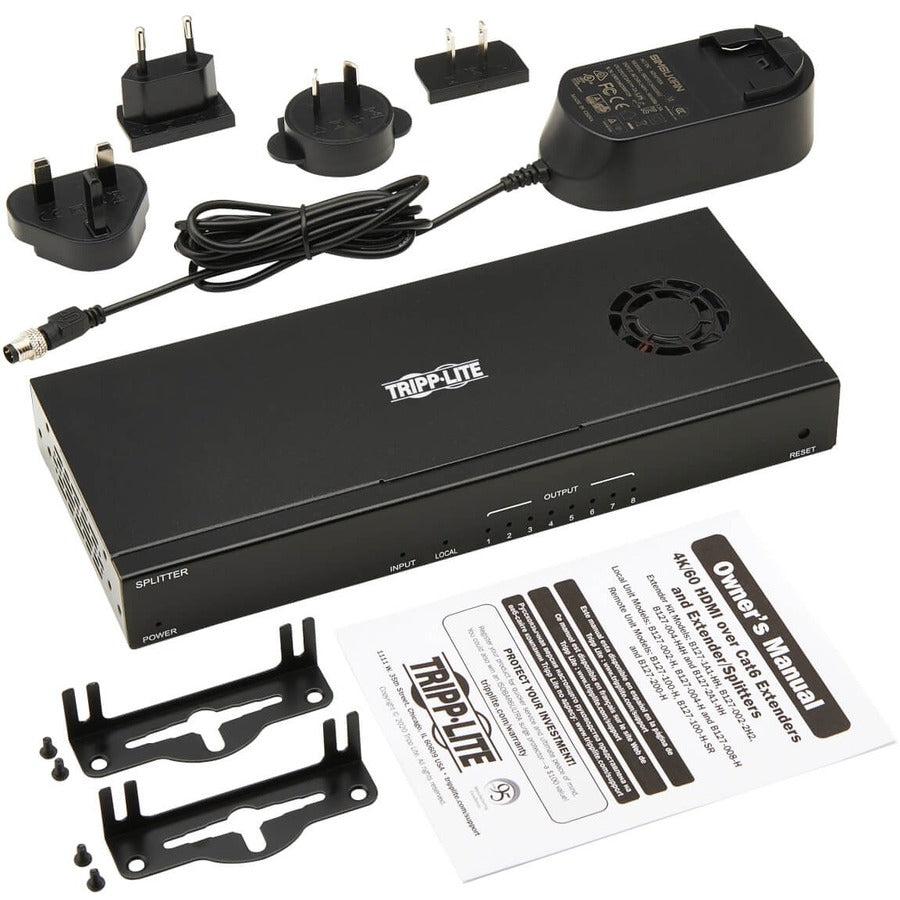

          Package Contents
          • B127-008-H Video Extender Transmitter
          • External Power Supply with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A)
          • 4 x International plug adapters (North America, Europe, U.K. and Australia)
          • Mounting Hardware
          • Owner's Manual

          Warranty

          Limited Warranty1 Year
