Tripp Lite by Eaton

Tripp Lite B127-008-D 8-Port Displayport To Hdmi Over Cat6 Splitter/Extender, Transmitter For Video/Audio, Poc, 4K 60 Hz, 125 Ft. (38 M), Taa

Tripp Lite B127-008-D 8-Port Displayport To Hdmi Over Cat6 Splitter/Extender, Transmitter For Video/Audio, Poc, 4K 60 Hz, 125 Ft. (38 M), Taa

SKU:B127-008-D

Regular price $236.85
Regular price Sale price $236.85
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          8-Port DisplayPort to HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, PoC, 4K 60 Hz, 125 ft. (38 m), TAA

          Tripp Lite B127-008-D 8-Port DisplayPort to HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, PoC, 4K 60 Hz, 125 ft. (38 m), TAA. Video port type: HDMI, Video out: DisplayPort, Cable types supported: Cat6. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Input current: 1.5 A. Width: 235 mm, Depth: 100 mm, Height: 29.7 mm. Package width: 352 mm, Package depth: 164.1 mm, Package height: 55.1 mm

          Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
          This eight-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-008-D extends 4K video and stereo audio signals from a DisplayPort source device to eight HDMI-enabled projectors, monitors or televisions up to 125-ft. (38.1 m) away via user-supplied Cat6 cabling.

          Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

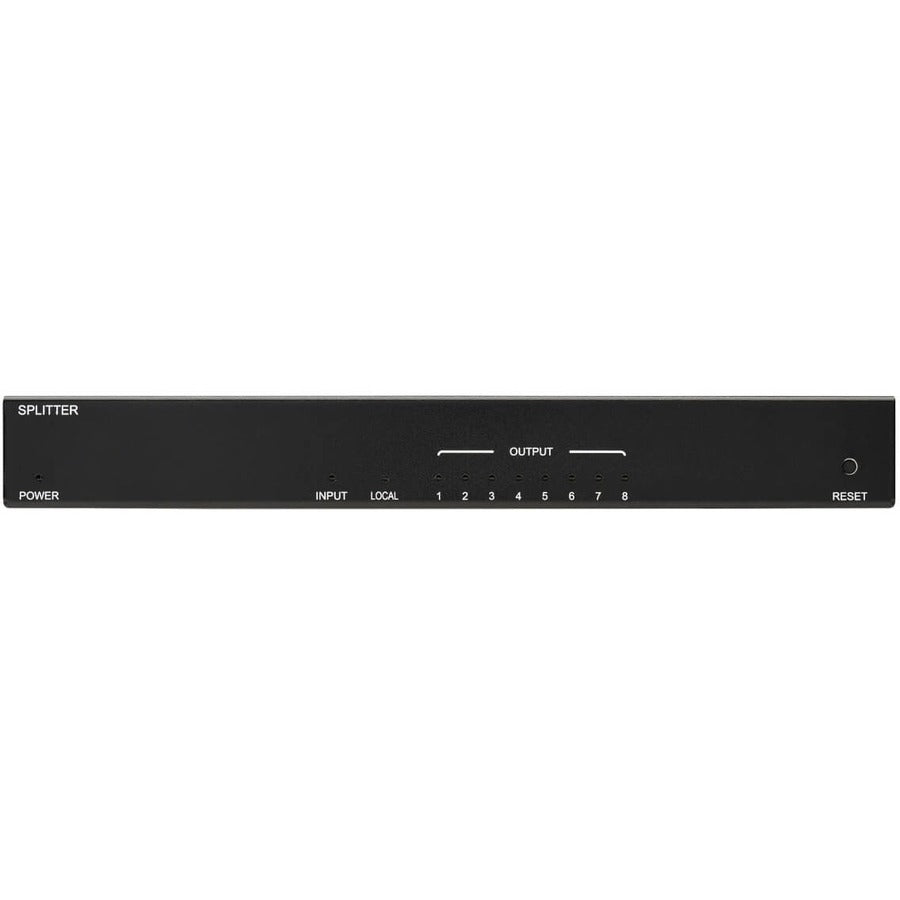

          Built-in Power over Cable (PoC) technology powers the connected B127-Series receivers over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet.

          Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
          The B127-008-D supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. The transmitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

          Plug-and-Play Operation for Quick Setup and Immediate Use

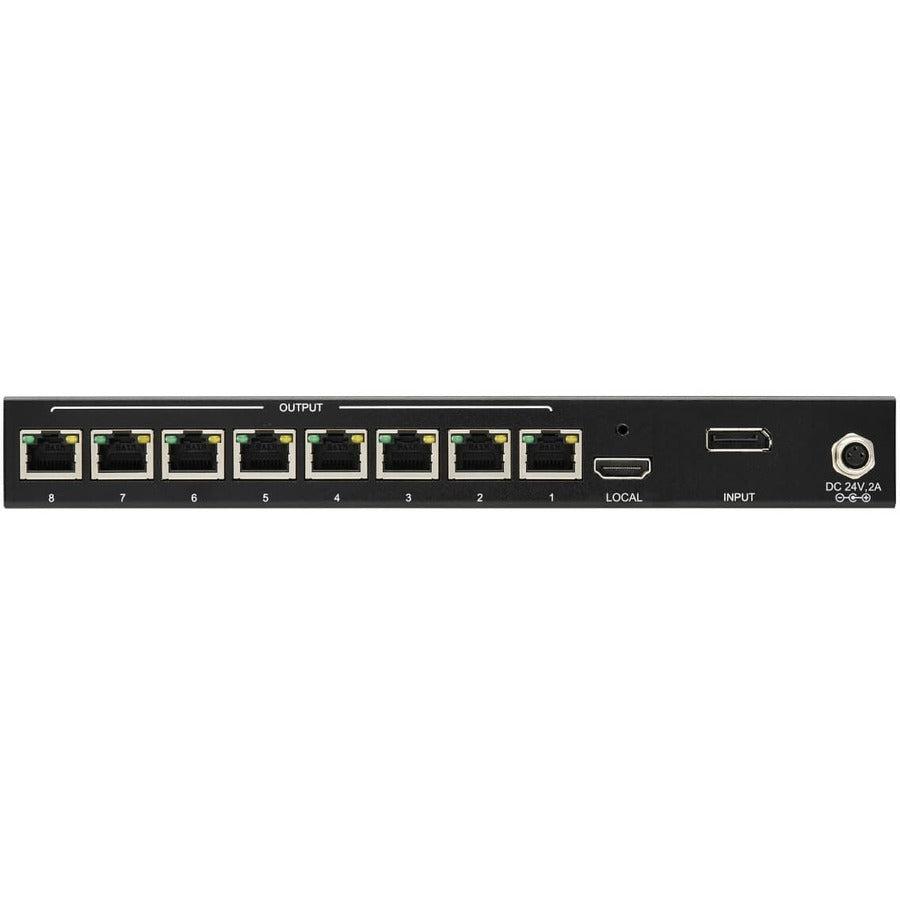

          The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as Tripp Lite's P580-Series). Then, connect the transmitter to a Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receiver using Cat6 Ethernet cable (such as Tripp Lite N202-Series cable). You can also connect an optional display to the local HDMI output to monitor the image transmitted to the receivers up to 125-ft. (38.1 m) away.

          TAA-Compliant for GSA Schedule Purchases
          The B127-008-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B127-008-D
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B127-008-D
          Product Name B127-008-D Video Extender Transmitter
          Product Type Video Extender Transmitter
          UPC 0037332254788
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack

          Miscellaneous

          Package Contents
          • B127-008-D Video Extender Transmitter
          • External Power Supply with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A)
          • 4 x International plug adapters (North America, Europe, U.K. and Australia)
          • Mounting Hardware
          • Owner's Manual

          Warranty

          Limited Warranty1 Year
