Tripp Lite 2-Port Hdmi Over Cat5 / Cat6 Extender / Splitter, Box-Style Transmitter For Video And Audio, 1080P @ 60 Hz, Up To 45.72 M (150-Ft.)

Tripp Lite 2-Port Hdmi Over Cat5 / Cat6 Extender / Splitter, Box-Style Transmitter For Video And Audio, 1080P @ 60 Hz, Up To 45.72 M (150-Ft.)

SKU:B126-002

Regular price $141.48
Regular price Sale price $141.48
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

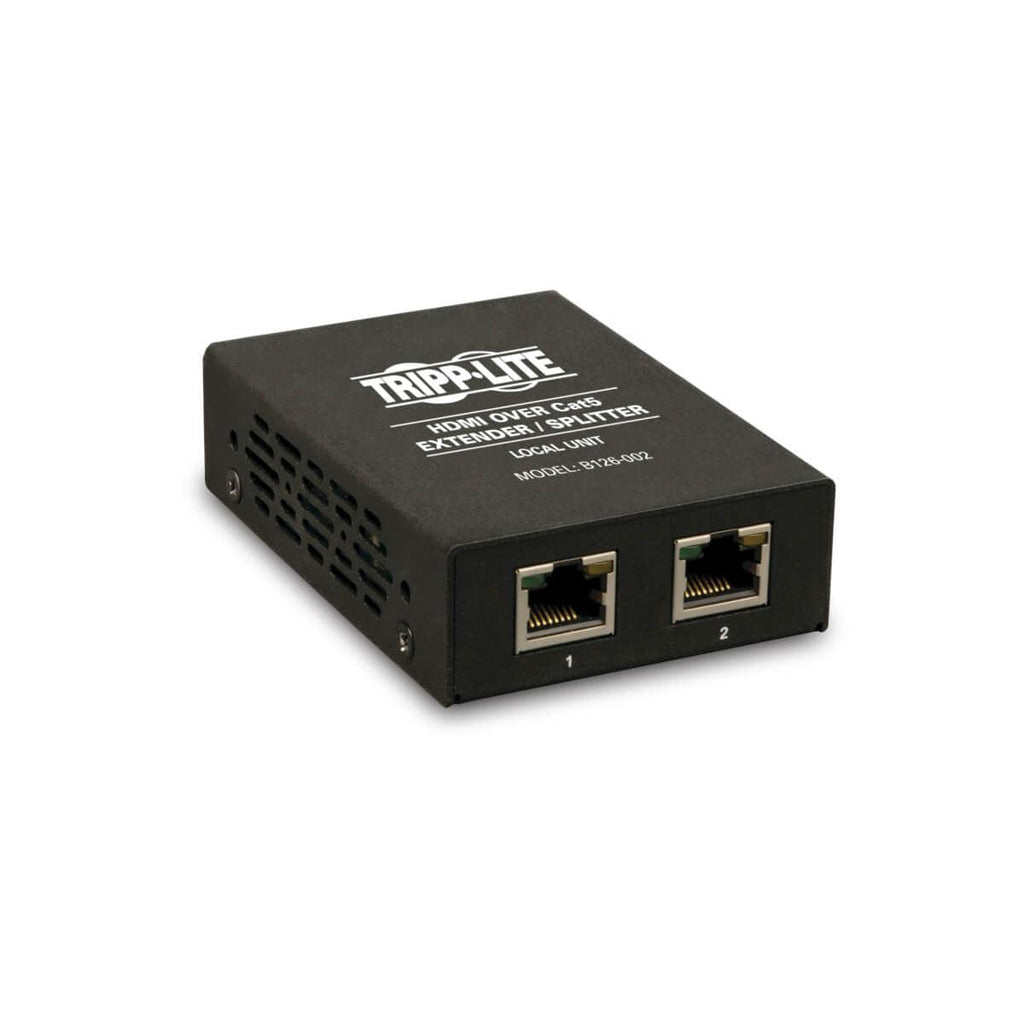

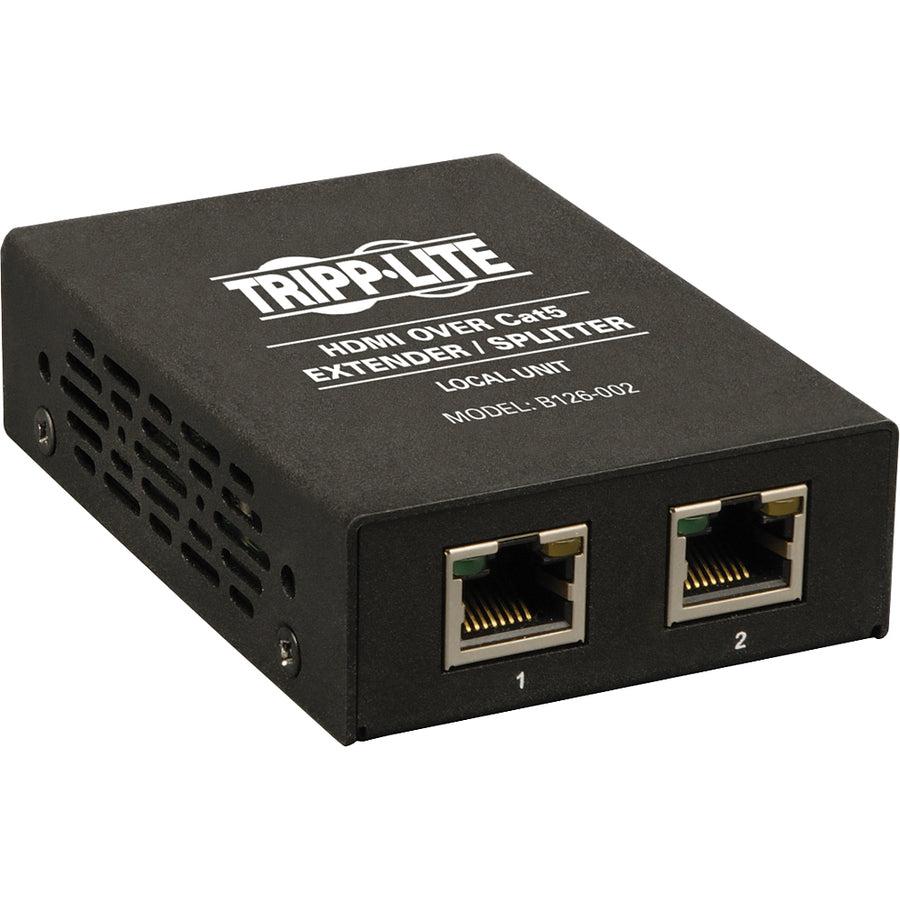

          2-Port HDMI over Cat5 / Cat6 Extender / Splitter, Box-Style Transmitter for Video and Audio, 1080p @ 60 Hz, Up to 45.72 m (150-ft.)

          Tripp Lite 2-Port HDMI over Cat5 / Cat6 Extender / Splitter, Box-Style Transmitter for Video and Audio, 1080p @ 60 Hz, Up to 45.72 m (150-ft.). Video port type: HDMI, Cable types supported: Cat5,Cat6. Product colour: Black, Colour depth: 24 bit, Maximum refresh rate: 60 Hz. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.5 A. Dimensions (WxDxH): 91.4 x 63.5 x 25.4 mm. Package width: 177.8 mm, Package depth: 162.6 mm, Package height: 50.8 mm

          The B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into two separate signals. It’s ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the source and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). When used with Tripp Lite’s B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 60.96 m (200-ft.), a 1080p signal (60 Hz) up to 45.72 m (150-ft.) and a 3D signal up to 38.1 m (125-ft.) With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 30.5 m (100-ft.) and a 1080p (60 Hz) signal up to 15.24 m (50-ft.) Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-002 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

          - Perfect for digital signs, trade shows and retail settings
          - Supports high-definition video resolutions up to 1080p (60 Hz)
          - Supports stereo and 7.1-channel surround sound audio
          - Works with all operating systems and HDMI video sources
          - Plug and play—no software or drivers to install

          - Extends a 1080i (60 Hz) signal up to 53.34 m (175-ft.), a 1080p (60 Hz) signal up to 38.1 m (125-ft.) and a 3D signal up to 30.5 m (100-ft.) with each optional Tripp Lite B126-110 remote repeater
          - Extends a 1080i (60 Hz) signal up to 60.96 m (200-ft.), a 1080p (60 Hz) signal up to 45.72 m (150-ft.) and a 3D signal up to 38.1 m (125-ft.) with Tripp Lite B126-1A0 or B126-1A0-WP-1 active remote receiver
          - Extends a 1080i (60 Hz) signal up to 30.5 m (100-ft.) and a 1080p (60 Hz) signal up to 15.24 m (50-ft.) with Tripp Lite B126-1P0 or B126-1P0-WP-1 passive remote receiver
          - Add up to 3 remote repeaters on each channel for maximum signal range
          - Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
          - Works with all operating systems and HDMI video sources
          - Supports HD resolutions up to 1080p (60 Hz)
          - Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
          - Supports 24-bit True Color (8 bits per channel) and HDCP Plug-and-play engineering—no software or drivers to download and install
          - Connects quickly to source with HDMI cable, such as Tripp Lite’s P568-Series

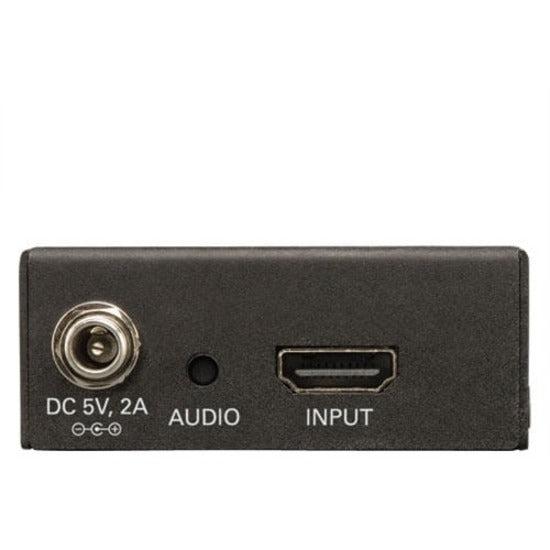

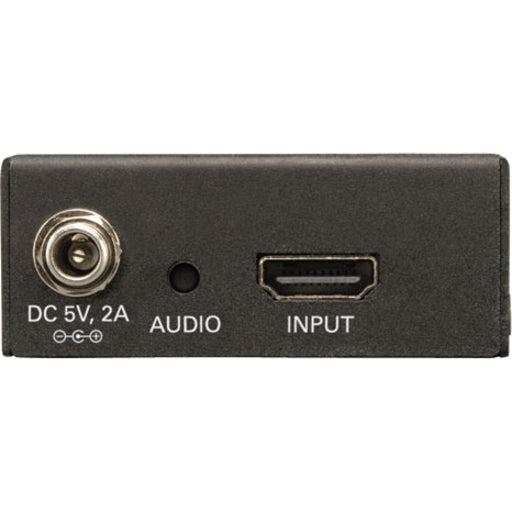

          - LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source
          - Included mounting hardware lets you install the unit on a wall, rack or pole
          - International AC Adapter B110-INT required for use with UK, European, and Australian power connections

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number B126-002
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model B126-002
          Product Name B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter
          Product Type Video Extender Transmitter
          UPC 037332157508
          Network (RJ-45)Yes

          Physical Characteristics

          Color FamilyMulticolor
          Product ColorBlack

          Miscellaneous

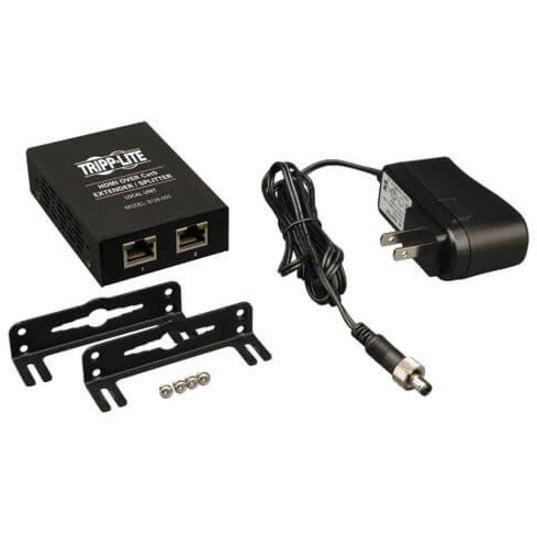

          Package Contents
          • B126-002 Video Extender
          • Mounting Hardware
          • External Power Supply
          • Owner's Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty1 Year
