Tripp Lite 2.4Kw Single-Phase Basic Pdu, 120V Outlets (13 5-15/20R) L5-20P, 15Ft Cord, 1U Rack-Mount

Description :

2.4kW Single-Phase Basic PDU, 120V Outlets (13 5-15/20R) L5-20P, 15ft Cord, 1U Rack-Mount

Tripp Lite 2.4kW Single-Phase Basic PDU, 120V Outlets (13 5-15/20R) L5-20P, 15ft Cord, 1U Rack-Mount. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 13 AC outlet(s), AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA L5-20P. Cable length: 4.57 m, Certification: UL60950-1/CSA-C22.2. Nominal input voltage: 120 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 508 mm, Depth: 114.3 mm, Dimensions (WxDxH): 445 x 114 x 45 mm

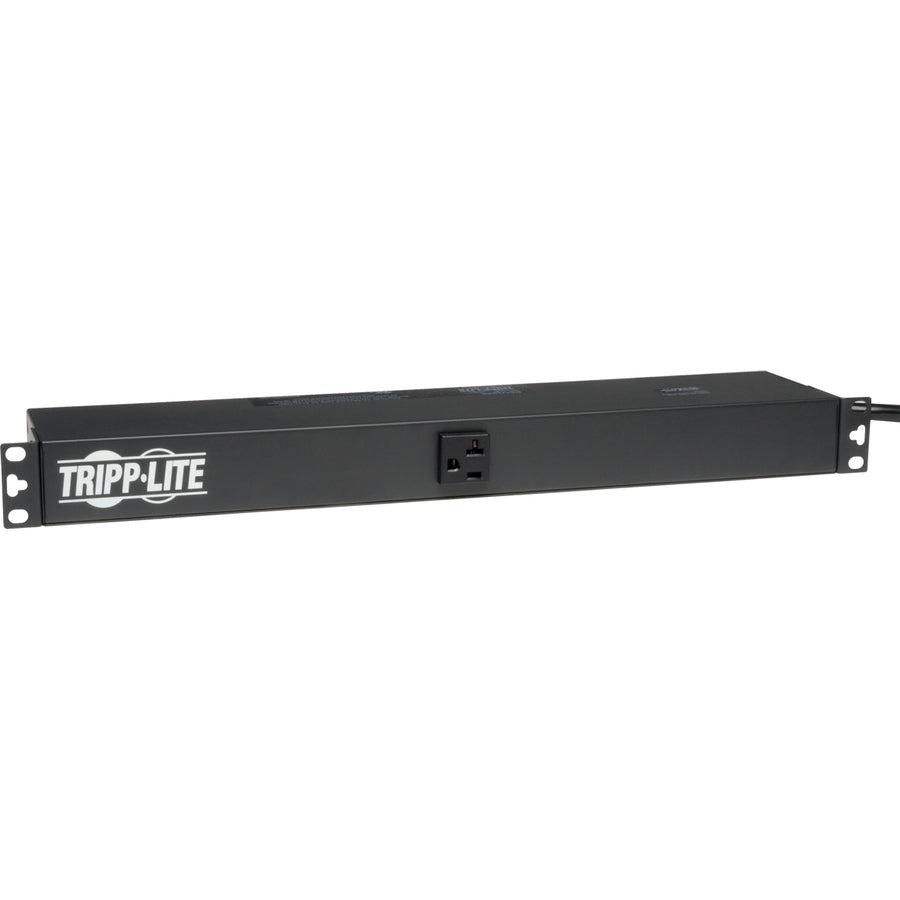

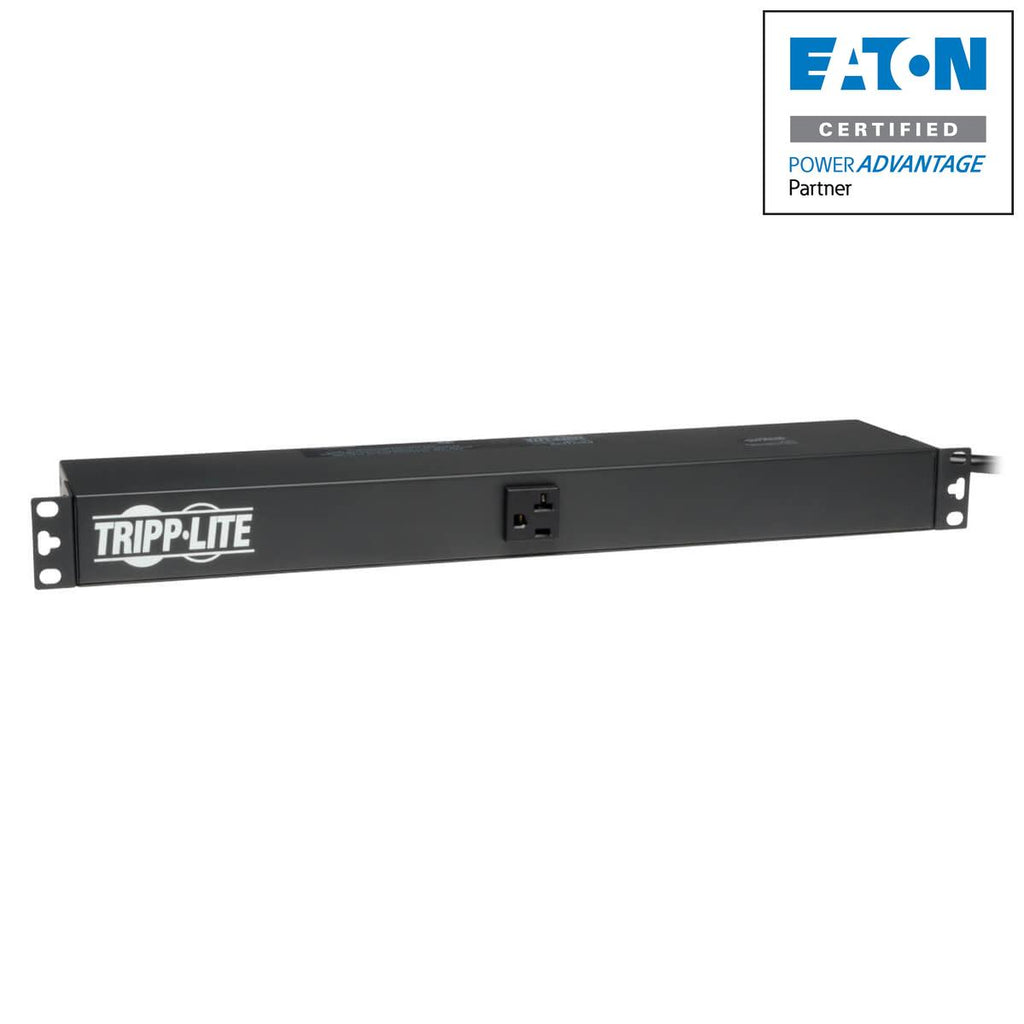

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design.
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

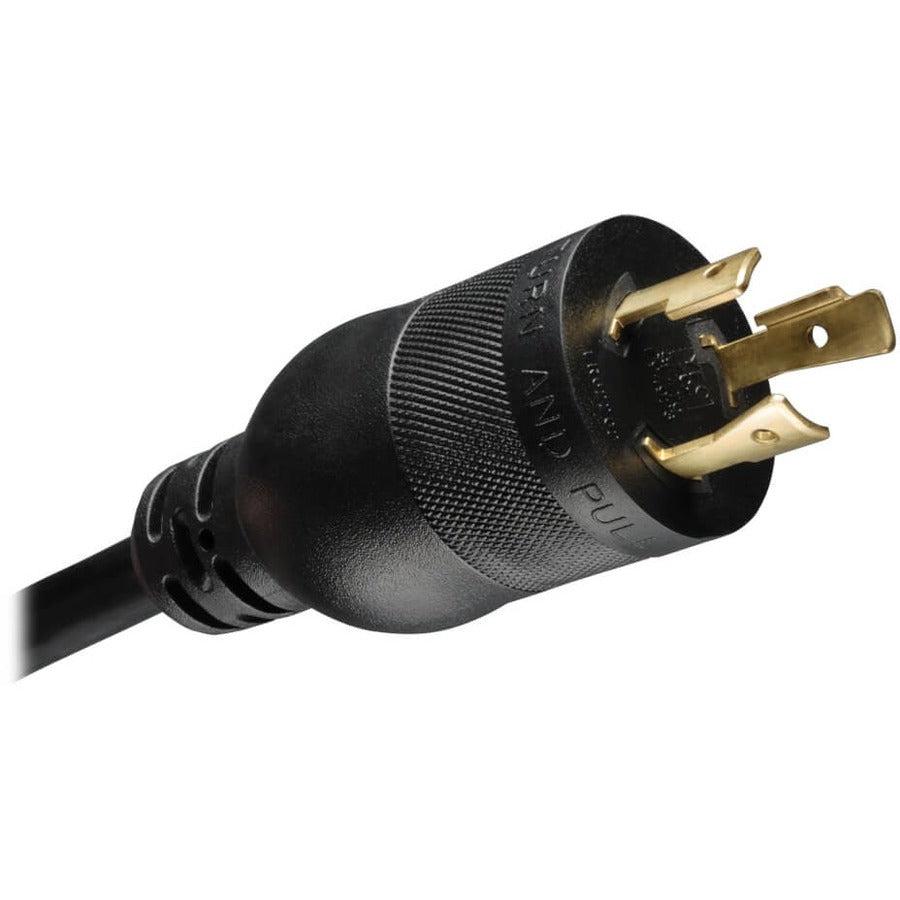

- NEMA L5-20P 20A 120v input plug with 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
