Tripp Lite by Eaton

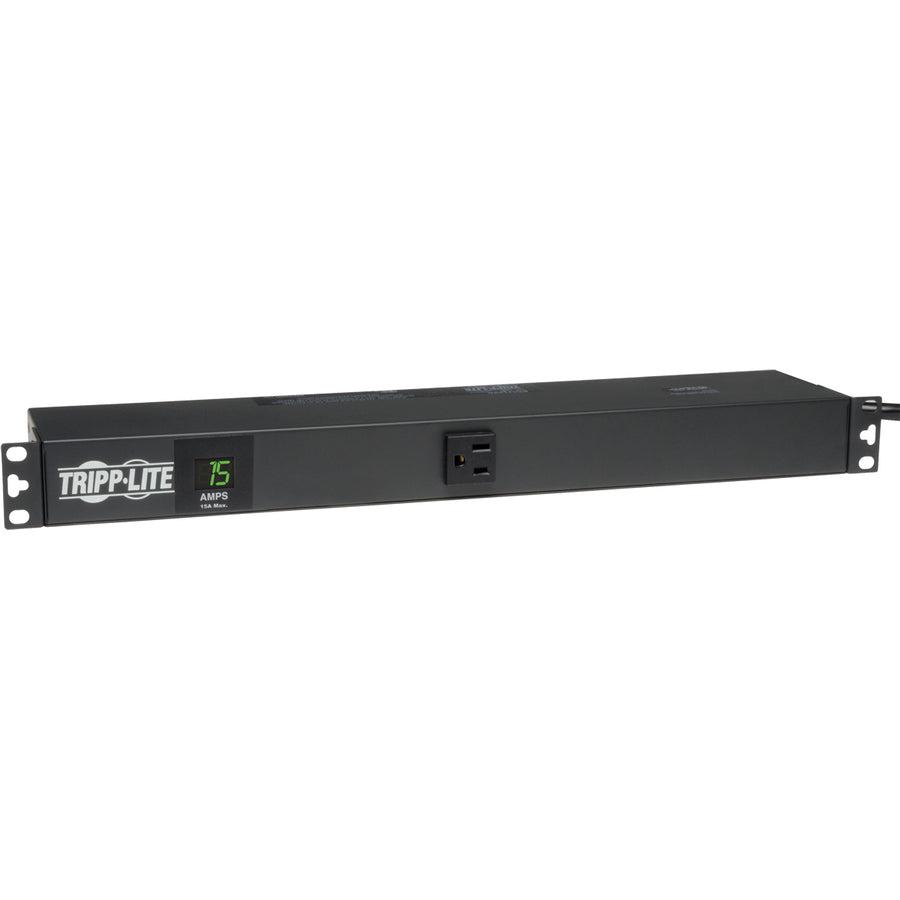

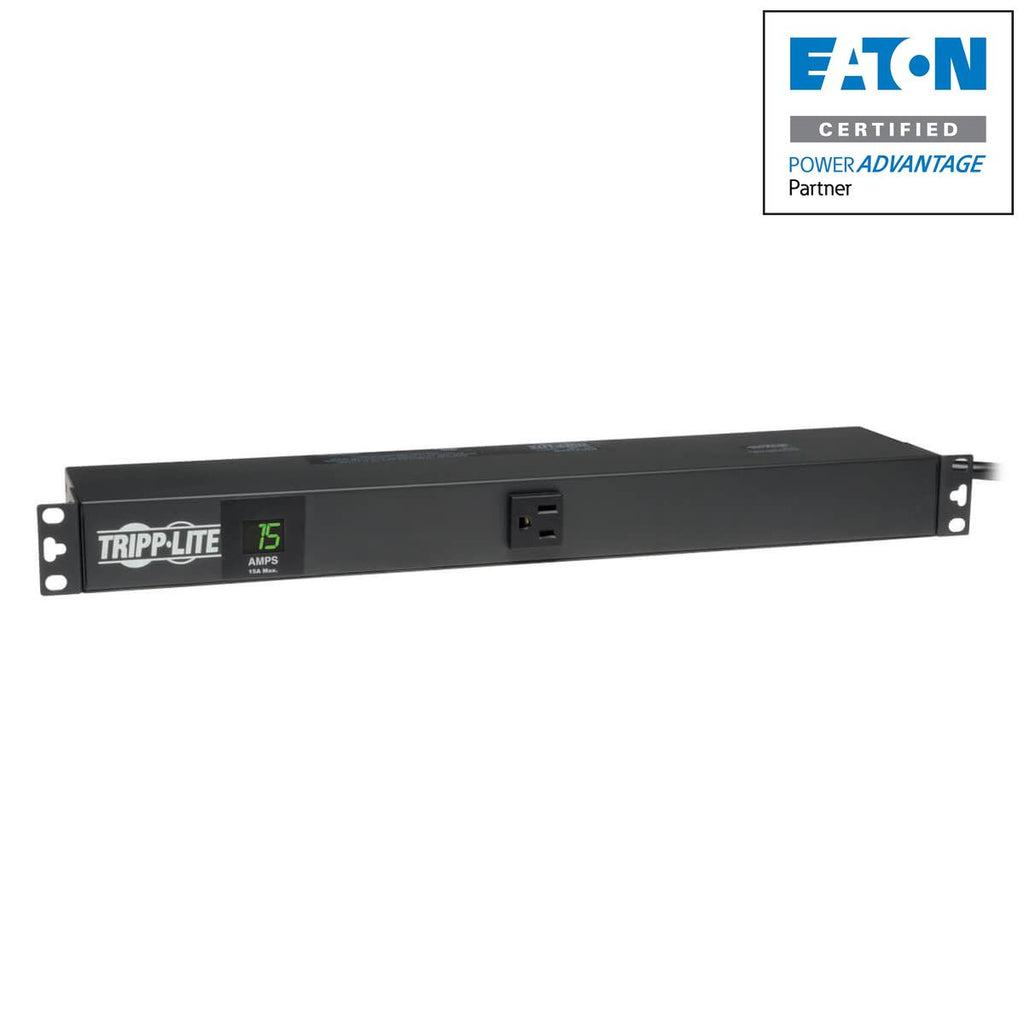

Tripp Lite 1.4Kw Single-Phase Metered Pdu, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15Ft Cord, 1U Rack-Mount

Tripp Lite 1.4Kw Single-Phase Metered Pdu, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15Ft Cord, 1U Rack-Mount

SKU:PDUMH15

Regular price $116.44
Regular price Sale price $116.44
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15ft Cord, 1U Rack-Mount

          Tripp Lite 1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15ft Cord, 1U Rack-Mount. PDU types: Metered, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 13 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 4.57 m, Certification: UL60950-1/CAN/CSA C22.2 No. 60950-1-03. Nominal input voltage: 100-127 V, Maximum current: 15 A, AC input frequency: 50 - 60 Hz. Width: 508 mm, Depth: 114.3 mm, Dimensions (WxDxH): 444.5 x 114.3 x 44.5 mm

          Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
          - 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
          - Built-in 2 digit visual meter continuously reports PDU load level in amps

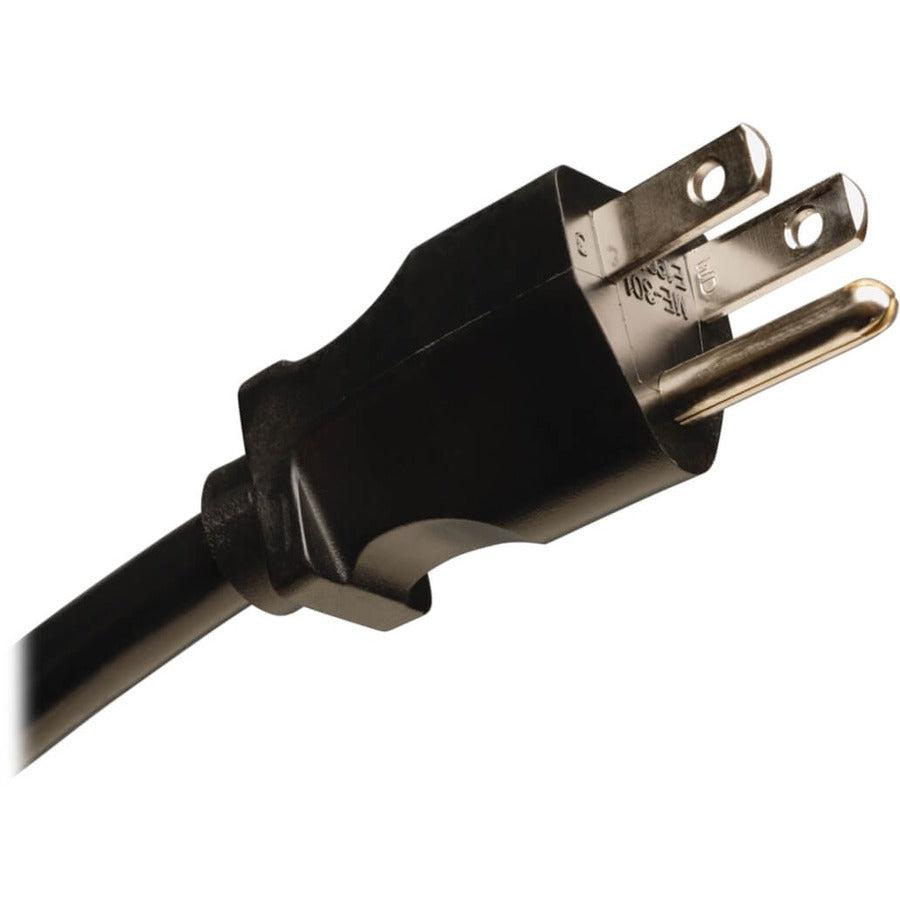

          - Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
          - 1U horizontal rackmount format installs in one rack space
          - 13 NEMA 5-15R outlets (1 front facing / 12 rear)
          - Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
          - Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
          - Back panel grounding lug

          Specifications :

          General Information

          Manufacturer Tripp Lite by Eaton
          Manufacturer Part Number PDUMH15
          Manufacturer Website Address https://tripplite.eaton.com/
          Brand Name Tripp Lite by Eaton
          Product Model PDUMH15
          Product Name PDUMH15 PDU Metered 120V 15A 13 Outlet
          Product Type PDU
          UPC 037332132529
          Height1.8"
          Width17.5"
          Depth4.5"
          Weight (Approximate)4.50 lb

          Miscellaneous

          Package Contents
          • PDUMH15 PDU Metered 120V 15A 13 Outlet
          • PDUMH15 Metered rackmount PDU
          • Owner's manual with warranty information
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
