StarTech.com

Startech.Com 8 Port Serial Hub Usb To Rs232/Rs485/Rs422 Adapter - Industrial Usb 2.0 To Db9 Serial

Startech.Com 8 Port Serial Hub Usb To Rs232/Rs485/Rs422 Adapter - Industrial Usb 2.0 To Db9 Serial

SKU:ICUSB234858I

Regular price $464.78
Regular price Sale price $464.78
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

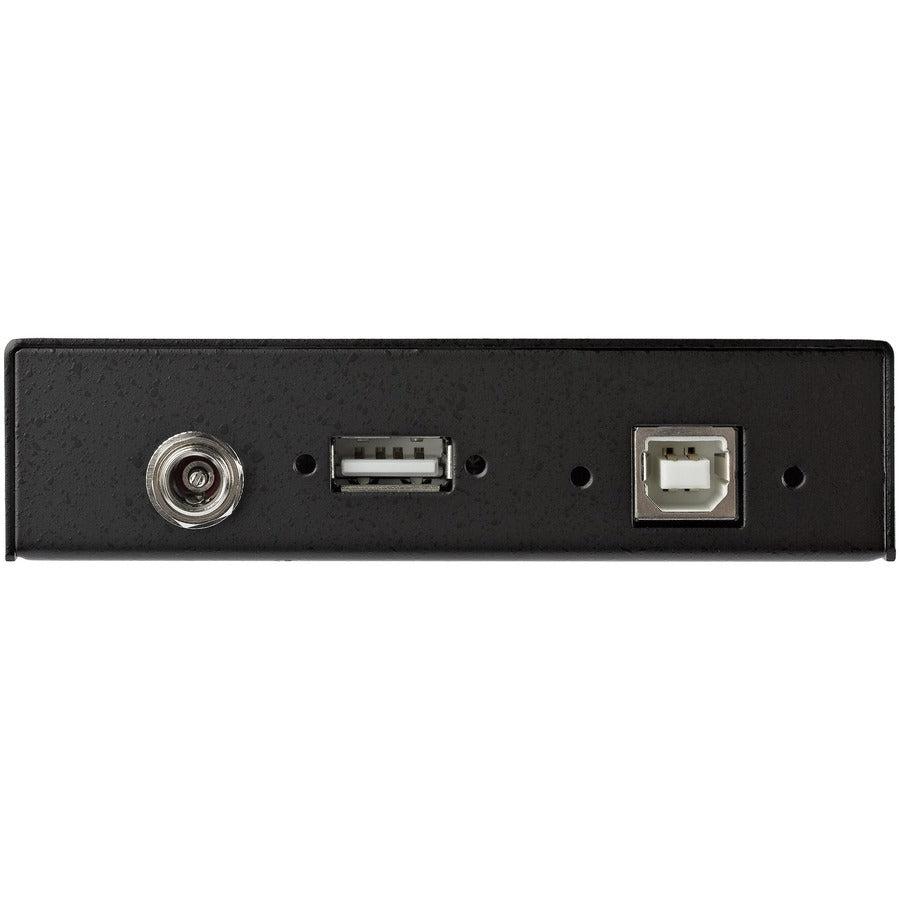

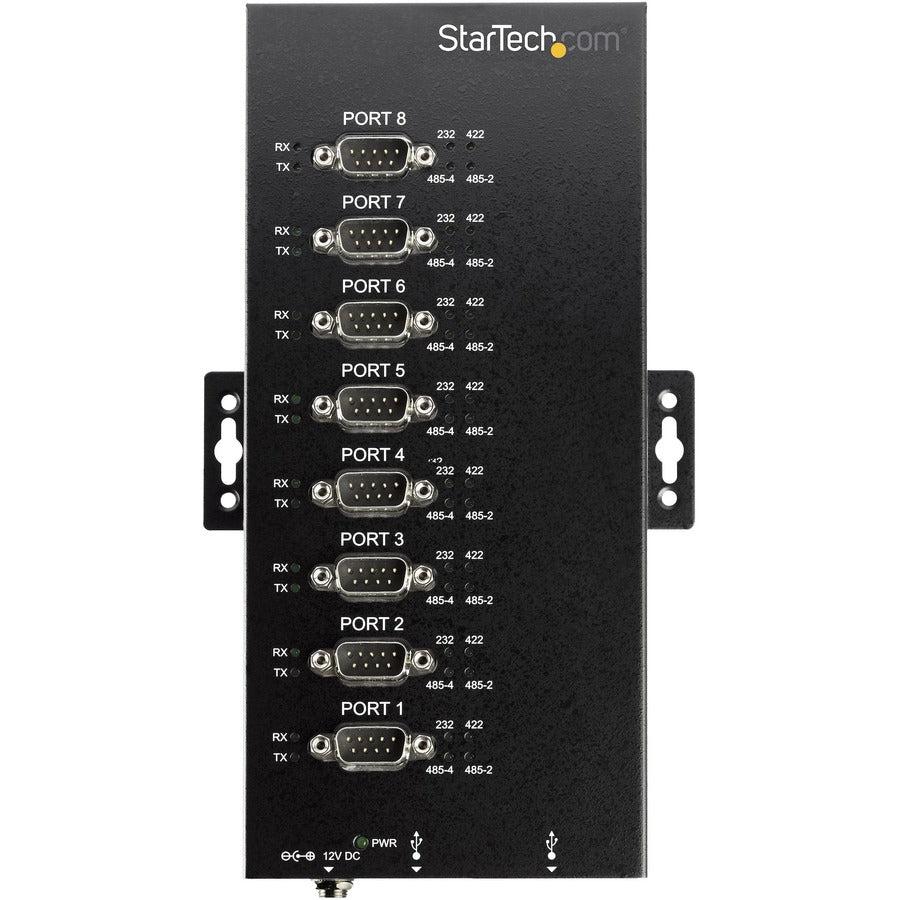

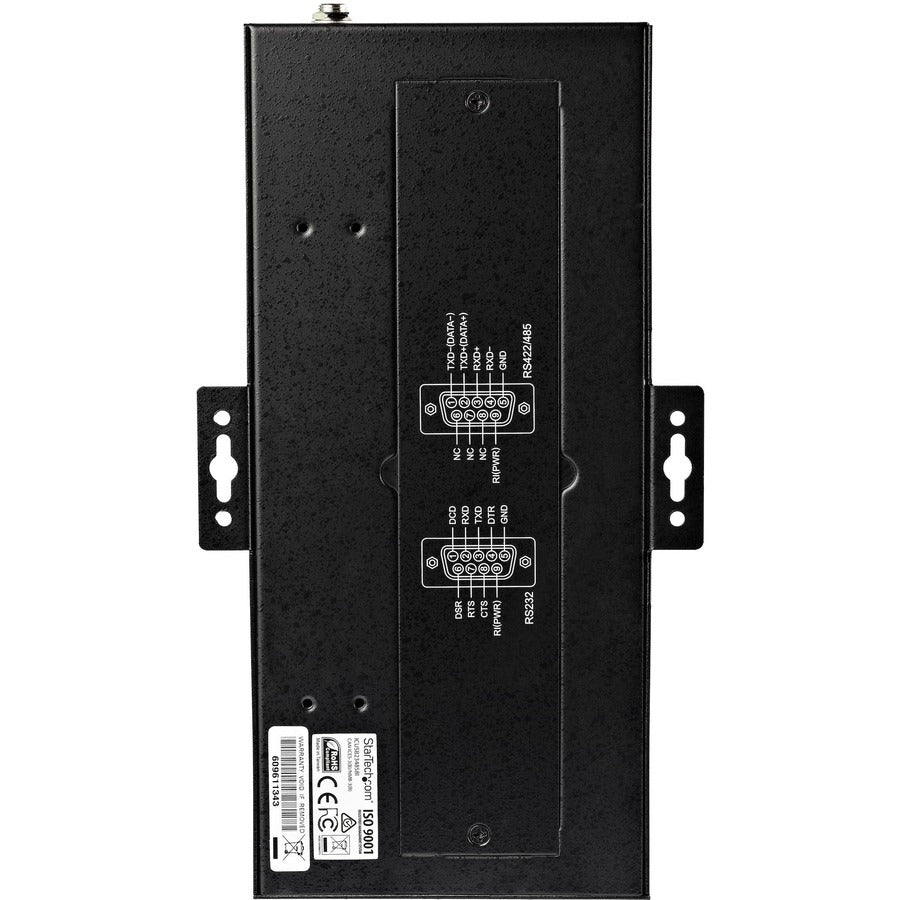

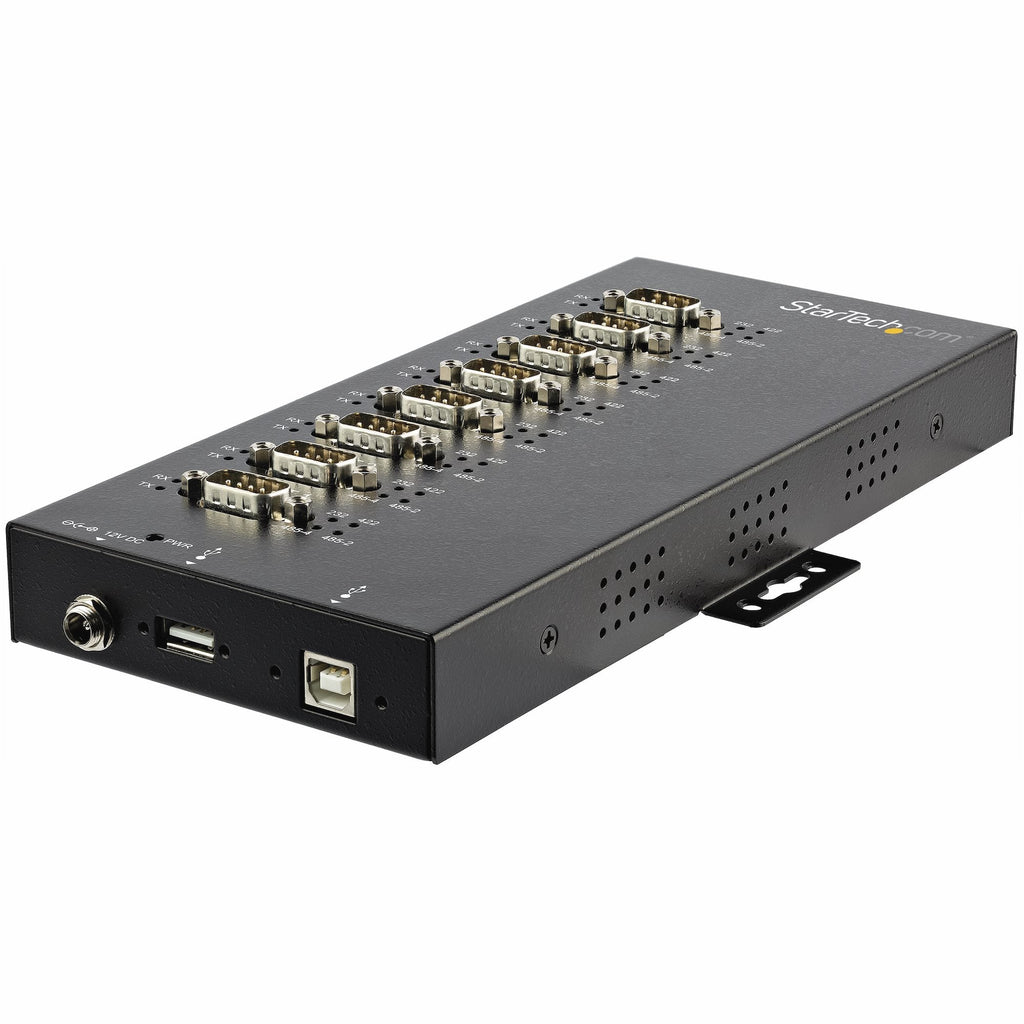

          StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection (ICUSB234858I)

          StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection. Host interface: USB 2.0, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Power. Power source type: AC, Power consumption (typical): 36 W, Input voltage: 100 - 240 V. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows.... Width: 128 mm, Depth: 219 mm, Height: 25 mm

          Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection

          Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

          Supports multiple serial protocols

          The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

          Ideal for harsh environments

          With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

          The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

          Fast data transfers

          The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

          The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

          The StarTech.com Advantage

          - RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 8 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports
          - 8 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers
          - MOUNTING OPTIONS: This metal mountable 8-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets

          Specifications :

          General Information

          Manufacturer StarTech.com
          Manufacturer Part Number ICUSB234858I
          Manufacturer Website Address http://www.startech.com
          Brand Name StarTech.com
          Product Name USB Serial Hub
          Product Type Serial Hub
          UPC 065030878579
          Height1"
          Width5"
          Weight (Approximate)1.52 lb

          Miscellaneous

          Package Contents
          • USB Serial Hub
          • 1 x USBxB with Screw Lock to USBxA Cable
          • 1 x DIN Rail Kit
          • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
          • 1 x Instruction Manual
          Environmentally FriendlyYes

          Warranty

          Limited Warranty2 Year
