Panzone Wall Mnt Cabinet With,Windowed Door Ea

Description :

Panduit Wall Mount Cabinet

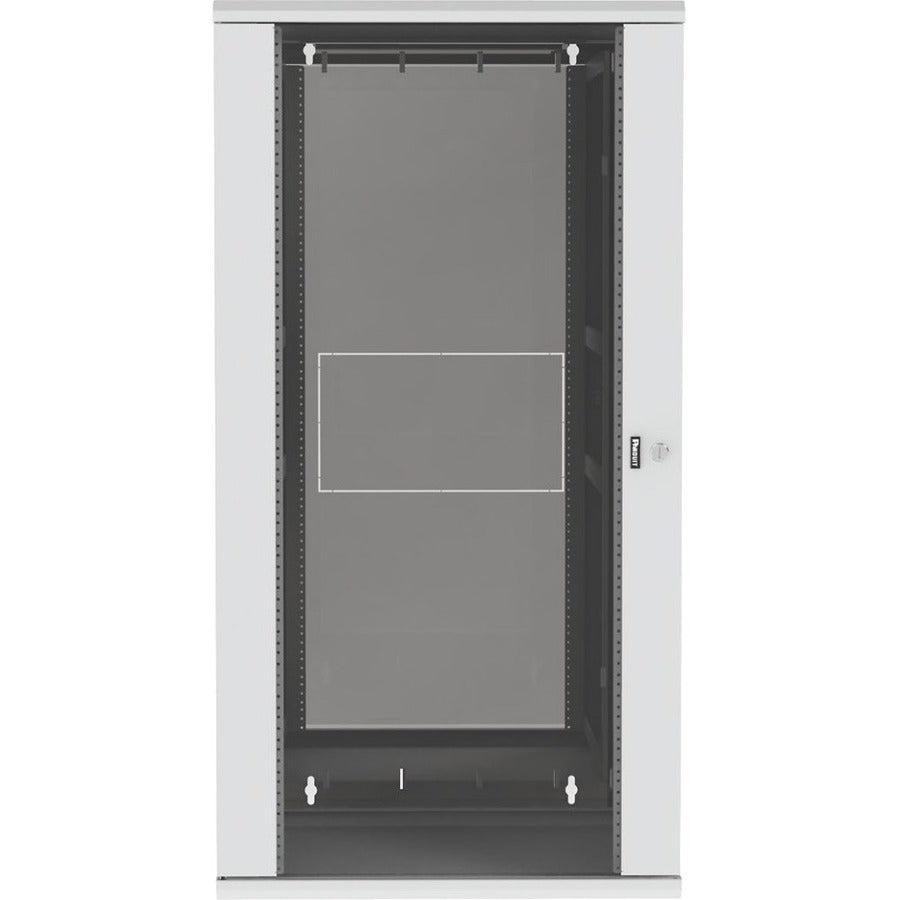

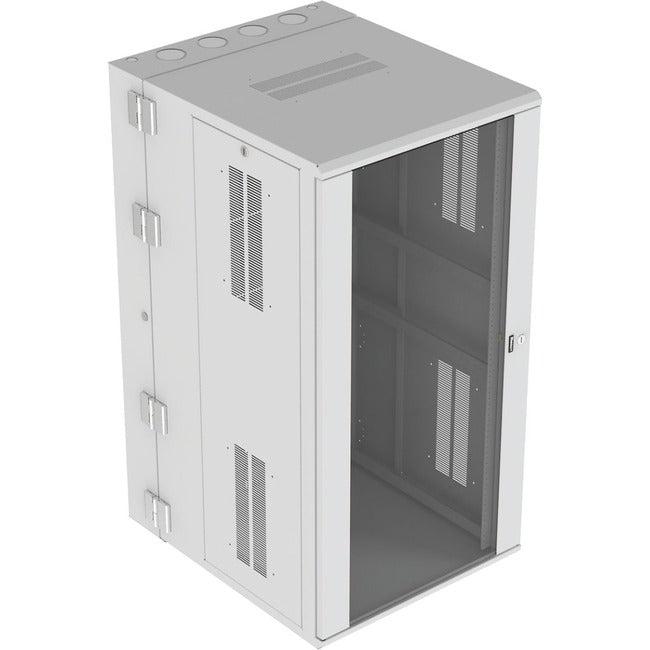

The PanZone® Wall Mount Cabinet with windowed door is 30 inches deep and includes hinged doors on the front and back for complete access to networking equipment to make moves, adds, and changes easy. The removable side panels allow for access to cable routing. The enclosure is engineered to allow proper climate control for use with various networking equipment. The 26 RU enclosure is rated to 350 pounds and is white.

• Structurally engineered design: Allows cabinet to swing freely for easy operation even under maximum load capacity


• Horizontal slack manager (available): Improves cable routing by enabling front accessible moves, adds, and changes; increases airflow through the cabinet because patch cords are no longer in the vertical channel blocking side ventilation


• Thermal management system: Optimizes airflow for improved heat dissipation from various switches and power supplies


• Fan kits (available): Provides additional ventilation for multiple switches or PoE enabled devices; use in cabinets with a windowed door


• Adjustable equipment rails (0.9" increments): Increases usable cabinet depth by accommodating various equipment including 1 RU or 2 RU PoE switches up to 26.8" deep. The cabinet will also accommodate 2.3" of room in the front of the cabinet for patch cords and cable management


• Rack spaces identification: Allows for quick and easy location of rack spaces speeding installation of horizontal rack mount products


• Grounding kit (available): Complies with TIA/EIA grounding and bonding specifications

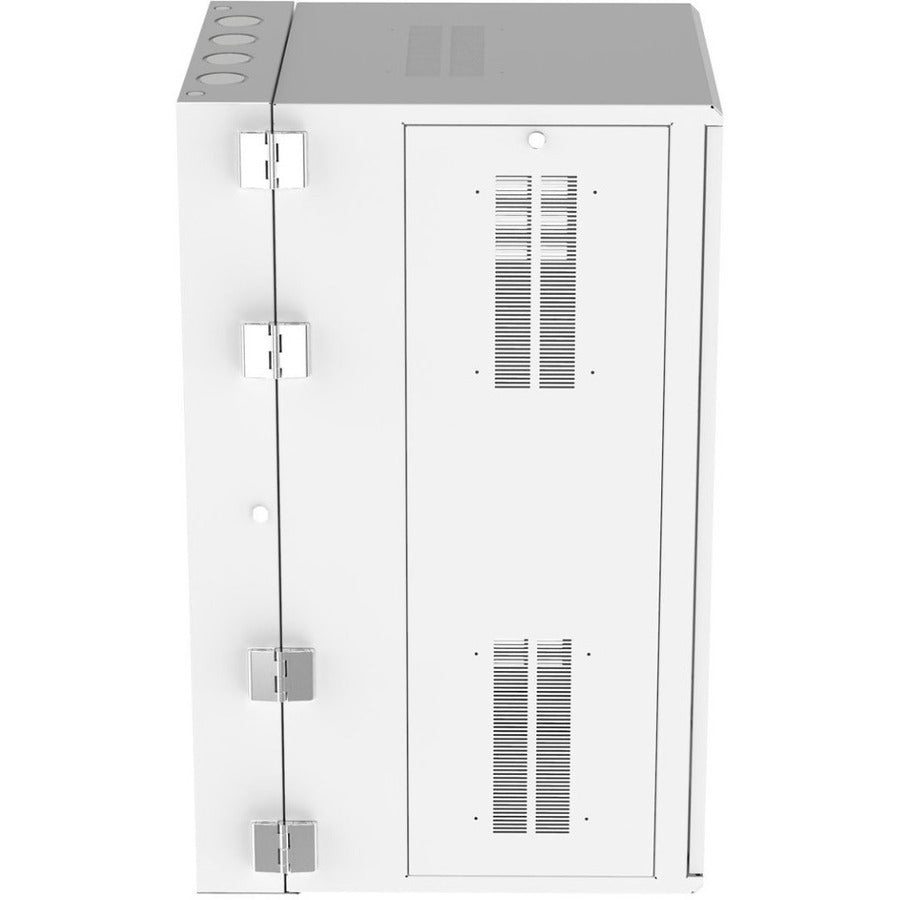

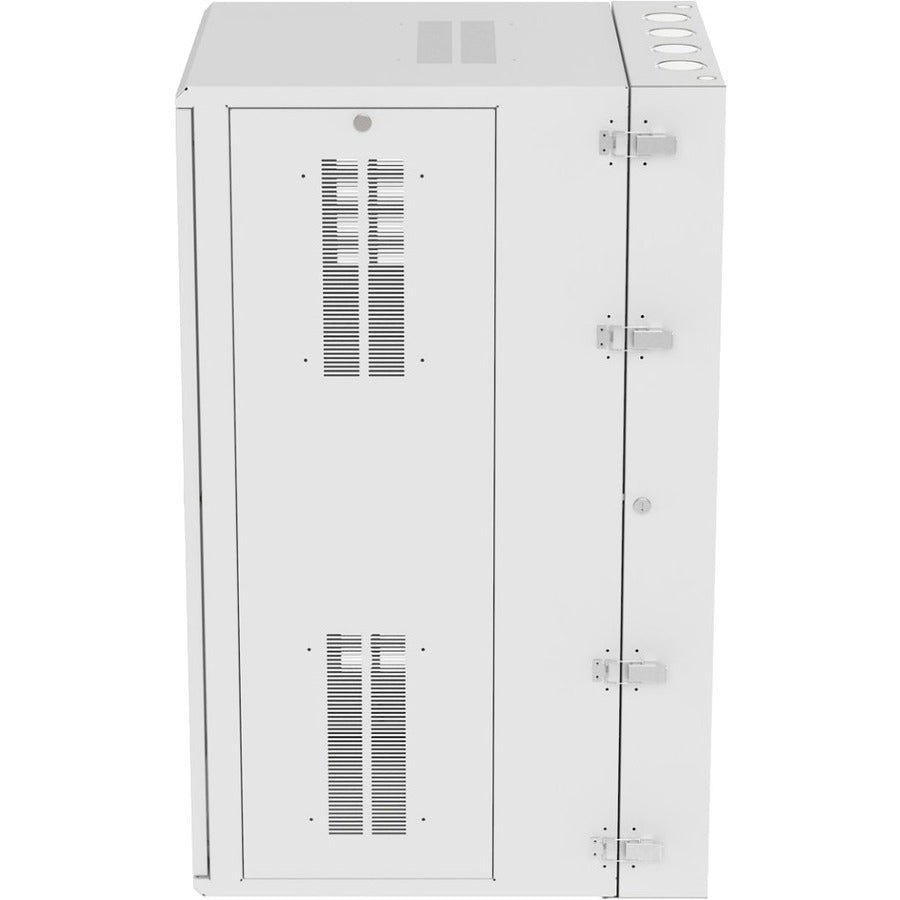

• Removable and locking side panels: Allows for easy, secured access to installed equipment and cable routing

Product Type: Rack Cabinet
Maximum Weight Capacity: 350 lb
Product Color: White
Product Material: Steel
Rack Width: 19"
Rack Height: 26U
Brand Name: Panduit
Form Factor: Wall Mountable
Manufacturer: PANDUIT CORP
Product Name: Wall Mount Cabinet
Product Line: PanZone
Manufacturer Part Number: PZWMC2630WH
Manufacturer Website Address: http://www.panduit.com
Package Contents:

• Cabinet And Keys
• Locks
• 2 x Adjustable #12-24 Threaded Rails
• Removable Cover Panel For Vent On Top Of Cabinet
• Assembly Hardware And Rear Cable Routing Accessory Kit
