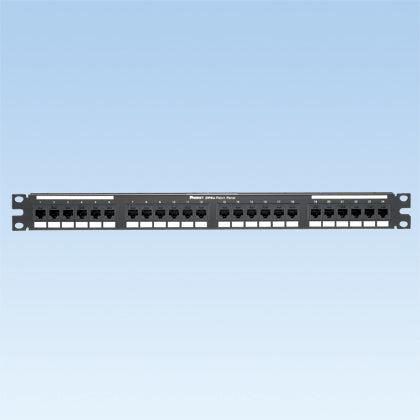

Panduit Dp24688Tgy Network Switch Component

Description :

24-port, Category 6, patch panel with 24 RJ45, 8-position, 8-wire ports, Black

Panduit DP24688TGY. Product colour: Black. Connectivity technology: Wired. Dimensions (WxDxH): 482.6 x 29.6 x 43.7 mm

- Exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards.
- Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
- Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability.
- Utilize 110 punchdown termination on back panel and includes retention cap for each port.
- Each port contains a universal label that is color-coded for T568A and T568B wiring schemes.
- Angled versions allow for higher density applications by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management.
- Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded twisted pair cable.
- Mount to standard EIA 19" rack or 23" racks with optional extender bracket.
- Write-on areas for port and panel identification.
- Can be clearly identified with labels and icons.
- Optional label kits (DPLK24 and DPLK48) contain adhesive label holder and labels for easy port and panel identification.
