Description :

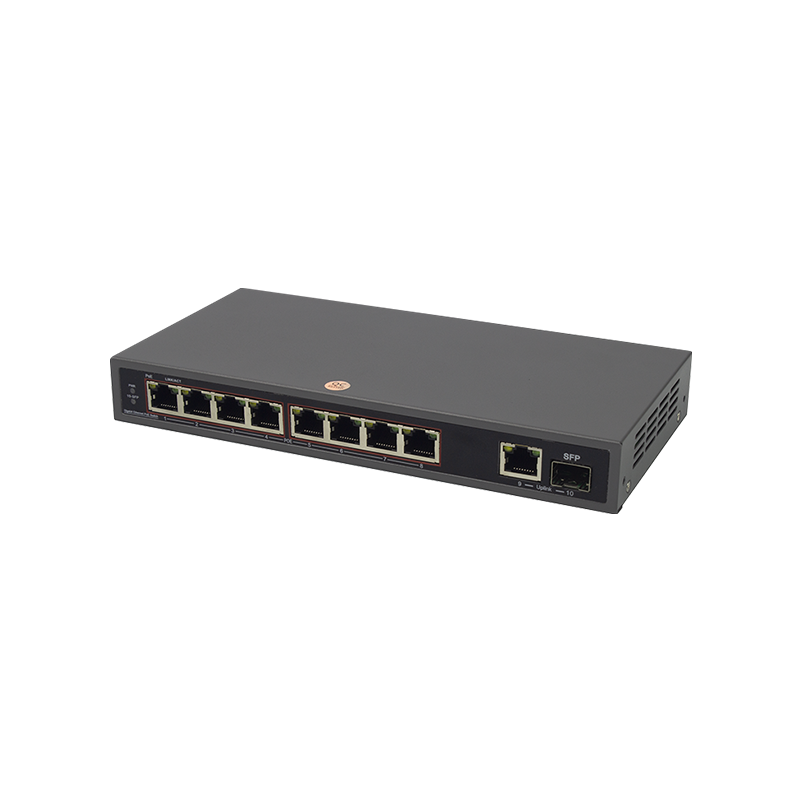

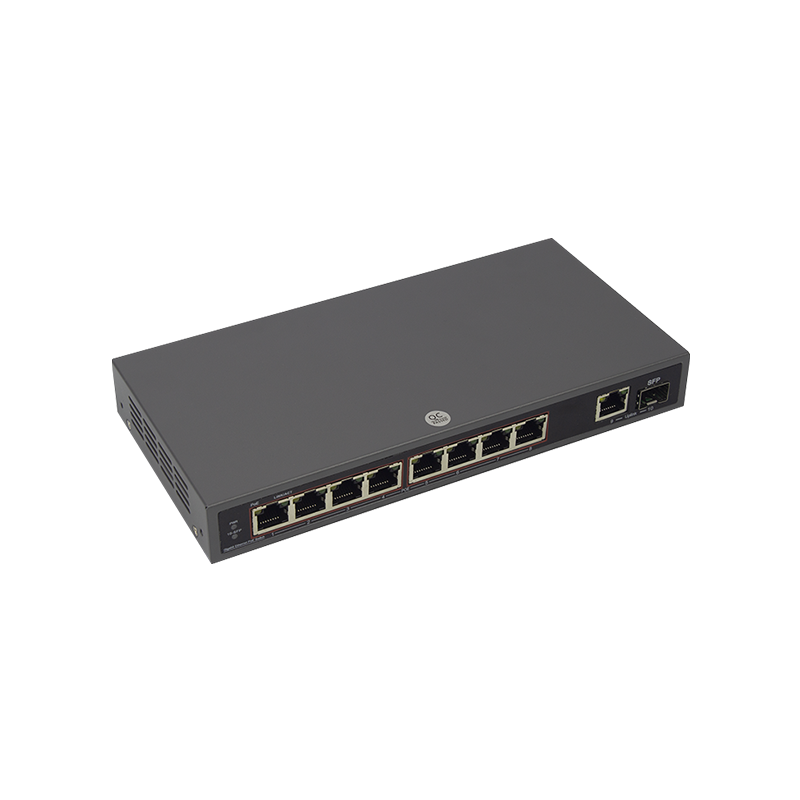

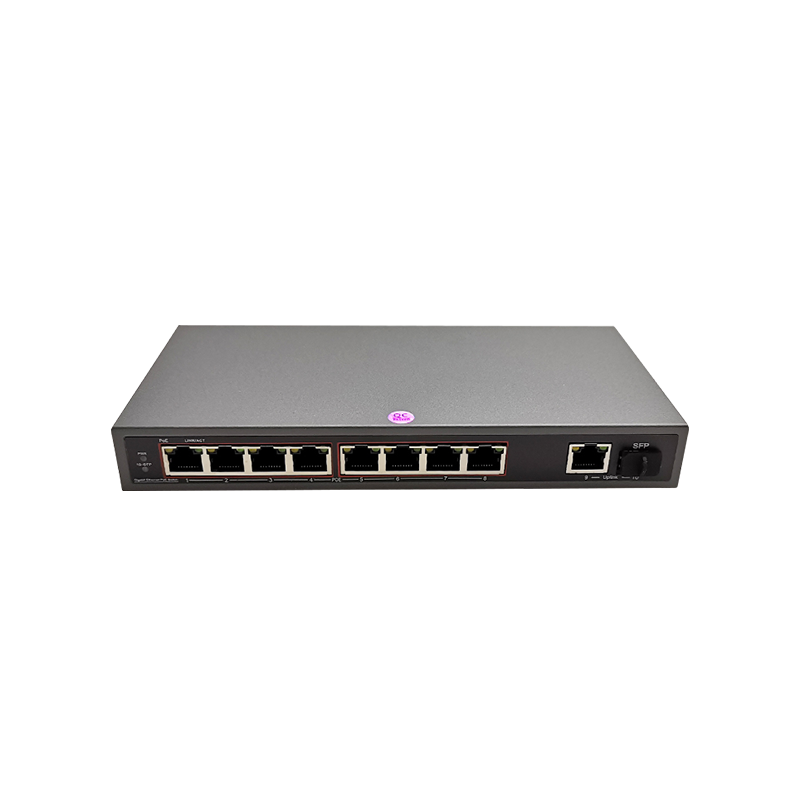

OVPOE8-125 – 8 PORT POE SWITCH 10/100/1000 BASE-TX OVPOE8-125



  • 8 x 10/100/1000Base-TX
  • 1 x GB Uplink + 1 x GB SFP
  • 119W Power over Ethernet

OVERVIEW

The OVPOE8-125 PoE switch provides power for regular IP cameras, and IP PTZ cameras, as well as other data and infrastructure. 10/100/1000Gbps speeds ensure high definition video quality.

FEATURES:
  • Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
  • 9 x 10/100/1000Base-TX ports + 1 Gigabit SFP
  • Provides 8 x PoE Injector and 125W power adapter
  • Total output capacity of 125W and 30W per port
  • High back-plane bandwidth 20Gbps
  • IEEE802.3x Flow control
  • EMI standards complies with FCC, CE class B

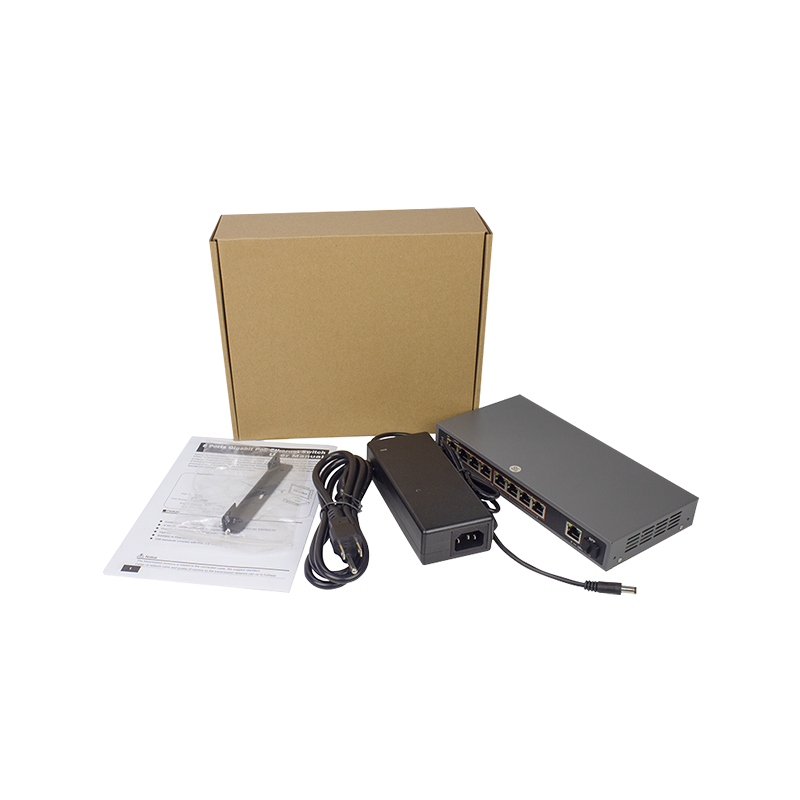

INCLUDES:
  • 8-port multi-functional intelligent network line-powered switch
  • Power cord

SPECIFICATIONS

Power Supply   External Power Adaptor
Voltage Range   DC48~57V
Switch Consumption   <6W
Speed   1~8 Port : 10/100/1000Mbps
Speed   1TP + 1SFP Uplink : 1000Mbps
Transmission Distance   328ft for RJ-45
Ethernet Standard   IEEE 802.3x IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity   20G
Transfer Rate   14,880pps for 10Mbps
Transfer Rate   148,800pps for 100Mbps
Transfer Rate   1,488,000pps for 1000Mbps
MAC Address   4K MAC address table
On / Green   The port is connecting
Blinks   The port is receiving or transmitting data
Off   The port is not linked successfully with the device
On / Orange   PD is connected
Off   No PD is connected or power forwarding fails
Total Output Capacity   125W
Output Capacity per Port   Up to 30W per port
PoE Pin Assignment   V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
Working Temperature   0~40℃
Storage Temperature   -40~70℃
Humidity (Non-Condensing)   0~90%
Dimension   8.6″ x 4.2″ x 1.1″
Color   Gray

RESOURCES

Product Spec Sheet – Download
