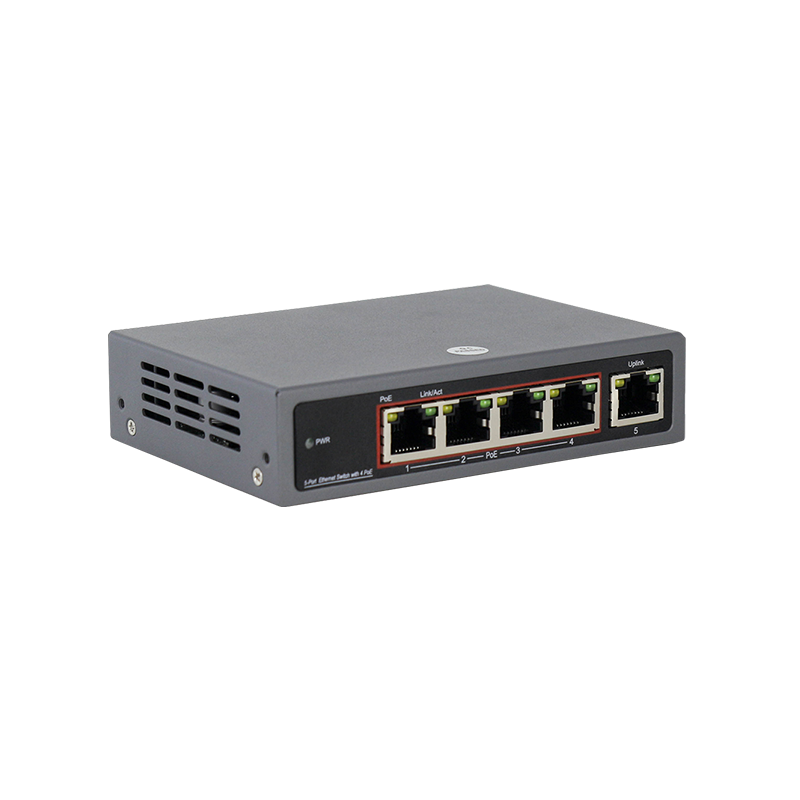

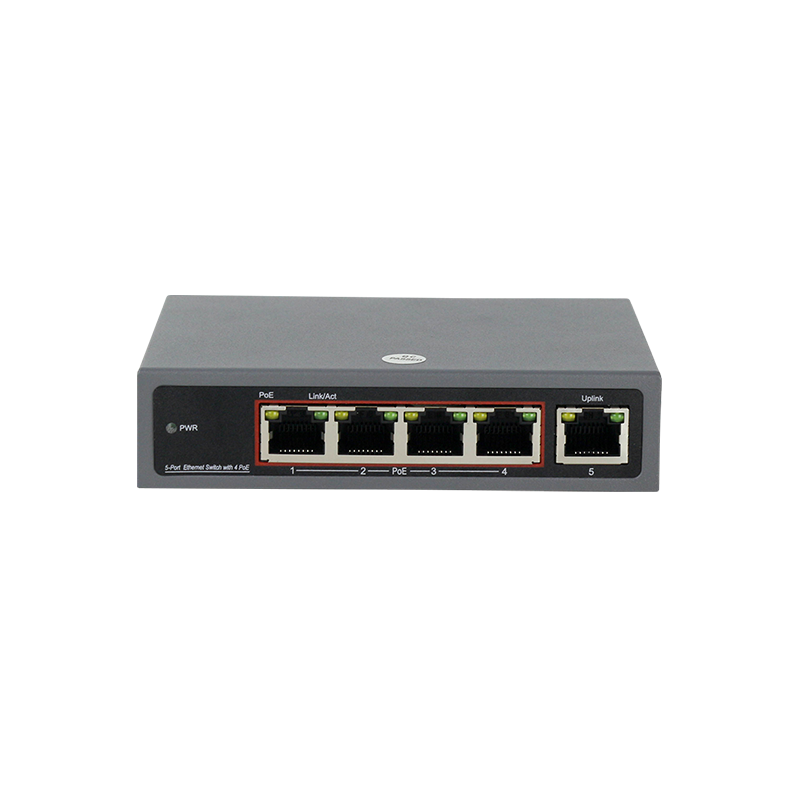

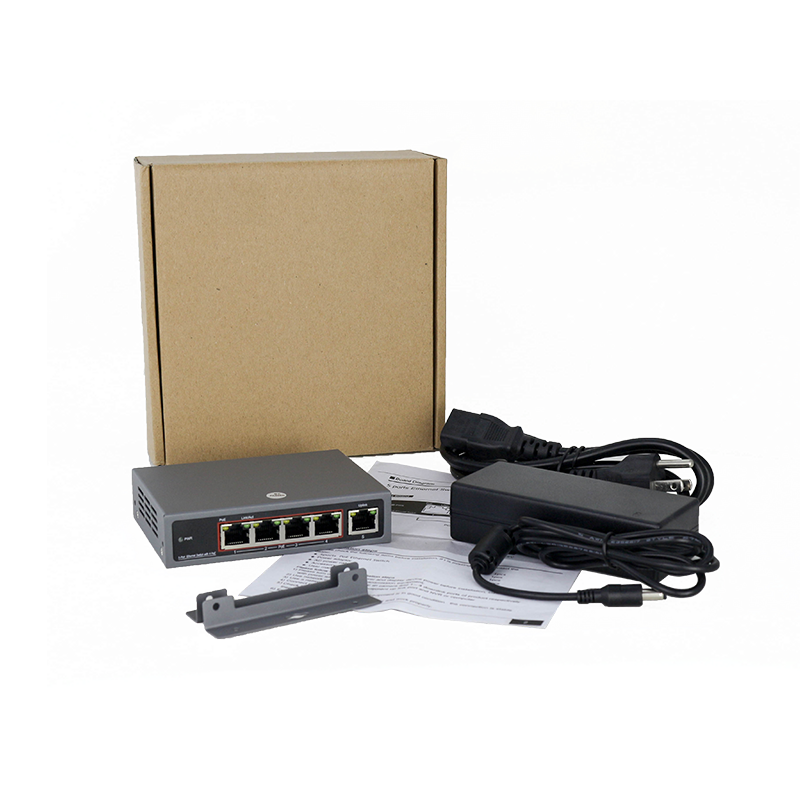

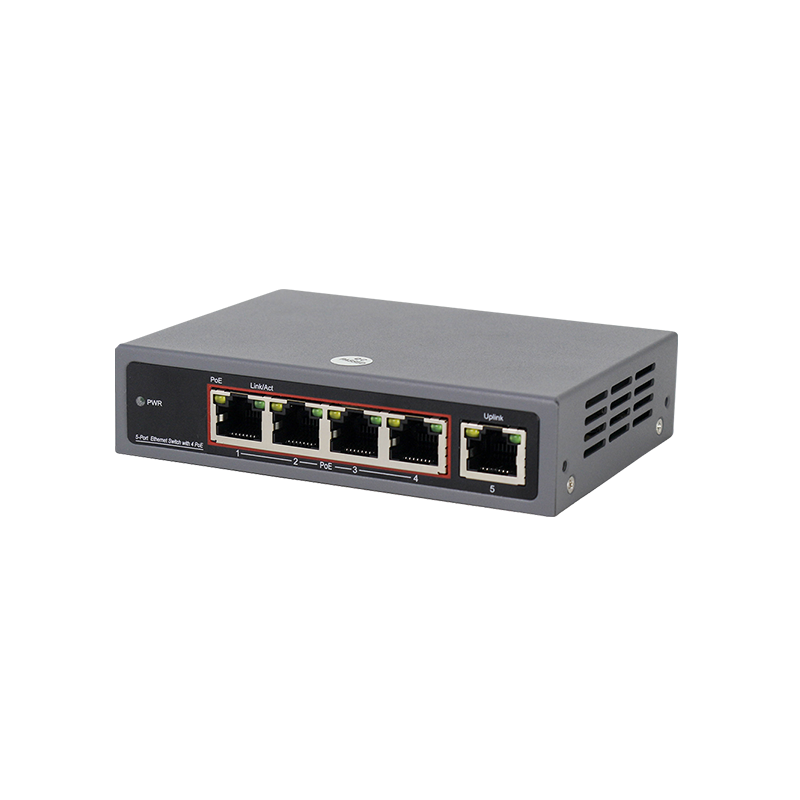

OVPOE4G – 4+1 PORT POE SWITCH 10/100/1000 OVPOE4G
The OVPOE4G PoE switch provides power for regular IP cameras, and IP PTZ cameras, as well as other data and infrastructure. 10/100/1000Gbps speeds ensure high definition video quality.
| Power Supply | External Power Adaptor | |
| Voltage Range | DC48~57V | |
| Switch Consumption | <5W | |
| Speed | 1~5 Port : 10/100/1000Mbps | |
| Speed | Uplink: 10/100/1000Mbps | |
| Transmission Distance | 328ft for RJ-45 | |
| Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at | |
| Switching Capacity | 10G | |
| Transfer Rate | 14,880pps for 10Mbps | |
| Transfer Rate | 148,800pps for 100Mbps | |
| Transfer Rate | 1,488,000pps for 1000Mbps | |
| MAC Address | 2K MAC address table | |
| On / Green | The port is connecting | |
| Blinks | The port is receiving or transmitting data | |
| Off | The port is not linked successfully with the device | |
| On / Orange | PD is connected | |
| Off | No PD is connected or power forwarding fails | |
| Total Output Capacity | 60W | |
| Output Capacity per Port | Up to 30W per port | |
| PoE Pin Assignment | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |
| Working Temperature | 0~40℃ | |
| Storage Temperature | -40~70℃ | |
| Humidity (Non-Condensing) | 0~90% | |
| Dimension | 4.7″ x 3.3″ x 1.1″ | |
| Color | Gray |
Product Spec Sheet – Download
