Md70-Hb0 C612 Lga2011-3 E5-2600,Max-64Gb Ddr4 Eatx Minisas Raid

Description :

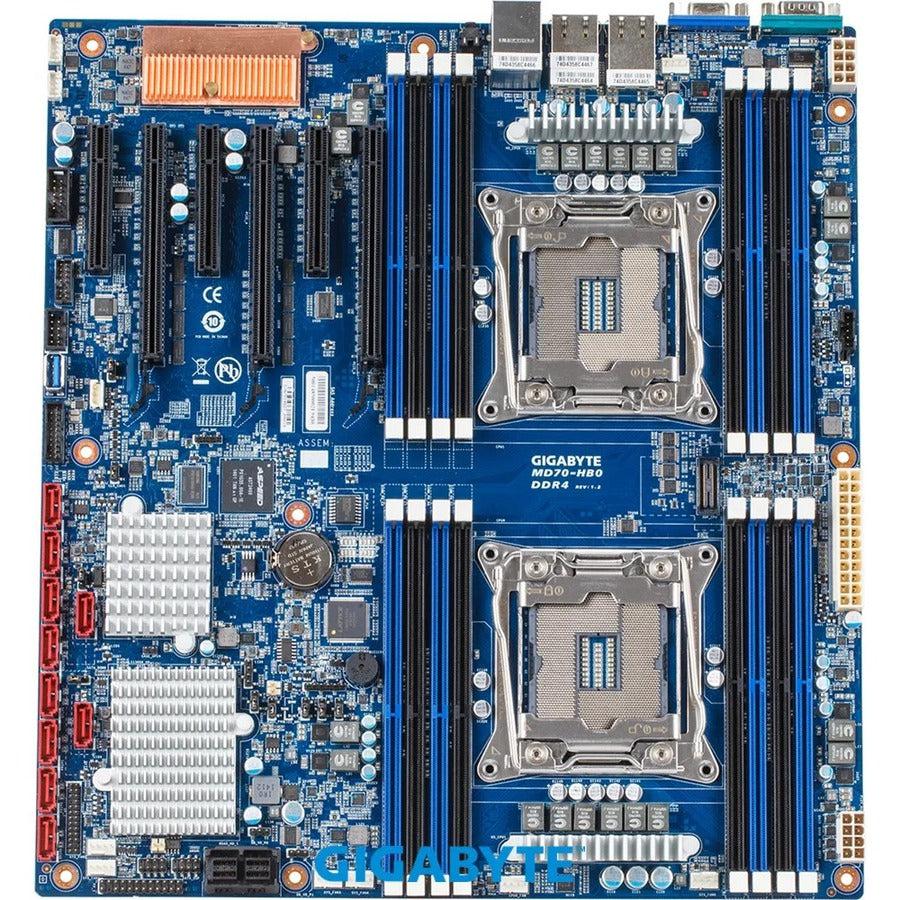

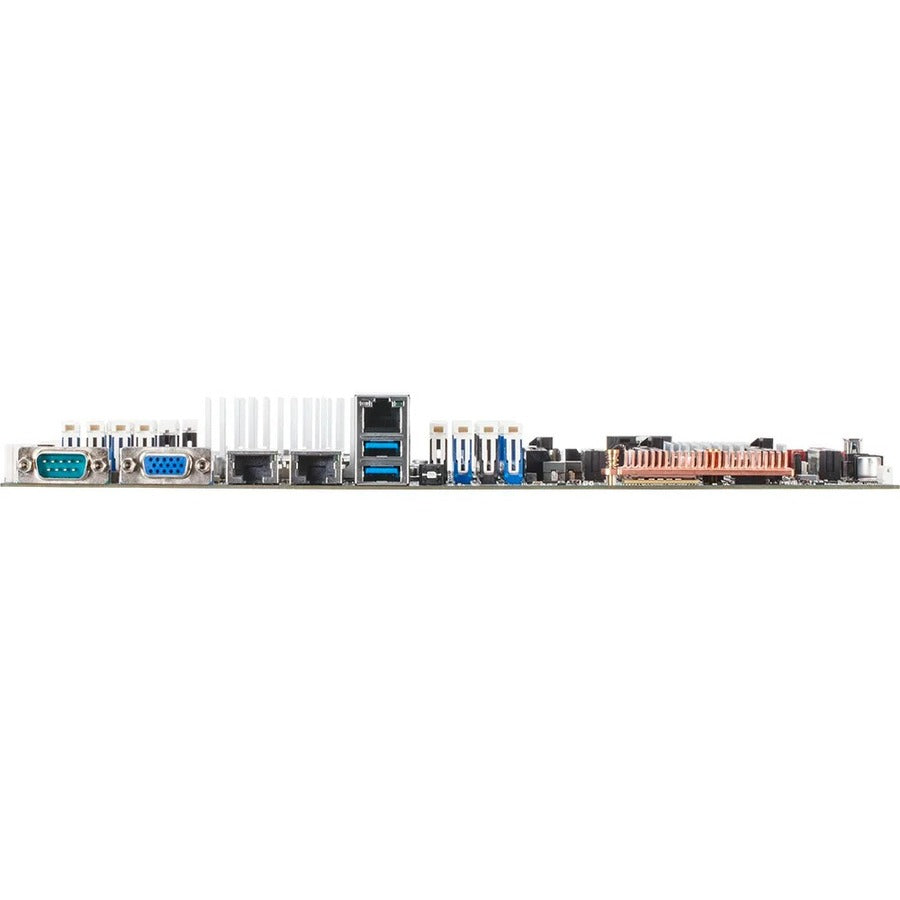

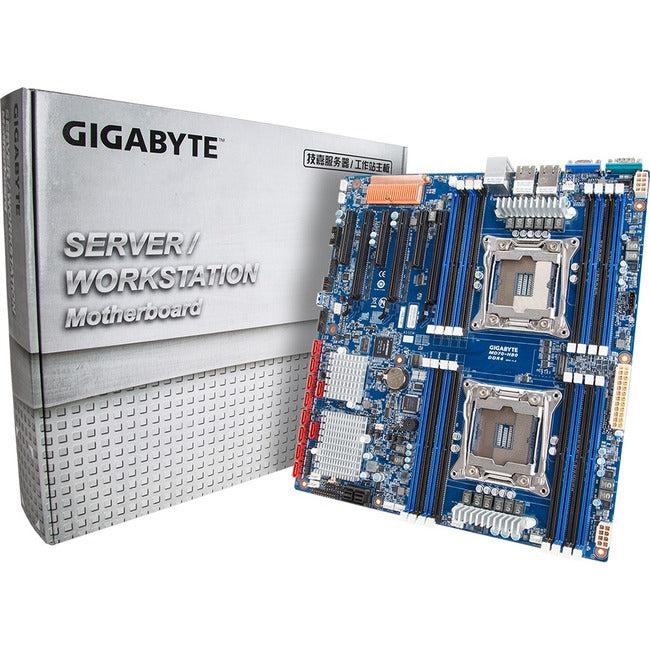

Gigabyte MD70-HB0 Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX

Intel® C612 chipset

• Intel® Xeon® processor E5-2600 V3 product families
• 16 x RDIMM/LRDIMM ECC DDR4 DIMM slots
• 2 x 10GbE BASE-T LAN ports (Intel® X540)
• 2 x Mini-SAS (for 8 x SAS 12Gb/s)
• 10 x SATA III 6Gb/s
• 1 x USB 3.0 + 1 x USB 2.0 headers
• 1 x internal USB 3.0 port
• Aspeed® AST2400 remote management controller

• Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor


• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput


• Support ASPEED AST2400 controller that assure high-level performance and interconnectivity of datacenter applications


• With 2 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second


• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX server motherboard

Product Type: Server Motherboard
Environmentally Friendly: Yes
Brand Name: Gigabyte
Form Factor: Extended ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MD70-HB0
Product Name: MD70-HB0 (rev. 1.2) Server Motherboard
Manufacturer Part Number: MD70-HB0
Manufacturer Website Address: http://www.gigabyte.us
