Industrial Usb 2.0 Hub With Isolation - 4-Port, Gsa, Taa

Description :

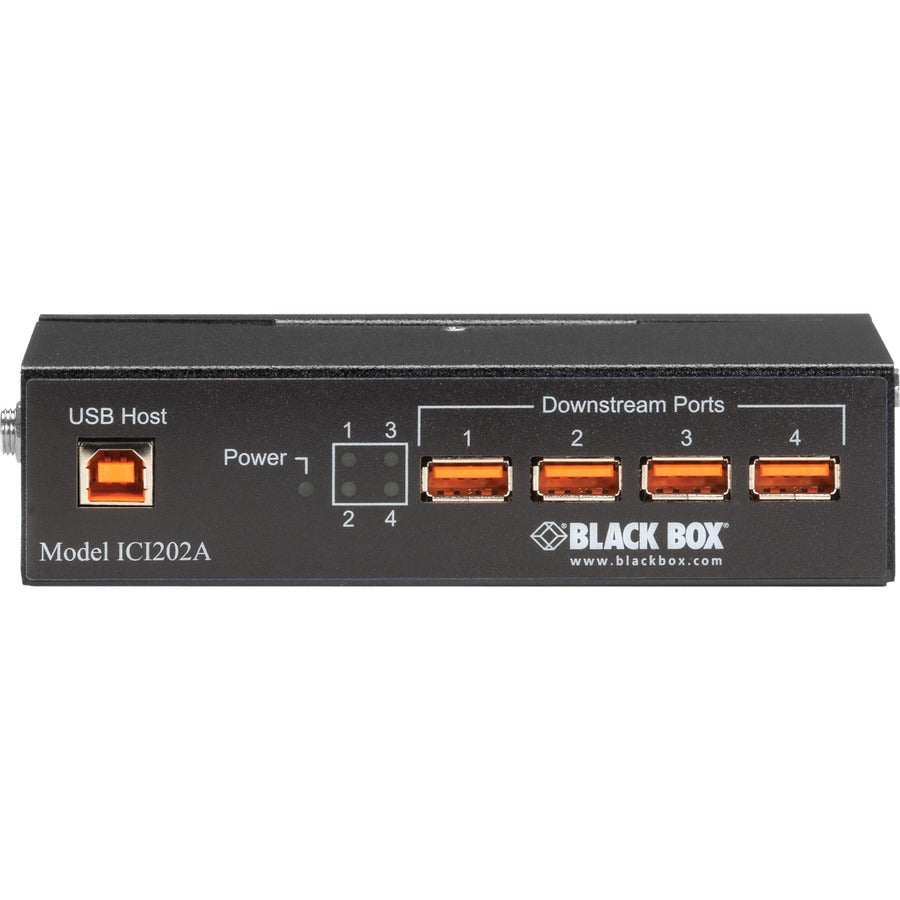

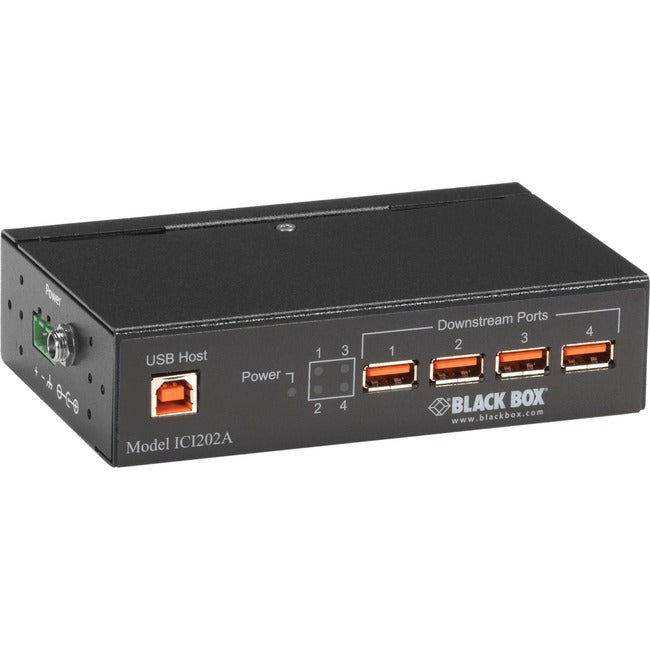

Black Box Industrial USB 2.0 Hub with Isolation - 4-Port

• Housed in a durable, IP30-rated metal enclosure.
• UL® listed for use in Class 1 Division 2 hazardous areas.
• Tested for 50G shock and 4g vibration.
• USB 1.1 and USB 2.0 compatible.
• Supports USB speeds of 12 Mbps.
• Includes panel- and DIN rail mounting hardware.
• Use either a locking barrel plug and terminal block for power input.

A great choice for factory, utility, engineering, and even healthcare applications, the Black Box® Industrial-Grade USB Hub, 4-Port with Isolation enables more reliable USB device connectivity in harsh environments.

The hub expands one USB port into four, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it's designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices - which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

The hub supports full-speed (12 Mbps) USB 2.0 connections and offers isolation from ground loops. Use it, for instance, in areas where you are connecting a PLC in one cabinet to a drive-in another cabinet, or in a tightly packed medical cart. It enables data to pass unaffected while 4-kV isolation between the upstream and downstream USB ports helps prevent harm to important USB devices.

Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose - even in environments with lots of equipment vibration. (Disconnecting them requires up to 3.2 pounds of force.) Cables click into the ports securely to help eliminate data loss.

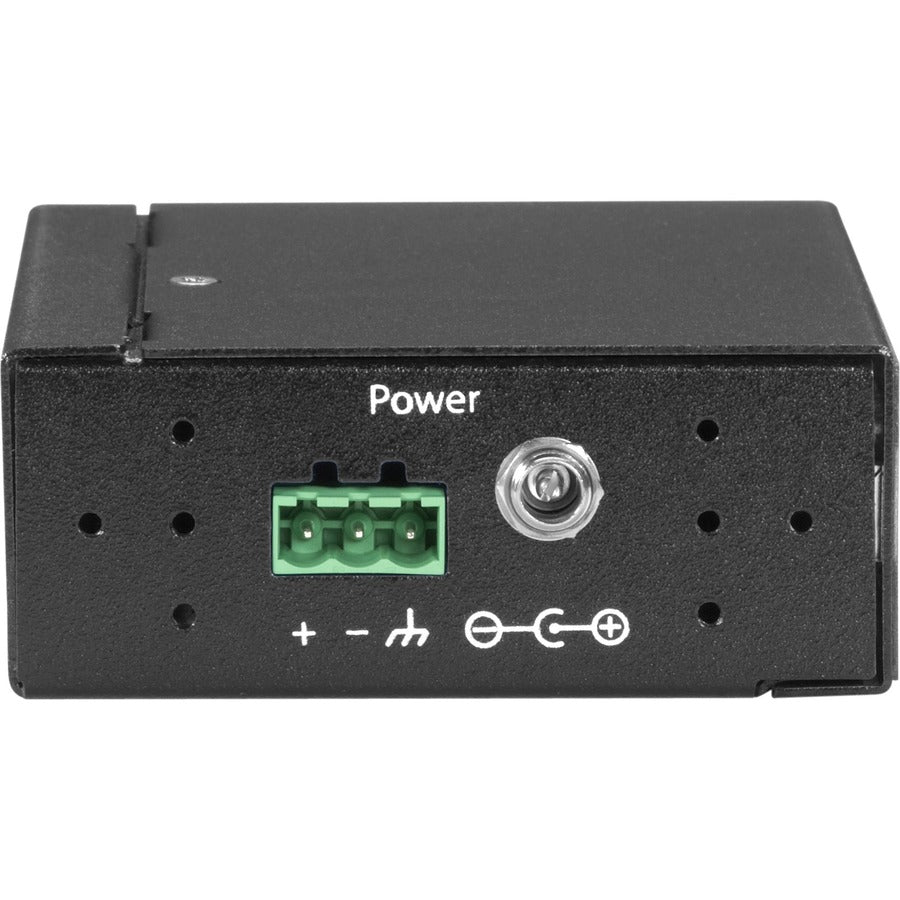

Through its terminal block input or locking barrel plug, it receives power externally from a 10 - 30-VDC source and provides 500 mA to each downstream port.

The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.

• Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).


• Included high-retention ports to help keep USB cables tightly connected.


• Features high electrostatic discharge protection (Level 4, 15 kV).


• Offers 4-kV isolation between upstream and downstream ports.


• USB 1.1 and USB 2.0 compatible speed up to 12 Mbps.


• UL® listed for use in Class 1 Division 2 hazardous areas.


• Tested for 50G shock and 4g vibration.

Product Type: USB Hub
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: External
Manufacturer: Black Box Corporation
Product Name: Industrial USB 2.0 Hub with Isolation - 4-Port
Manufacturer Part Number: ICI202A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:

• Industrial-Grade USB Hub, 4-Port with Isolation


• 6-ft. (1.8-m) USB Type A/Type B Cable


• 2 x Panel-mount Adapters with (4) Mounting Screws


• DIN Rail Adapter with (3) Mounting Screws


• Quick-start Guide
