Hyperflex All Flash Edge 220 M5,Syst

Description :

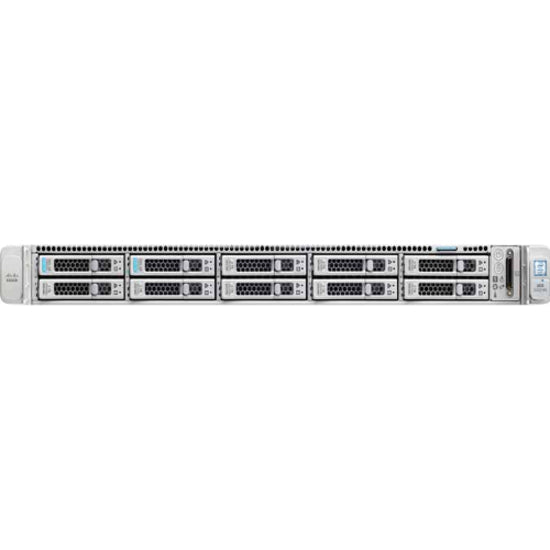

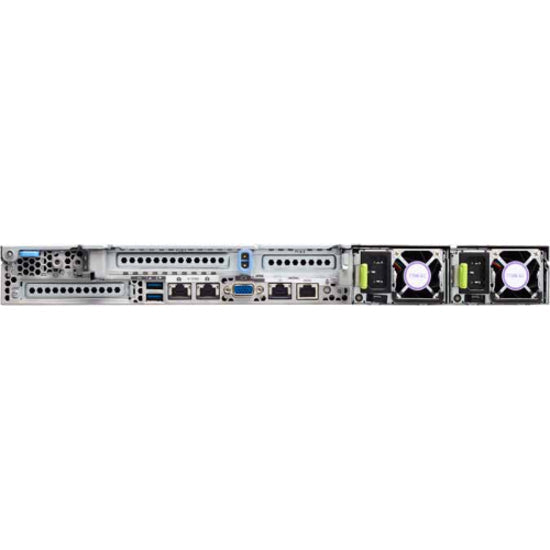

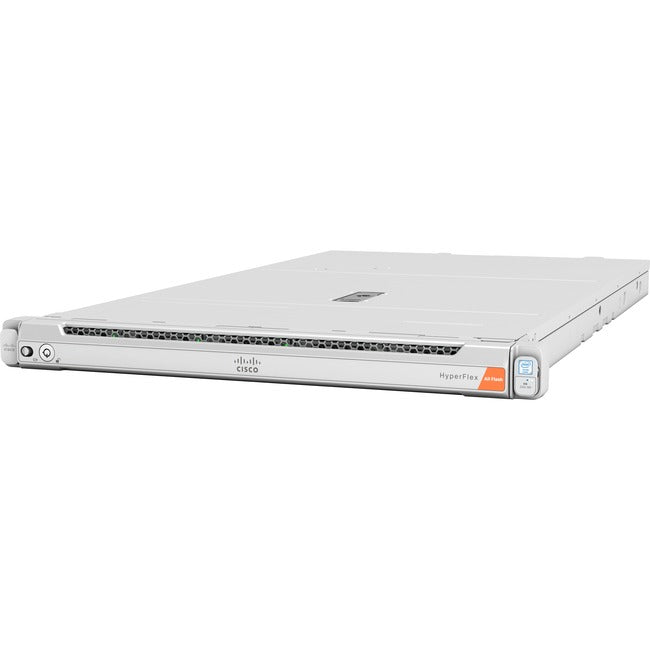

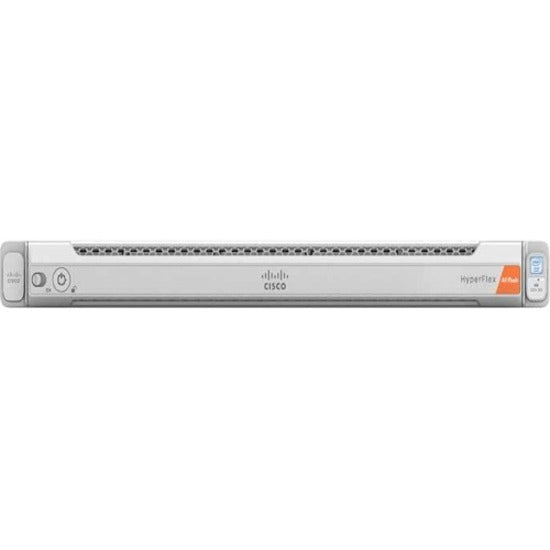

Cisco HyperFlex Barebone System - 1U Rack-mountable - 2 x Processor Support
Cisco HyperFlex™ Systems provides an all-purpose virtualized server platform, with hypervisor hosts, networking connectivity, and virtual server storage across a set of Cisco UCS HX-Series x86 rack-mount servers. It combines the convergence of computing and networking provided by Cisco UCS, along with next-generation hyperconverged storage software, to uniquely provide the compute resources, network connectivity, storage, and hypervisor platform to run an entire virtual environment, all contained in a single uniform system.

Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).

HyperFlex Edge operates using existing top of rack 1GE or 10GE switching with options for both single and dual switch configurations. Edge clusters are configured with replication factor 2 (RF2) to ensure availability during various failure scenarios. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.

The HXAF-E-220M5SX Edge servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.

• Perform computational tasks effectively accrediting the Xeon Platinum processor


• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput


• Optimize business network's performance with 10 Gigabit Ethernet connectivity


• With 2 USB ports, connect/disconnect devices while not having to shut down the system


• 12Gb/s SAS interface for high speed and reliability

Product Type: Barebone System
Product Series: HXAF220c M5
Rack Height: 1U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: HyperFlex HXAF220c M5 Barebone System
Product Line: HyperFlex
Manufacturer Part Number: HXAF-E-220M5SX
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 37.50 lb
