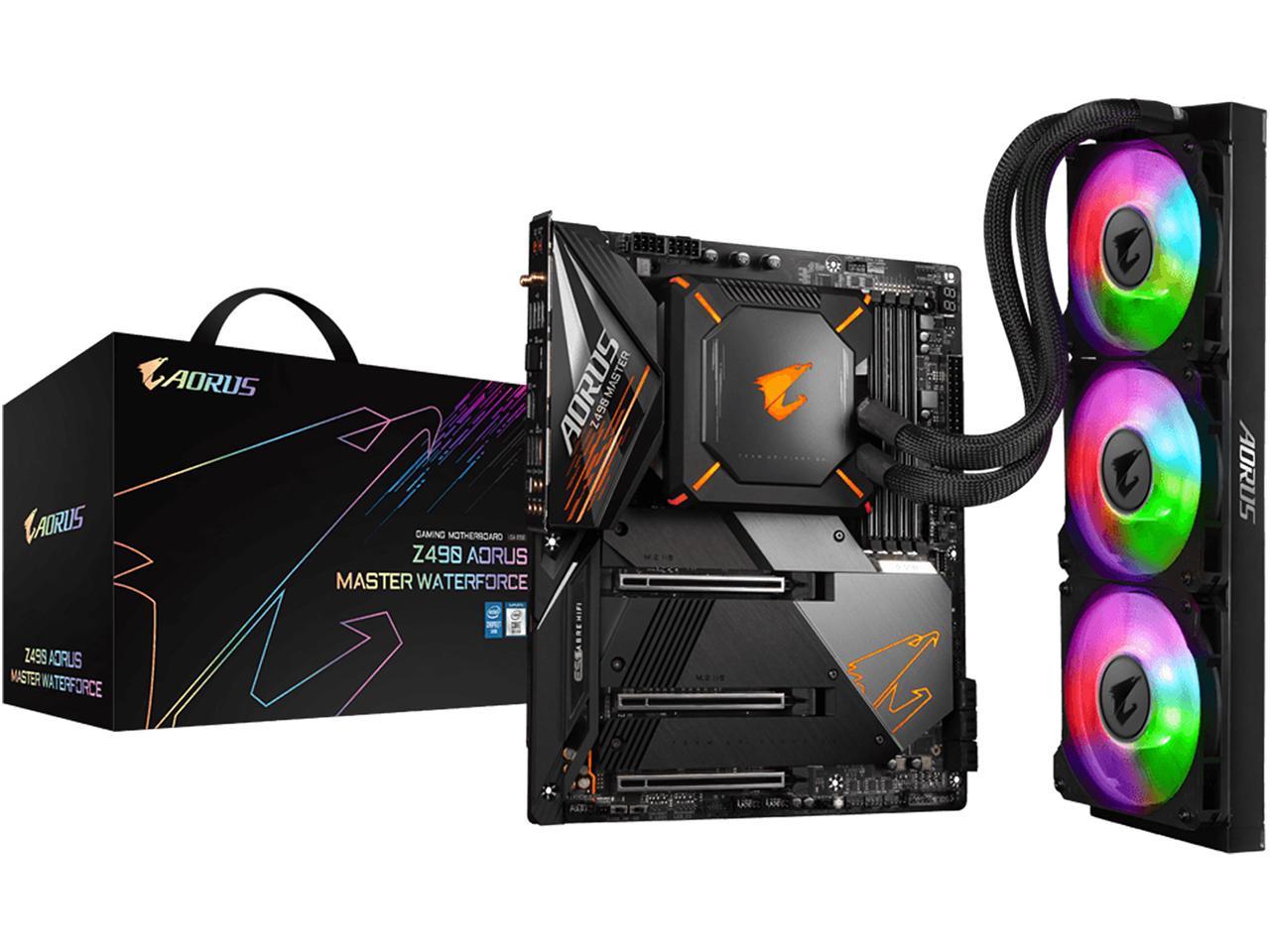

Gigabyte Z490 Aorus Master Waterforce Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard

Gigabyte Z490 Aorus Master Waterforce Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard

SKU:Z490 AORUS MASTER WF

Regular price $719.99
Regular price Sale price $719.99
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          • Intel Z490
          • Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
          • Intel Core i9/i7 processors:
          • Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
          • Intel Core i5/i3/Pentium/Celeron processors:
          • Support for DDR4 2666/2400/2133 MHz memory modules
          Model
          Brand GIGABYTE
          Model Z490 AORUS MASTER WATERFORCE
          Supported CPU
          CPU Socket Type  LGA 1200
          CPU Type Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
          Chipsets
          Chipset  Intel Z490
          Onboard Video
          Onboard Video Chipset  Integrated Graphics Processor-Intel HD Graphics support:

          1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
          * Support for HDMI 1.4 version and HDCP 2.3.

          Maximum shared memory of 512MB
          Memory
          Number of Memory Slots 4×288pin
          Memory Standard Intel Core i9/i7 processors:
          Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
          Intel Core i5/i3/Pentium/Celeron processors:
          Support for DDR4 2666/2400/2133 MHz memory modules
          Maximum Memory Supported 128GB
          Channel Supported  Dual Channel
          Expansion Slots
          PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
          1 x PCI Express x16 slot, running at x8 (PCIEX8)
          * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
          1 x PCI Express x16 slot, running at x4 (PCIEX4)

          (All of the PCI Express slots conform to PCI Express 3.0 standard.)
          Storage Devices
          SATA 6Gb/s  6 x SATA 6Gb/s
          M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
          1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
          1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
          Intel Optane Ready Yes
          SATA RAID 0/1/5/10
          Onboard Audio
          Audio Chipset  Realtek ALC1220-VB codec
          * The front panel line out jack supports DSD audio.
          ESS ES9118EQ DAC chip
          Audio Channels  2/4/5.1/7.1-channel
          Support for S/PDIF Out
          Onboard LAN
          LAN Chipset Intel 2.5GbE LAN chip
          Max LAN Speed 10/100/1000/2500Mbps
          Wireless LAN Intel Wi-Fi 6 AX201
          WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
          Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
          * Actual data rate may vary depending on environment and equipment.
          Bluetooth Bluetooth 5.1
          Rear Panel Ports
          Back I/O Ports 1 x Q-Flash Plus button
          1 x Clear CMOS button
          2 x SMA antenna connectors (2T2R)
          1 x HDMI port
          1 x USB Type-C port, with USB 3.2 Gen 2 support
          3 x USB 3.2 Gen 2 Type-A ports (red)
          2 x USB 3.2 Gen 1 ports
          4 x USB 2.0/1.1 ports
          1 x RJ-45 port
          1 x optical S/PDIF Out connector
          5 x audio jacks
          Internal I/O Connectors
          Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
          1 x USB 3.2 Gen 1 header
          2 x USB 2.0/1.1 headers
          Other Connectors 1 x CPU fan header
          1 x water cooling CPU fan header
          4 x system fan headers
          2 x system fan/water cooling pump headers
          2 x addressable LED strip headers
          2 x RGB LED strip headers
          1 x front panel header
          1 x front panel audio header
          1 x noise detection header
          2 x Thunderbolt add-in card connectors
          1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
          1 x power button
          1 x reset button
          2 x temperature sensor headers
          1 x Clear CMOS jumper
          2 x BIOS switches
          Physical Spec
          Form Factor ATX
          LED Lighting RGB
          Dimensions (W x L) 12.0" x 9.6"
          Power Pin 1 x 24-pin ATX main power connector
          2 x 8-pin ATX 12V power connectors
          Features
          Features Multi-Graphics Technology:
          Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
          Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

          I/O Controller:
          iTE I/O Controller Chip

          H/W Monitoring:
          Voltage detection
          Temperature detection
          Fan speed detection
          Water cooling flow rate detection
          Overheating warning
          Fan fail warning
          Fan speed control
          * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
          Noise detection

          BIOS:
          2 x 256 Mbit flash
          Use of licensed AMI UEFI BIOS
          Support for DualBIOS
          PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

          Unique Features:
          Support for APP Center
          * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
          @BIOS
          EasyTune
          Fast Boot
          Game Boost
          RGB Fusion
          Smart Backup
          System Information Viewer
          USB TurboCharger
          Support for Q-Flash Plus
          Support for Q-Flash
          Support for Xpress Install

          Bundled Software:
          Norton Internet Security (OEM version)
          cFosSpeed
          XSplit Gamecaster + Broadcaster (12 months license)

          Operating System:
          Support for Windows 10 64-bit

            Specifications :

            General Information

            UPC 889523023853
