GIGABYTE

Gigabyte B550 Gaming X Am4 Amd B550 Atx Motherboard With Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2, Pcie 4.0

Gigabyte B550 Gaming X Am4 Amd B550 Atx Motherboard With Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2, Pcie 4.0

SKU:B550 GAMING X

Regular price $198.60
Regular price Sale price $198.60
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Support for Ryzen 5000 Series with BIOS UPDATE
        • AMD B550
        • AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
        • 3rd Gen AMD Ryzen Processors:
        • Support for DDR4 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
        • New Generation AMD Ryzen with Radeon Graphics processors:
        • Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules

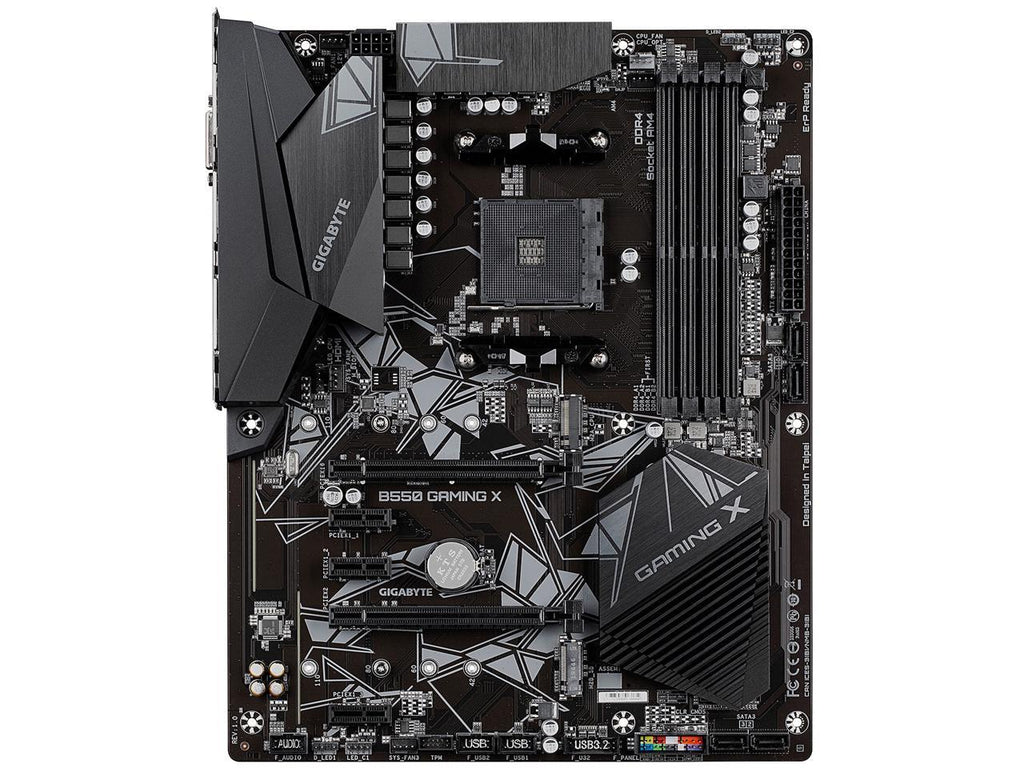

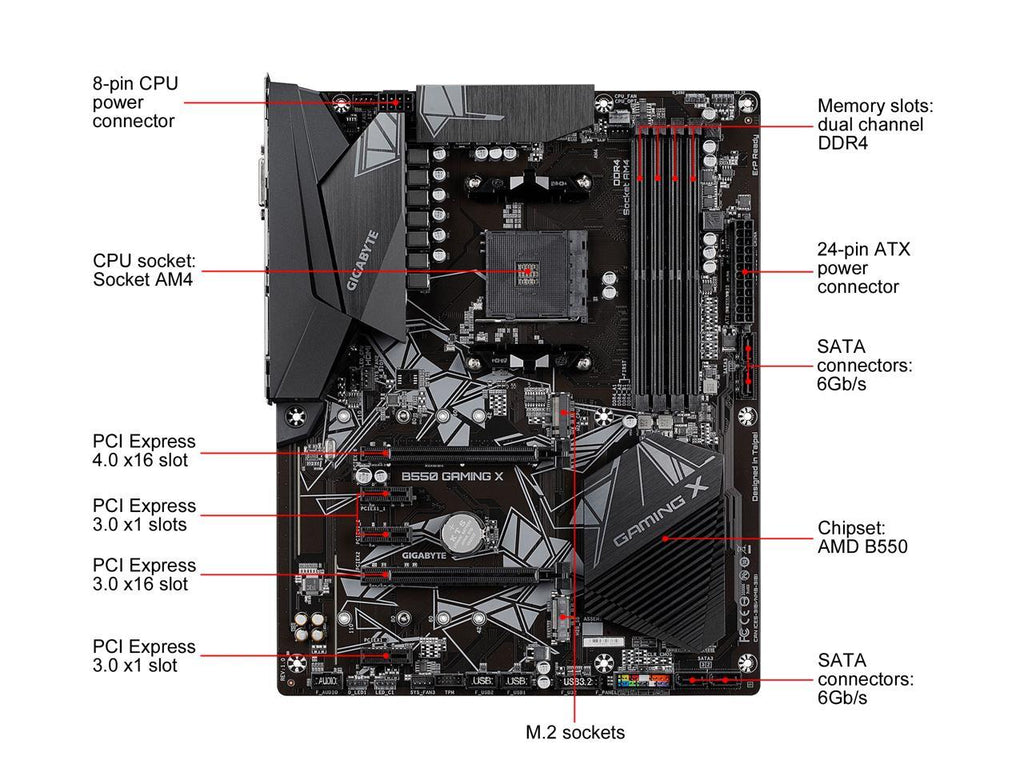

        B550 GAMING Xof the motherboarddetail of the motherboard
        1. Solid Pin Power Connector
        2. DVI
        3. HDMI
        4. Q-Flash Plus Button
        5. GIGABYTE 8118 Gaming GbE LAN
        6. Ultra Durable PCIe Armor
          • PCIe 4.0 Slot
          • Running 1 x16
        7. High Quality Audio Solution
        8. High-End Audio Capacitors
        9. RGB FUSION 2.0
          • Addressable LED Header*2
          • RGB LED Header*3
        10. True 10+3 Phases Digital Power
          • Premium Choke and Capacitor
        1. Dual Channel DDR4, 4 DIMMs
        2. Supports 3rd Gen AMD Ryzen Processors
        3. Advanced Thermal Design
          • Enlarged Surface Heatsinks
          • 5 W/mK Thermal Conductivity Pad
          • Pre-installed I/O Shield
        4. Dual M.2 Connectors
          1. 22110 M.2 with Thermal Guard
          • PCIe 4.0 M.2 Connector
          • NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
          2. 2280 M.2
          • NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)
        5. Smart Fan 5 + FAN STOP
          • 5* Fan / Water Pump Connectors
          • 6* Temperature Sensors
        amd ryzen of the motherboard

        PERFORMANCE


        10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

        B550 motherboard use a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

        Hybrid-Digital of the motherboard

        Benefits of Low RDS(on) MOSFETs

        • Optimized gate charge to minimize switching losses.
        • Lower temperature, smaller size, better thermal characteristics.
        chart of powerdesign

        PCIe 4.0* Hardware Design

        detail of the PCIe design
        PCIe40-Logo
        1. PCIe 4.0 Slot

          Reinforces PCIe 4.0 x16 bandwidth with lower impedance.
          * Actual support may vary by CPU
        2. M.2 PCIe 4.0 Slot

          M.2 PCIe 4.0 x4 slot with Lower impedance.

        CONNECTIVITY


        DUAL NVME PCIE 4.0*/3.0 M.2 CONNECTORS

        With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
        *Actual support may vary by CPU.

        Dual NVMe PCIe 4.0

        EXCLUSIVE REALTEK 8118 GAMING LAN

        High Speed Gigabit LAN with Automatic Bandwidth Allocation

        Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

        Program On Top Gets Highest Priority

        Realtek8118_mode

        Real-Time Network Monitoring

        Realtek8118_Network

        hdmi_port

        HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

        HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

        chart of HDMI 2.1, HDMI 2.0 and HDMI 1.4

        COOLING


        Advanced Thermal Design

        thermal design

        smart-fan5-logo

        Smart Fan 5

        With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
        inside of the motherboard
        temperature sensors and hybrid fan headers icon
        • 5 Fan / Water Pump Connectors
        • 6 Temperature Sensors
        • All Fan Pin Headers Upgraded to Hybrid Fan Headers
        • Interoperable Fans and Sensors
        • Intuitive UI for Fan Control
        Different models have a different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

        Hybrid Fan Pin Headers

        Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

        • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
        example of the hybrid fan pin header and temperature sensor pin header
        Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
        fan-control-design

        New Smart Fan 5 Software

        Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
        two screenshots of system inofrmation viewer

        LIGHTING


        RGB FUSION 2.0

        With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

        With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
        ledstrip01, cycle color icon, static icon, pulse icon, flash icon, double flash icon, music icon, random icon, game icon, digital A icon, digital B icon, digital C icon,  a pic of RGB LED and Digital Addressable LED
        RGB_Fusion, the components of computer together in a black background

        With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

        rgbsoftware, RGB FUSION 2.0 ICON, two screenshots of RGB fusion 2.0

        GIGABYTE RGB Fusion APP

        Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

        screenshot of Fusion APP

        AUDIO


        audio-guard

        High-End Audio Capacitors

        GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

        Audio Noise Guard

        GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

        ULTRA DURABLE


        q-flash-plus icon

        Q-Flash Plus

        Update the BIOS easily without installing the CPU, memory and graphics card.

        With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

        qflashstep2, three steps to show you how to use Q-flash plus.

        GIGABYTE Patented Double Locking Bracket

        mb_locking, the detail of front side and back side

        Solid Pin Power Connectors

        B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

        solid pin design and traditiona design

        Solid Pin Power connector advantages

        • Larger contact area for electricity
        • More metal quantity to sustain higher power and generated heat
        • Ultra durable and longer lifespan

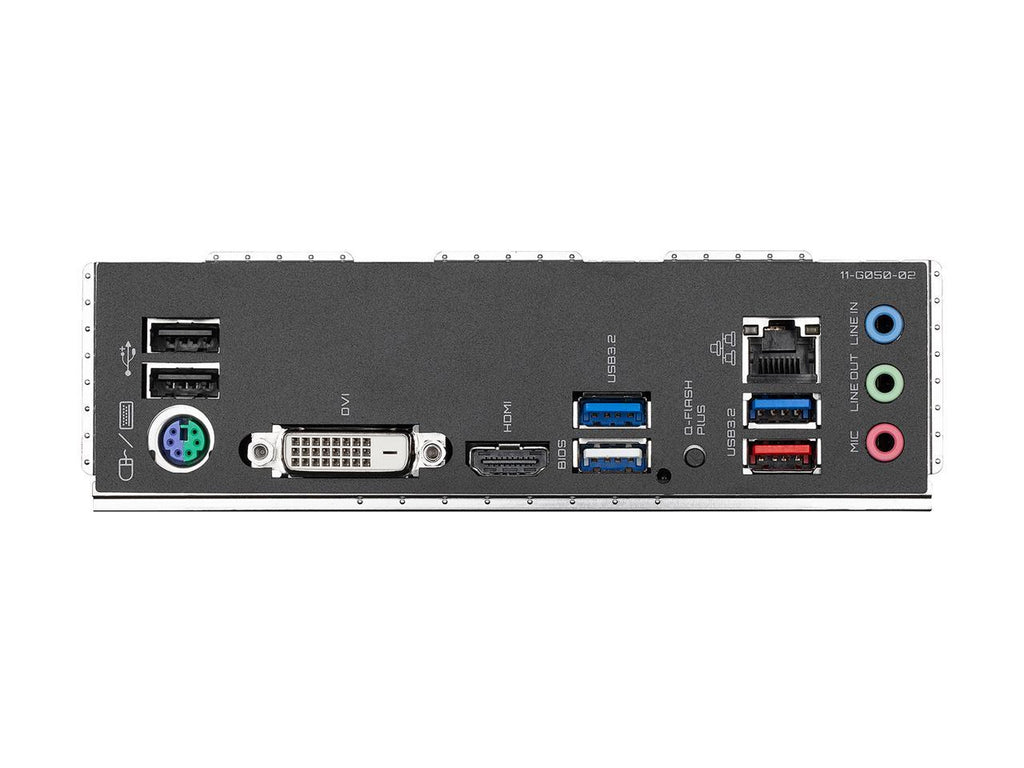

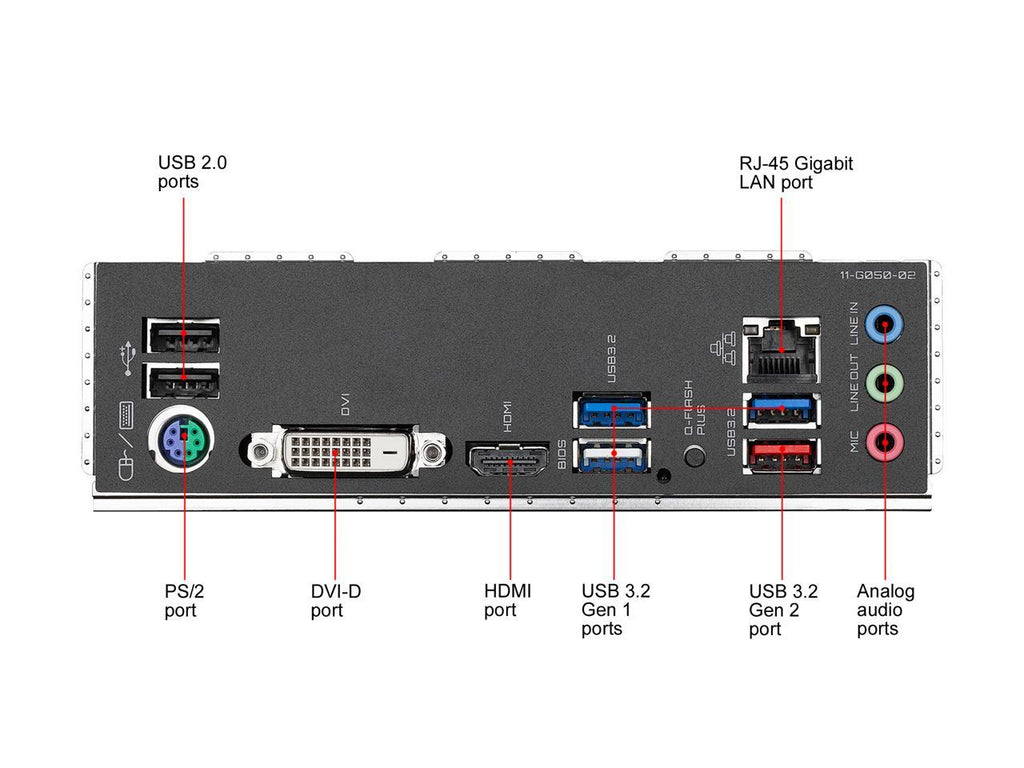

        detail of the ports on the motherboard
        inside of the motherboard

        START SULFURIZATION PROTECTION

        anti-sulfur

        Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

        anti-sulfur

        GIGABYTE EXCELLENCE


        Refreshed BIOS

        The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

        screenshot of easy mode

        APP CENTER

        GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
        software_appcenter, a screenshot of APP center

        EasyTune

        GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

        software_easytune, a screenshot of easytune

        @BIOS

        The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
        a screenshot of bios information viewer

        System Information Viewer

        GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
        software_siv, a screenshot of system information viewer

        XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

        Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

        * Free 1 year XSplit Gamecaster + Broadcaster Premium License.
        xsplit, three screenshots of XSplit gamecaster + broadcaster
        mb_wtfast, a grey background with WTFast

        Specifications :

        General Information

        UPC 889523023167
