          Description :

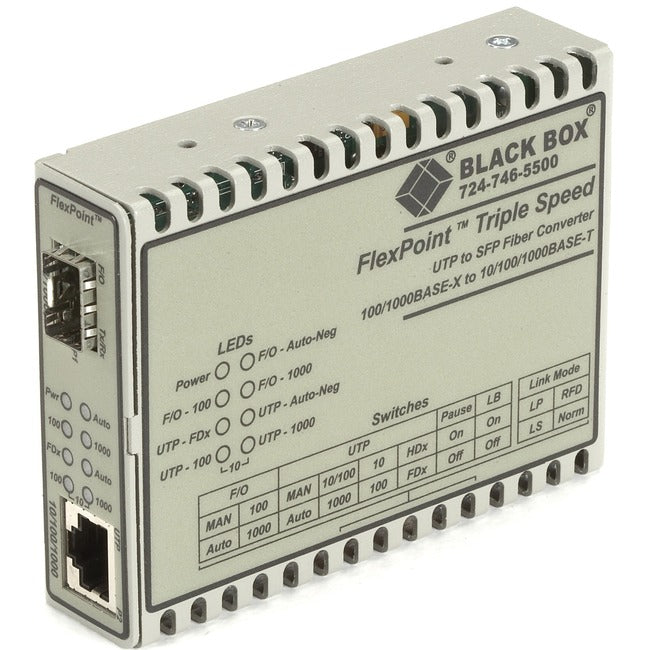

          Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter

          • Enables you to send data much farther and more securely than what's possible for copper Ethernet.
          • Auto negotiates for speed to achieve the best possible mode of operation.
          • UTP port supports full- and half-duplex operation.
          • To prevent congestion supports automatic and manual pause function for flow control.
          • Supports jumbo frames up to 10,240 bytes.
          • Remote fault indicators signal loss of link for far-end fault and link fault conditions.
          • Loopback mode supports end-to-end testing.
          • Manual switches give you the option to control port operation.
          • Hardware available for mounting the converter to a wall or a DIN rail.
          • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
          • RoHS compliant.

          FlexPointâ„¢ Media Converters from Black Box are versatile and cost-effective standalone converters that provide the ultimate in flexibility and reliability for your expanding LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements.

          Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies. The model featured here connects to 10-, 100-, or 1000-Mbps Ethernet on the copper side and to your choice of optical fiber on the SFP transceiver side, depending on what you require for fiber type, speed, and distance.

          The media converter supports duplex and single-fiber 155- and 1250-Mbps SFPs for standard communications as well as CWDM wavelengths for increased fiber bandwidth capacity. For easy installation and troubleshooting, LEDs indicate the availability of power, port activity, and link status, and duplex mode.

          Remote fault indicators signal loss of link for far-end fault and link fault conditions. Detection of these indicators or link modes can be propagated to the other port to notify connected end devices of faults.


          • Supports jumbo frames up to 10,240 bytes.

          • DIP switches enable you to configure port settings.

          • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

          • Compact size

          • Powered by an AC power supply or the optional rack-mountable chassis.

          • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs

          Product Type: Transceiver/Media Converter
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Taa Compliant: Yes
          Country Of Origin: United States
          Brand Name: Black Box
          Form Factor: Rail-mountable
          Manufacturer: Black Box Corporation
          Product Model: LMC1017A-SFP
          Product Name: FlexPoint LMC1017A-SFP Transceiver/Media Converter
          Product Line: FlexPoint
          Manufacturer Part Number: LMC1017A-SFP
          Manufacturer Website Address: http://www.blackbox.com
          Limited Warranty: 2 Year
          Weight (Approximate): 6.40 oz
