Eaton

Eaton Epdu G3 Managed 36U-C In: L21-20P 16A 3P Out: 24X5-20R

Eaton Epdu G3 Managed 36U-C In: L21-20P 16A 3P Out: 24X5-20R

SKU:EMA334-10

Regular price $1,083.06
Regular price Sale price $1,083.06
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

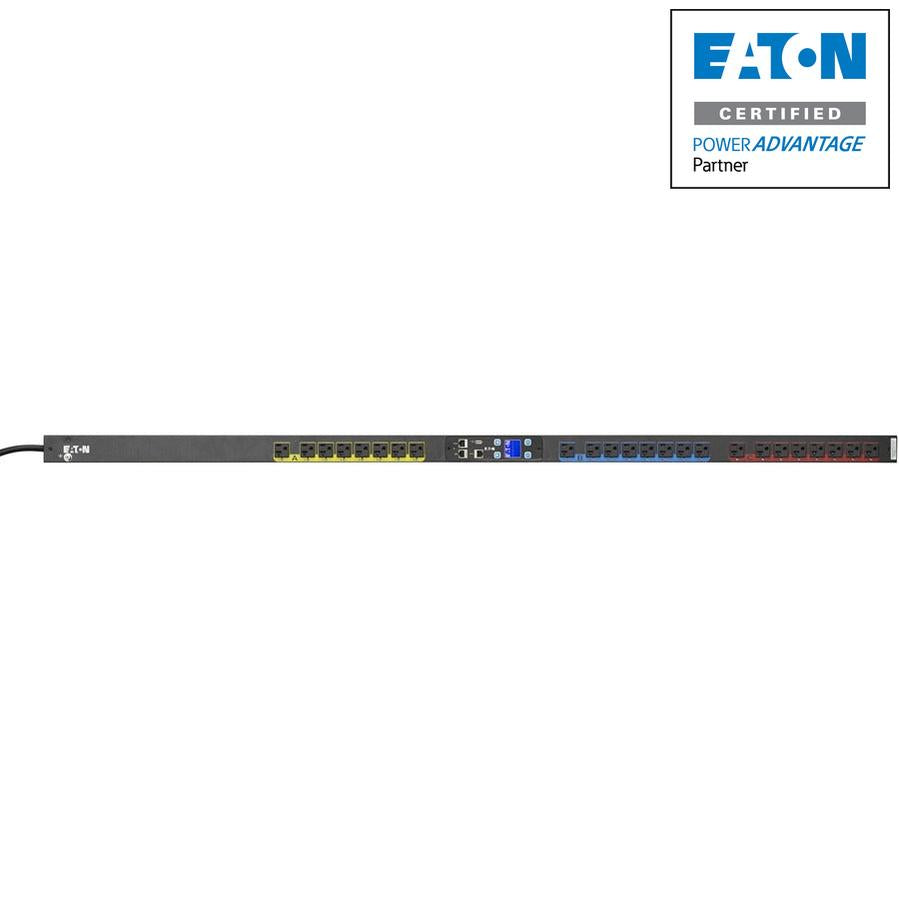

          Eaton ePDU G3 Managed 36U-C IN: L21-20P 16A 3P OUT: 24x5-20R
          Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

          • Outlet switching for on, off and reboot control to reduce management costs
          • Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
          • LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
          • High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
          • Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
          • 120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug

          • Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

          • ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address

          • Manages entire environment remotely over the network from a single interface

          • Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers

          • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis

          • Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control

          Product Type: PDU
          Mounting Orientation: Vertical
          Product Series: Managed
          Rack Height: 36U
          Brand Name: Eaton
          Manufacturer: Eaton Corporation
          Product Model: EMA334-10
          Product Name: ePDU Managed EMA334-10 24-Outlet PDU
          Mount Type: Rack-mountable
          Product Line: ePDU
          Manufacturer Part Number: EMA334-10
          Manufacturer Website Address: http://www.eaton.com
          Package Contents:

          • ePDU Managed EMA334-10 24-Outlet PDU
          • ePDU G3 Installation Spare Pack
          • ePDU G3 Network Spare Part Pack

          Limited Warranty: 3 Year

          Specifications :

          General Information

          Manufacturer Eaton Corporation
          Manufacturer Part Number EMA334-10
          Manufacturer Website Address http://www.eaton.com
          Brand Name Eaton
          Product Line ePDU
          Product Series Managed
          Product Model EMA334-10
          Product Name ePDU Managed EMA334-10 24-Outlet PDU
          Product Type PDU
          UPC 743172079190
          Network (RJ-45)Yes
          Height63.1"
          Width2.1"
          Depth2.6"

          Miscellaneous

          Package Contents
          • ePDU Managed EMA334-10 24-Outlet PDU
          • ePDU G3 Installation Spare Pack
          • ePDU G3 Network Spare Part Pack

          Warranty

          Limited Warranty3 Year
