Cyberpower Metered Ats Pdu Pdu24006 10-Outlets Pdu

Description :

CyberPower Metered ATS PDU PDU24006 10-Outlets PDU

Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.

• Phase: Single


• Amps: 20A (Derated to 16A)


• Volts: 200-240V


• Frequency: 50/60Hz


• Plug type: 2 x NEMA L6-20P

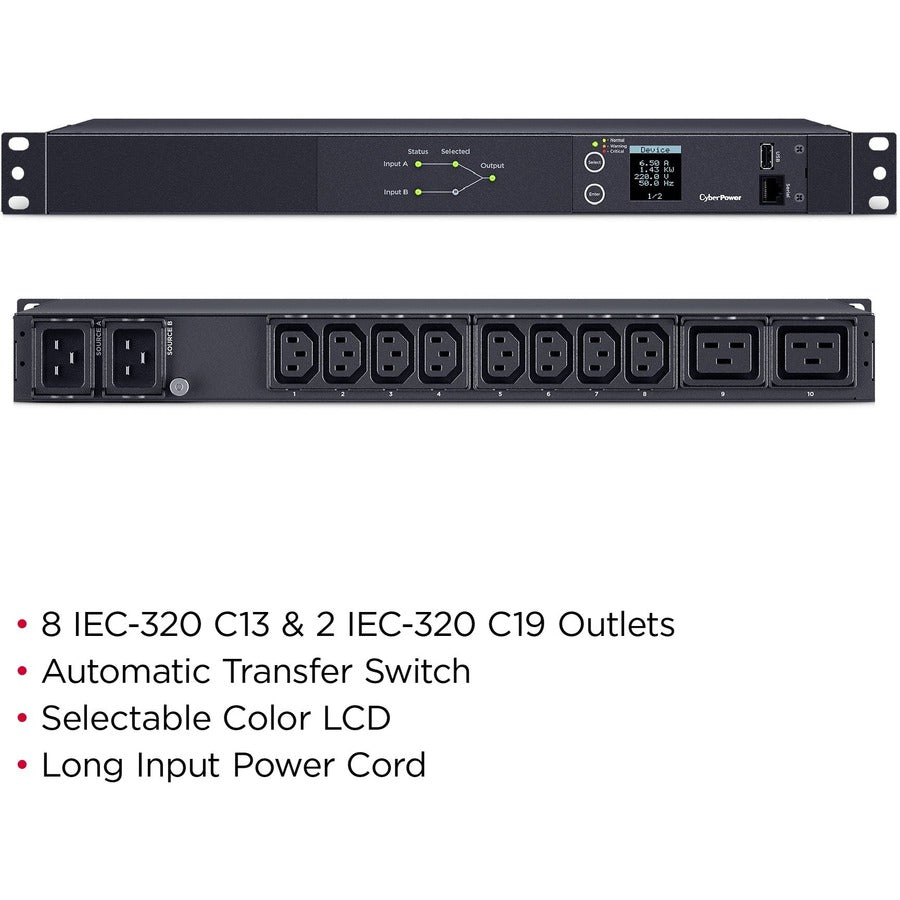

• Outlets: 8 x IEC-320 C13, 2 x IEC-320 C19


• Size: 1U Rackmount


• Warranty: Three-Year

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: RoHS
Mounting Orientation: Horizontal
Product Color: Black
Product Series: Metered ATS PDU
Rack Height: 1U
Brand Name: CyberPower
Manufacturer: CyberPower Systems, Inc
Product Model: PDU24006
Product Name: Metered ATS PDU PDU24006 10-Outlets PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU24006
Manufacturer Website Address: http://www.cyberpowersystems.com
Limited Warranty: 3 Year
Weight (Approximate): 11 lb
