Crestron Flex Uc-Mx70-U Video Conference Equipment

Description :

Crestron Flex UC-MX70-U Video Conference Equipment

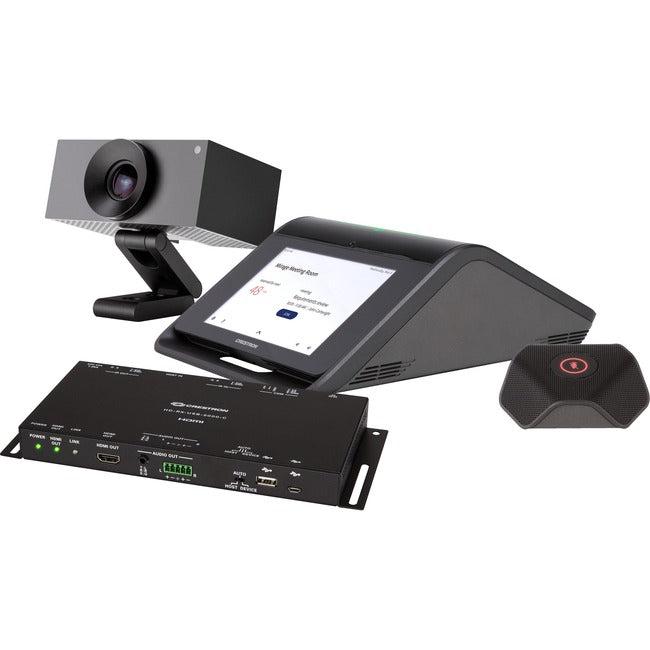

The UC-MX70-Z Crestron Flex advanced tabletop conferencing system provides a large room video conference solution for use with Zoom Rooms™ software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables.

Native Zoom Rooms™ Software Experience
The UC-MX70-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface with Impressive Audio

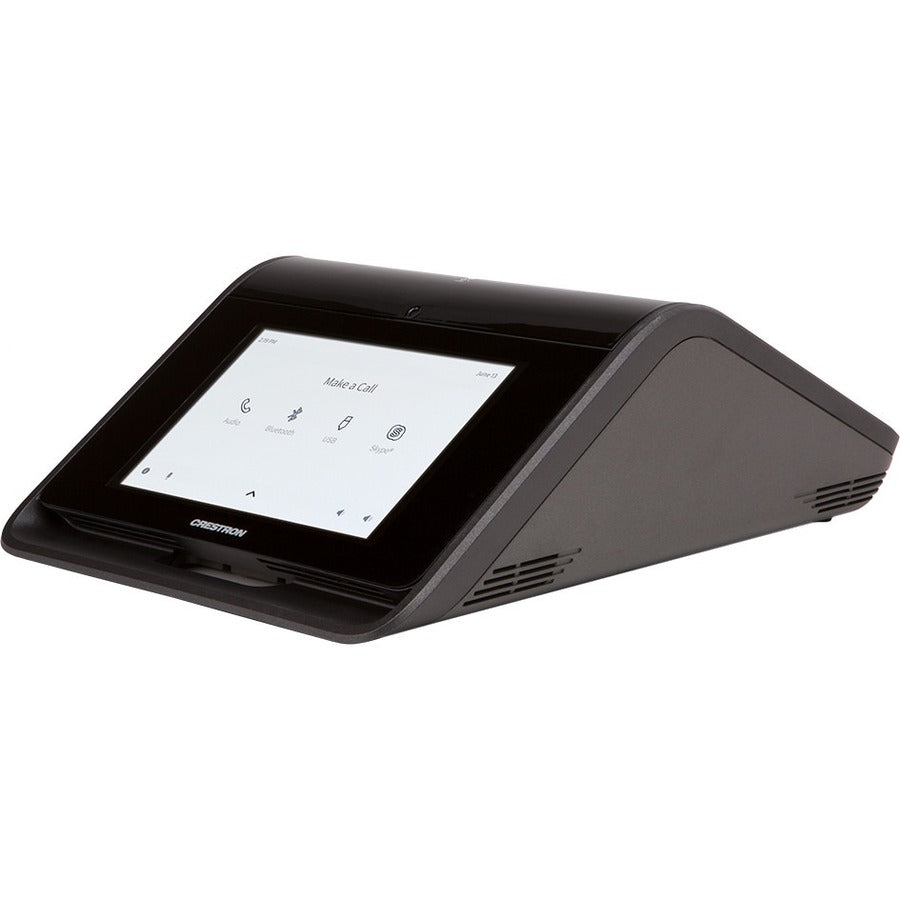

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS-UC-1-X) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High-Definition Video Conferencing

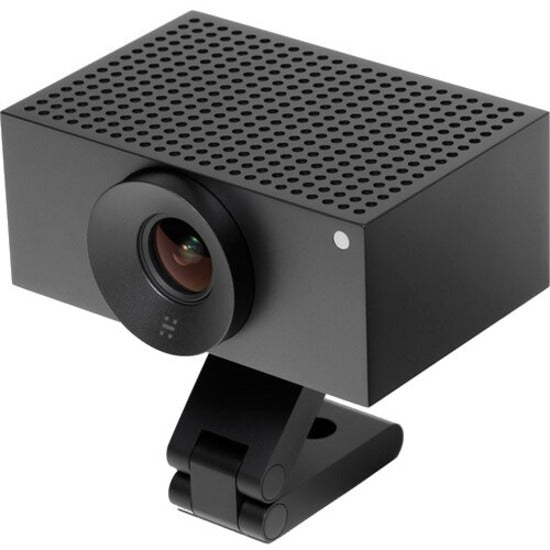

The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system's built-in content ingest device switches to the connected laptop's UC platform and returns to the native platform when disconnected.

Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system's UC Engine. System updates are controlled by Windows® software update.

• With unmatched performance and clarity, this video conference equipment lets you conduct better video conference meetings


• No more flickering images during the video conferencing. 30 fps frame rate ensures a flicker-free visual experience.


• Simply plug in RJ-45 port to connect the conference equipment on the network

Product Type: Video Conference Equipment
Brand Name: Crestron
Form Factor: Bracket Mount
Manufacturer: Crestron Electronics, Inc
Product Model: UC-MX70-U
Product Name: Flex UC-MX70-U Video Conference Equipment
Product Line: Flex
Manufacturer Part Number: 6511599
Manufacturer Website Address: http://www.crestron.com
Package Contents:

• 1 x CCS-UC-1-X Mercury X Tabletop Conference System

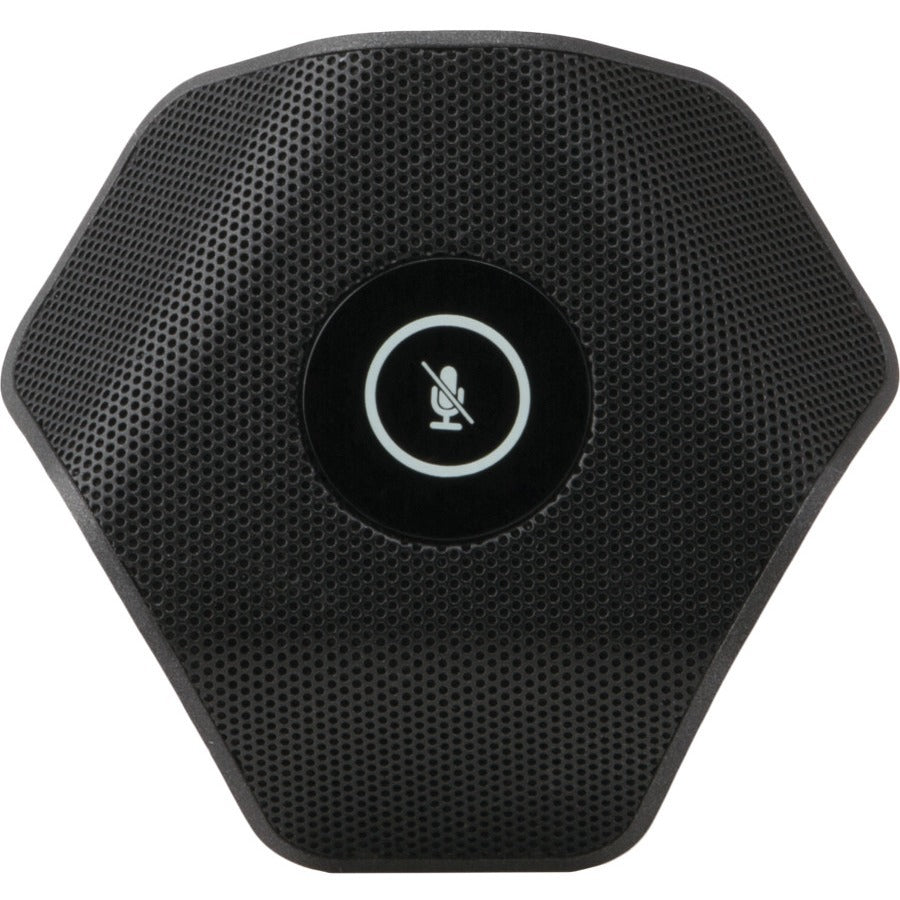

• 1 x CS-UCA-MIC Microphone Pod
• 1 x CBL-CAT5E-7 CAT5e Cable, RJ45-to-RJ45, Black, 7 ft (2.1 m)
• 1 x CBL-HD-THIN-HS-6 HDMI Cable, Thin, Type A Male-to-Male, 6 ft (1.83 m)
• 1 x CBL-USB-A-BMICRO-6 USB Cable, USB Type A Male to Micro-B Male, 6 ft (1.83 m)
• 1 x CBL-HD-6 Certified HDMI® Interface Cable, 18 Gbps, 6 ft (1.8 m)
• 1 x CBL-4K-DP-HD-6 Active Converter Cable, DisplayPort to HDMI®, 18 Gbps, 6 ft (1.8 m)
• 2 x DM-CBL-ULTRA-PC-20 DigitalMedia™ Ultra Patch Cable, 20 ft (6 m)
• 1 x PW-2420RU Desktop Power Pack, 24 VDC, 2.5 A, 2.1 mm
