ASUS

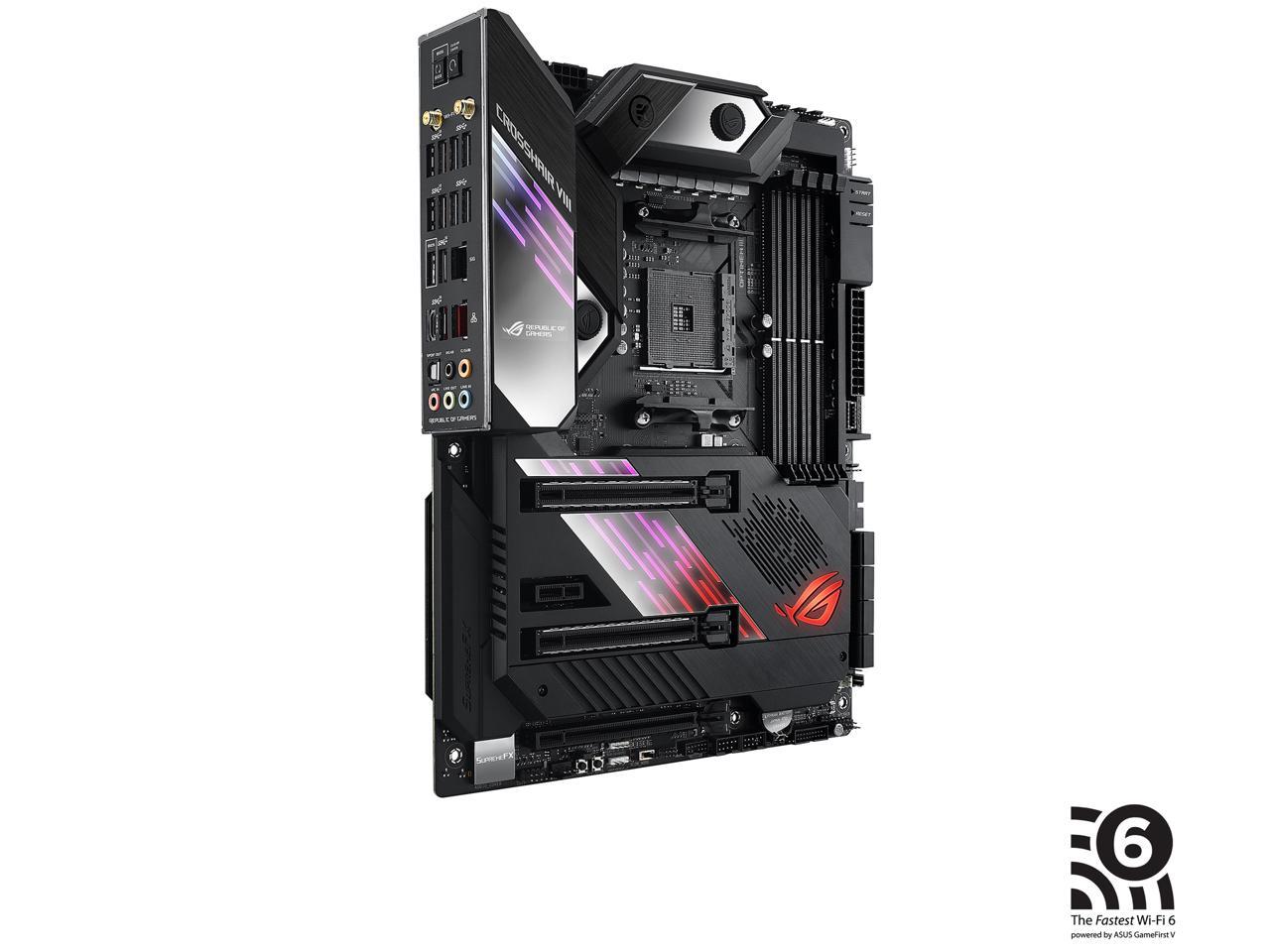

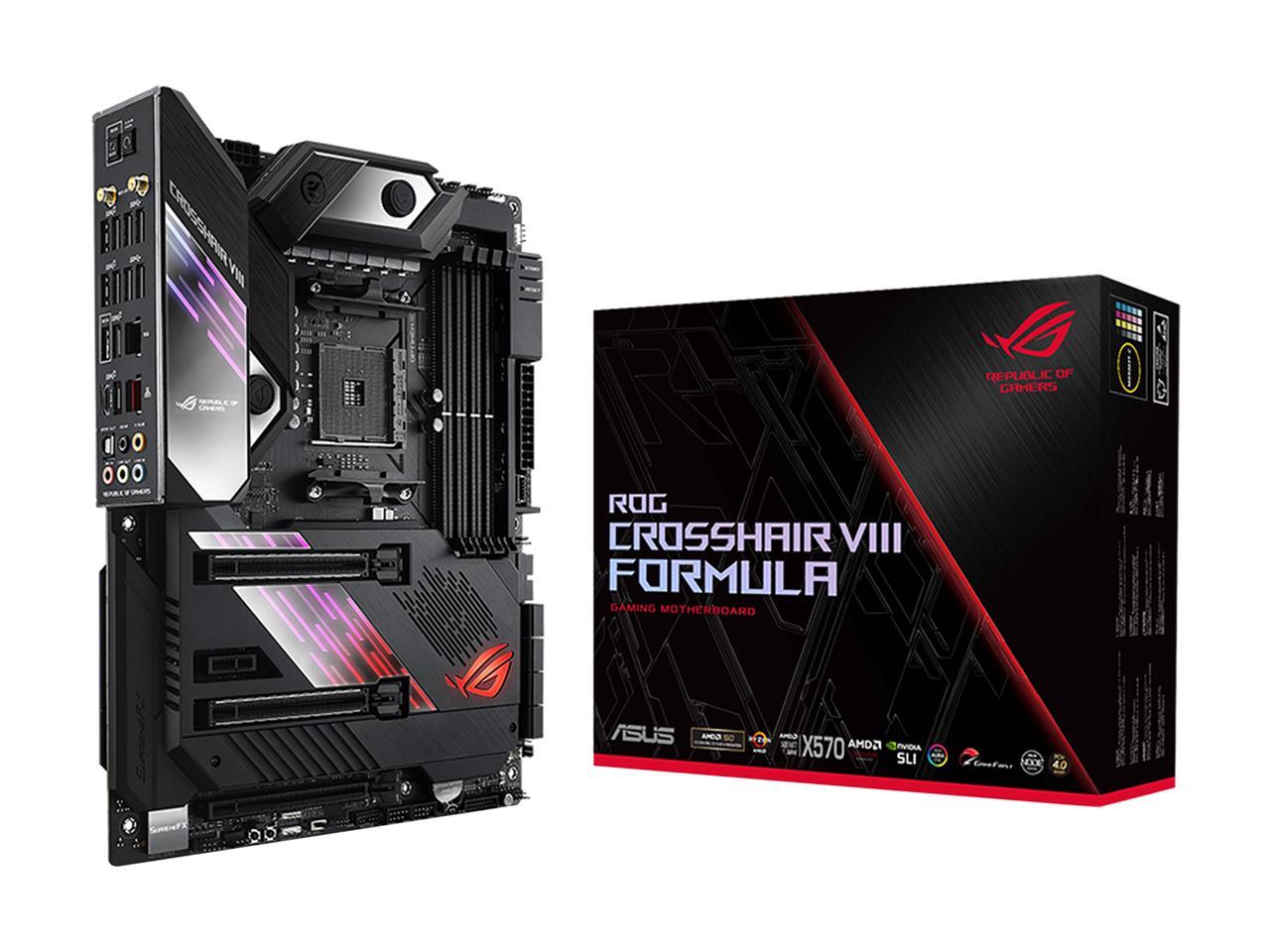

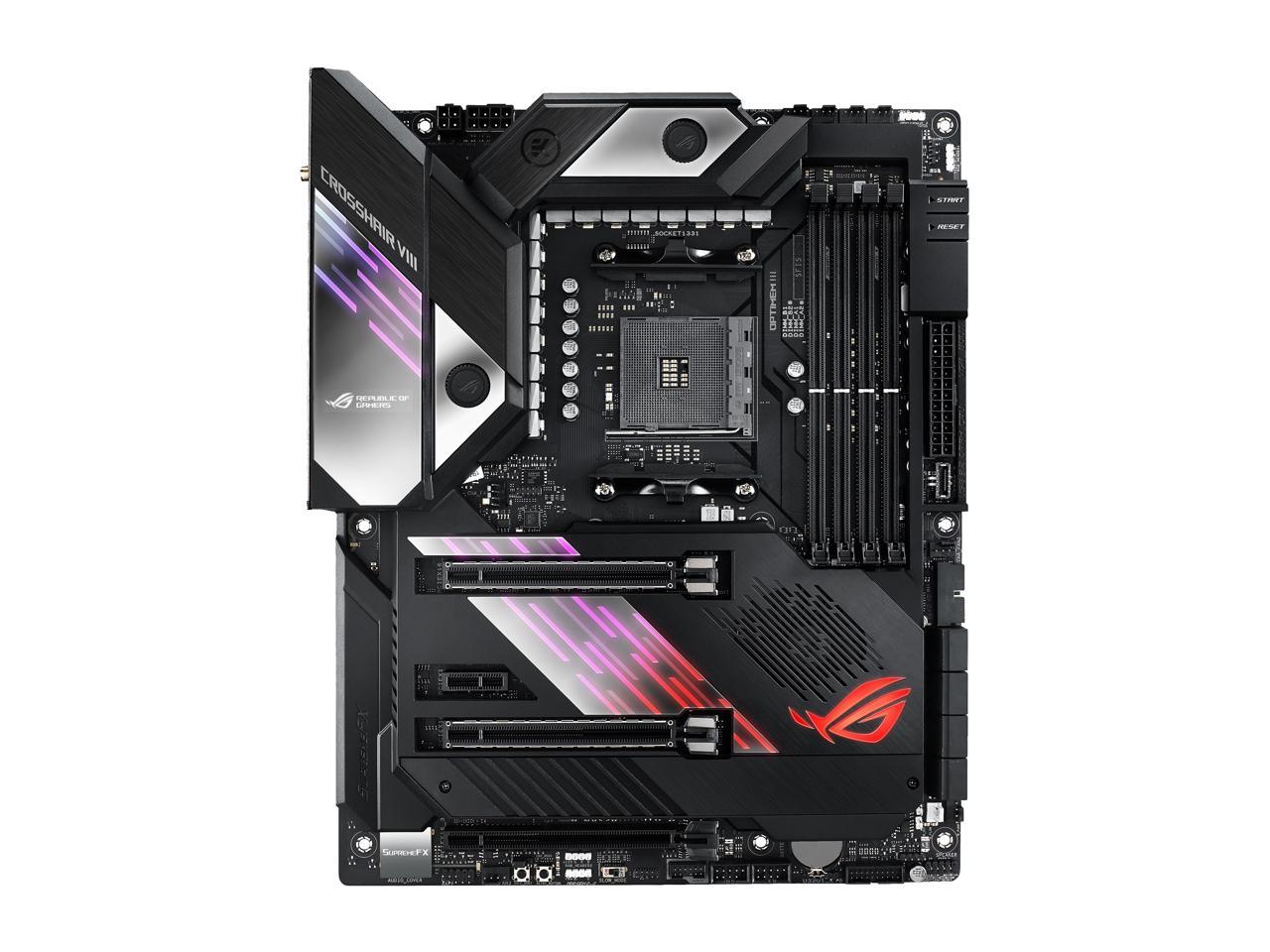

Asus Rog Crosshair Viii Formula Amd X570 Am4 Atx Motherboard With Pcie 4.0, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2, 5Gbps Lan, Wi-Fi 6

Asus Rog Crosshair Viii Formula Amd X570 Am4 Atx Motherboard With Pcie 4.0, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2, 5Gbps Lan, Wi-Fi 6

SKU:CROSSHAIR VIII FORMU

Regular price $618.99
Regular price Sale price $618.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
        • AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.

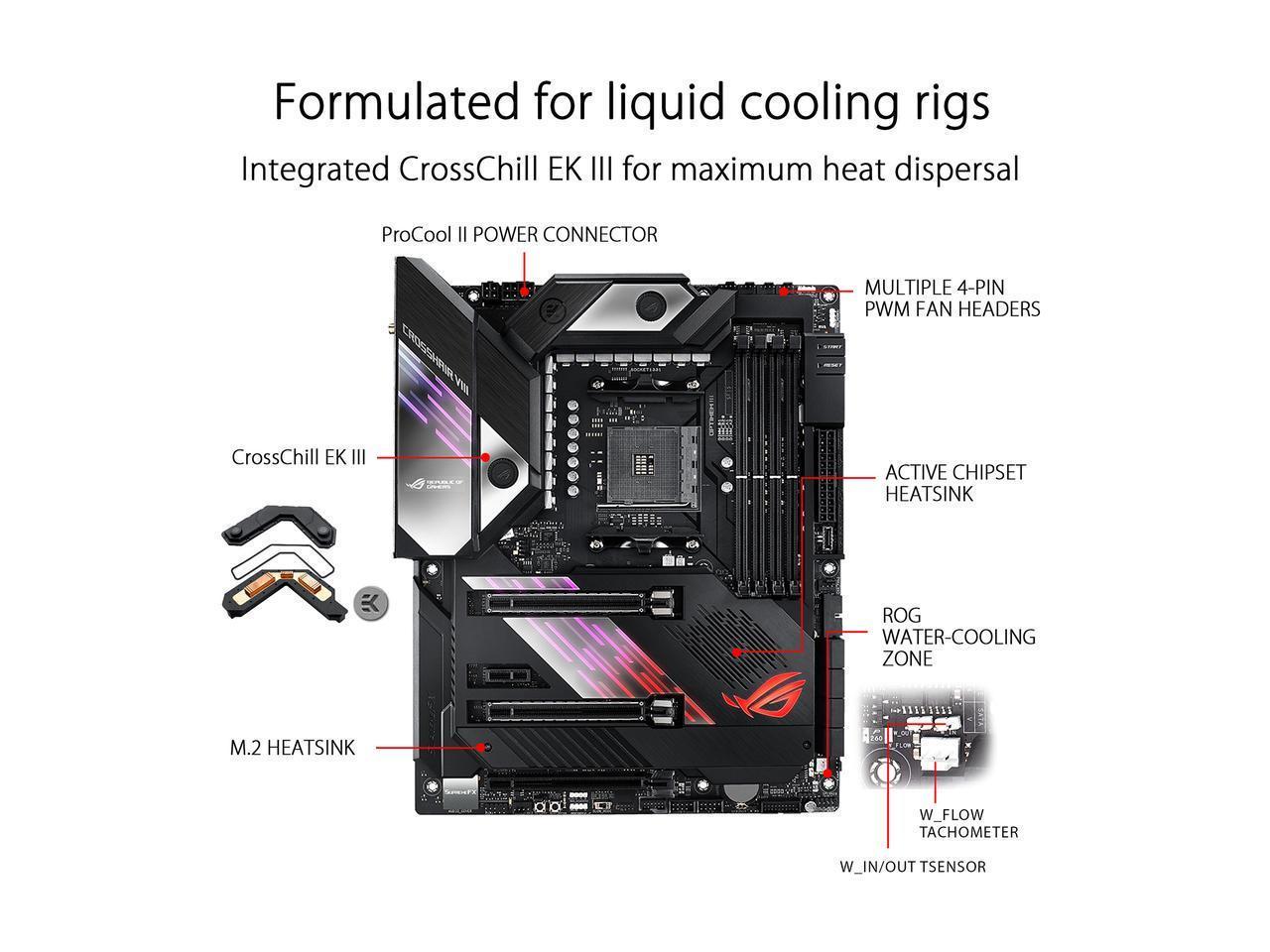

        • Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
        • Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
        • High-performance networking: On-board Wi-Fi 6 (802.11 ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
        • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
        • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.

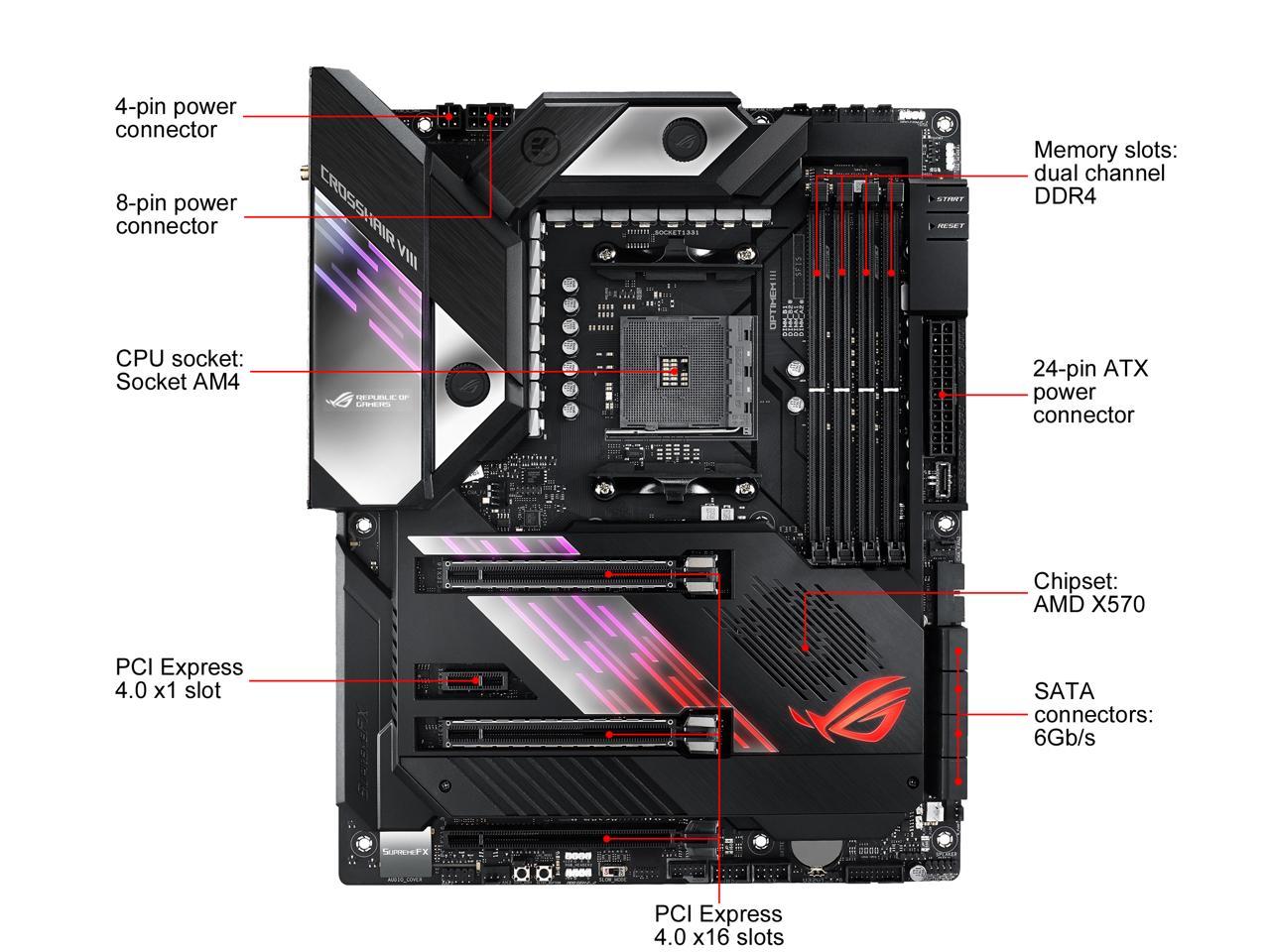

        Model
        Brand ASUS
        Series ROG
        Model CROSSHAIR VIII FORMULA
        Supported CPU
        CPU Socket Type  AM4
        CPU Type AMD AM4 Socket AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors Processors

        * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
        Chipsets
        Chipset  AMD X570
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard 3rd Gen AMD Ryzen Processors
        DDR4 4800(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory
        2nd Gen AMD Ryzen Processors
        DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 3rd Gen AMD Ryzen Processors
        2 x PCIe 4.0 x16 (x16 or dual x8)
        2nd Gen AMD Ryzen Processors
        2 x PCIe 3.0 x16 (x16 or dual x8)
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        1 x PCIe 3.0 x16 (x8 mode)

        AMD X570 chipset
        1 x PCIe 4.0 x16 (x4 mode)
        PCI Express x1 1 x PCIe 4.0 x1
        Storage Devices
        SATA 6Gb/s  8 x SATA 6Gb/s
        M.2 3rd Gen AMD Ryzen Processors:
        1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
        2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
        1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
        AMD X570 chipset:
        1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        SATA RAID 0/1/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Aquantia AQC111C
        Second LAN Chipset Intel I211-AT
        Max LAN Speed 100/1000/2500/5000Mbps + 10/100/1000Mbps
        Wireless LAN Intel Wi-Fi 6 AX200
        Bluetooth Bluetooth 5.0

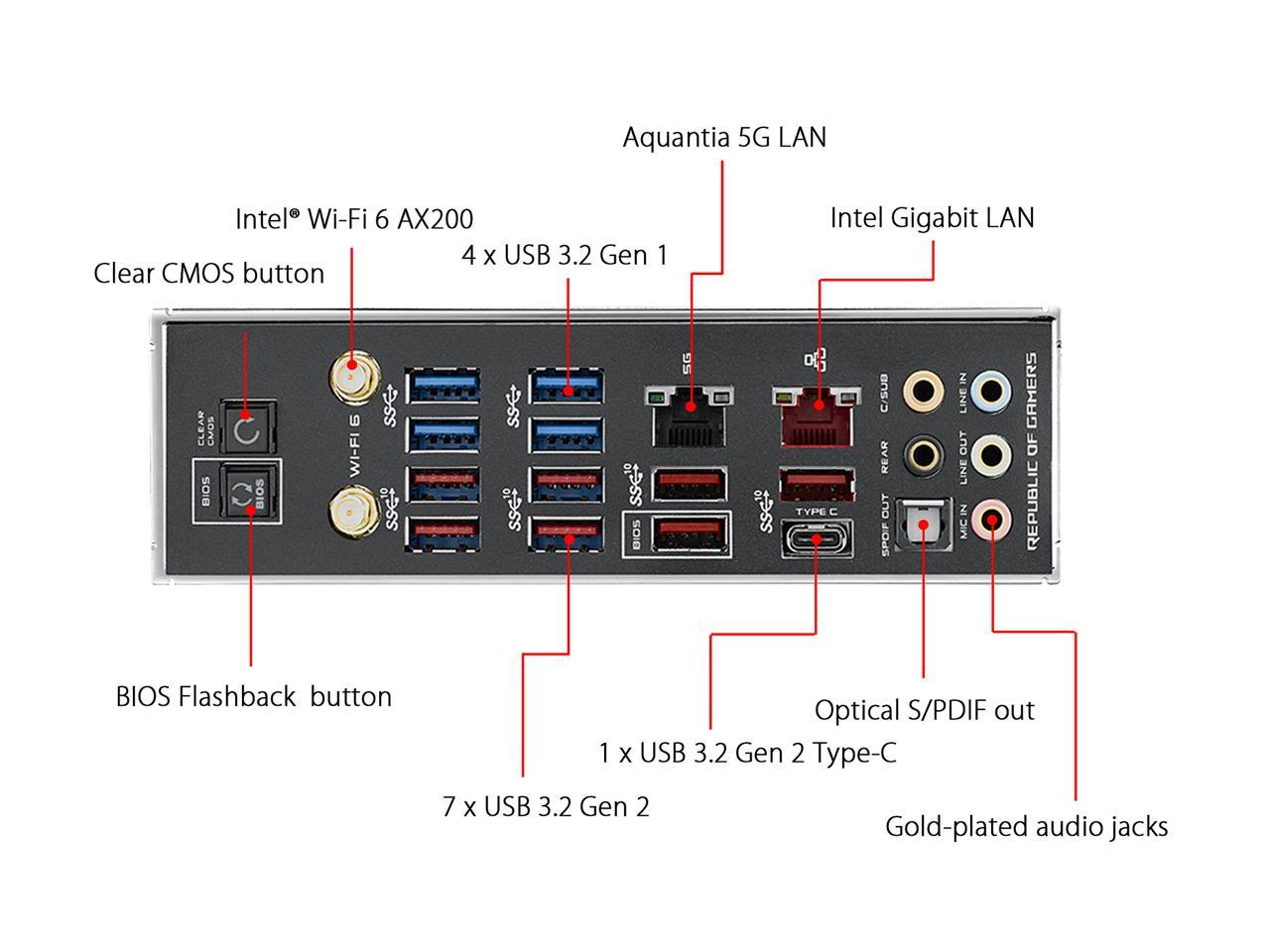

        Rear Panel Ports
        Back I/O Ports 1 x Optical S/PDIF out
        1 x Clear CMOS button(s)
        1 x USB BIOS Flashback Button(s)
        1 x ASUS Wi-Fi Module
        1 x Gold-plated audio jacks
        4 x USB 3.2 Gen 1 (up to 5Gbps) ports
        8 x USB 3.2 Gen 2 (up to 10Gbps) ports (7 x Type-A, 1 x Type-C)
        Anti-surge LAN (RJ45) port
        1 x AQC-111C 5G LAN port
        Internal I/O Connectors
        Onboard USB 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        1 x USB 3.2 Gen 2 (up to 10Gbps) connector
        2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
        Other Connectors 1 x PCH_FAN
        2 x Aura RGB Strip Header(s)
        2 x Addressable Gen 2 header(s)
        1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        3 x Chassis Fan connector(s)
        1 x Optional Fan connector(s)
        1 x AIO_PUMP connector
        1 x H_AMP fan connector
        1 x W_PUMP+ connector
        1 x Front panel audio connector(s) (AAFP)
        1 x Slow Mode switch(es)
        1 x LN2 Mode header(s)
        1 x Power-on button(s)
        1 x Reset button(s)
        1 x Node Connector(s)
        1 x Safe Boot button
        1 x ReTry button
        1 x System panel connector
        1 x W_IN header
        1 x W_OUT header
        1 x W_FLOW header
        1 x Thermal sensor connector
        1 x Speaker connector
        Physical Spec
        Form Factor ATX
        LED Lighting RGB

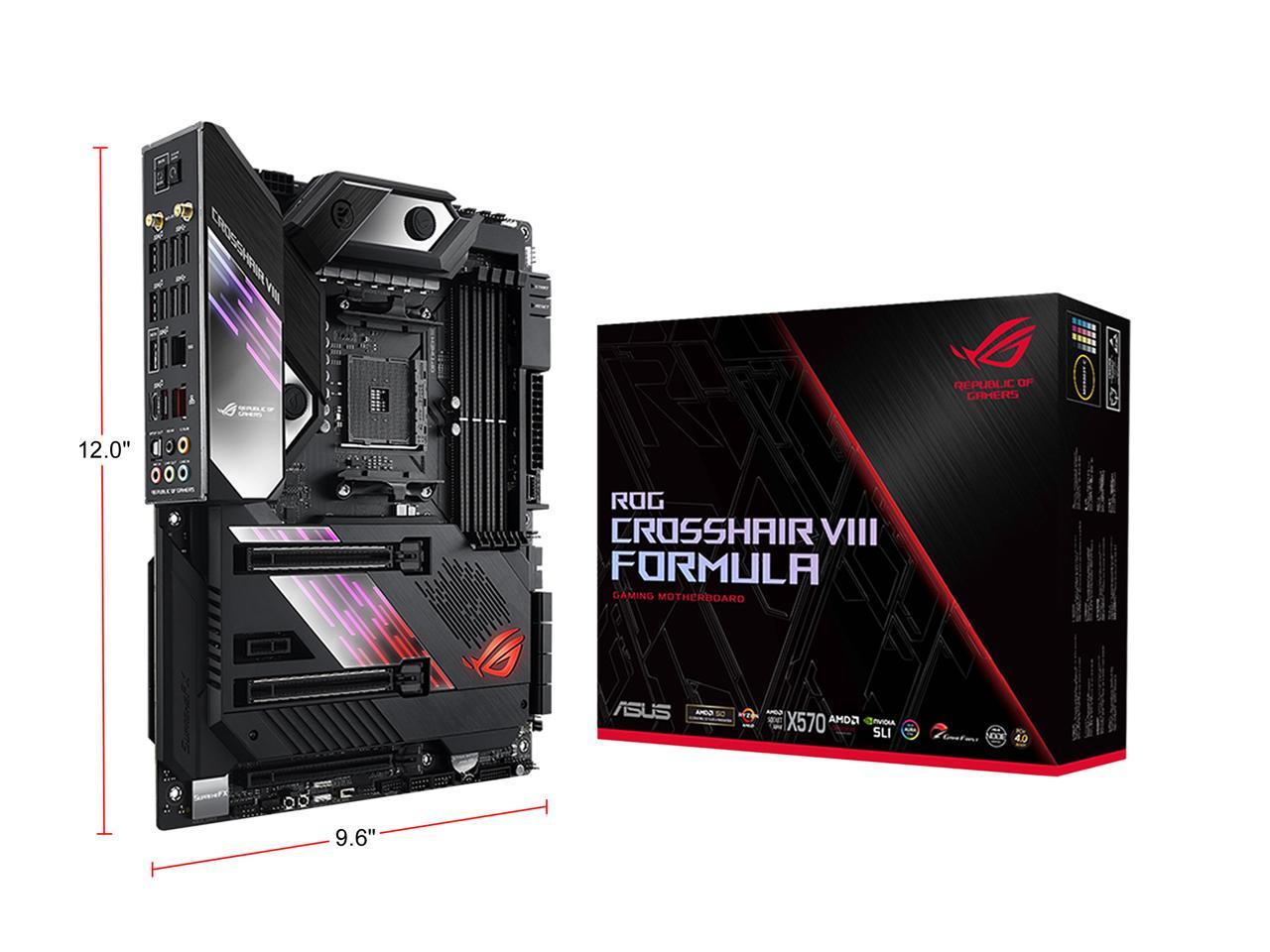

        Dimensions (W x L) 12.0" x 9.6"
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Windows 11 Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        3rd and 2nd Gen AMD Ryzen Processors
        Supports NVIDIA 3-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        Supports AMD 2-Way CrossFireX Technology

        ROG Exclusive Features:
        ROG RGB Armor
        Start Button
        Reset Button
        ROG Aura
        - Aura Lighting Control
        - Aura RGB Strip Headers
        Extreme Engine Digi+:
        - IR3555 PoweIRstage
        - MicroFine Alloy Chokes
        - 10K Black Metallic Capacitors
        ROG Extreme OC kit:
        - Safe Boot button
        - Slow Mode
        - LN2 Mode
        UEFI BIOS features:
        - Tweakers' Paradise
        - ROG SSD Secure Erase
        - Graphic Card Information Preview
        USB BIOS Flashback
        Crosschill EK III
        ROG Unique Pre-mounted I/O Shield
        ROG Exclusive Software
        - Mem Tweakit
        - RAMCache III
        - RAMDisk
        - CPU-Z
        - GameFirst V
        - Sonic Studio III + Sonic Studio Link
        - Sonic Radar III
        - Overwolf

        Special Features:
        ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
        - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
        Gamer's Guardian:
        - DRAM Overcurrent Protection
        - 10K Black Metallic Capacitors
        - ESD Guards on LAN, Audio,and USB ports
        ASUS SafeSlot - Protect your graphics card Investment
        LiveDash OLED
        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Addressable Gen 2 Header
        ASUS Exclusive Features:
        - USB BIOS Flashback
        - AI Suite 3
        - Ai Charger
        - ASUS CrashFree BIOS 3
        - Armoury Crate
        - Pre-mounted I/O Shield
        - ASUS NODE: hardware control interface
        - BIOS Flashback Button
        - Clear CMOS Button
        ASUS Q-Design:
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-DIMM
        - ASUS Q-Connector

        BIOS:
        256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

        Manageability:
        WOL, PXE

        Operating System:
        Windows 10 64-bit
        Packaging

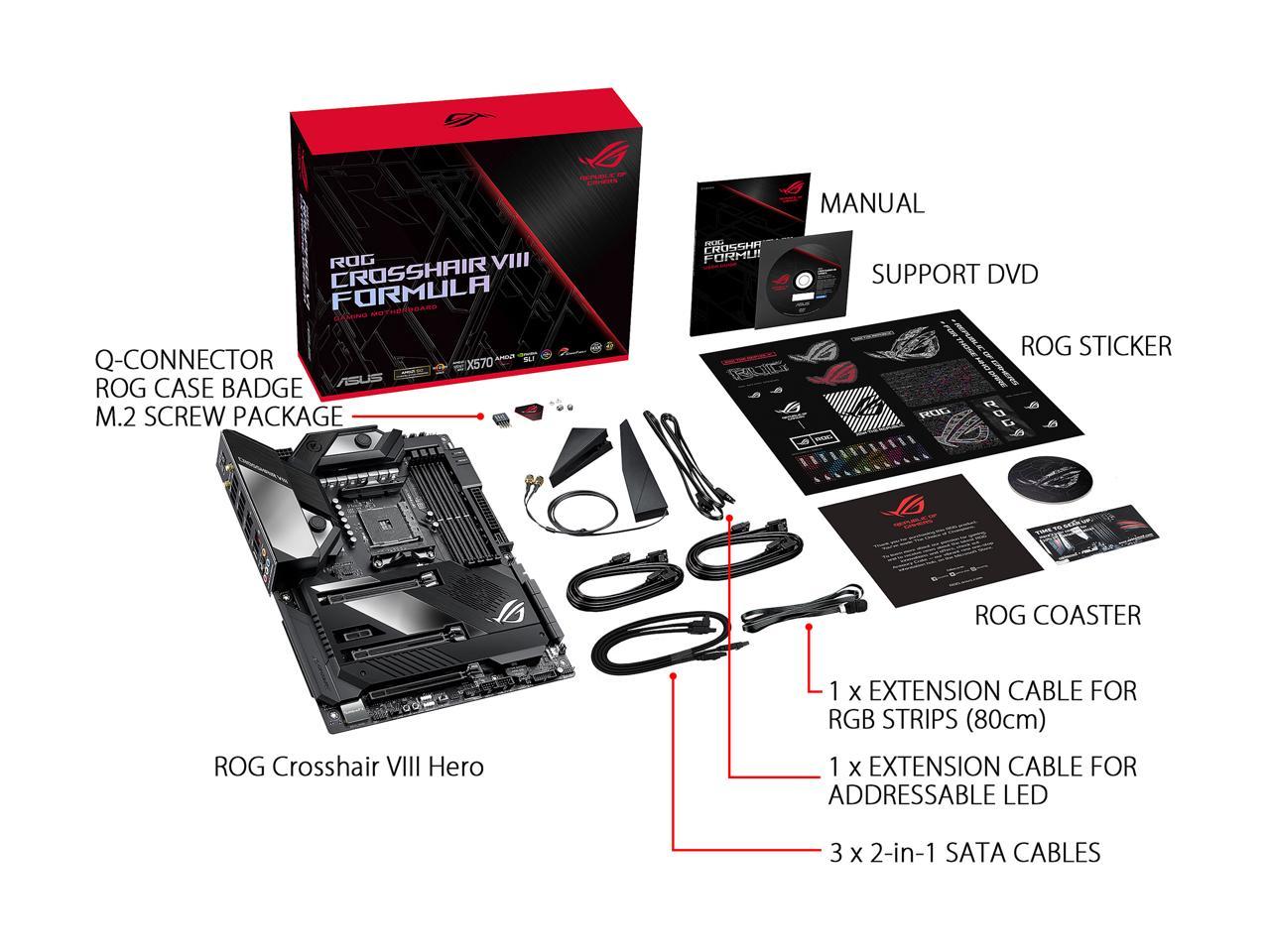

        Package Contents Accessories:
        User's manual
        1 x ROG logo plate sticker
        4 x SATA power cable
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x ROG big sticker
        1 x Q-Connector
        1 x Wi-Fi Antenna(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x ROG coaster(s)
        2 x ROG weave SATA 6G cable
        1 x ROG Thank you card

        Specifications :

        General Information

        UPC 192876386644
