ASUS

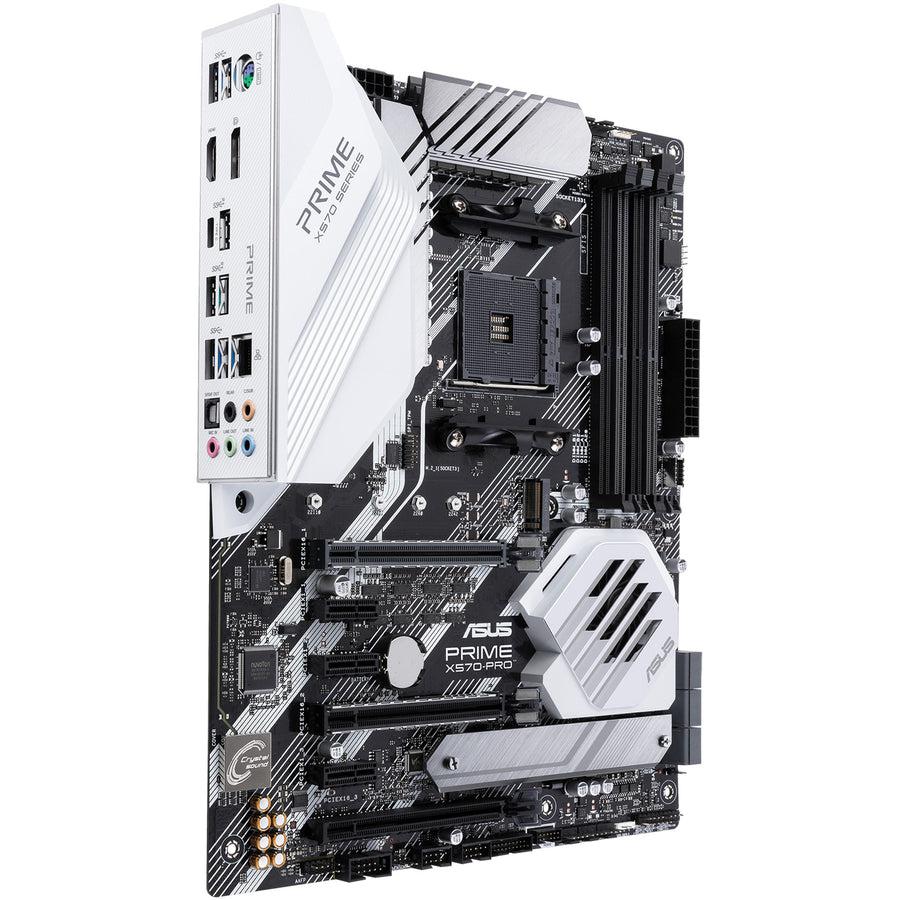

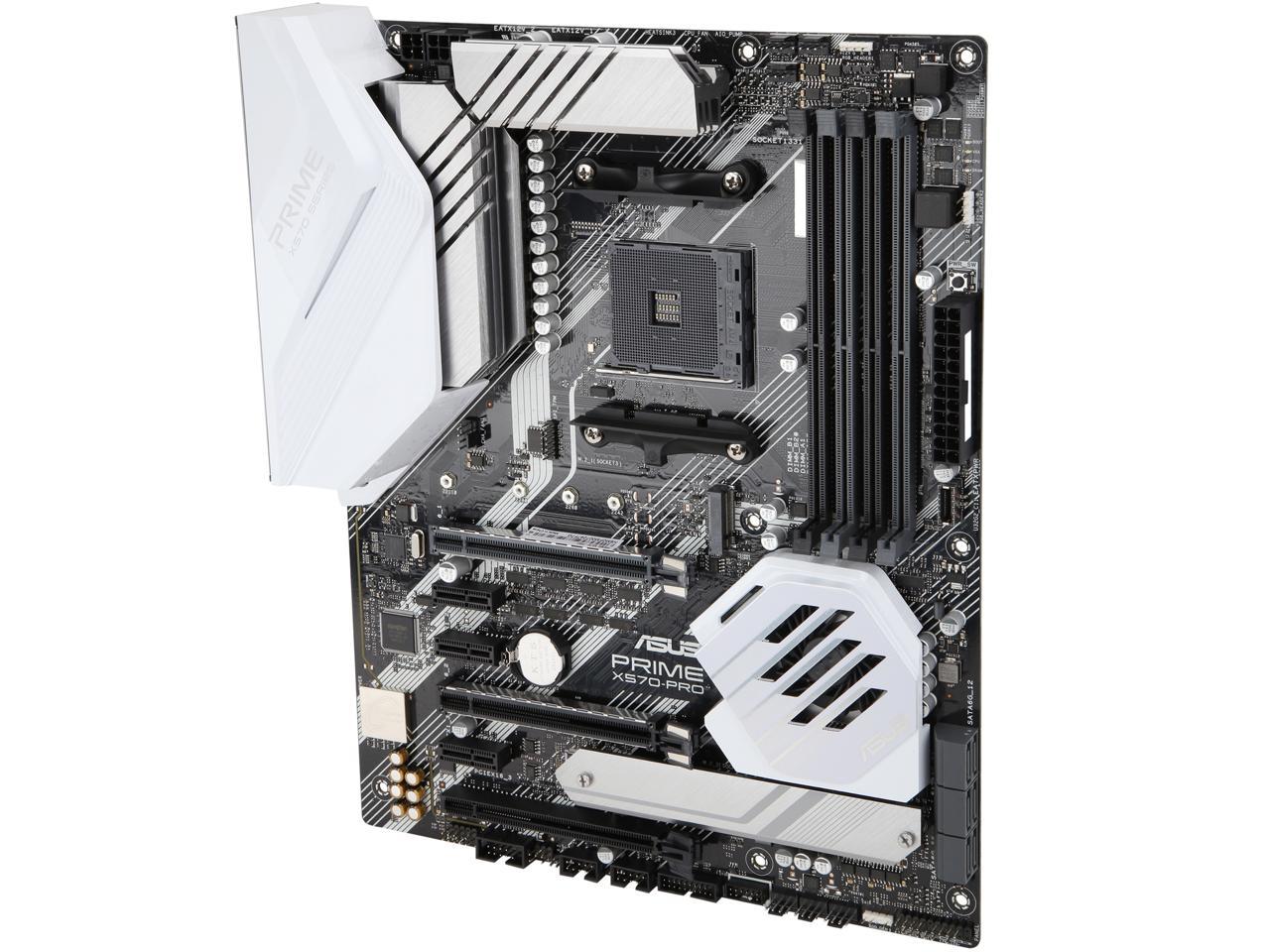

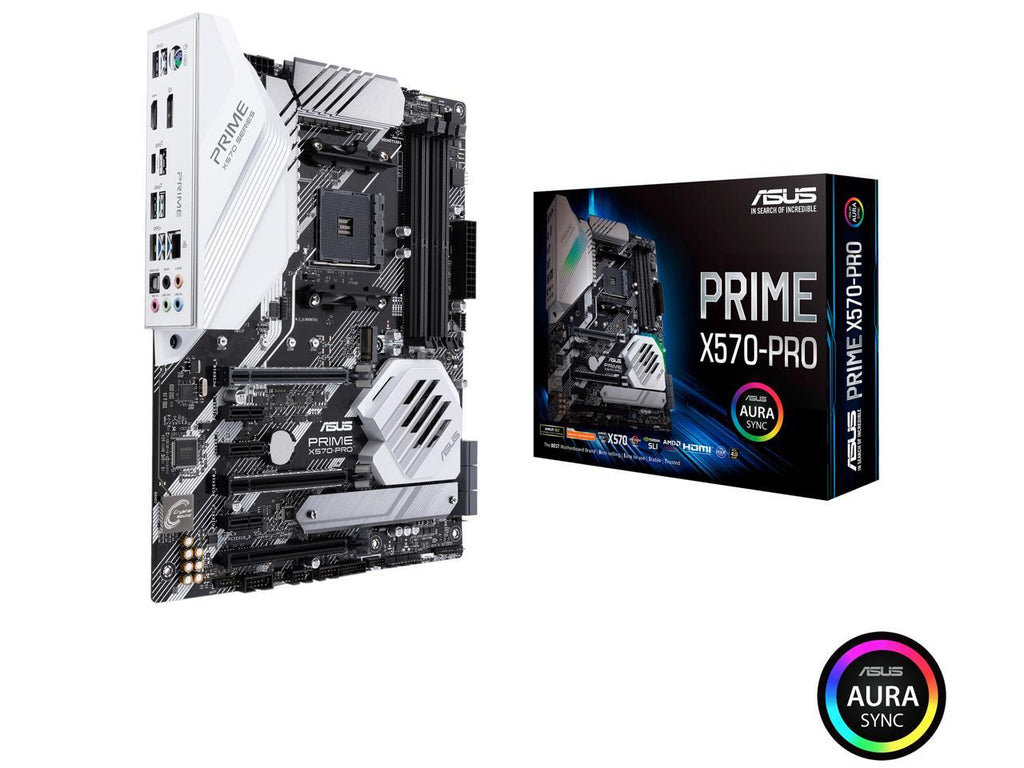

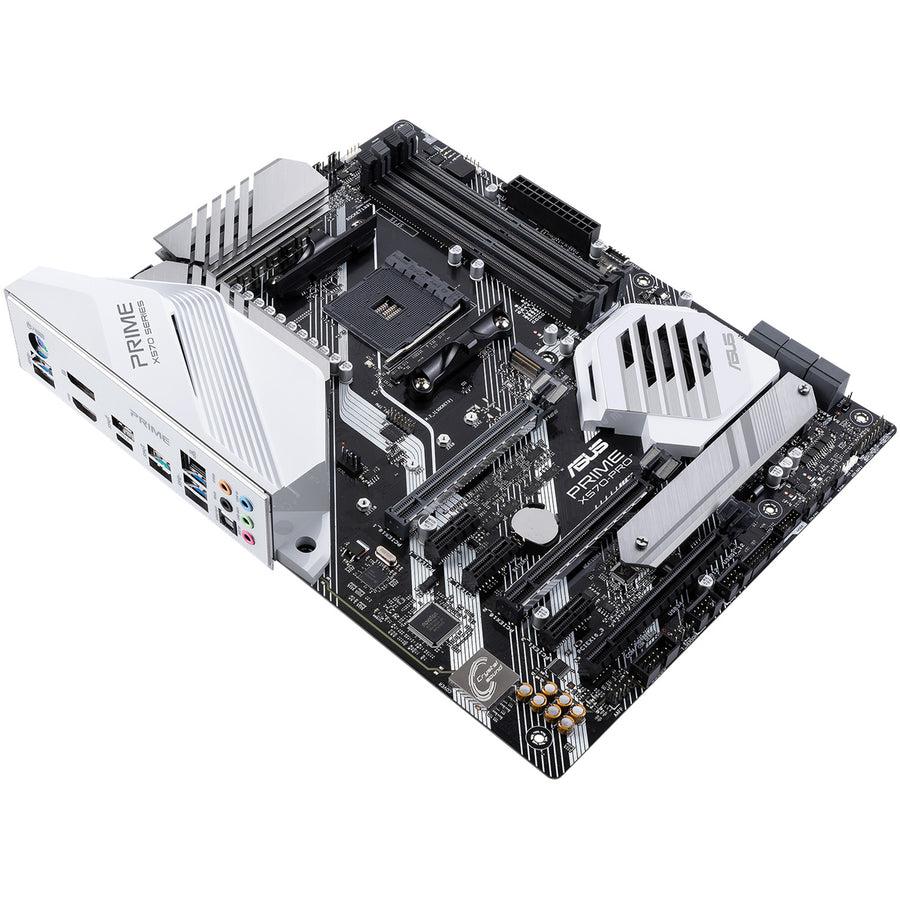

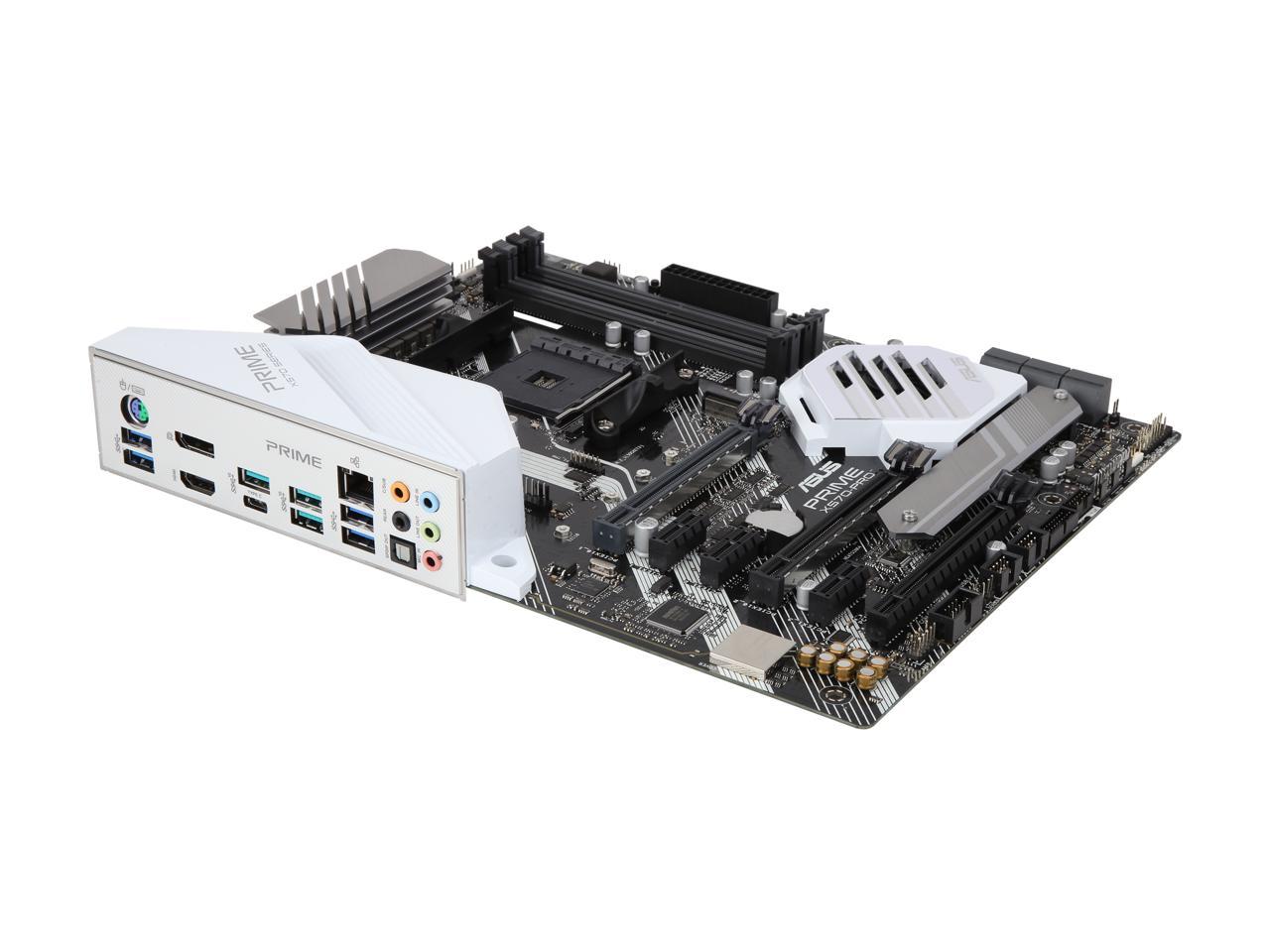

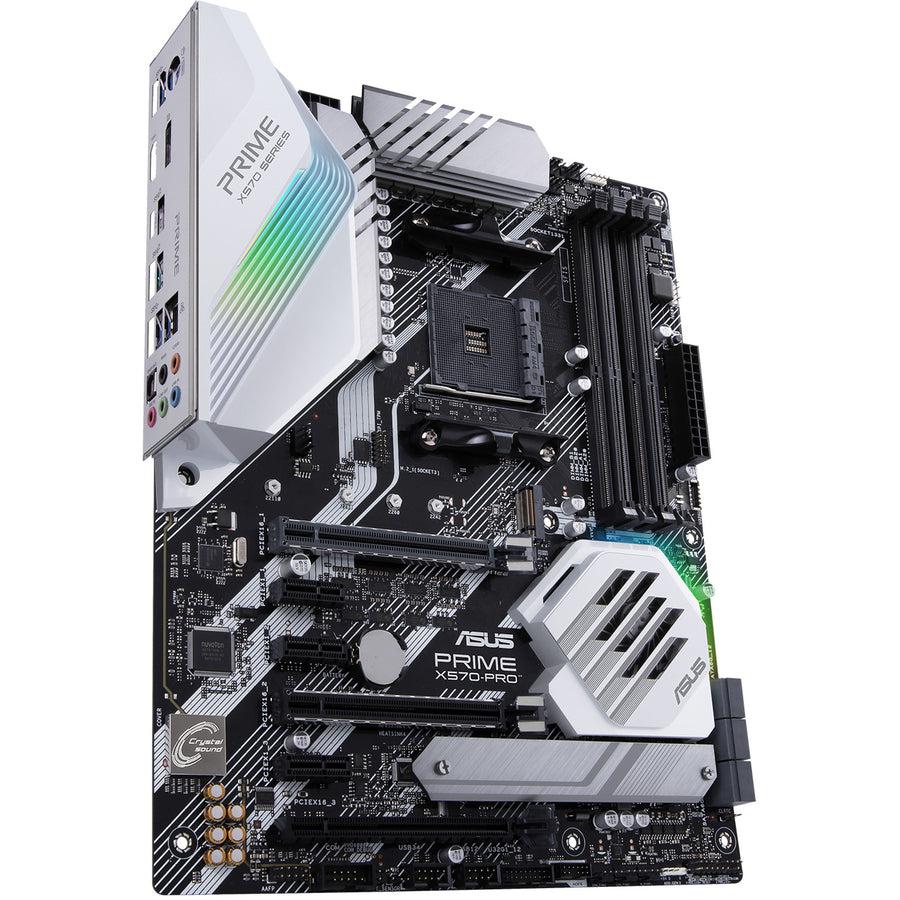

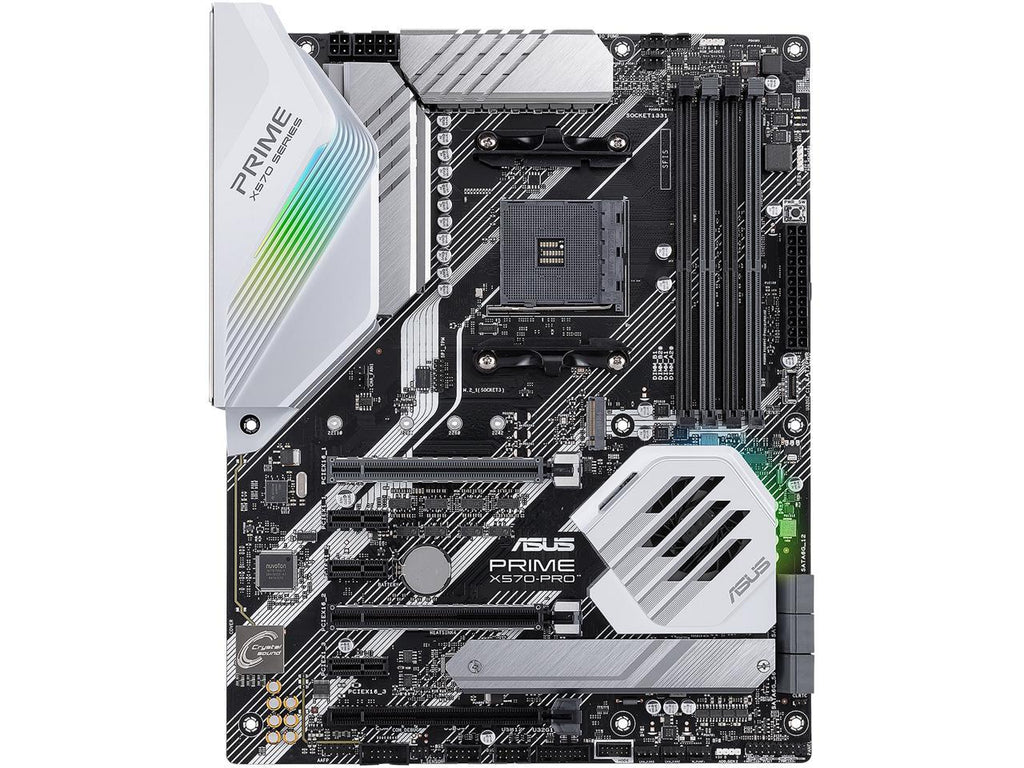

Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard

Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard

SKU:PRIME X570-PRO

Regular price $275.38
Regular price Sale price $275.38
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
        • Enhanced power solution: Premium components provide better power efficiency
        • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
        • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
        • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
        • Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports and front-panel header
        • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
        • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

        Product image
        Asus Prime X570-Pro AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe Gen4, Dual M.2 HDMI, SATA 6 GB/s USB 3.2 Gen 2 ATX Motherboard


        • AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
        • Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
        • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
        • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
        • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
        • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
        • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
        • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips
        Model
        Brand ASUS
        Model PRIME X570-PRO

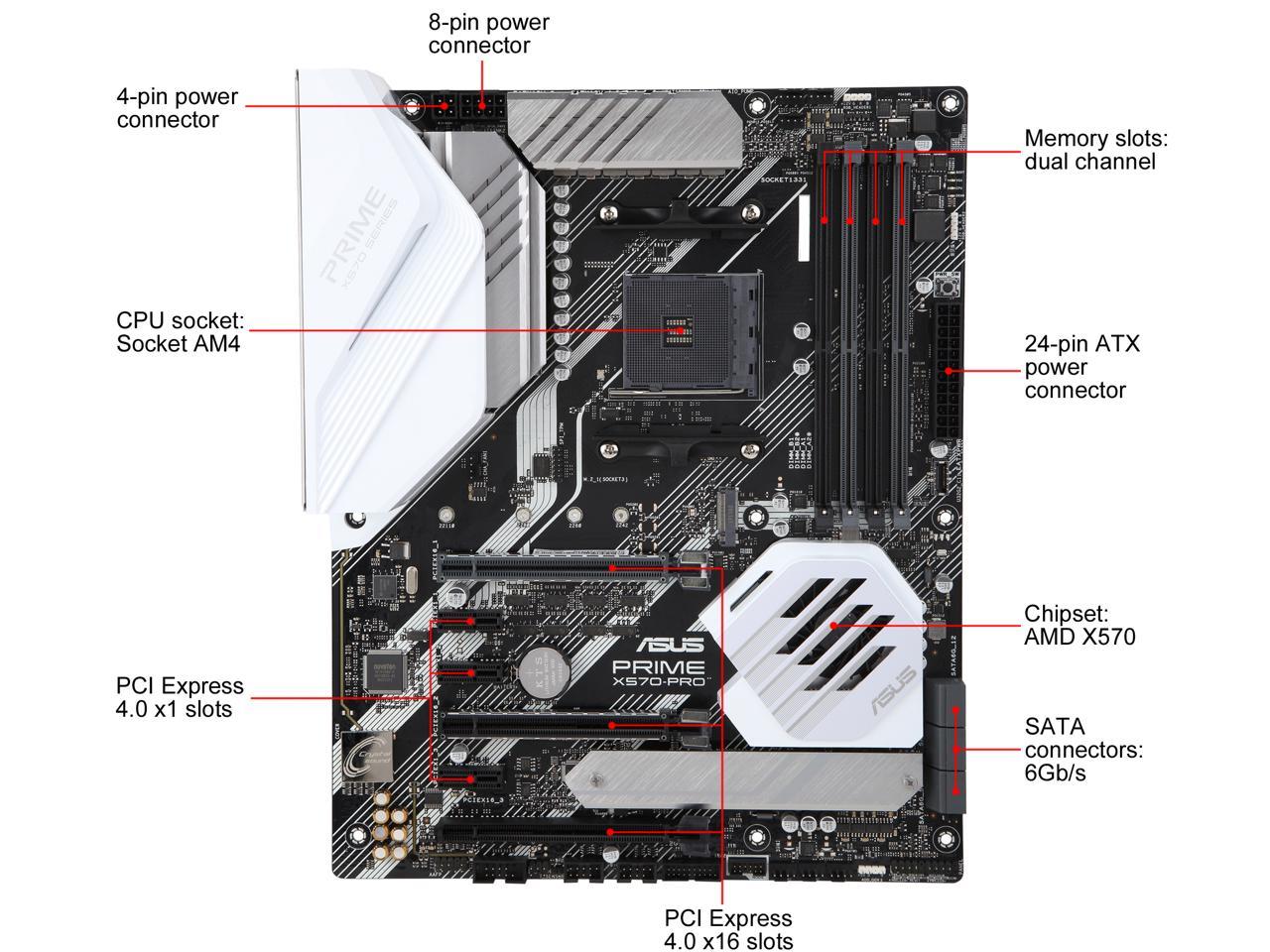

        Supported CPU
        CPU Socket Type  AM4
        CPU Type AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series desktop processors
        * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
        Chipsets
        Chipset  AMD X570
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard 3rd Gen AMD Ryzen Processors
        DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
        2nd Gen AMD Ryzen Processors
        DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 3rd Gen AMD Ryzen Processors
        2 x PCIe 4.0 x16 (x16 or dual x8)
        2nd Gen AMD Ryzen Processors
        2 x PCIe 3.0 x16 (x16 or dual x8)
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        1 x PCIe 3.0 x16 (x8 mode)

        AMD X570 chipset
        1 x PCIe 4.0 x16 (max at x4 mode)
        PCI Express x1 3 x PCIe 4.0 x1
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 3rd Gen AMD Ryzen Processors:
        1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
        1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support

        AMD X570 chipset:
        1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        SATA RAID 0/1/10
        Onboard Video
        Onboard Video Chipset  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        Multi-VGA output support: HDMI/DisplayPort ports
        - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
        - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
        Onboard Audio
        Audio Chipset  Realtek S1220A High Definition Audio CODEC featuring Crystal Sound 3
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Intel i211AT
        Max LAN Speed 10/100/1000Mbps

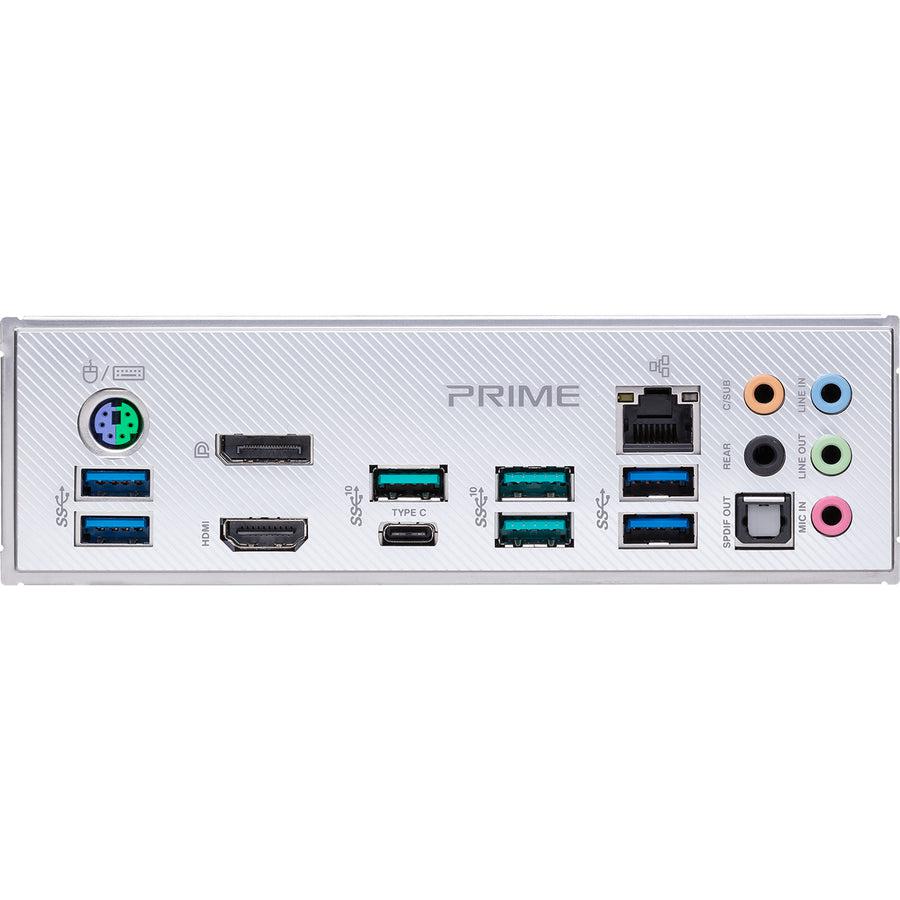

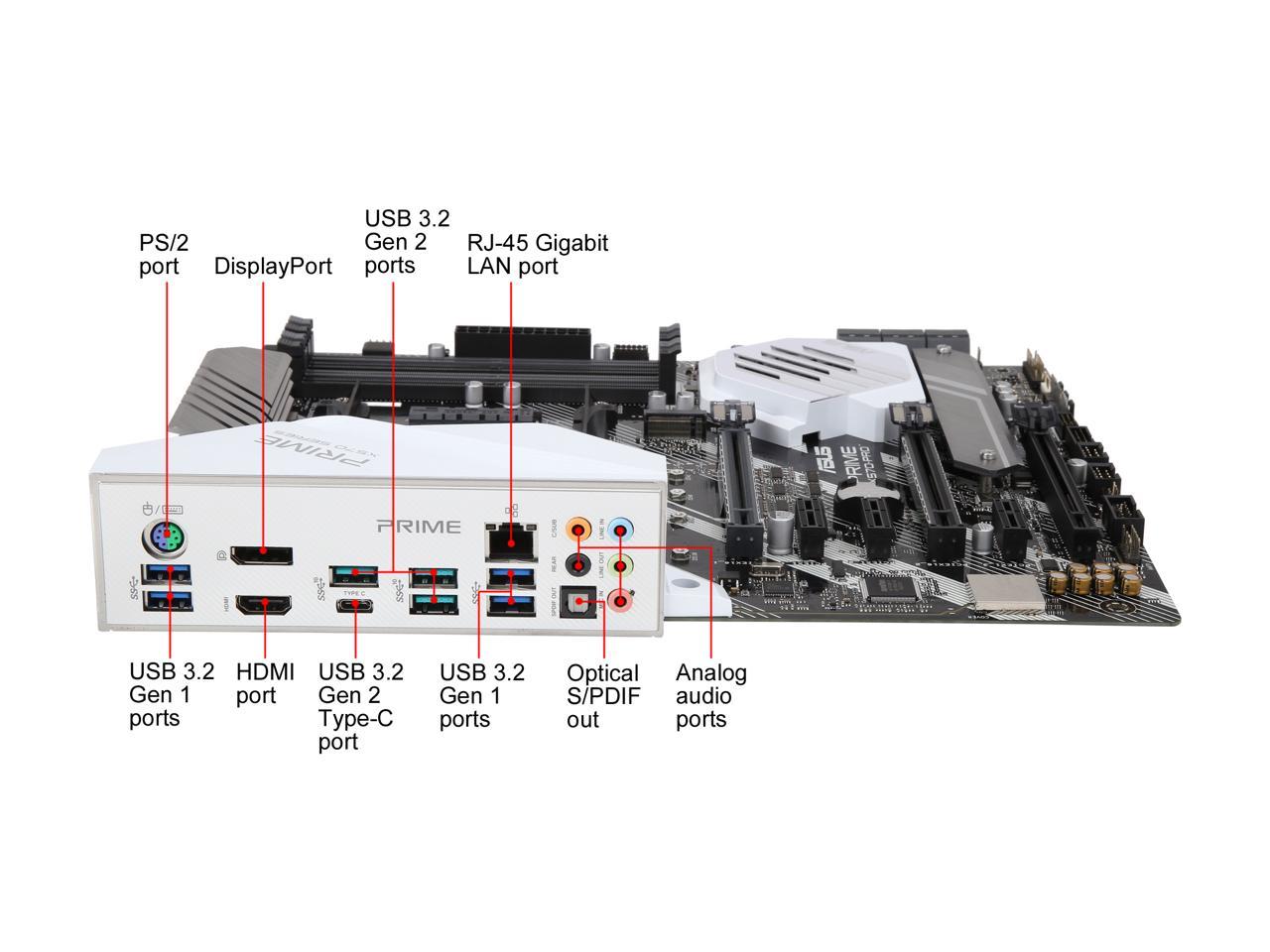

        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
        1 x DisplayPort
        1 x HDMI
        1 x LAN (RJ45) port(s)
        1 x Optical S/PDIF out
        5 x Audio jack(s)
        4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
        3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
        1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
        1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 2 x Aura RGB Strip Headers
        1 x Addressable Gen 2 header(s)
        1 x SPI TPM header
        1 x COM port(s) connector(s)
        1 x CPU Fan connector(s) (1 x 4-pin)
        1 x CPU OPT Fan connector(s) (1 x 4-pin)
        3 x Chassis Fan connector(s) (3 x 4-pin)
        1 x PCH_FAN (1 x 4-pin)
        1 x AIO_PUMP connector (1 x 4-pin)
        1 x Front panel audio connector(s) (AAFP)
        1 x System panel(s)
        1 x Power-on button(s)
        1 x Clear CMOS jumper(s)
        1 x Node Connector(s)
        1 x Water Pump header (4-pin)
        1 x T_Sensor Connector
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 12.0" x 9.6"
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Windows 11 Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        3rd and 2nd Gen AMD Ryzen Processors
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        Supports AMD 2-Way CrossFireX Technology

        Special Features:
        5-Way Optimization by Dual Intelligent Processors 5
        - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
        DIGI+ VRM: Digital power design with Dr. MOS
        EPU Guidance
        TPU Insight
        Fan Xpert4
        - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
        Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
        ASUS 5X Protection III:
        - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
        - ASUS DIGI+ VRM - Digital power design with Dr. MOS
        - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
        - ASUS ESD Guards - Enhanced ESD protection
        ASUS SafeSlot - Protect your graphics card Investment
        ASUS OptiMem:
        - Improved DDR4 Stability
        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Addressable Gen 2 Header
        ASUS Exclusive Features:
        - AI Suite 3
        - Ai Charger
        - Turbo LAN
        - Armoury Crate
        - Pre-mounted I/O Shield
        ASUS Quiet Thermal Solution:
        - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
        - ASUS Fan Xpert 4
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        ASUS Q-Design:
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        - ASUS Q-Connector

        Operating System:
        Windows 10 64-bit

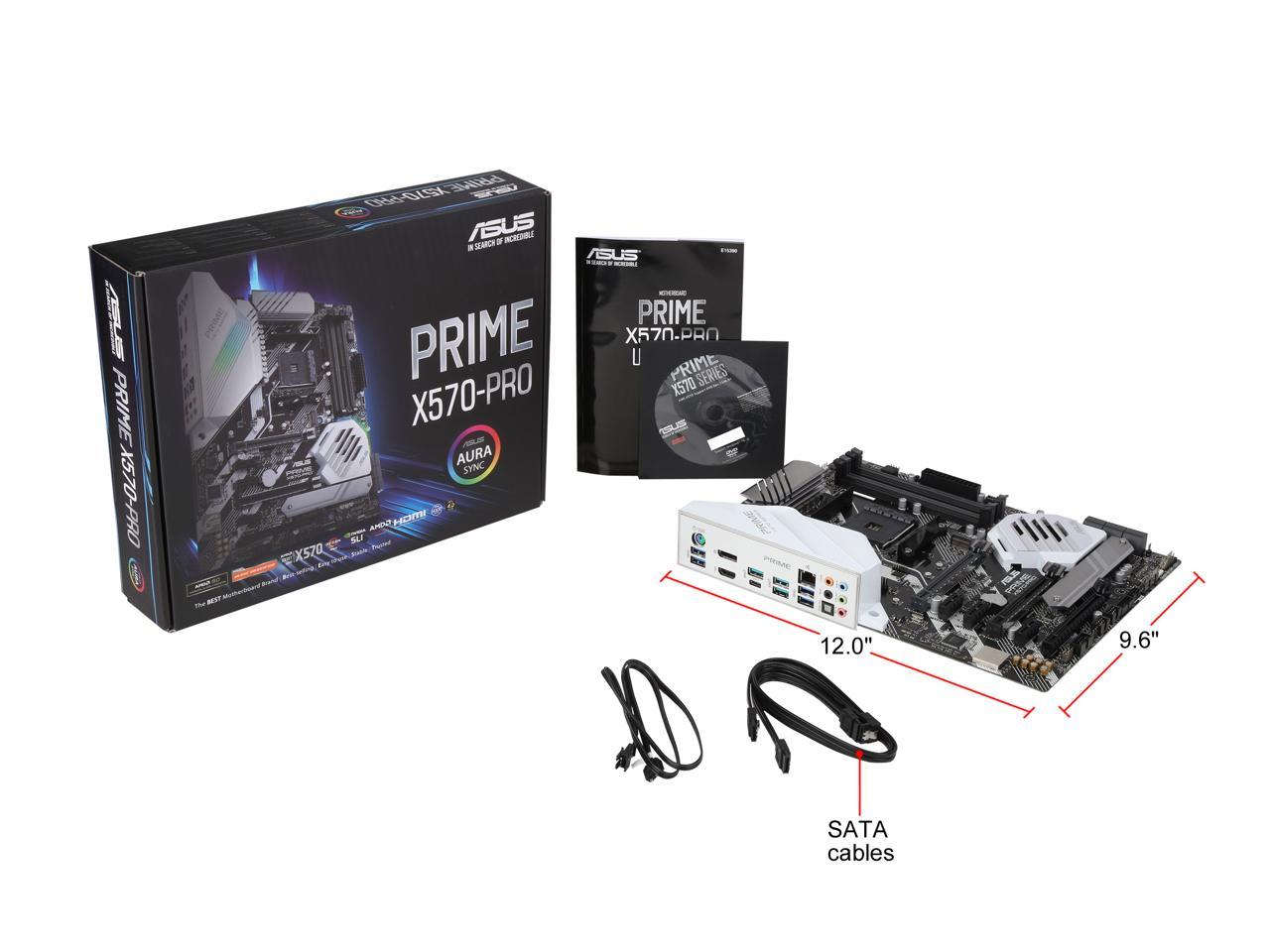

        Packaging
        Package Contents Accessories:
        User's manual
        2 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x Q-connector(s) (1 in 1)
        1 x Extension cable for Addressable LED

        Specifications :

        General Information

        Manufacturer ASUS Computer International
        Manufacturer Part Number PRIME X570-PRO
        Manufacturer Website Address http://usa.asus.com
        Brand Name Asus
        Product Line Prime
        Product Model X570-PRO
        Product Name Prime X570-PRO Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 192876254011

        Chipset

        Chipset ManufacturerAMD

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports8
        Number of USB 3.2 Gen 1 Ports4
        Width12"
        Depth9.6"
        Weight (Approximate)2.13 lb

        Miscellaneous

        Package Contents
        • Prime X570-PRO Desktop Motherboard
        • 1 x User's Manual
        • 2 x SATA 6Gb/s Cable(s)
        • 1 x M.2 Screw Package
        • 1 x Q-connector(s) (1 in 1)
        • 1 x Extension cable for Addressable LED
        • 1 x Support DVD
          • Drivers
          • ASUS Utilities
          • EZ Update
        Environmentally FriendlyYes

        Warranty

        Limited Warranty3 Year
