Asus Prime B450-Plus Am4 Amd B450 Sata 6Gb/S Usb 3.1 Hdmi Atx Amd Motherboard

Asus Prime B450-Plus Am4 Amd B450 Sata 6Gb/S Usb 3.1 Hdmi Atx Amd Motherboard

SKU:PRIME B450-PLUS

Regular price $164.00
Regular price Sale price $164.00
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Powered by 2nd generation AMD Ryzen AM4 processors to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 (3200 MHz) and Gigabit LAN
        • 5X Protection III hardware-level safeguards provide component longevity and reliability
        • Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
        • Unique SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
        • FanXpert 4 Core delivers comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler and optimized gaming

        ASUS PRIME B450-PLUS AMD Motherboard

        Supporting the 2nd generation AMD Ryzen AM4 processors, the ASUS Prime B450-PLUS is engineered to provide true gaming performance. Take advantage of next-generation connectivity and speeds with NVMe M.2, USB 3.1 Gen2, DDR4 compatibility, and native RAID support. 5X Protection III ensures excellent component longevity and reliability while Aura Sync RGB adds flair to your system. ASUS Fan Xpert and ASUS UEFI BIOS make tuning clicks away. Just tune to get the best cooling and the highest performance.

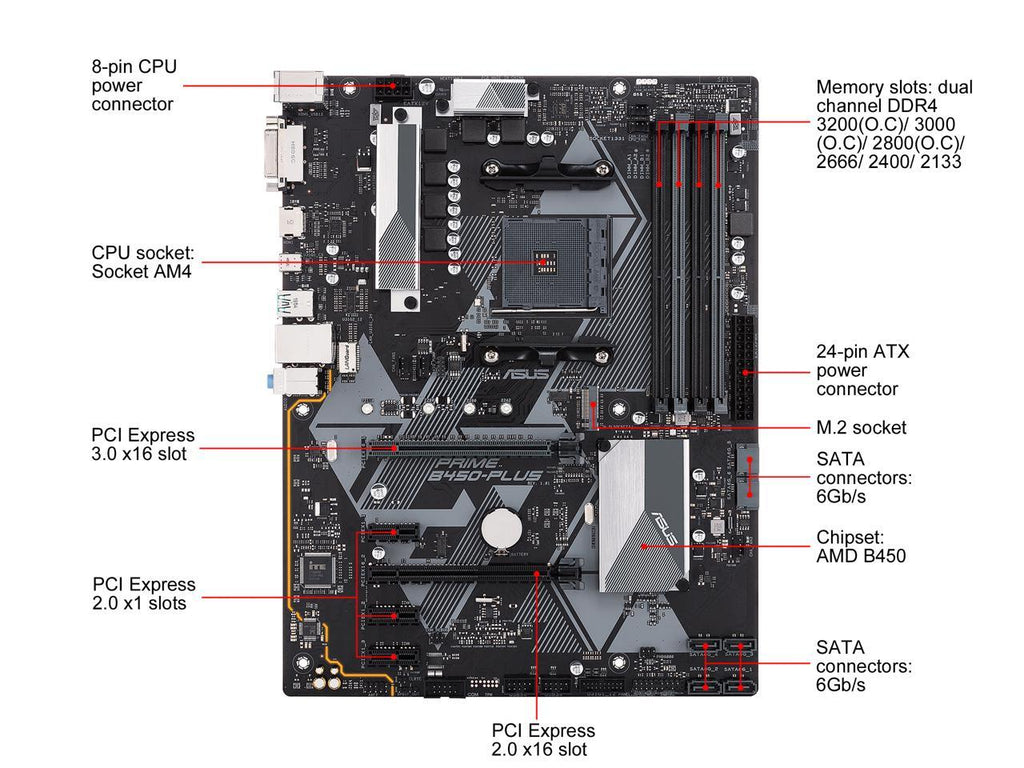

        the diagram of ASUS PRIME B450-PLUS AMD Motherboard
        Tune it your way
        cooling control panel

        Flexible cooling controls

        With Prime B450-PLUS motherboard you have comprehensive control over fans, water pumps, and even all-in-one (AIO) coolers?all via Fan Expert 4 Core. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click.

        All-round energy efficiency

        With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

        an illustration of temperature sources of the motherboard

        Cooler by design

        Prime B450 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.

        Multiple temperature sources

        Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.

        AIO Pump

        Dedicated PWM/DC header for self-contained water-cooling setup, is built right in.

        4-pin PWM/DC Fan

        Each onboard header supports auto-detection of PWM or DC fans.

        Smart Protection

        A dedicated integrated circuit protects each fan header from over-temperature and over-current.

        the momory slots and a 3466Mhz logo

        Make your memory faster

        Featuring an array of trace layout tweaks that improve memory stability, PRIME B450 Series provides a potent foundation for your build. With comprehensive support for the full gamut of Ryzen memory configurations—from entry-level to performance-oriented—PRIME B450 Series is a versatile all-rounder that can work or play.

        BIOS interface of the motherboard

        Media-acclaimed UEFI BIOS

        The UEFI BIOS is an early waypoint on any PC-building journey, and Prime B450 Series has one of the best in the business.

        Q-Fan Control

        Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.

        Search Function

        When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard—with a built-in Search function to find the setting you need in the blink of an eye.

        Ultrafast connectivity

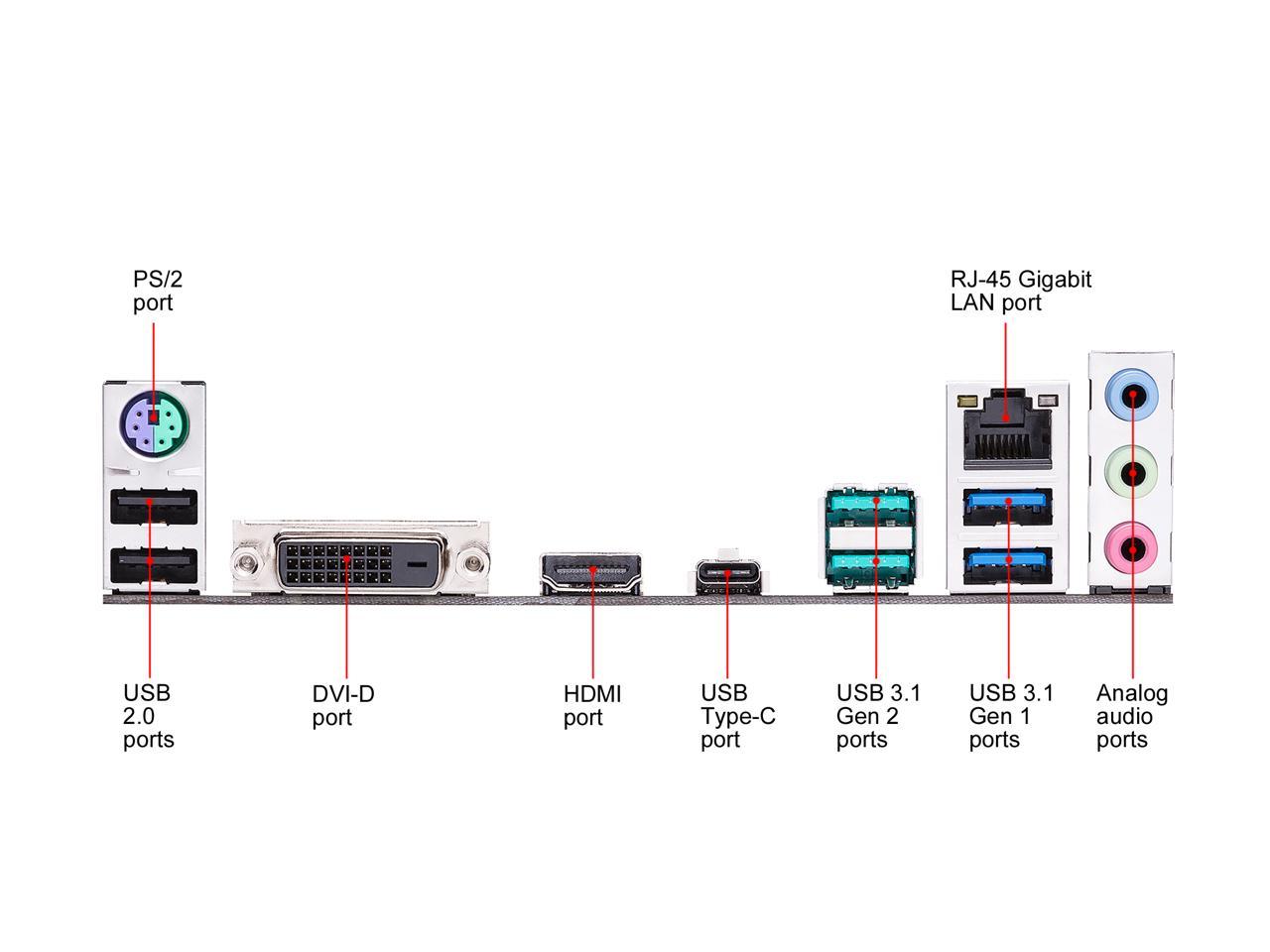

        two USB 3.1 Type-A ports in the rear panel

        USB 3.1 Gen 2 Type-A

        With backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps—twice as fast as standard USB 3.1 Gen 1.

        USB 3.1 Gen 1 port for front panel

        USB 3.1 Gen 1 front-panel connector

        USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.

        the M.2 slot

        Speed up with onboard M.2

        With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

        Native M.2/NVMe PCIe RAID Support

        Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds.

        logo of AMD StoreMI

        AMD StoreMI

        AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.

        Reliable stability and compatibility
        certifications for compatibility

        Built to Last

        ASUS is the world's leading motherboard brand. Our motherboards are extensively tested for compatibility with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation—offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

        Upgrade to unrivalled audio
        the audio unit of the motherboard

        Audio shielding

        Separates analog/digital signal domains, significantly reducing multi-lateral interference.

        Separate layer for left and right tracks

        Ensures minimal crosstalk between audio paths.

        Premium Japanese-made audio capacitors

        Premium parts provide an immersive sound signature, with exceptional fidelity.

        Visual beauty, virtual worlds
        the motherboard showing its 4 pin RGB header



        Aura Sync

        A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.2 And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

        * The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m. LED strips and Aura Sync-compatible devices are sold separately.

        LED lighting on PCIe slot

        Brighten Up Your Build

        LED-illuminated control for PCIe slot and trace paths

        Built-in LED lighting options illuminate your build in a variety of eye-catching styles.

        a VR headset

        Beyond VR ready

        Prime B450 series isn't just VR ready—it goes way beyond. The ASUS Beyond VR Ready marque means that Prime B450 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

        Specifications :

        General Information

        UPC 192876075678
