Asus Amd Am4 Rog Strix X570-E Gaming Atx Motherboard With Pcie 4.0, Wifi 6, 2.5Gbps Lan, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2

Asus Amd Am4 Rog Strix X570-E Gaming Atx Motherboard With Pcie 4.0, Wifi 6, 2.5Gbps Lan, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2

SKU:STRIX X570-E GAMING

Regular price $432.99
Regular price Sale price $432.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

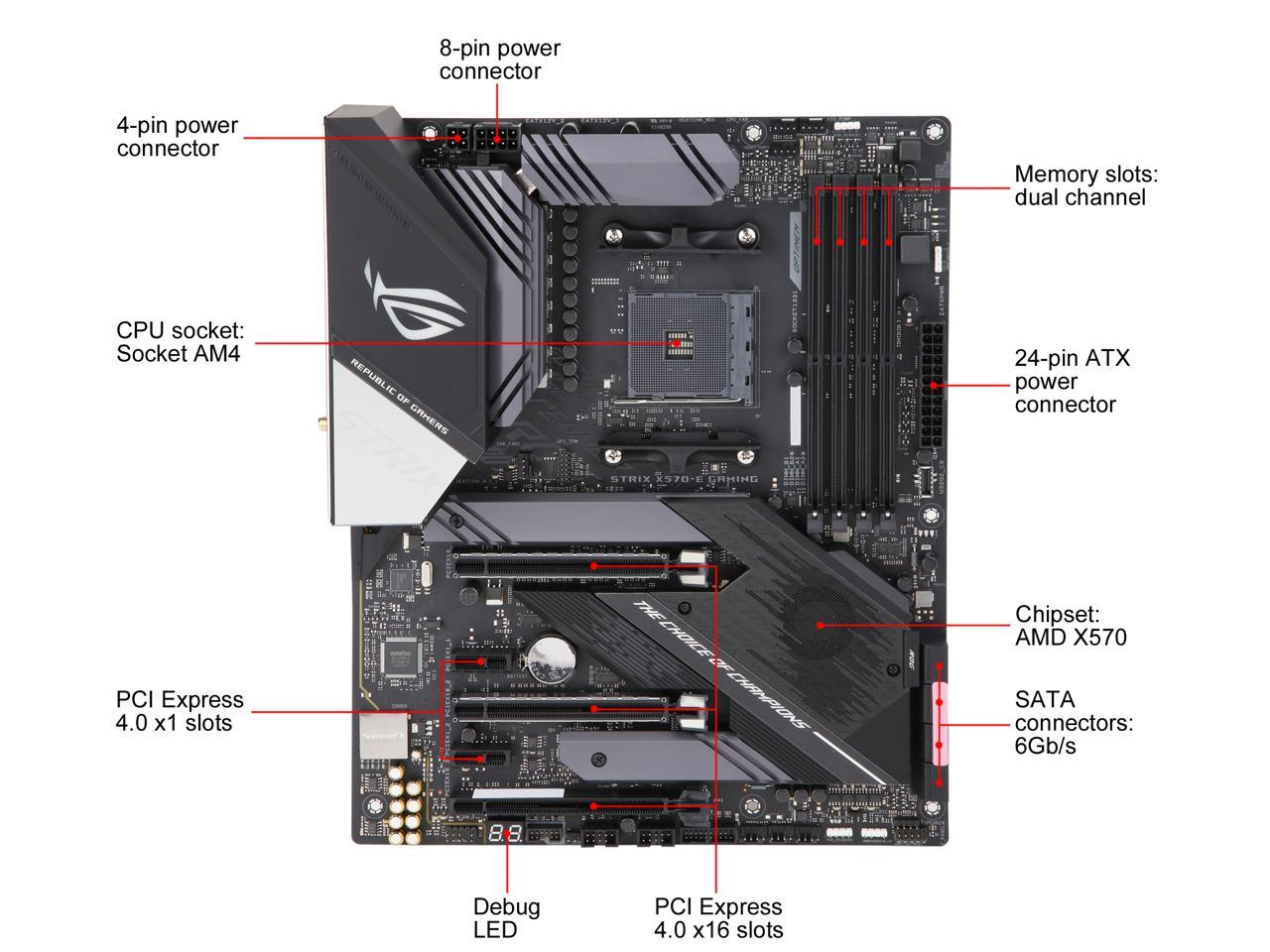

        • AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
        • Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
        • Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
        • Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
        • Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11 ax) with MU-MIMO, and gateway teaming via GameFirst V
        • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
        • Gaming audio: High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action
        Model
        Brand ASUS
        Series ROG
        Model STRIX X570-E GAMING
        Supported CPU
        CPU Socket Type  AM4
        CPU Type BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
        Chipsets
        Chipset  AMD X570
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard 3rd Gen AMD Ryzen Processors
        DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
        2nd Gen AMD Ryzen Processors
        DDR4 3600(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory *
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 3rd Gen AMD Ryzen Processors
        2 x PCIe 4.0 x16 (x16 or dual x8)
        2nd Gen AMD Ryzen Processors
        2 x PCIe 3.0 x16 (x16 or dual x8)
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        1 x PCIe 3.0 x16 (x8 mode)

        AMD X570 chipset
        1 x PCIe 4.0 x16 (max at x4 mode) *
        * PCIeX16_3 slot shares bandwidth with PCIeX1_2.
        PCI Express x1 2 x PCIe 4.0 x1
        Storage Devices
        SATA 6Gb/s  8 x SATA 6Gb/s
        M.2 3rd Gen AMD Ryzen Processors:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support
        AMD X570 chipset:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        SATA RAID 0/1/10
        Onboard Video
        Onboard Video Chipset  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        Multi-VGA output support: HDMI/DisplayPort ports
        - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
        - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
        Onboard Audio
        Audio Chipset  SupremeFX High Definition Audio CODEC S1220A
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Realtek RTL8125-CG
        Second LAN Chipset Intel I211-AT
        Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
        Wireless LAN Supports channel bandwidth: HT20/HT40/HT80/HT160
        Intel Wi-Fi 6 AX200
        2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5 GHz
        Up to 2.4Gbps transfer speed
        Bluetooth Bluetooth 5.0

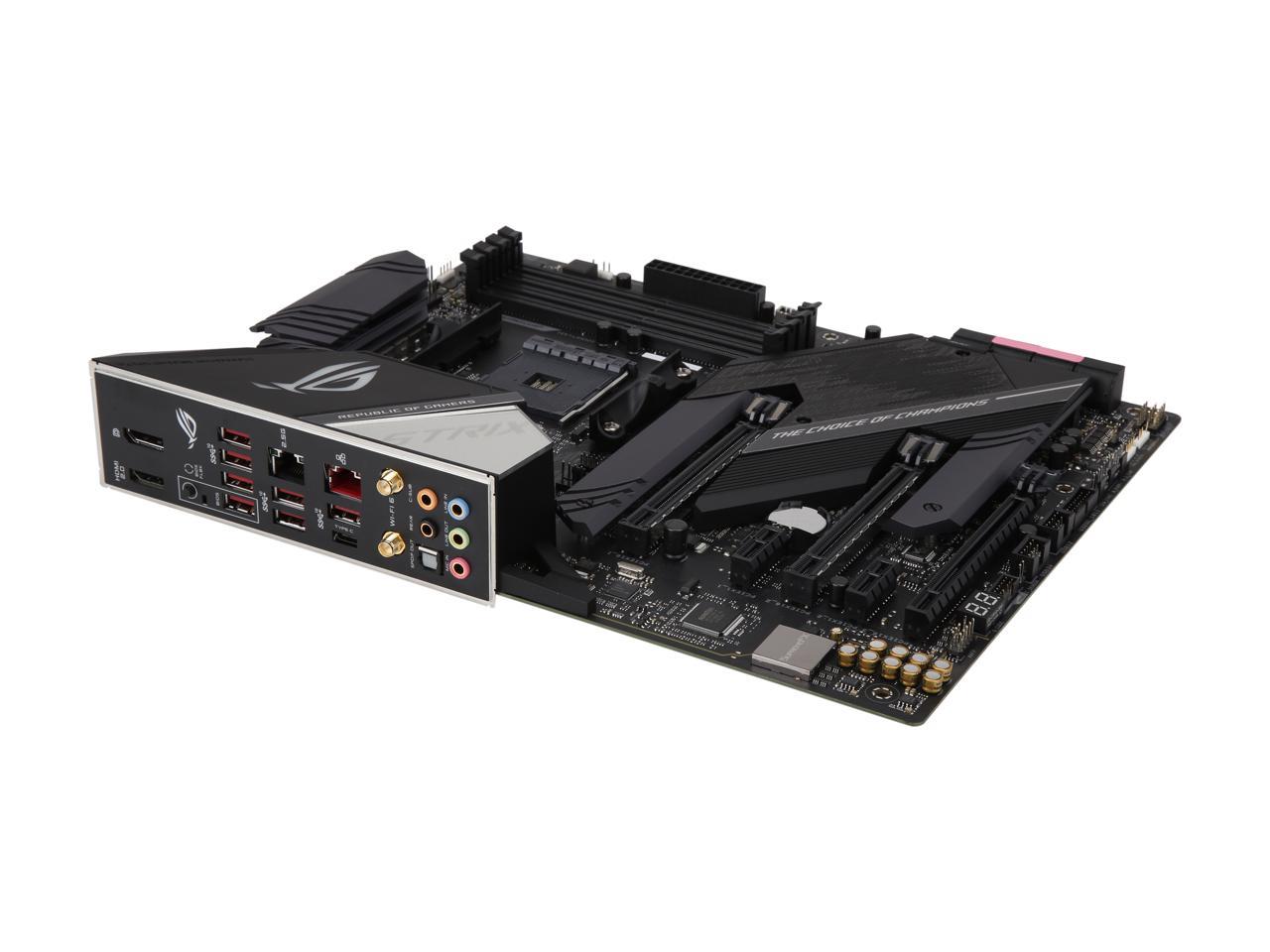

        Rear Panel Ports
        Back I/O Ports 1 x DisplayPort
        1 x HDMI
        1 x Optical S/PDIF out
        5 x Audio jack(s)
        1 x Anti-surge 2.5G LAN (RJ45) port
        1 x USB BIOS Flashback Button(s)
        1 x ASUS Wi-Fi Module
        7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
        1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
        Anti-surge LAN (RJ45) port
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
        1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 1 x PCH_FAN
        1 x AAFP connector
        2 x Aura RGB Strip Header(s)
        2 x Addressable Gen 2 header(s)
        1 x SPI TPM header
        1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        2 x Chassis Fan connector(s)
        1 x AIO_PUMP connector
        1 x W_PUMP+ connector
        1 x Front panel audio connector(s) (AAFP)
        1 x Thermal sensor connector(s)
        1 x Clear CMOS jumper(s)
        1 x Node Connector(s)
        1 x System panel connector
        1 x T_Sensor Connector
        1 x M.2 Fan Header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 12.0" x 9.6"
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Windows 11 Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        3rd and 2nd Gen AMD Ryzen Processors
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology
        2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
        Supports AMD 2-Way CrossFireX Technology

        ROG Exclusive Features:
        ROG Exclusive Software
        - RAMCache III
        - CPU-Z
        - GameFirst V
        - Sonic Studio III + Sonic Studio Link
        - Sonic Radar III
        - Overwolf

        Special Features:
        5-Way Optimization by Dual Intelligent Processors 5
        - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages
        TPU
        - Auto Tuning, TurboV, GPU Boost
        Gamer's Guardian:
        - DRAM Overcurrent Protection
        - Stainless Steel Back I/O
        - Highly Durable Components
        - DIGI+ VRM
        - SafeSlot
        - ESD Guards on LAN, Audio, and USB ports
        ASUS EPU:
        - EPU
        AURA:
        - Aura Lighting Control
        - Addressable Gen 2 Header
        ASUS Exclusive Features:
        - USB BIOS Flashback
        - AI Suite 3
        - Ai Charger
        - ASUS NODE: hardware control interface
        - BIOS Flashback Button
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        ASUS Q-Design:
        - ASUS Q-Code
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        Gaming Aesthetics:
        - AURA-RGB Lighting

        BIOS:
        256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

        Manageability:
        WOL, PXE

        Support Disc:
        Overwolf
        Anti-virus software (OEM version)
        WinRAR

        Operating System:
        Windows 10 64-bit
        Packaging

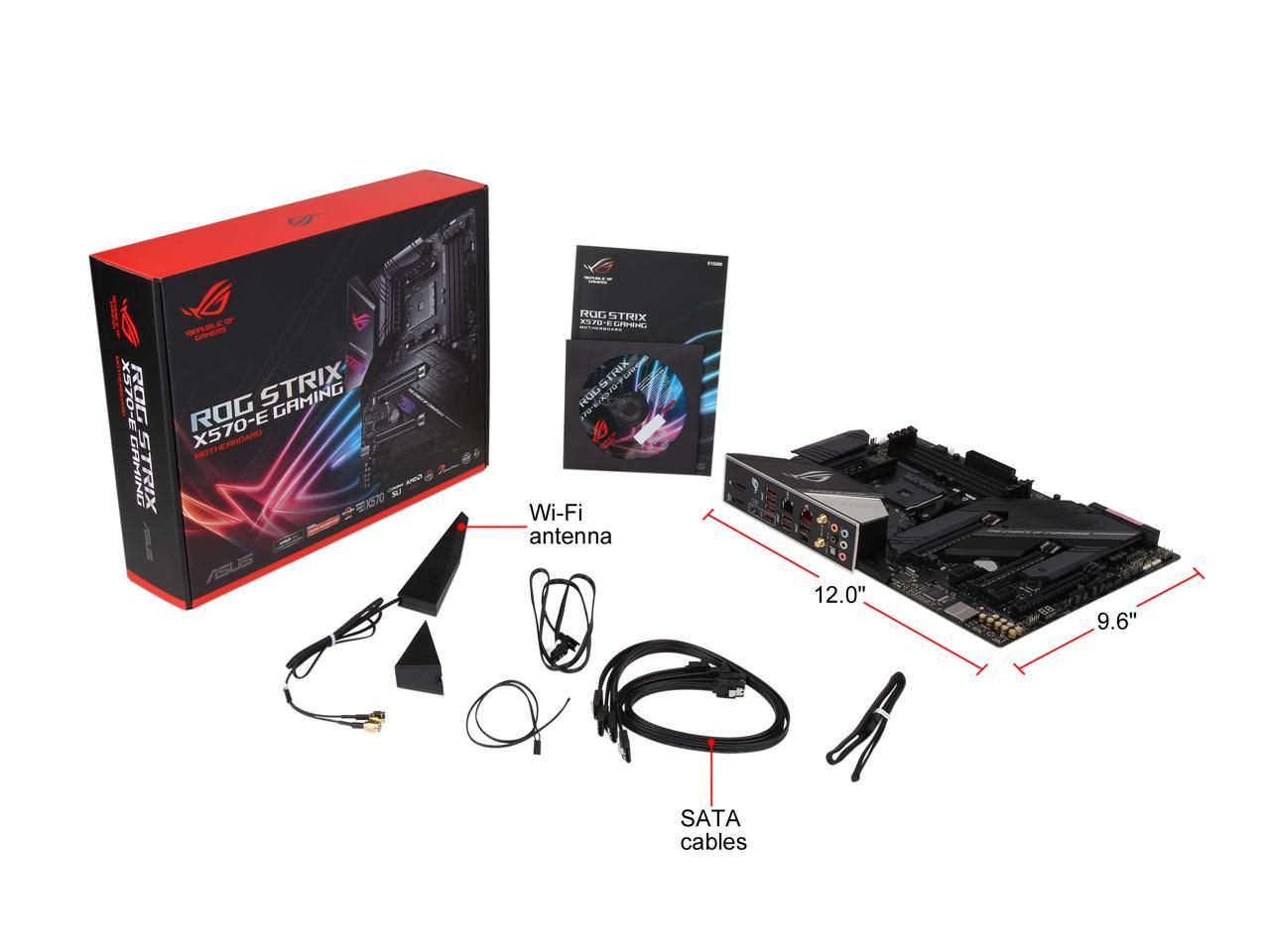

        Package Contents Accessories:
        User's manual
        4 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x Strix door hanger
        1 x ROG Strix stickers
        1 x Cable ties pack(s)
        1 x Wi-Fi Antenna(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x Thermistor cable(s)
        1 x ROG Thank you card

        Specifications :

        General Information

        UPC 192876380512
