ASUS

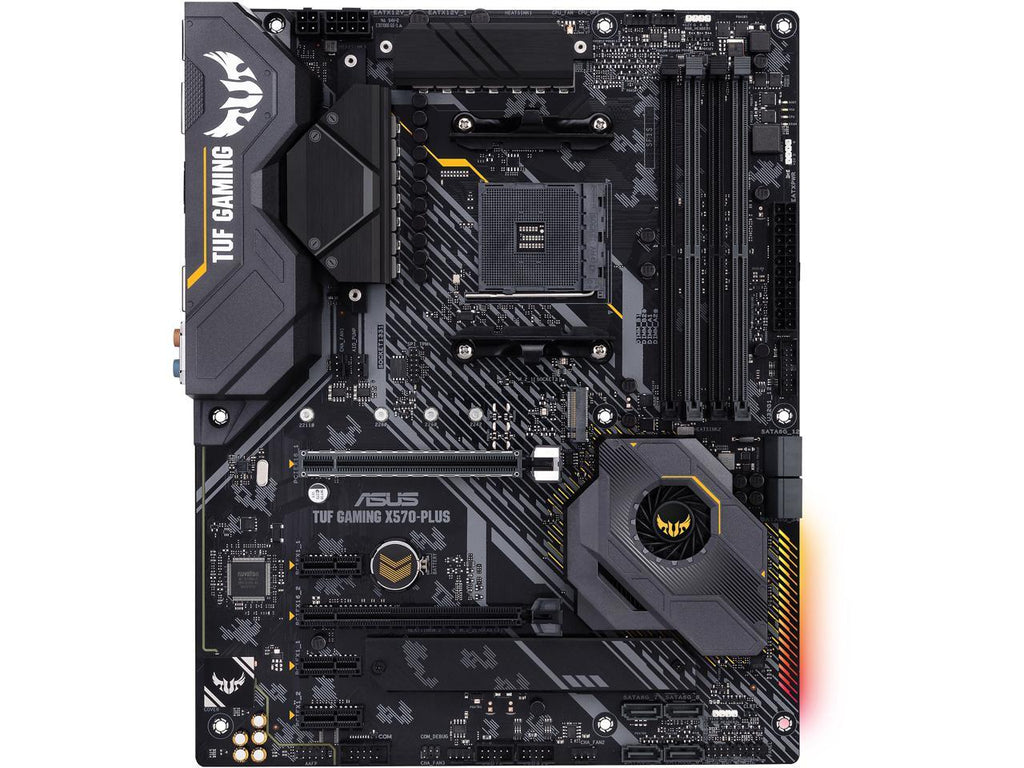

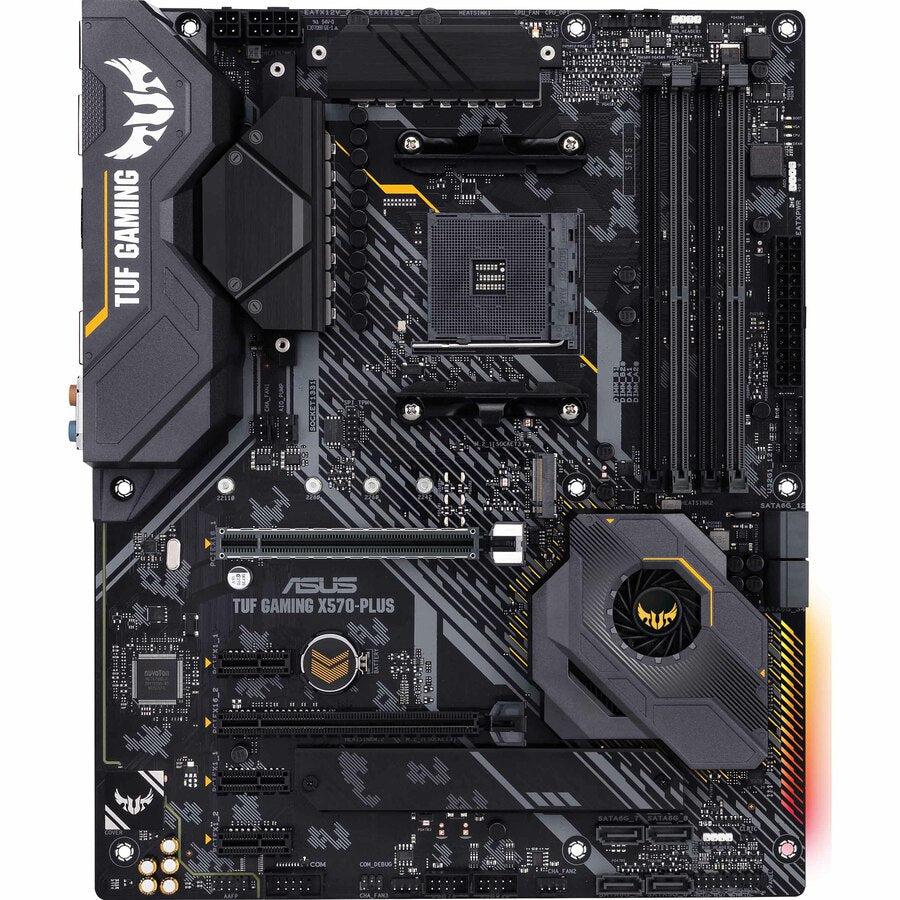

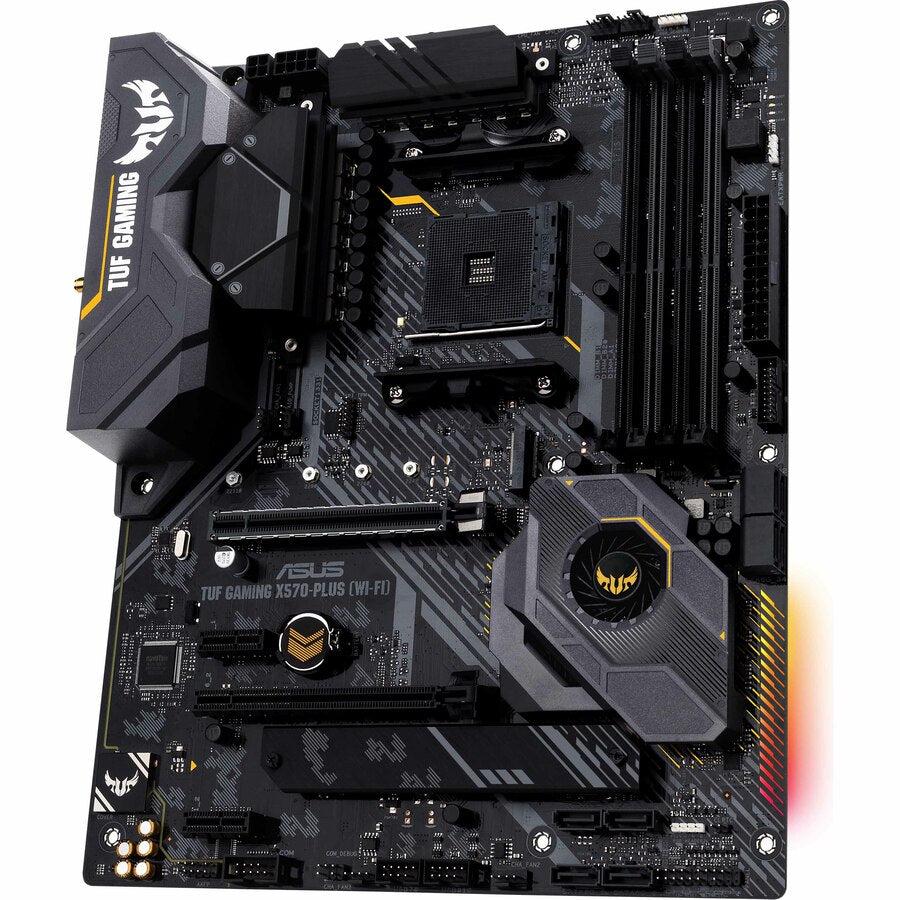

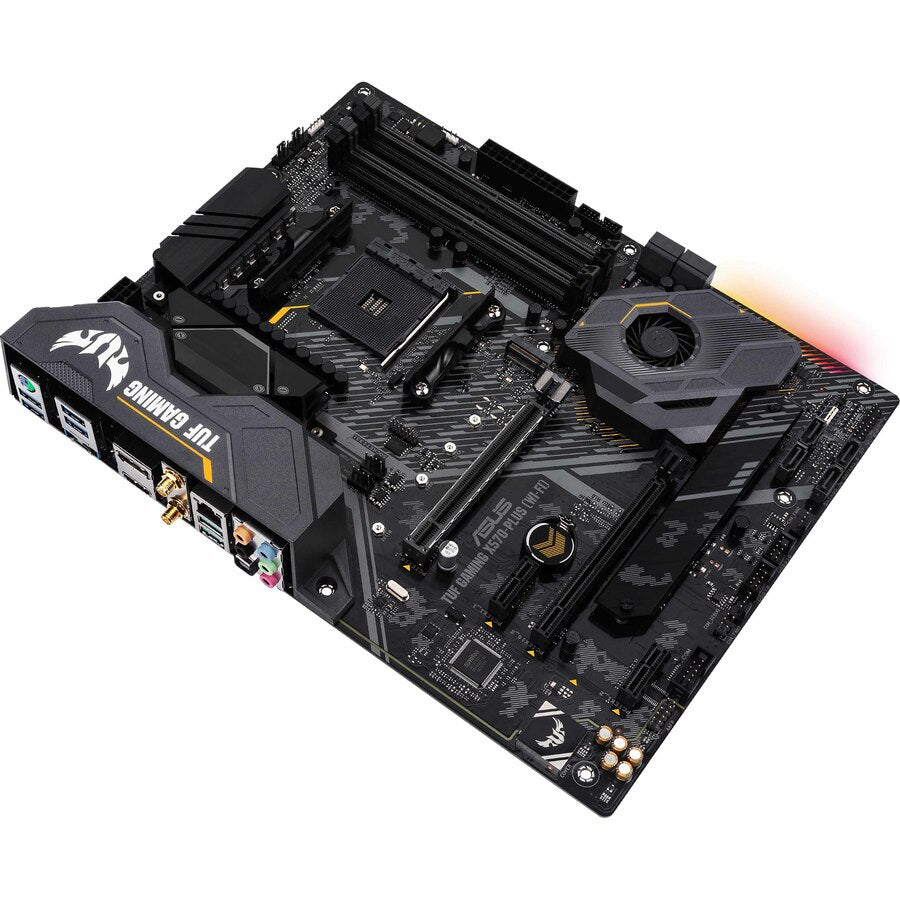

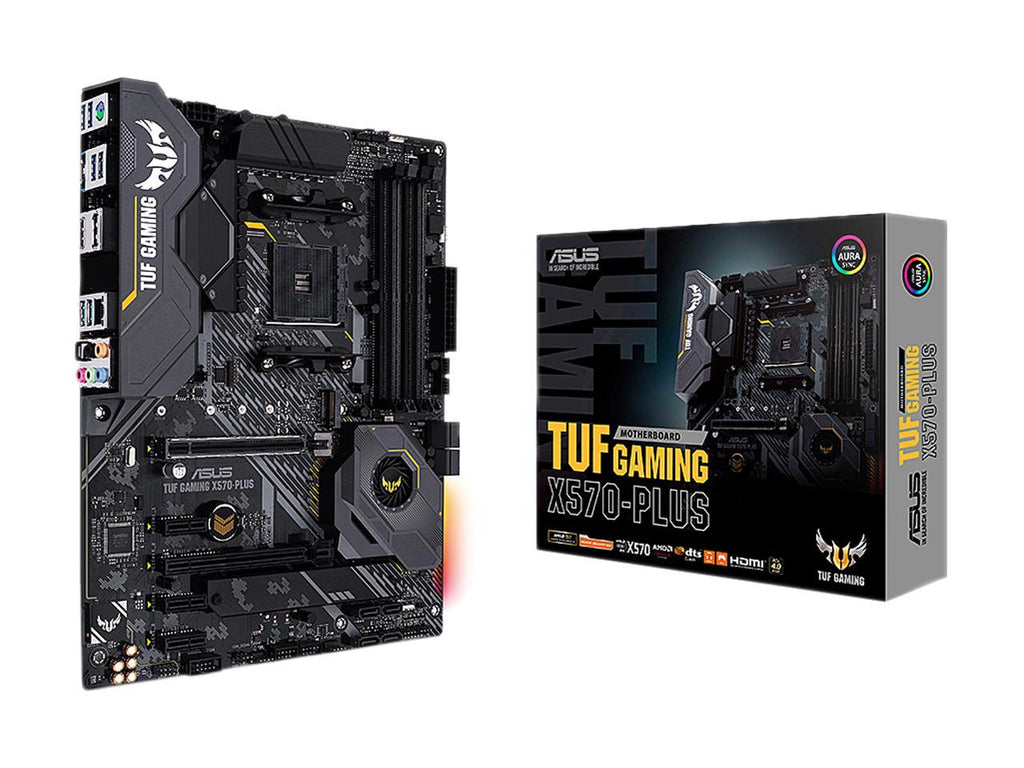

Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power

Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power

SKU:TUF GAMING X570-PLUS

Regular price $280.00
Regular price Sale price $280.00
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
        • AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
        • Enhanced Power Solution: Military-grade TUF Gaming components, ProCool socket and Digi+ VRM for maximum durability
        • Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
        • Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
        • Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
        • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
        • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
        Model
        Brand ASUS
        Model TUF GAMING X570-PLUS
        Supported CPU
        CPU Socket Type  AM4
        CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors

        * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
        * Due to CPU limitation, CPU cores supported varies by processors.
        Chipsets
        Chipset  AMD X570
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 5100(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133

        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        * The maximum memory frequency supported varies by processor.
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        ECC Supported ECC Memory (ECC mode) support varies by CPU.
        Buffer Supported Un-buffered
        Expansion Slots
        PCI Express 4.0 x16 2 x PCI Express 4.0 x16

        * Actual support may vary by CPU.
        PCI Express x1 3 x PCIe 4.0 x1
        Storage Devices
        SATA 6Gb/s  8 x SATA 6Gb/s
        M.2 AMD Ryzen 5000 Series / 3000 Series Desktop Processors:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

        AMD Ryzen 5000 G-Series / 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support

        AMD X570 chipset:
        1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
        SATA RAID 0/1/10
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic
        Onboard Audio
        Audio Chipset  Realtek ALC S1200A High Definition Audio CODEC
        Audio Channels  8 Channels
        Onboard LAN
        LAN Chipset Realtek L8200A
        Max LAN Speed 10/100/1000Mbps

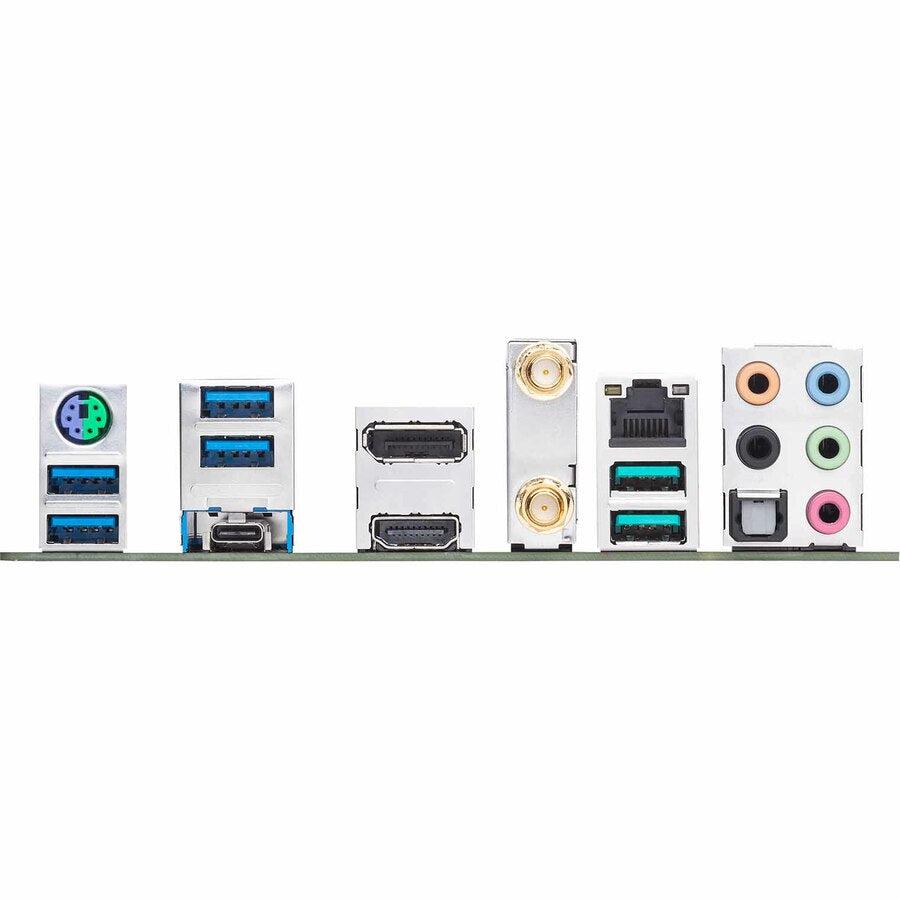

        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
        1 x DisplayPort
        1 x HDMI
        1 x LAN (RJ45) port(s)
        1 x Optical S/PDIF out
        5 x Audio jack(s)
        4 x USB 3.2 Gen 1 (up to 5Gbps) ports
        3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 2 x Aura RGB Strip Header(s)
        1 x Addressable Gen 2 header(s)
        1 x SPI TPM header
        1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        3 x Chassis Fan connector(s)
        1 x AIO_PUMP connector
        1 x Front panel audio connector(s) (AAFP)
        1 x System panel(s)
        1 x Clear CMOS jumper(s)
        1 x COM port header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 12.0" x 9.6"
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Windows 11 Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        3rd and 2nd Gen AMD Ryzen Processors
        AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors
        Supports AMD CrossFireX Technology

        Special Features:
        ASUS TUF PROTECTION
        - ASUS SafeSlot: Protect your graphics card Investment
        - ASUS ESD Guard: Enhanced ESD protection
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
        - ASUS DIGI+ VRM: Precision control for stable power
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Addressable Gen 2 Header
        ASUS Exclusive Features:
        - AI Suite 3
        - Ai Charger
        ASUS Quiet Thermal Solution:
        - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
        - ASUS Fan Xpert 4
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        ASUS Q-Design:
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        DIY Friendly Design
        - Procool
        - SafeSlot
        - Digi+ VRM
        - Highly Durable components
        - ESD Guards

        BIOS:
        256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

        Manageability:
        WOL by PME, PXE

        Operating System:
        Windows 10 64-bit
        Packaging

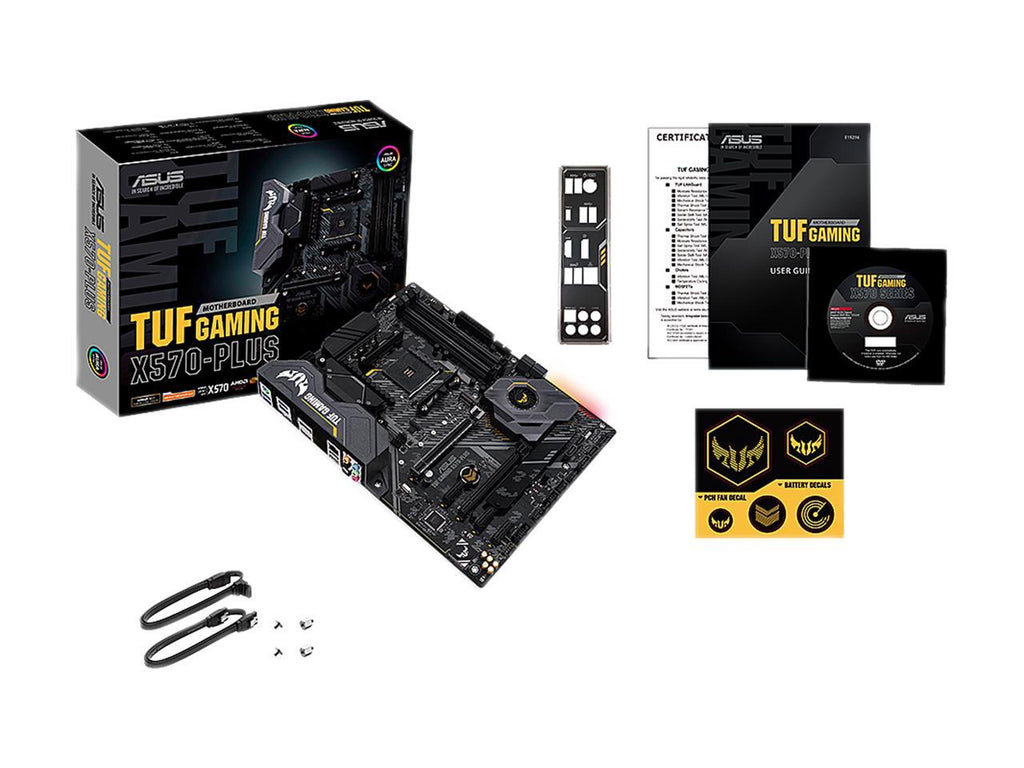

        Package Contents Accessories:
        User's manual
        I/O Shield
        2 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x TUF GAMING Sticker
        1 x TUF Certification card(s)

        Specifications :

        General Information

        Manufacturer ASUS Computer International
        Manufacturer Part Number TUF GAMING X570-PLUS
        Manufacturer Website Address http://usa.asus.com
        Brand Name TUF
        Product Model GAMING X570-PLUS
        Product Name GAMING X570-PLUS Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 192876388457

        Chipset

        Chipset ManufacturerAMD

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports7
        Number of USB 3.2 Gen 1 Ports4
        Width12"
        Depth9.6"

        Miscellaneous

        Package Contents
        • GAMING X570-PLUS Desktop Motherboard
        • 2 x SATA 6Gb/s Cables
        • 1 x IO Shield
        • 1 x M.2 Screw Package
        • 1 x TUF Gaming Sticker
        • 1 x TUF Certification card(s)
        • 1 x User's Manual
        • 1 x Support DVD
          • Drivers
          • ASUS Utilities
          • ASUS EZ Update
          • Anti-virus software (OEM version)
        Environmentally FriendlyYes

        Warranty

        Limited Warranty3 Year
