ASRock

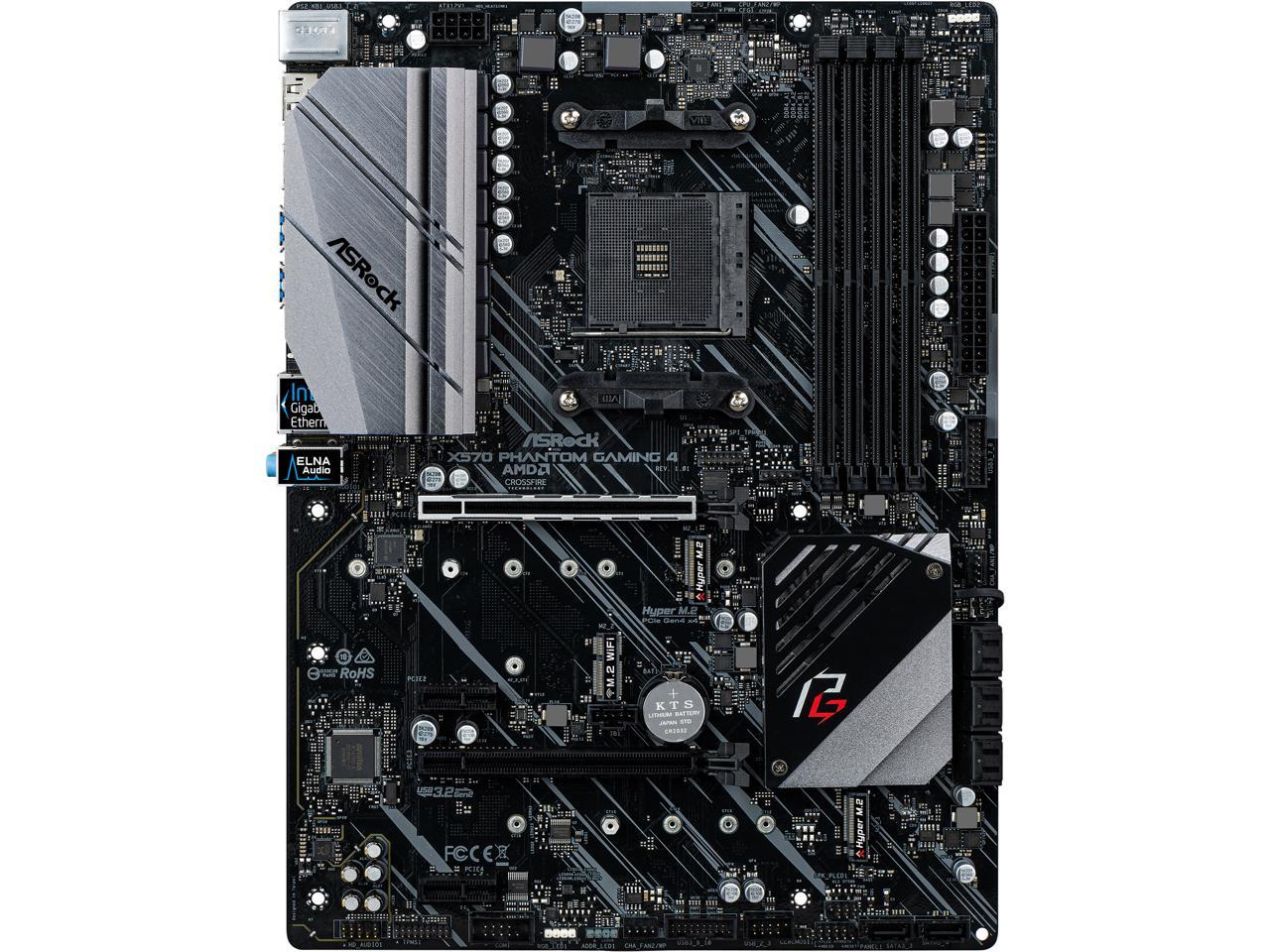

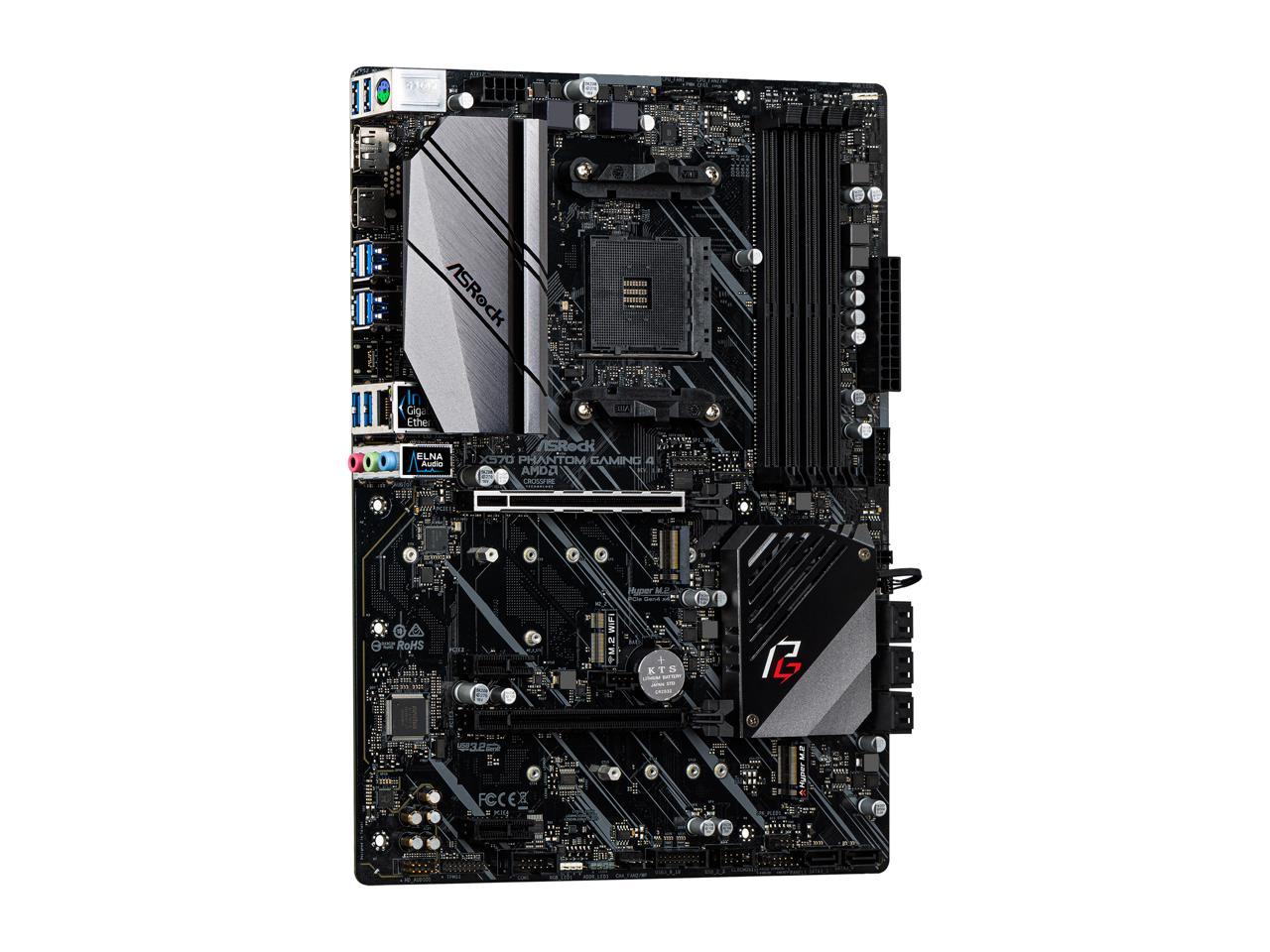

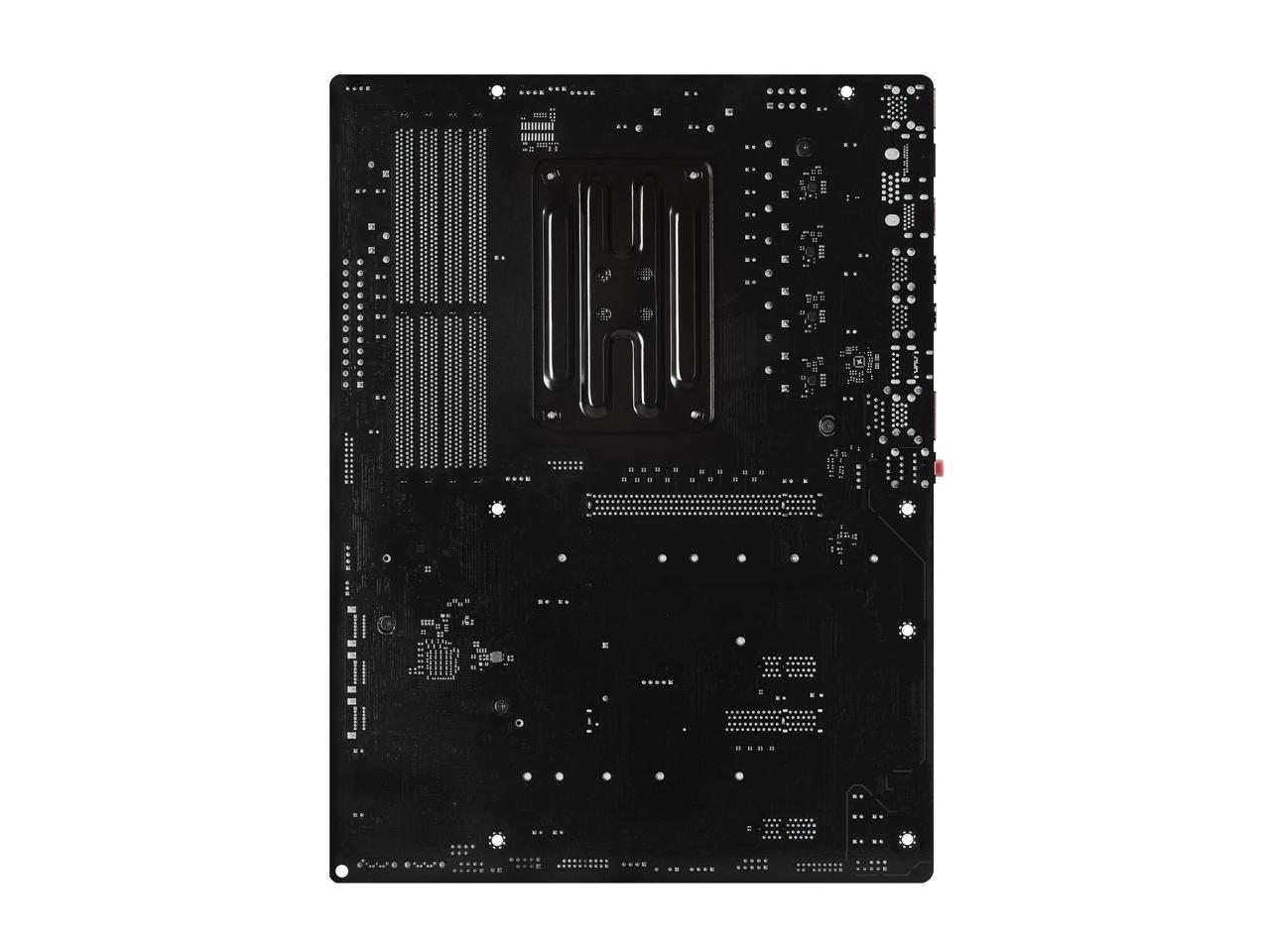

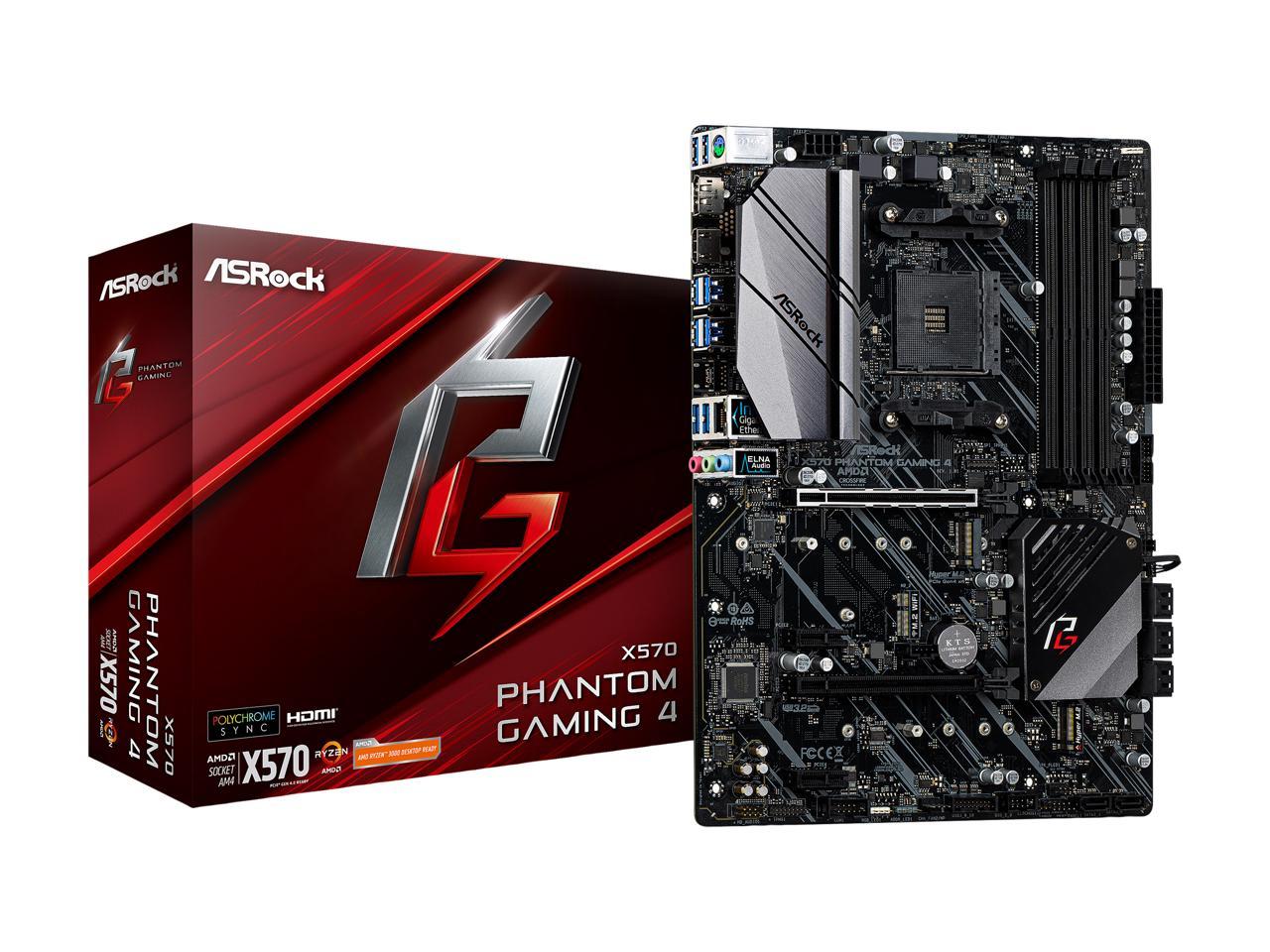

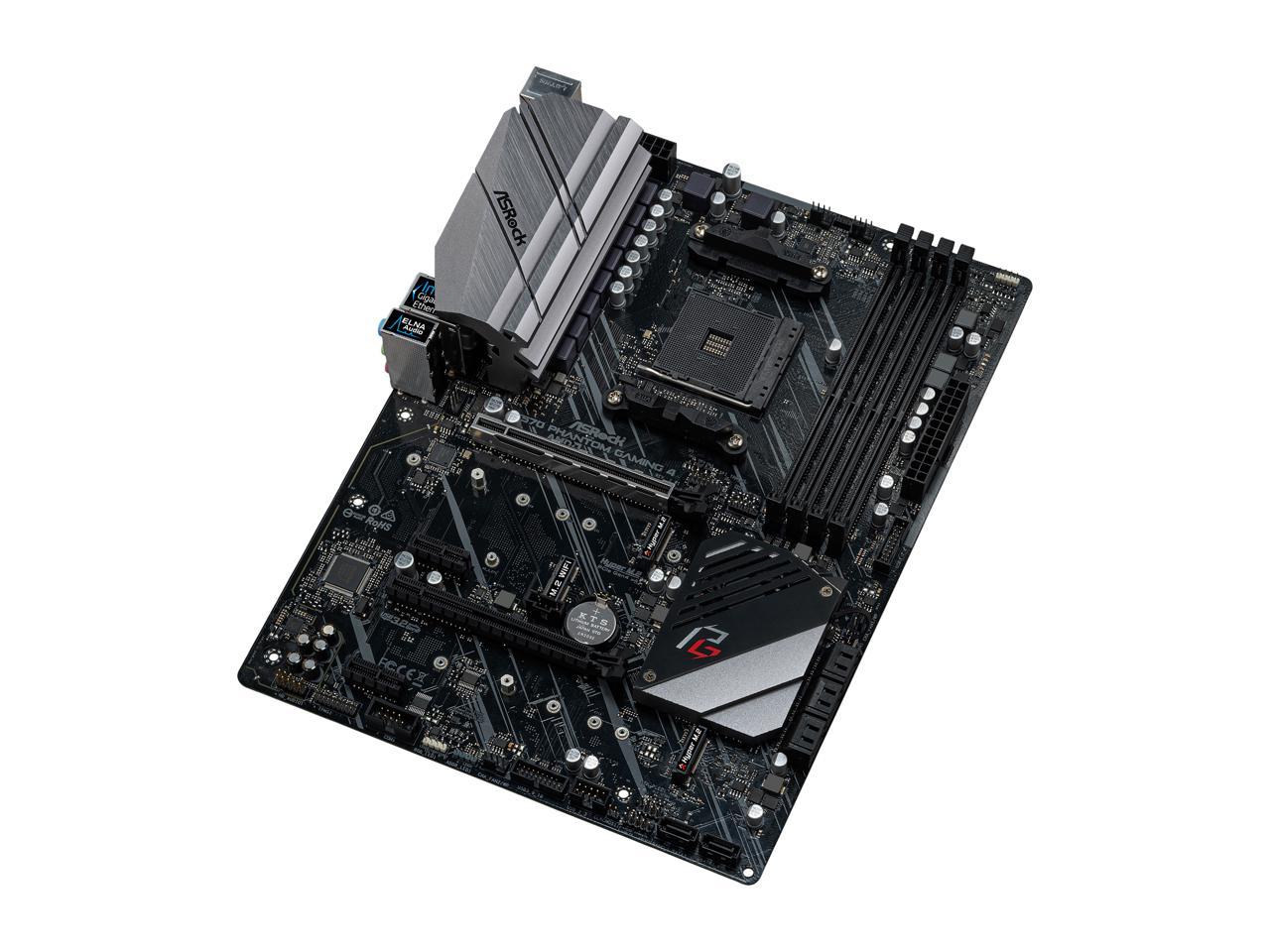

Asrock X570 Phantom Gaming 4 Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

Asrock X570 Phantom Gaming 4 Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

SKU:X570 PHANTOM GAM 4

Regular price $189.62
Regular price Sale price $189.62
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
        • AMD X570
        • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
        • AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
        X570 Phantom Gaming 4
        X570 Phantom Gaming 4

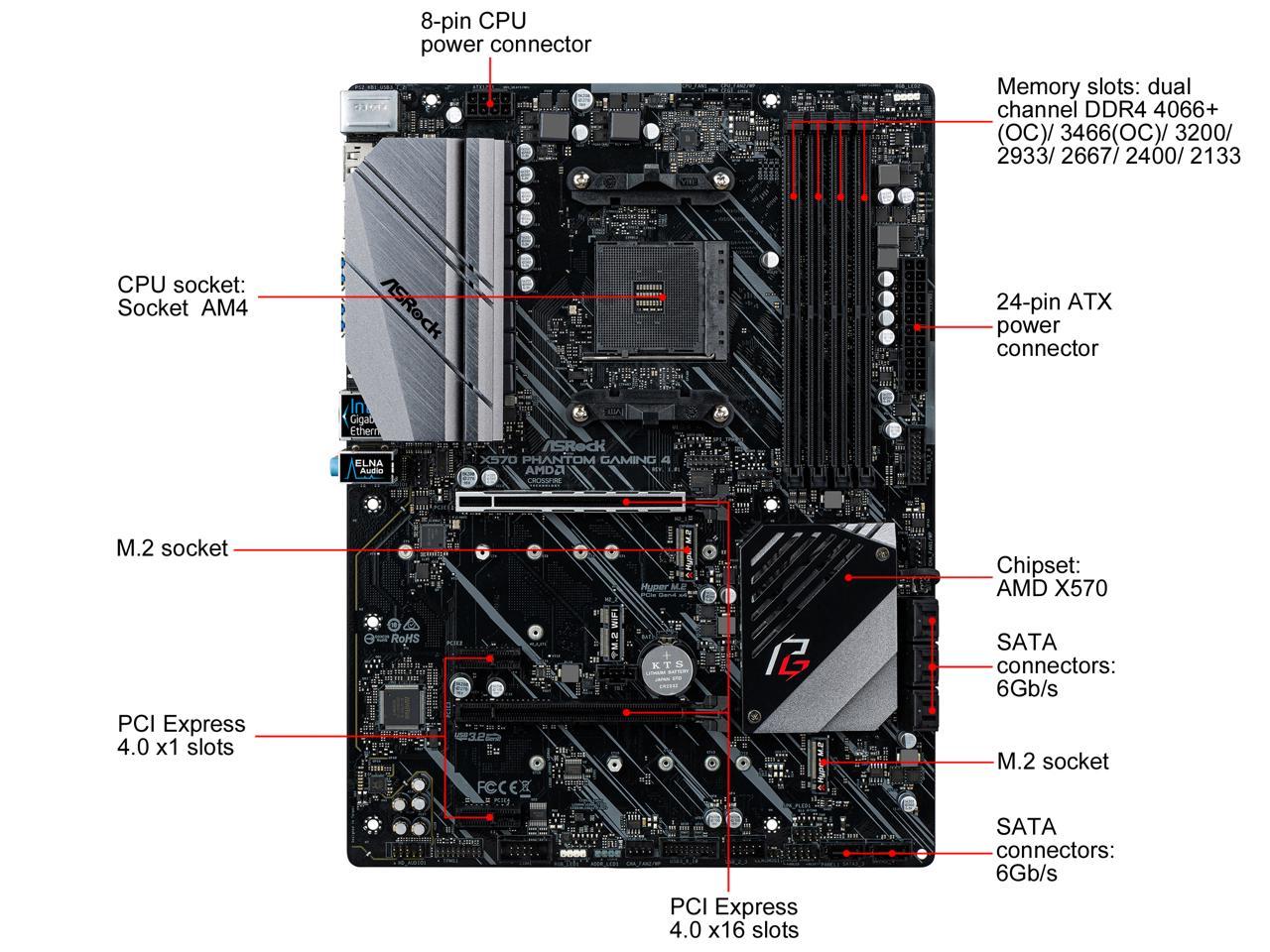

        • Supports AMD AM4 Socket Ryzenâ„¢ 2000 and 3000 Series processors
        • 10 Power Phase Design
        • Supports DDR4 4066+ (OC)
        • 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
        • AMD Quad CrossFireXâ„¢ and CrossFireXâ„¢
        • Graphics Output Options: HDMI, DisplayPort
        • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
        • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
        • 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
        • Intel® Gigabit LAN
        • ASRock Polychrome SYNC
        X570 Phantom Gaming 4
        REVOLUTIONARY X570 MOTHERBOARDS :
        Your PC Transformed

        Style. More reliable. Design that delivers.

        X570 Phantom Gaming 4
        X570 Phantom Gaming 4
        STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

        The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

        X570 Phantom Gaming 4
        Dual Hyper M.2 For SSD

        Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

        X570 Phantom Gaming 4
        RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

        This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

        X570 Phantom Gaming 4*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
        X570 Phantom Gaming 4
        X570 Phantom Gaming 4
        10 POWER PHASE DESIGN

        Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        X570 Phantom Gaming 4

        An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

        X570 Phantom Gaming 4
        2 x USB3.2 Gen2

        Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.

        X570 Phantom Gaming 4
        Intel® LAN

        Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

        X570 Phantom Gaming 4
        XXL Aluminum Alloy Heatsink
        X570 Phantom Gaming 4

        Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

        Premium 50A Power Choke
        X570 Phantom Gaming 4

        Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Sapphire Black PCB
        X570 Phantom Gaming 4

        Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

        High Density Glass Fabric PCB
        X570 Phantom Gaming 4

        High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        2oz Copper PCB
        X570 Phantom Gaming 4

        Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

        X570 Phantom Gaming 4
        ELNA Audio Caps

        Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

        X570 Phantom Gaming 4
        M.2 (KEY E) For WiFi

        Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
        *Wi-Fi module is not included.

        X570 Phantom Gaming 4
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        X570 Phantom Gaming 4
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

        Specifications :

        General Information

        UPC 4717677338881
