ASRock

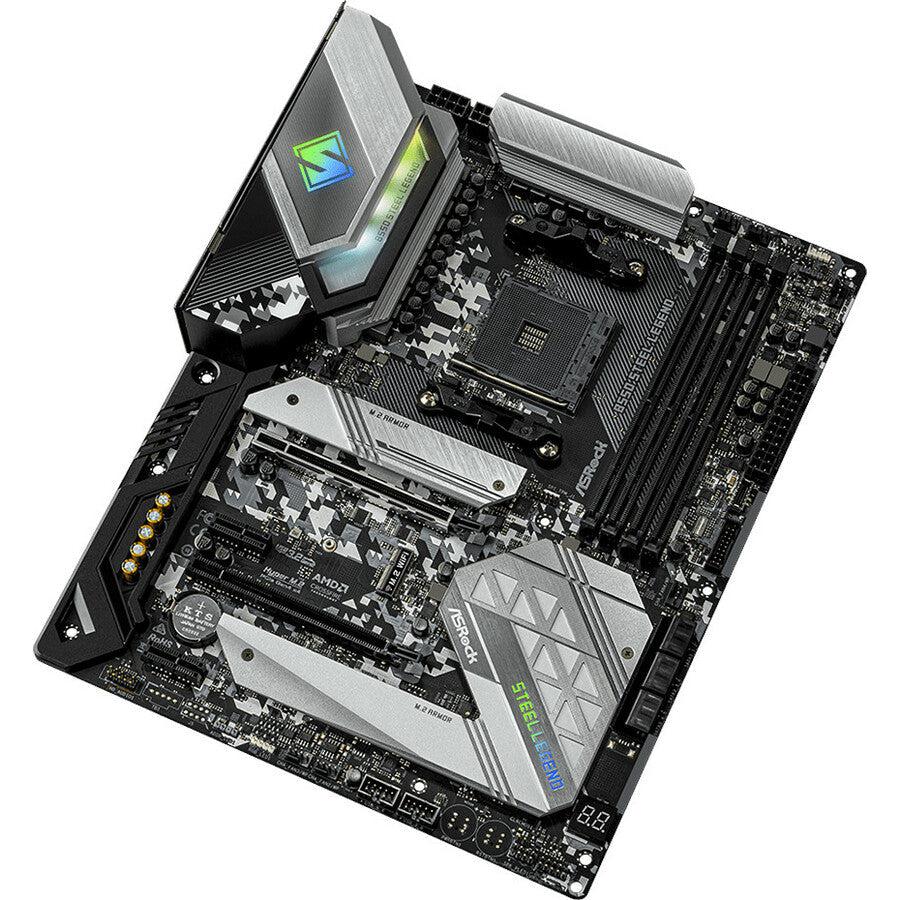

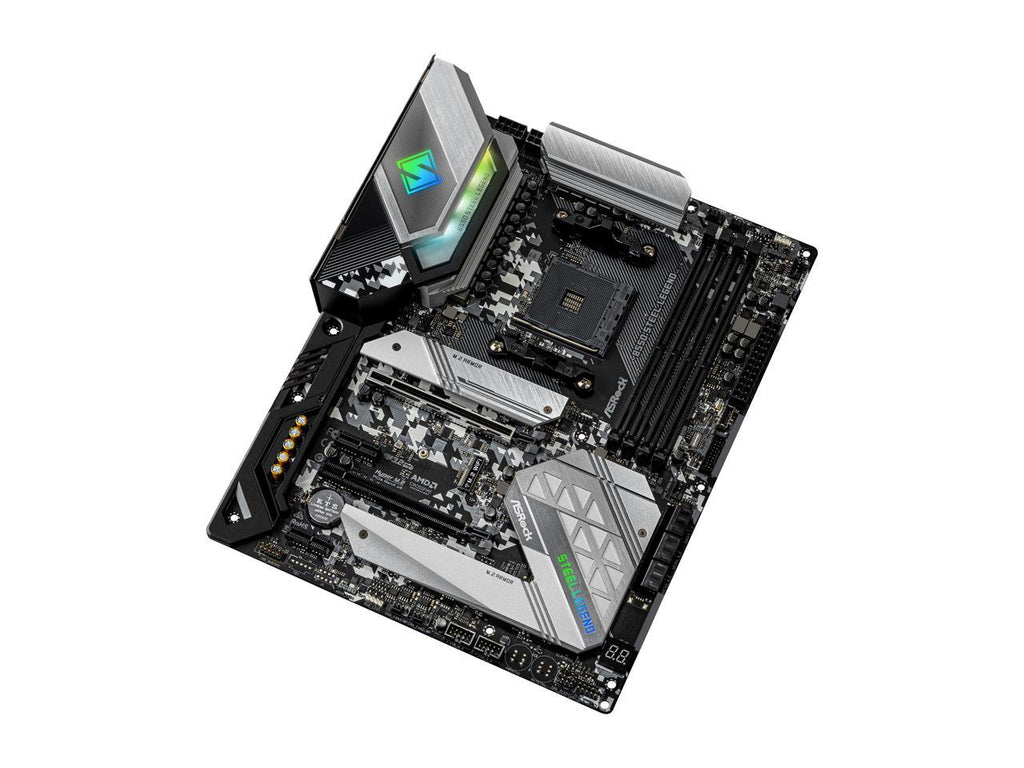

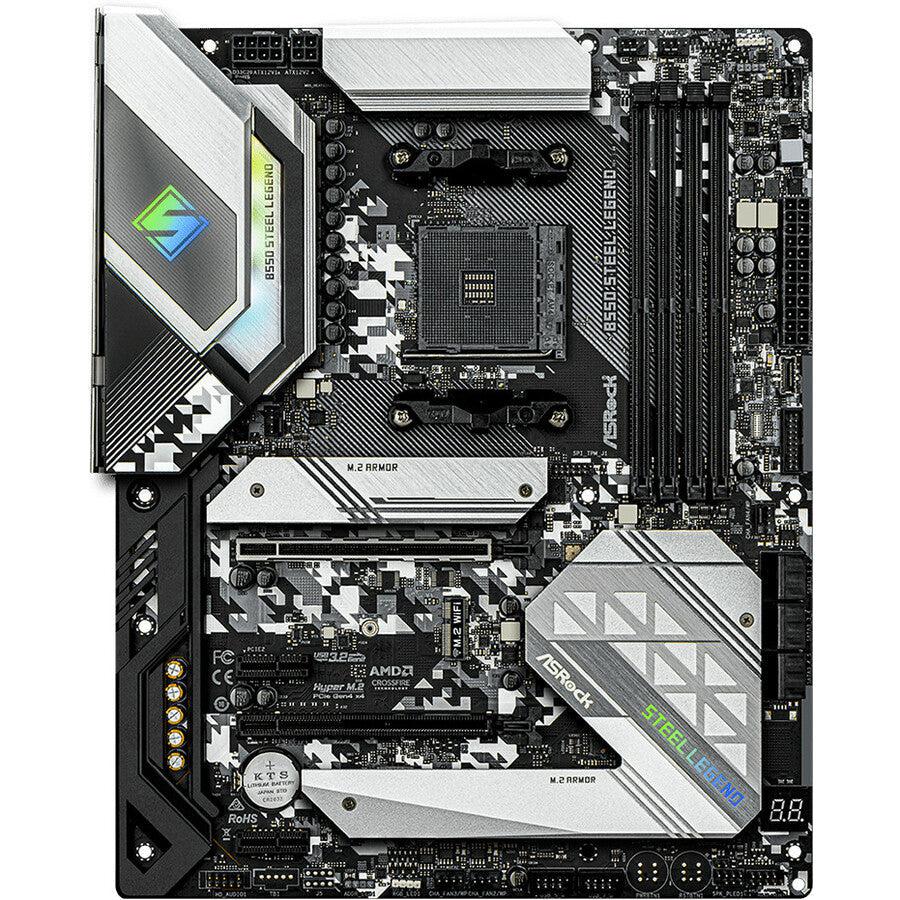

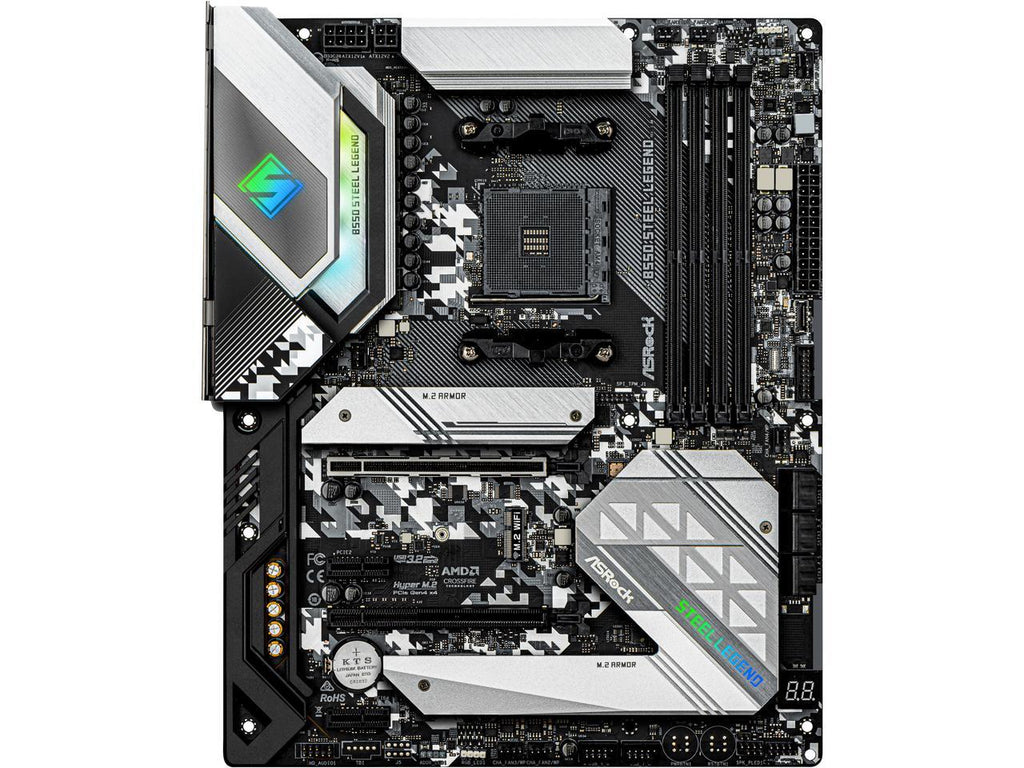

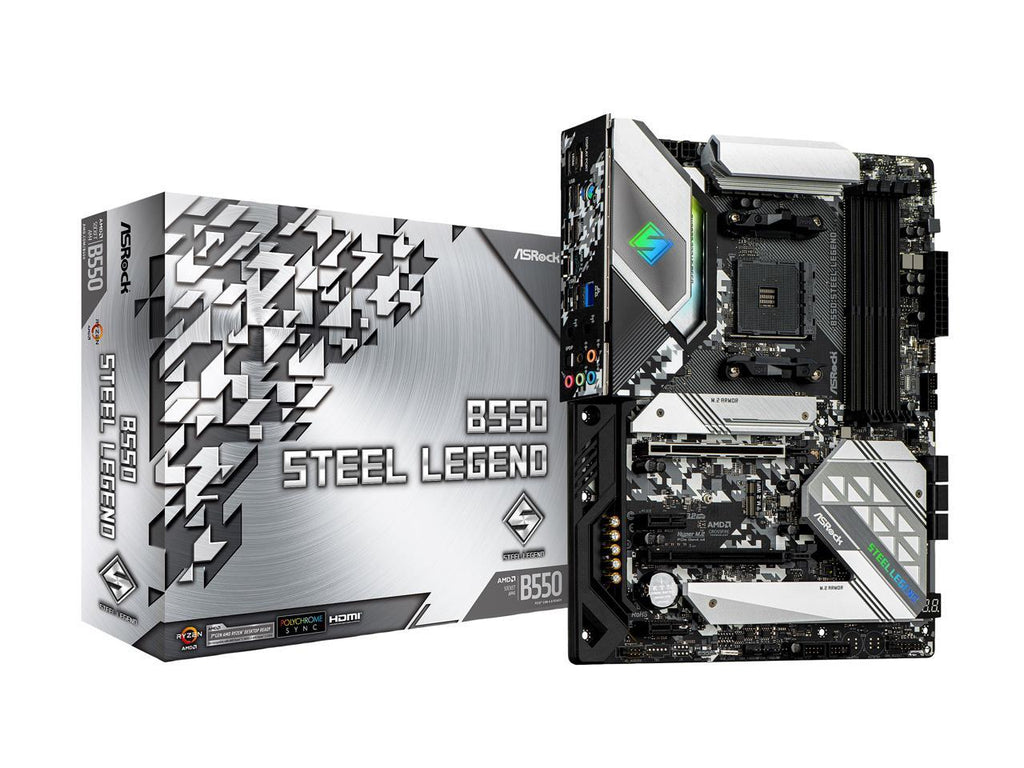

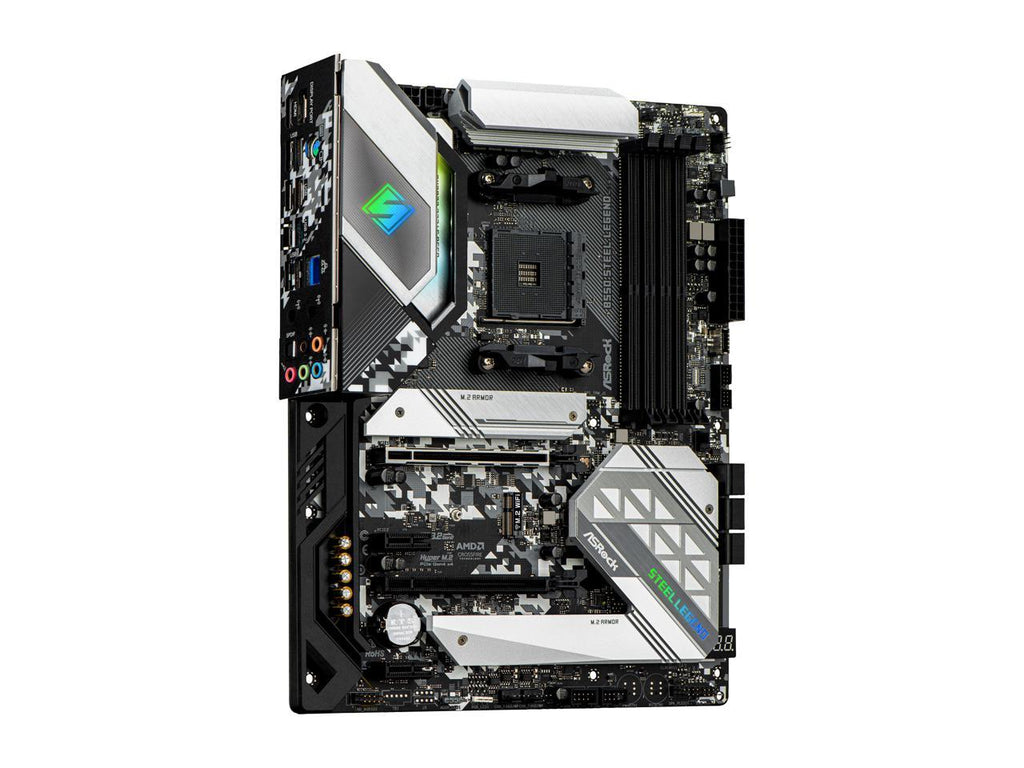

Asrock B550 Steel Legend Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard

Asrock B550 Steel Legend Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard

SKU:B550 STEEL LEGEND

Regular price $188.99
Regular price Sale price $188.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

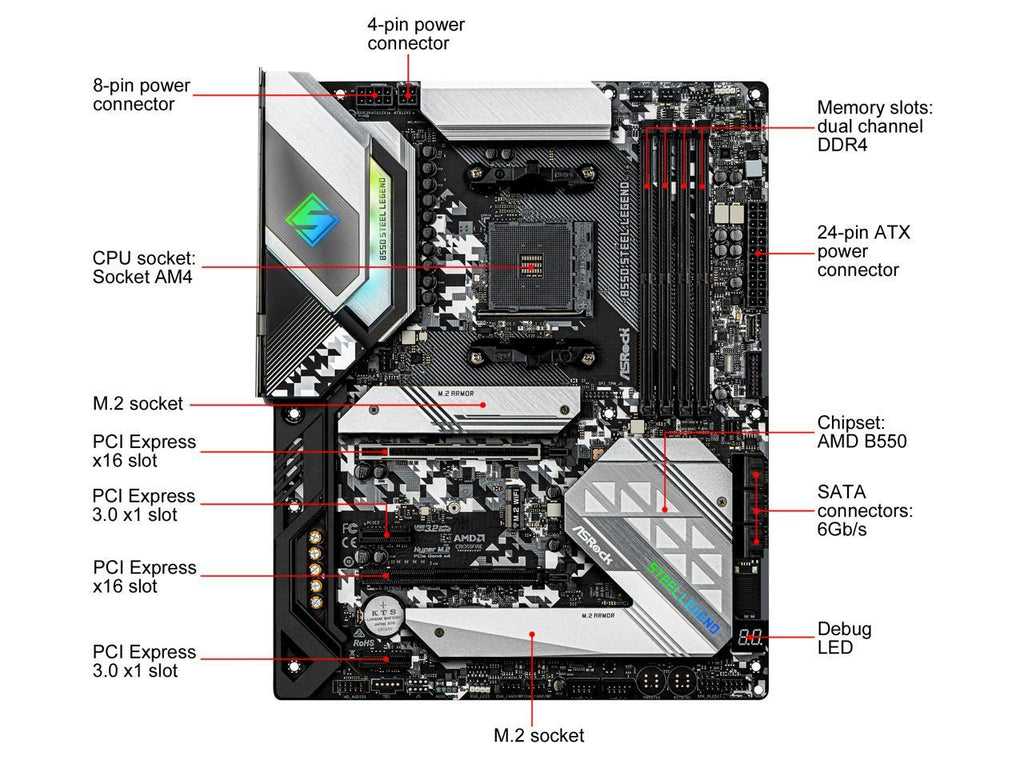

        • AMD B550
        • Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Processors
        • DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer & Matisse), APUs (Cezanne & Renoir) support)
        • DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Picasso) support)
        B550-PG-Velocita motherboard
        B550 Steel Legend
        • Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
        • 14 Power Phase Design, Digi Power, Dr. MOS
        • Supports DDR4 4733+ (OC)
        • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
        • Graphics Output Options: HDMI, DisplayPort
        • AMD CrossFireX
        • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
        • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

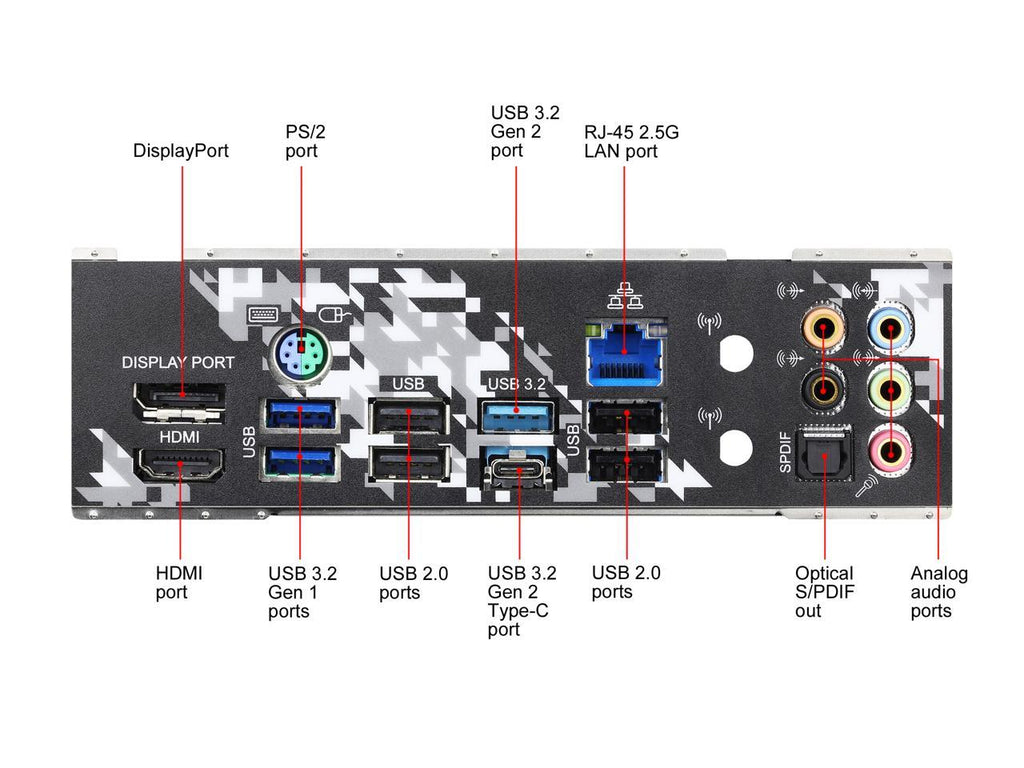

        • 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
        • Dragon 2.5G LAN
        detail of the motherboardleft side of the motherboardtop side of the motherboard
        B550M Steel Legend motherboard

        Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

        B550 Steel Legend motherboard
        STEEL FOREVER

        Get Endless Performance Possibilities with Steel Style

        DualM2-SSD-B550 of the motherboard
        Unbeatable Heatsink Armor

        Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

        Dual M.2 Sockets for SSD

        Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

        a woman is listening music
        Nahimic Audio

        Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

        a woman is listening music

        The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

        DrMOS-B550 of the motherboard
        Dr. MOS

        Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

        Premium 60A Power Choke

        Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

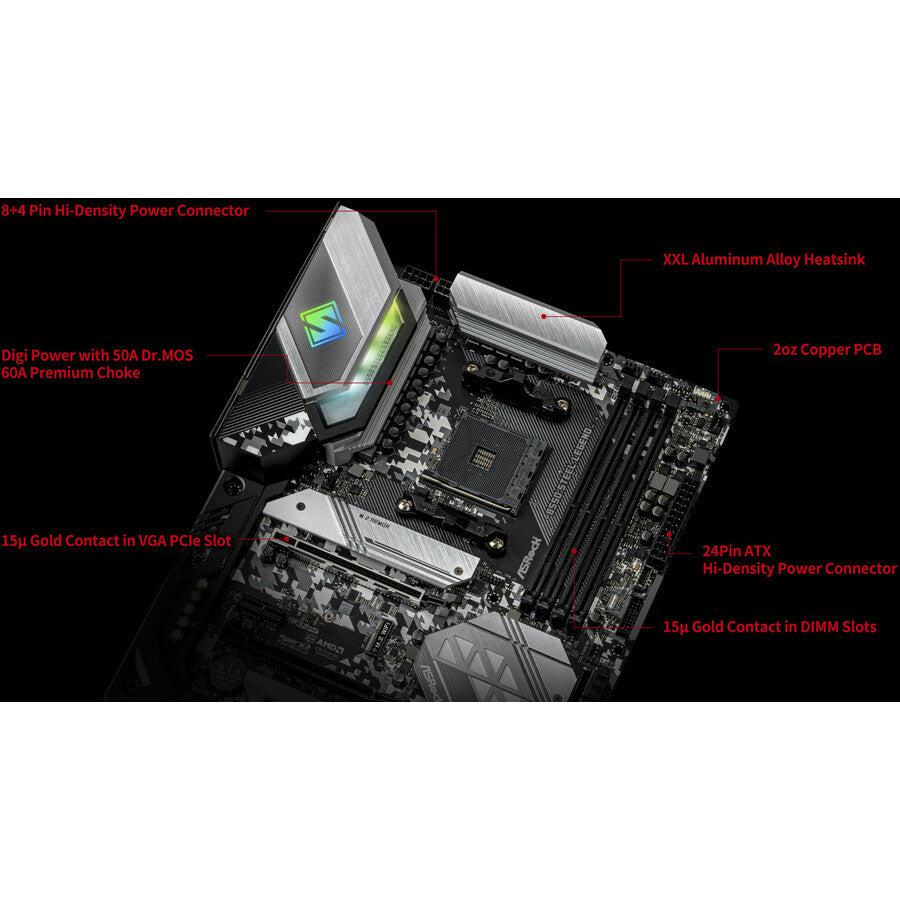

        14 Power Phase Design of the motherboard
        14 Power Phase Design

        Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        HiDensityPowerConnector-B550 of the motherboard
        Hi-Density Power Connector

        Reduces 23% power loss and decreases the connector's temperature by 22 degrees Celsius.
        8+8 12V Power Connectors
        24-pin ATX Power Connector

        2ozCopperPCB-B550 of the motherboard
        2oz Copper PCB

        2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

        POLYRGBLED-B550 Steel Legend 4 WiFi ax
        RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

        ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

        Polychrome-RGB Phantom Gaming 4 WiFi ax*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
        B550 Extreme4 motherboard

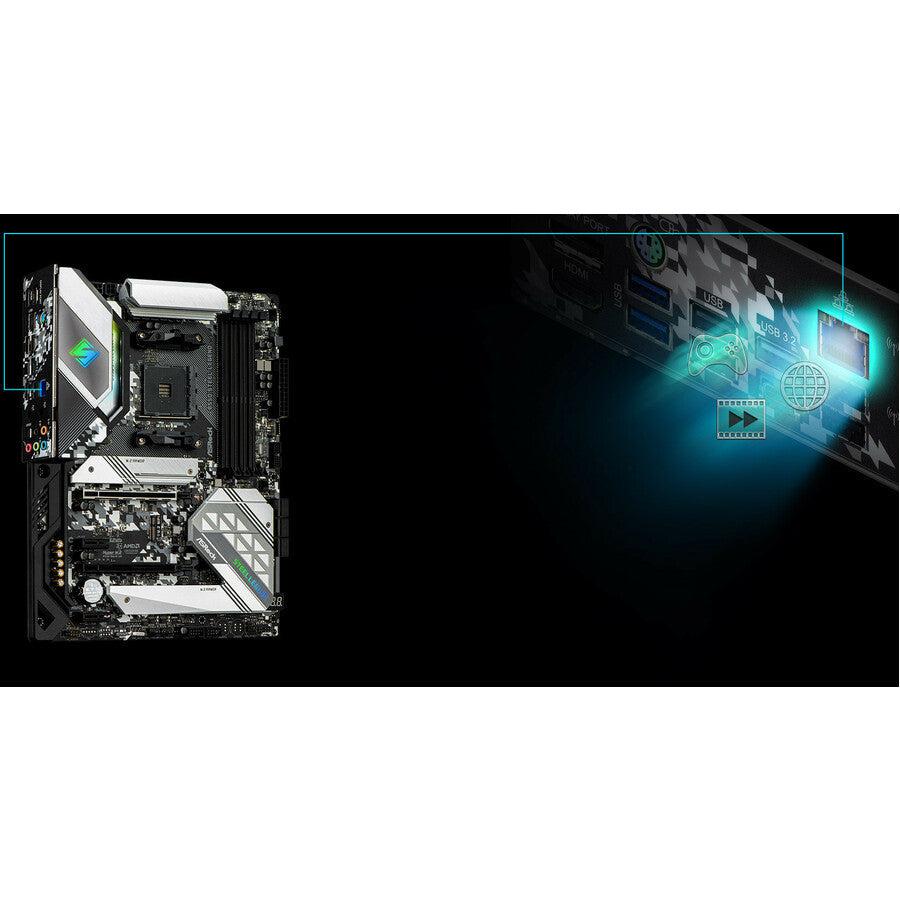

        Dragon 2.5 Gb/s LAN

        The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

        PhantomGamingLAN-Speed icon
        screenshot of Dragon2.5GLAN-UI

        Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

        PCI-E 4.0 of the motherboard
        Reinforced Steel Slot [PCIe 4.0 Version]

        The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:

        • Extra anchor points
        • Stronger latch
        • Ensure signal stability
        • Make sure heavy graphics cards to be well-installed.
        USB 3.2 Gen1 Type-C of the motherboard
        Front USB 3.2 Gen1 Type-C

        Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

        2XUSB3.2Gen2 Phantom Gaming 4 WiFi ax
        Dual USB 3.2 Gen2 (Type-A + Type-C)

        This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

        chart of USB3.2 Gen2
        M.2 Key For WiFi of the motherboard
        M.2 (KEY E) For WiFi

        Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included.

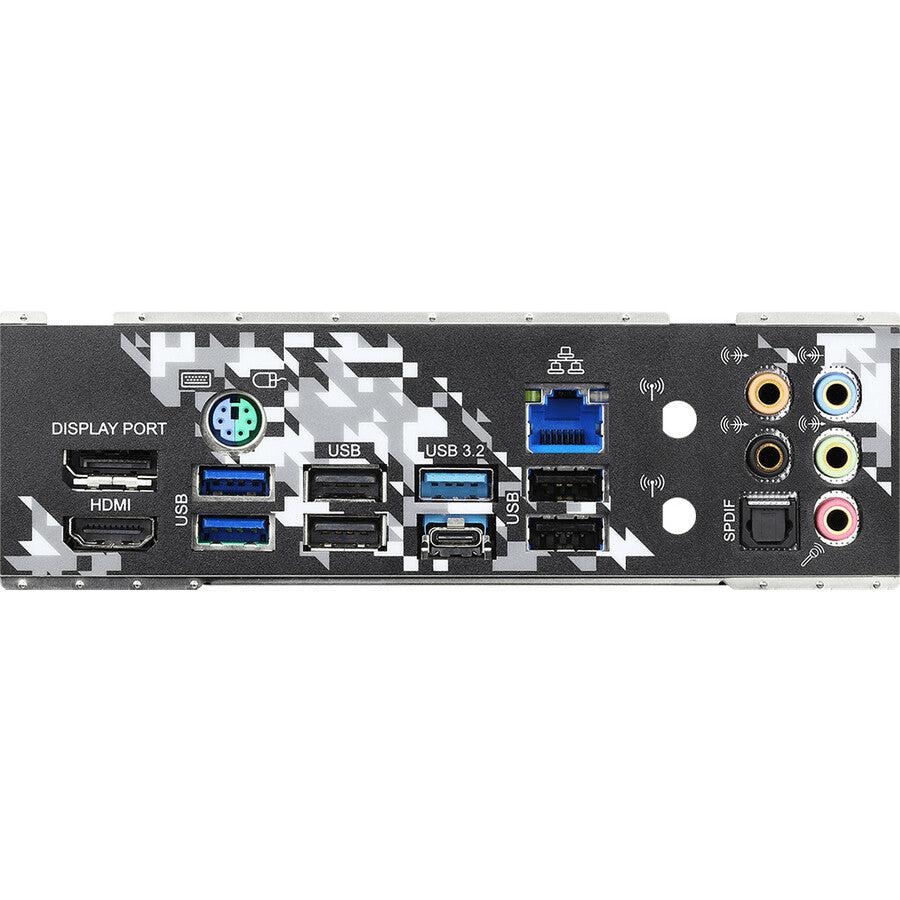

        Integrated I/O of the motherboard

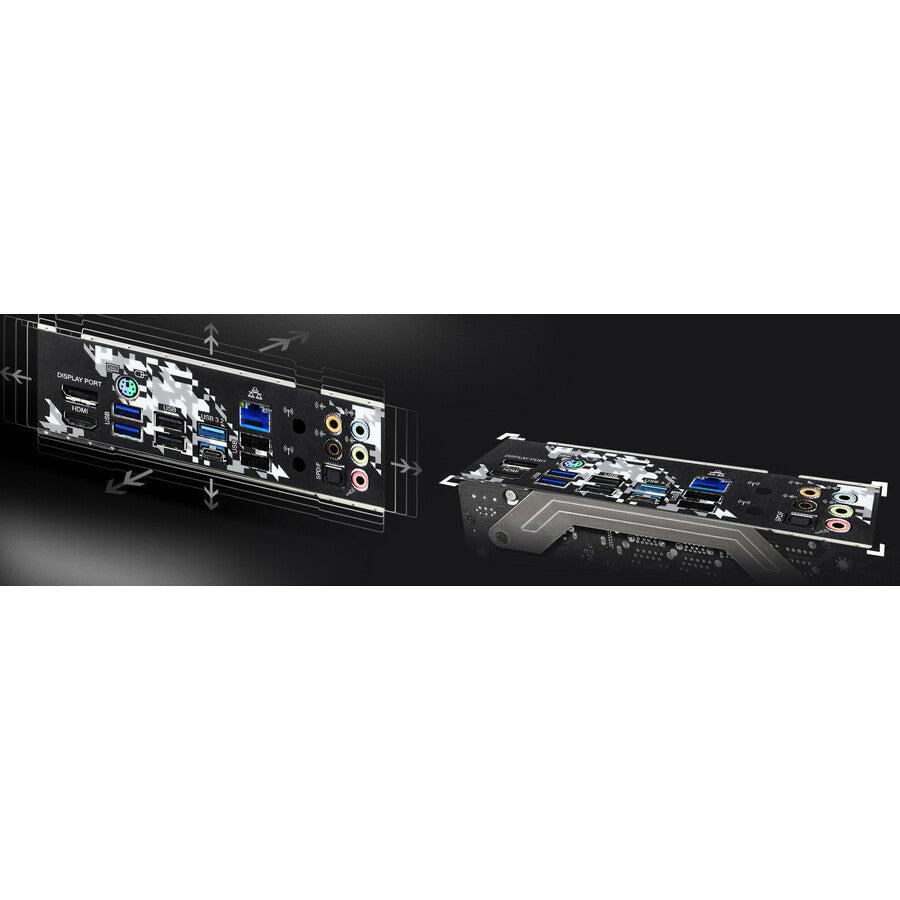

        Flexible Integrated I/O Shield

        Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

        Dual Graphics Outputs of the motherboard
        Dual Graphics Outputs

        Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

        SA icon
        XXL Aluminum Alloy Heatsink

        SA-Heatsink-B550 of the motherboard

        Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

        Premium 60A Power Choke
        SA-60APowerChoke of the motherboard

        Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Dr. MOS

        SA-DrMOS of the motherboard

        Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

        Premium Memory Alloy Choke
        SA-MemoryAlloyChoke of the motherboard

        Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

        Nichicon 12K Black Caps
        SA-Nichicon12KBlack of the motherboard

        Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

        I/O Armor
        SA-ComboCaps of the motherboard

        A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

        Matte Black PCB
        SA-MattePCB of the motherboard

        A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

        High Density Glass Fabric PCB
        SA-HDPCB of the motherboard

        High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        2oz Copper PCB

        SA-8PCB of the motherboard

        Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

        Gold Audio Jacks
        Gold Audio Jacks

        Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

        FullSpike
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        APPShop
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

        Specifications :

        General Information

        Manufacturer ASRock, Inc
        Manufacturer Part Number B550 STEEL LEGEND
        Manufacturer Website Address http://www.asrock.com
        Brand Name ASRock
        Product Model B550 Steel Legend
        Product Name B550 Steel Legend Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 4710483931574

        Chipset

        Chipset ManufacturerAMD

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports6
        Width12"
        Depth9.6"
