ASRock

Asrock B450M/Ac Am4 Amd Promontory B450 Sata 6Gb/S Micro Atx Amd Motherboard

Asrock B450M/Ac Am4 Amd Promontory B450 Sata 6Gb/S Micro Atx Amd Motherboard

SKU:B450M/AC

Regular price $101.99
Regular price Sale price $101.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • AMD Promontory B450
        • Ryzen / Athlon Series
        • AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
        ASRock Logo
        ASRock B450M_ac Motherboard Standing Up, Angled to the Right

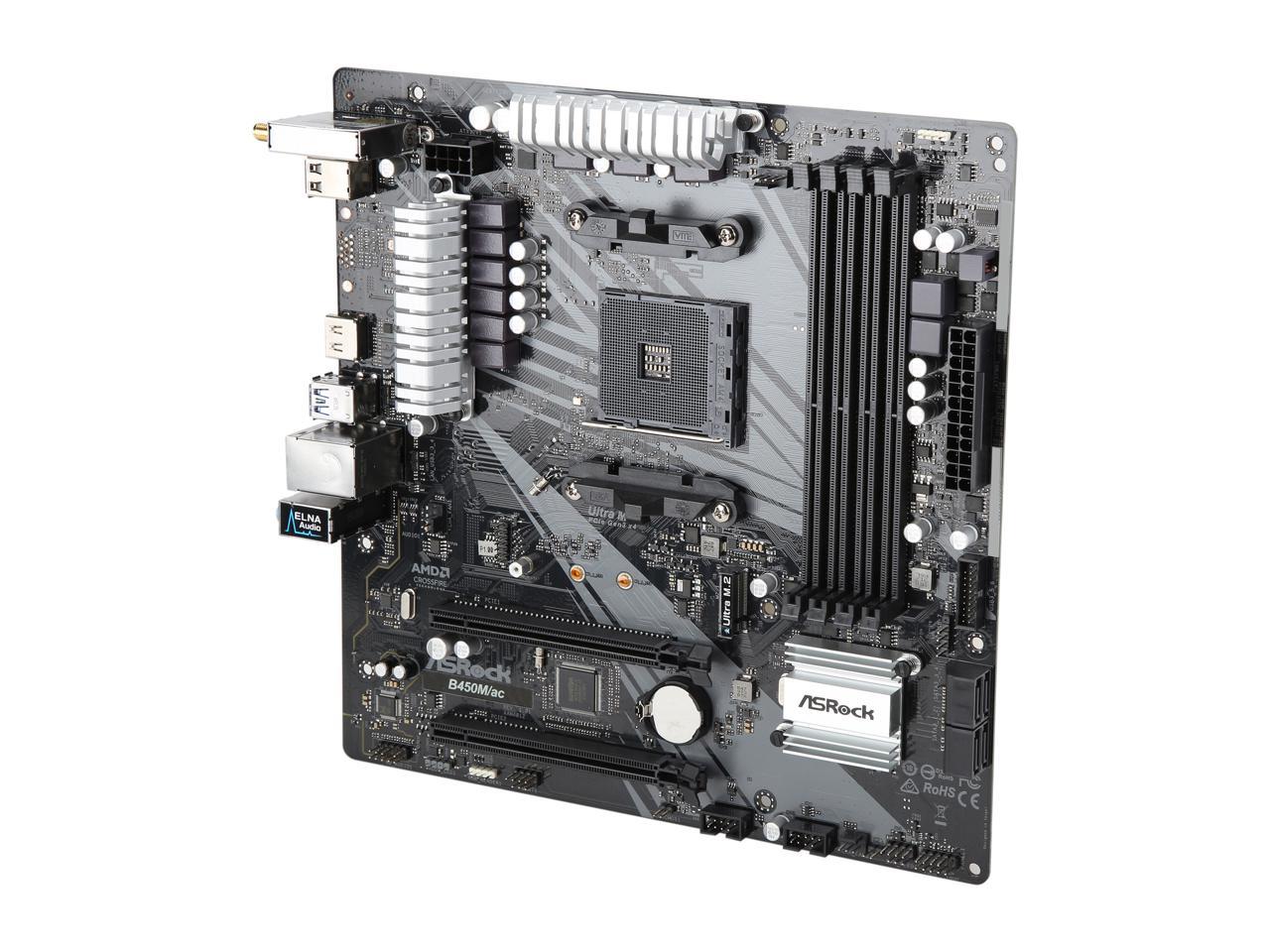

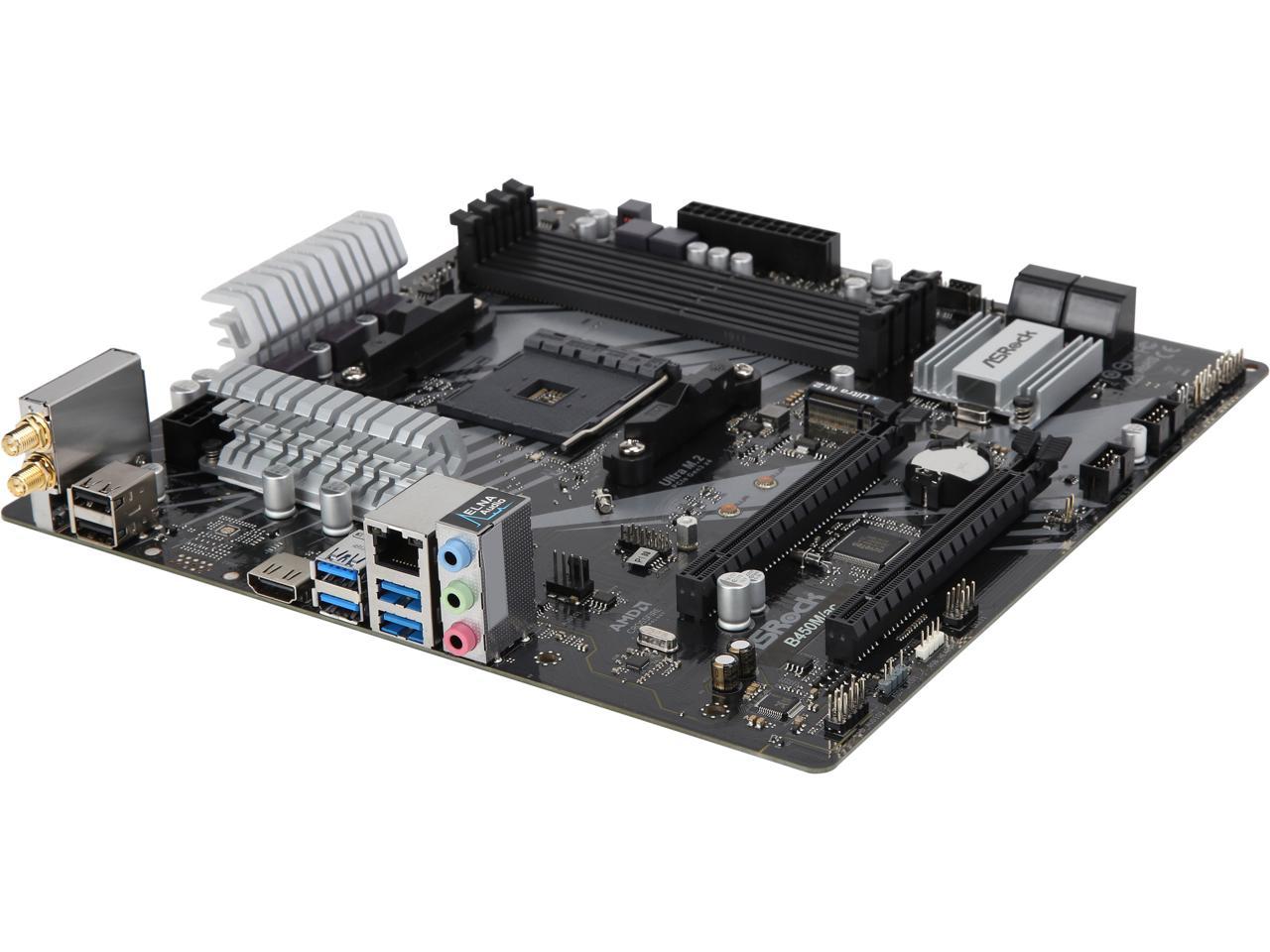

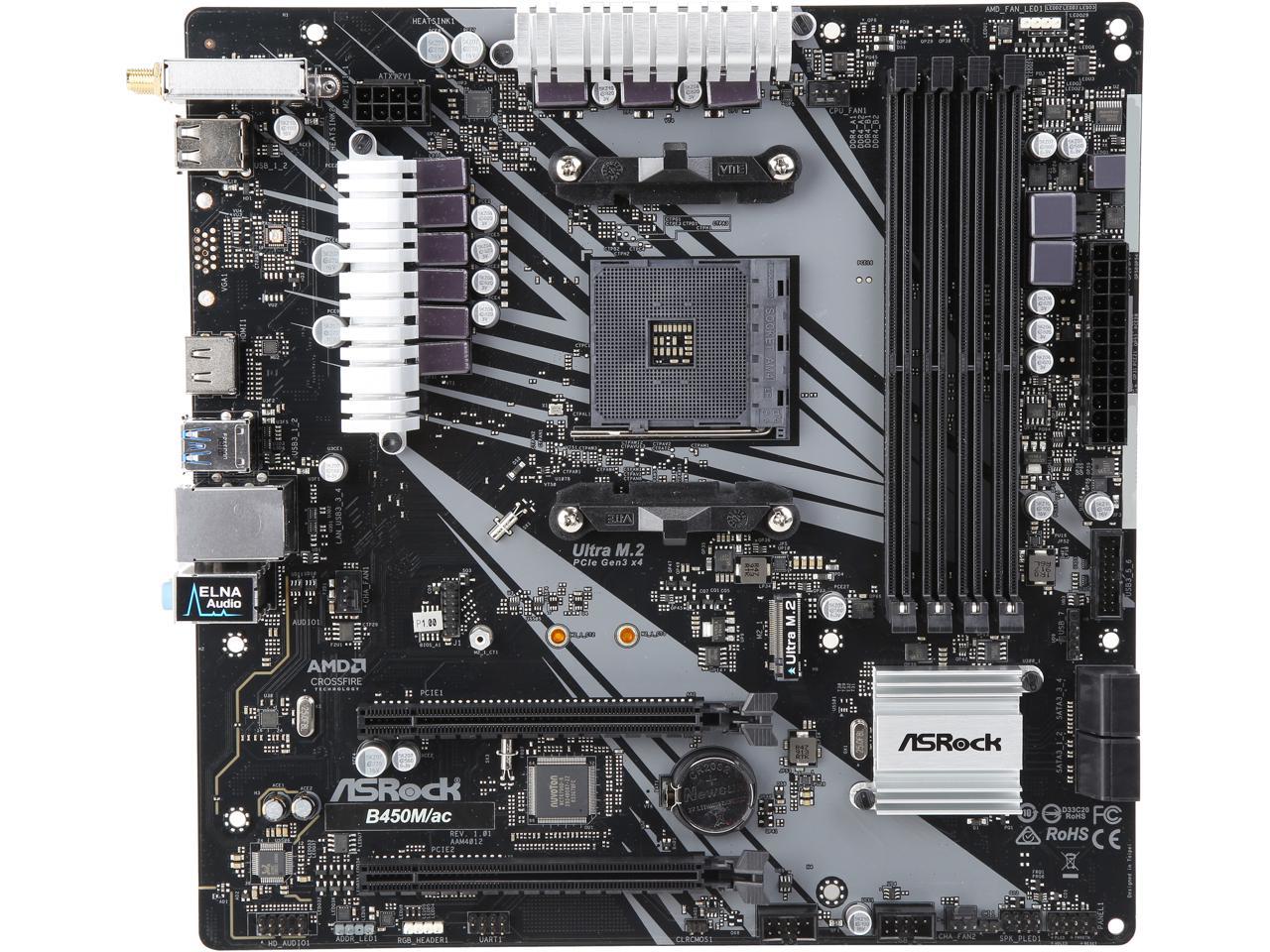

        ASRock B450M/ac Motherboard

        Powered by the AMD B450M chipset, this motherboard works flawlessly with the latest 3rd generation AMD Ryzen processors based on Zen 2 micro architecture as well as 2nd/1st generation Ryzen processors. This micro ATX board has quad DIMM slots, dual PCIe x16 slots, an Ultra M.2 slot, and a GbE LAN port—enough for you to build a gaming rig or home entertainment PC. 802.11ac Wi-Fi and Bluetooth are built onboard for wireless convenience out of the box. Super Alloy guarantees unbeatable reliability and durability to withstand harsh environments. Moreover, you can connect RGB and addressable RGB gadgets, and synchronize them with Polychrome RGB Sync-certified accessories for unified, harmonious lighting that's awesome to behold.

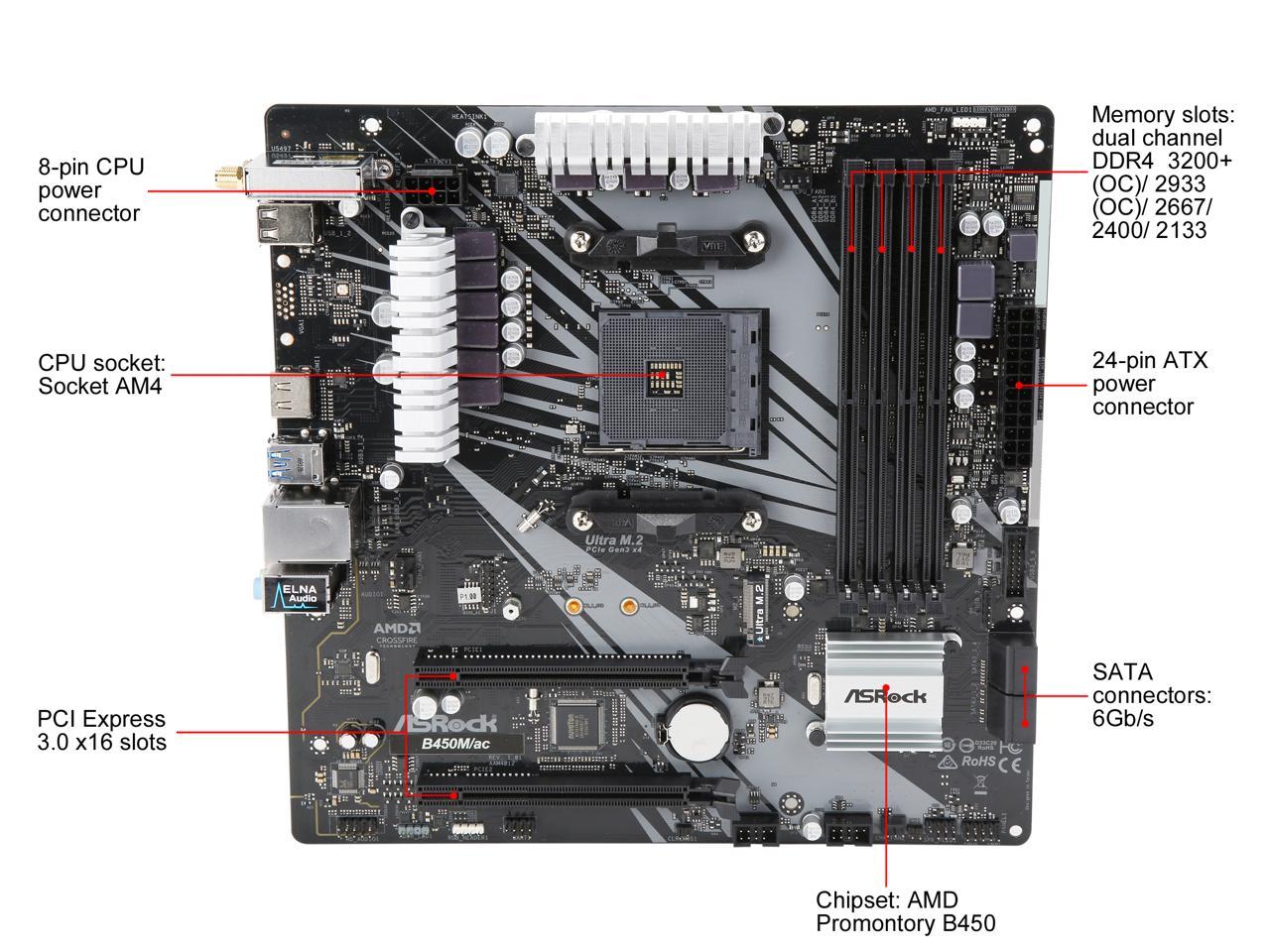

        • AMD AM4 Socket
        • Supports DDR4 3200+ (OC)
        • 1x PCIe 3.0 x16, 1x PCIe 2.0 x16
        • AMD Quad CrossFireX
        • Graphics Output: HDMI
        • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
        • 4x SATA3, 1x Ultra M.2 (PCIe Gen3 x4)*
        • 6x USB 3.1 Gen1 (2x Front, 4x Rear)
        • Realtek Gigabit LAN
        • ASRock Polychrome SYNC
        • Actual support may vary by CPU.
        1_Polychrome RGB
        Rule Your Own Lighting Way—Polychrome RGB

        This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

        The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

        *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

        Ultra M.2 SSD Slot on the ASRock B450M/AC AM4 Motherboard
        Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA 3)

        The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

        Dual-Band 802.11ac WiFi Antenna on the ASRock B450M/AC AM4 Motherboard
        Dual-Band 802.11ac WiFi

        No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

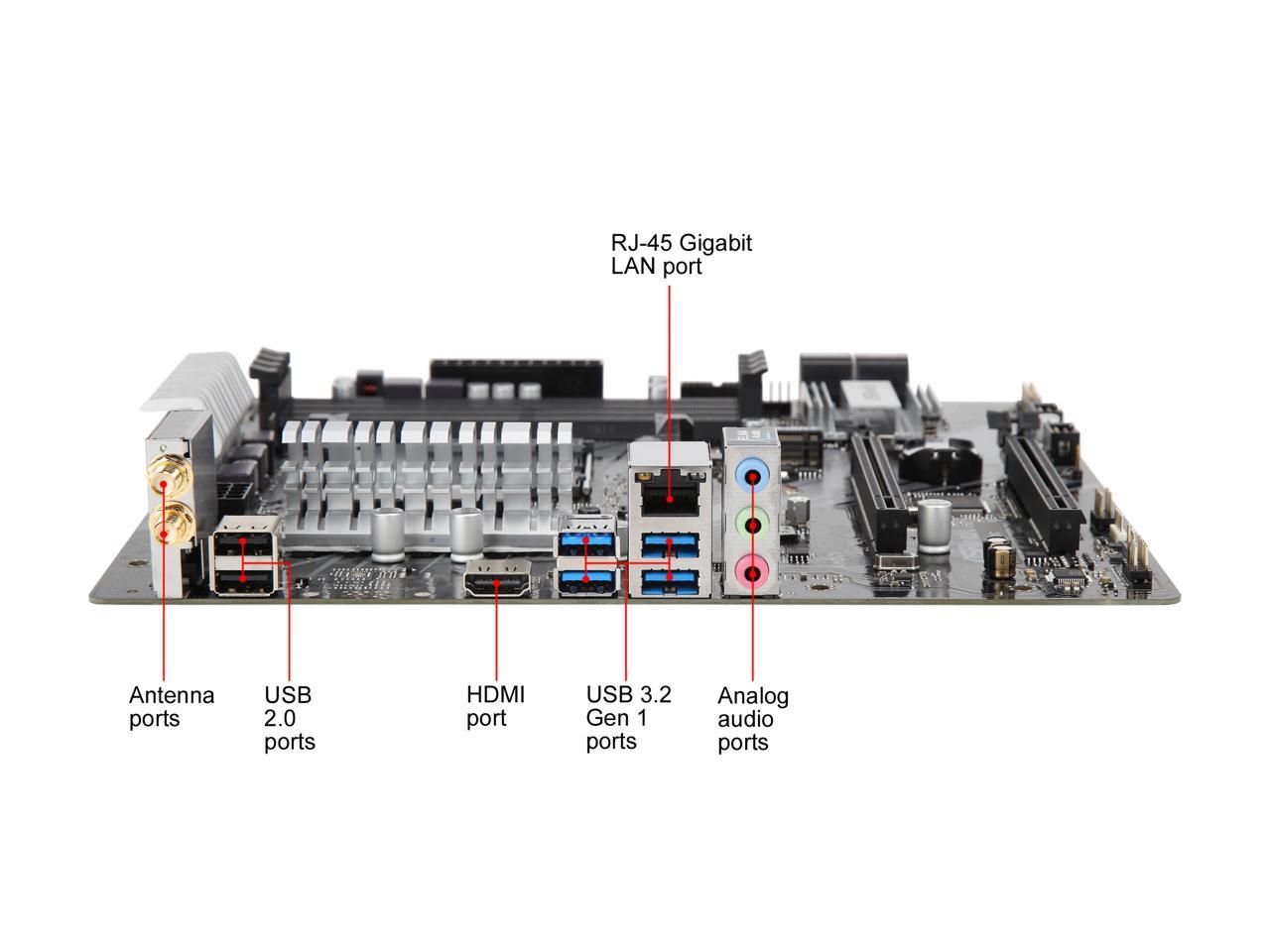

        USB 3.2 Gen1 Port
        4x USB 3.2 Gen1

        Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4x USB 3.2 Gen1 ports onboard allowing you to have a stunning data transfer experience.

        Graphic Text That Reads: Super Alloy Motherboard
        Sapphire Black PCB Bottom-Right Corner of the ASRock B450M/AC AM4 Motherboard

        Sapphire Black PCB

        Pure-black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

        High Density Glass Fabric PCB Versus Traditional

        High-Density Glass Fabric PCB

        High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        2oz Copper PCB Graphic

        2oz Copper PCB

        Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

        ASRock B450M/AC AM4 Motherboard's ELNA Audio Caps

        ELNA Audio Caps

        Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

        Full Spike Protection Logo

        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, and the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

        ASRock App Shop and Compatible Software Icons

        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

        Specifications :

        General Information

        UPC 4717677338652
