Advantech Ds-061Gb-S7A1E Pc/Workstation Barebone Usff Black, Silver Intel® Qm77 Express Bga 1023 I7-3517Ue 1.7 Ghz

Description :

Intel Core i7-3517UE (4M Cache, up to 2.80 GHz), AMI uEFI 64 Mbit, DDR3 1066/1333MHz, VGA, DP, 2 x USB 3.0, 19 V DC

Advantech DS-061GB-S7A1E. Chassis type: USFF, Product type: Mini PC barebone. Motherboard chipset: Intel® QM77 Express, Processor socket: BGA 1023, BIOS type: EFI AMI. Supported memory types: DDR3-SDRAM, Number of memory slots: 1, Maximum internal memory: 8 GB. Supported storage drive types: HDD, Storage drive interface: Serial ATA III. Cooling type: Active

- Unified 19 mm-thin chassis powered by Intel multiple platforms (TDP up to 45W)
- Dual 1080P displays by on-board VGA & DisplayPort (HDMI)
- DC input 19V
- Compact in size allows installation in limited space
- Highly expandable via internal Mini-PCIe interface (e.g. WLAN, 3G or TV tuner)
- Supports iManager, SUSIAccess and Embedded Software APIs
- Design compliant with Energy Star 5.2

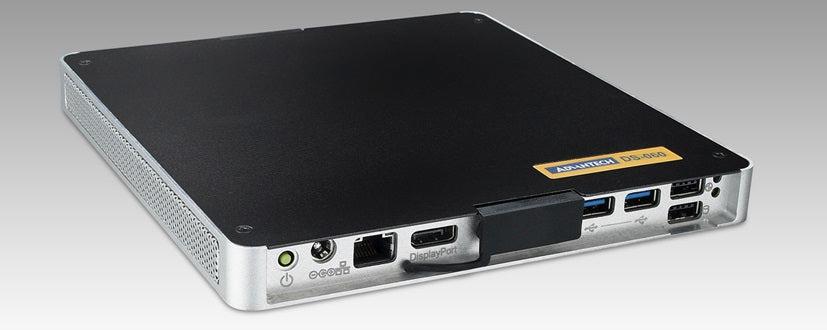

Measuring a mere 19 mm thick, DS-060 is undoubtedly the world’s slimmest digital signage player powered by a 3rd generation Intel® Core™ i7 processor (up to 45 watts TDP). This thin-and-powerful media player is equipped with 1x digital, plus 1x analog display outputs, and simultaneous dual 1080P(FHD) capability delivers a premium visual experience for when graphics performance really matters. Windows® Embedded OS, Linux, and Android are supported, with iManager preloaded, and SUSIAccess for Signage is also on offer. We’ve designed the DS-060 series in the smallest possible form factor, for optimized performance.
